VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables
PRODUCTS NAME
VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables.
PRODUCTS KEYWORDS
VV22, STA Armoured, cu/pvc/sta/pvc, power cable, copper wire, pvc insulated cable, electric cable, wire and cables.
PRODUCTS APPLICATION
VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables, power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.

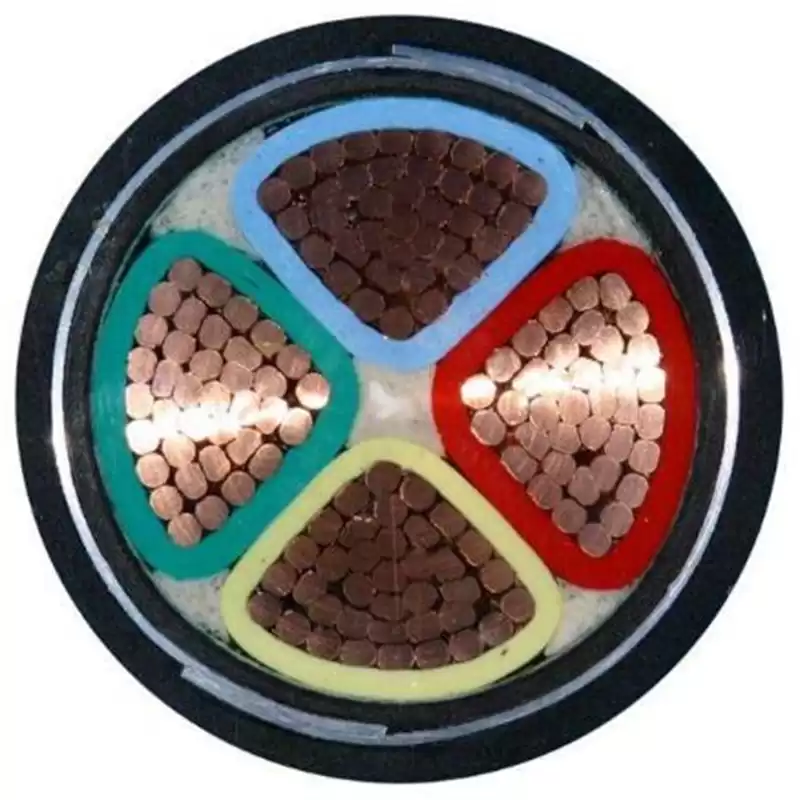

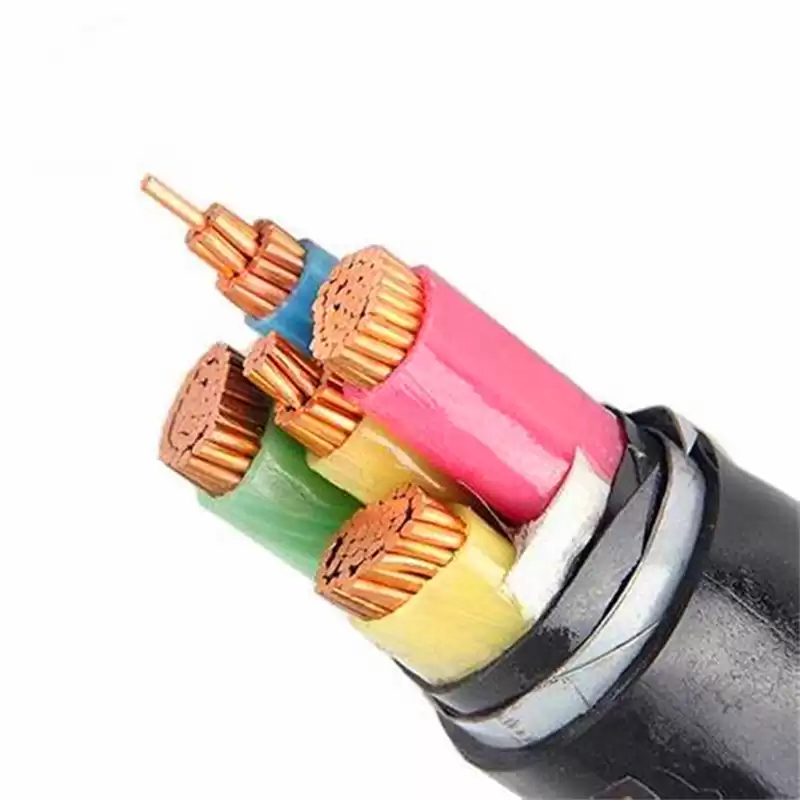

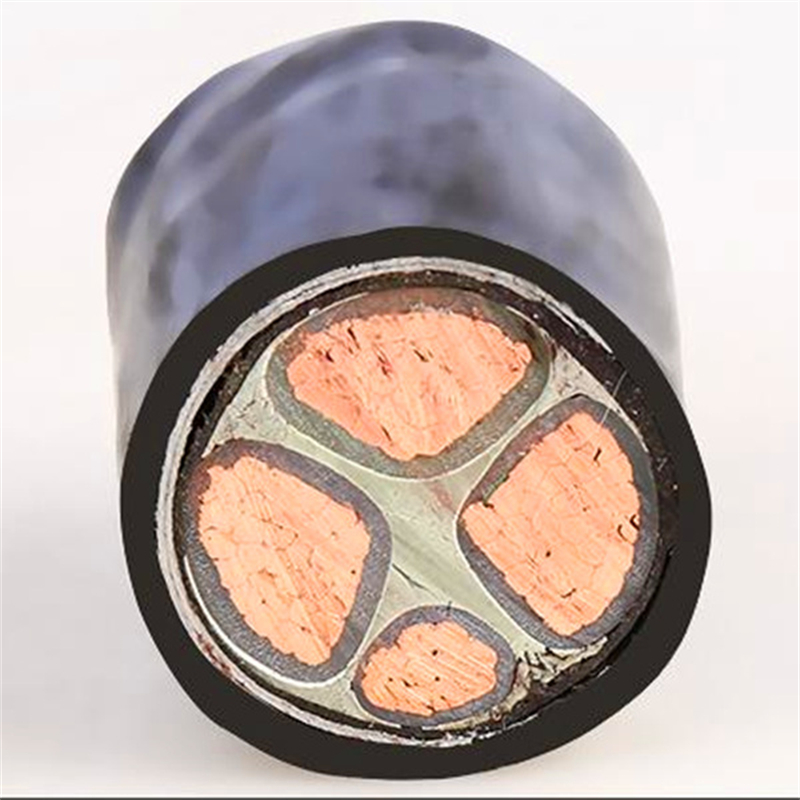

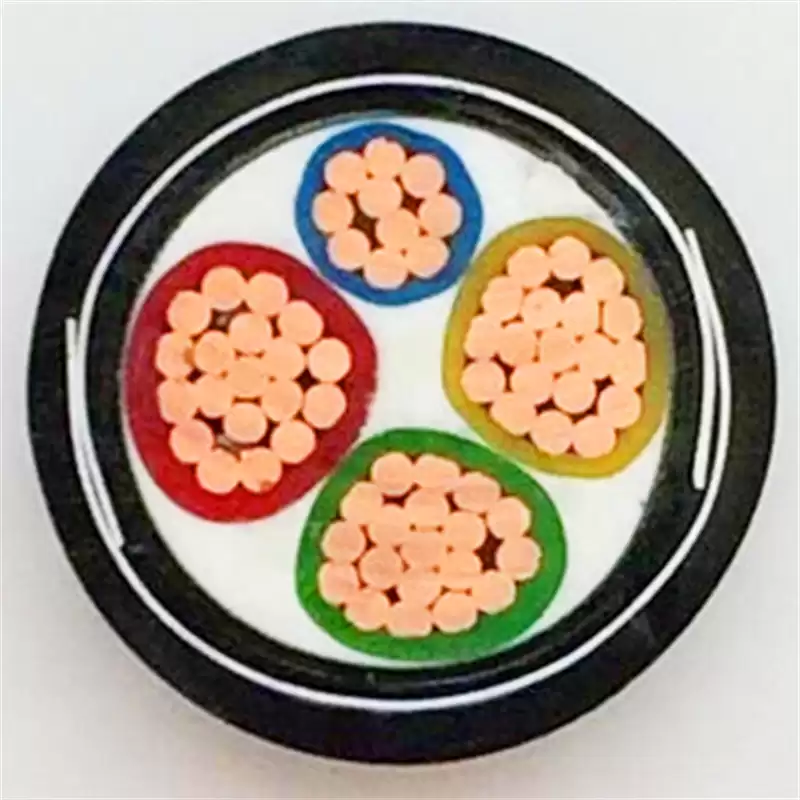

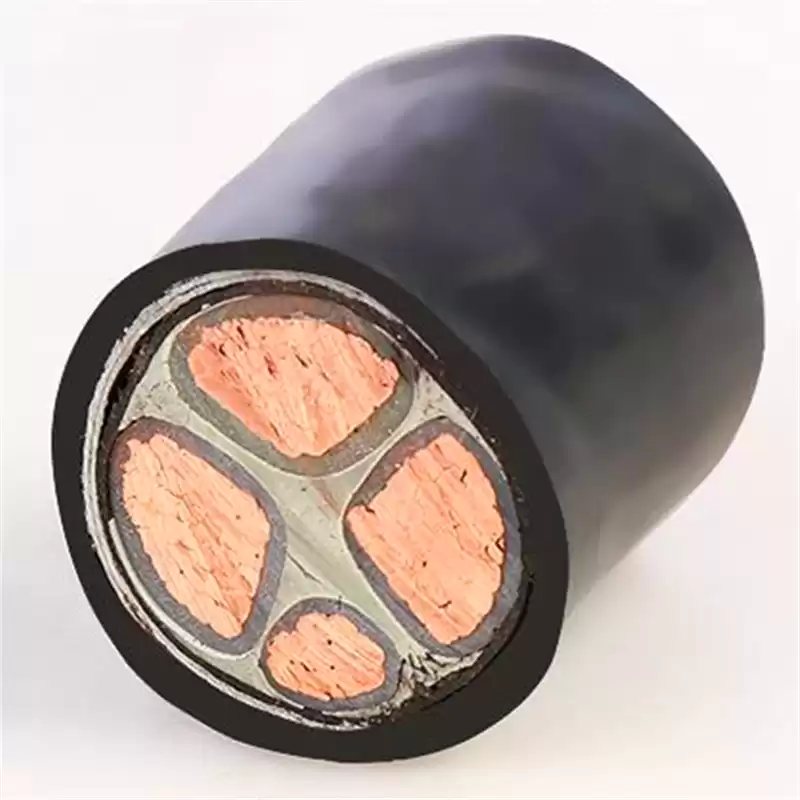

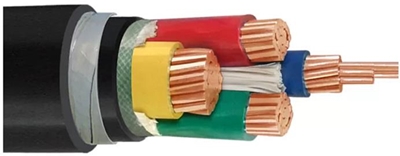

PRODUCTS STRUCTURE
VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Inner Sheath Material
PVC (polyvinyl chloride).
---Armoured Material
Galvanized steel tape armoured, double layers, 100% coverage.
---Out Sheath Material
PVC (polyvinyl chloride).
aPRODUCTS DIMENTIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables.
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 2.
|
|
Conductor Structure
|
3C x 7/2.14 mm.
|
|
Insulation Material
|
PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
1.2 mm.
|
|
Insulation Colour
|
Brown, blue, yellow/green; or others.
|
|
Inner Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Inner Sheath Thickness
|
1.0 mm.
|
|
Inner Sheath Colour
|
Black.
|
|
Armoured Material
|
Galvanized steel tape, double layers.
|
Out Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Out Sheath Thickness
|
1.8 mm.
|
|
Out Sheath Colour
|
Black, red, orange, or others.
|
|
Conductor Cross-section
|
3 x 25 mm2.
|
|
Core Number
|
Three cores, 3 cores, 3C.
|
|
Out Diameter
|
17.7 mm.
|
|
Voltage Rate
|
600/1000V, 0.6/1kV (U0/U).
|
|
About Net Weight
|
1166 kg/km.
|
|
Production Standard
|
GB/T 12706-2020, IEC 60502.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
0.727 Ω/km.
|
|
Min. Insulated
Resistance at 70℃
|
0.009 MΩ.km.
|
|
Max. Ampacity
at 25℃ in Undergroun
|
110A.
|
