VV22 PVC Insulated STA Armoured PVC Sheathed Power Cables
MAIN KEYWORDS
VV22, NYY-STA, NAYY-STA, CU/PVC/STA/PVC power cable, PVC 0.6/1kV power
cable.
APPLICATION CHARACTERISTICS

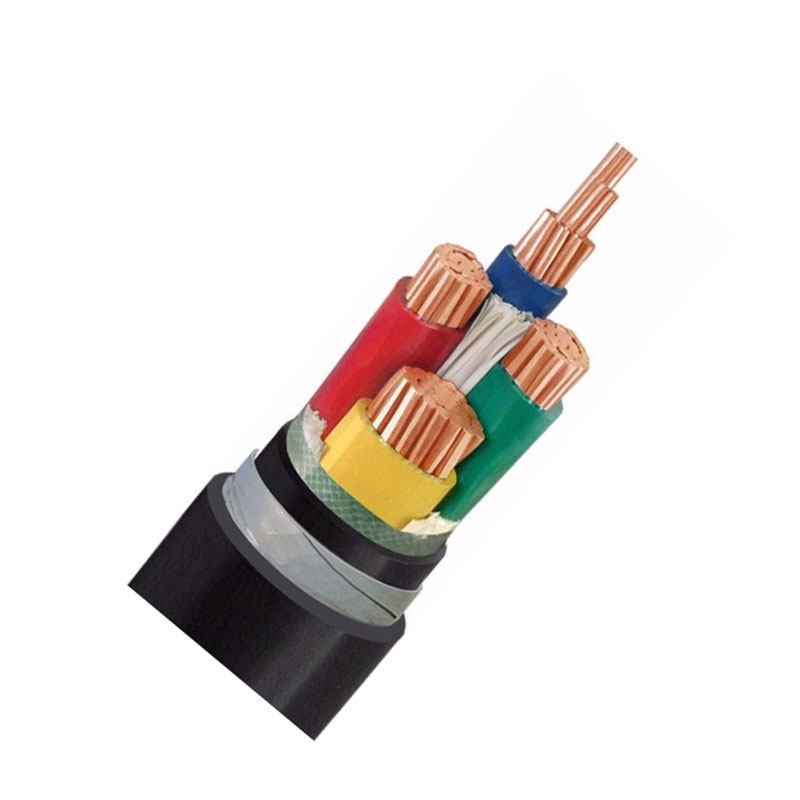

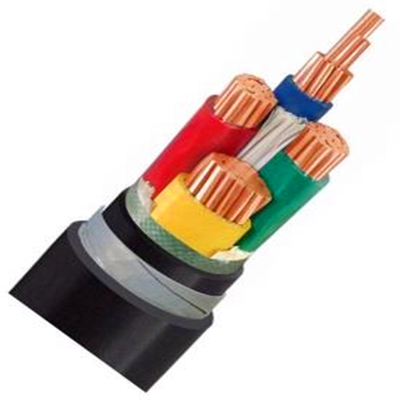

CU/PVC/STA/PVC

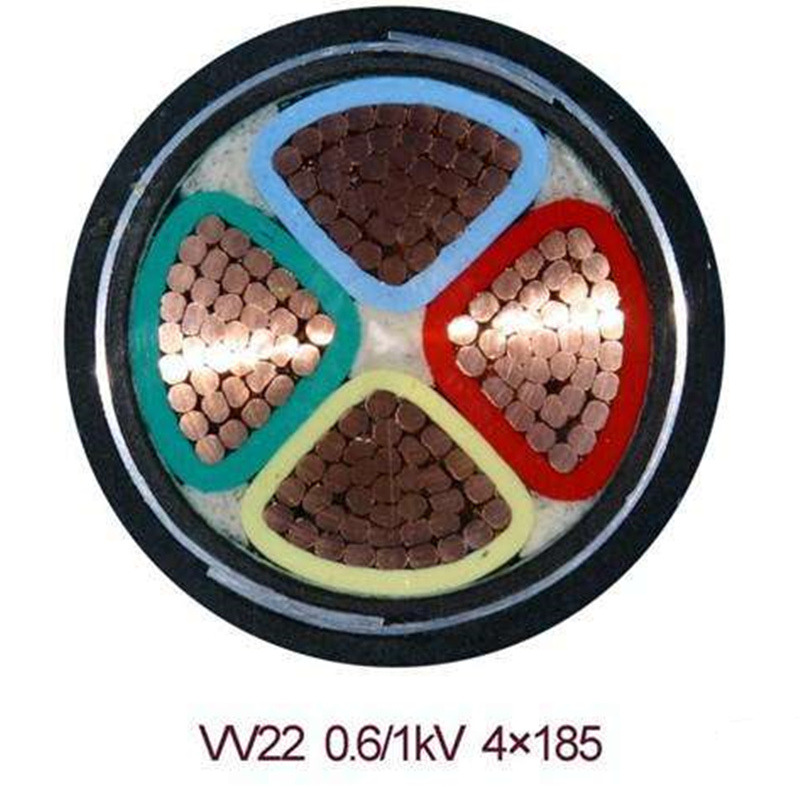

VV22 power cable, U0/U: 0.6/1kV (Um: 1.2kV),
copper conductor, PVC insulation, steel tape armored, PVC sheath, PVC inner
sheath is optioned. For laying indoor, tunnel, channel and underground, able to
bear external mechanical force. Power cables for fixed installations such as
distribution networks or industrial installations. Such as plant engineering, industrial
machinery, heating and air-conditioning systems, power stations, stage
applications etc.
(1) Armored
cables are generally fixed power cables, which are generally fixed in one place
and do not move and the power lines transmit electric energy.
(2) In addition
to the above purposes, the cable with armor layer can also enhance the tensile
strength, compressive strength and other mechanical protection to extend the
service life.
(3) Armored cable has a
certain resistance to external forces, but also to prevent the rat bite, not
through the armored caused power transmission problems, armored bending radius
should be large, armored layer can be grounded to protect the cable.

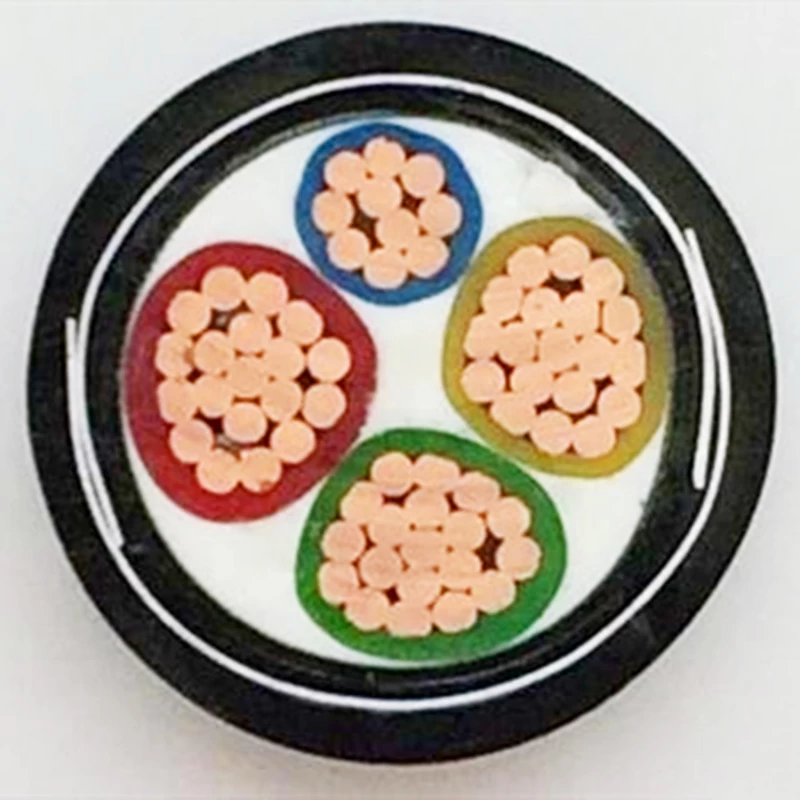

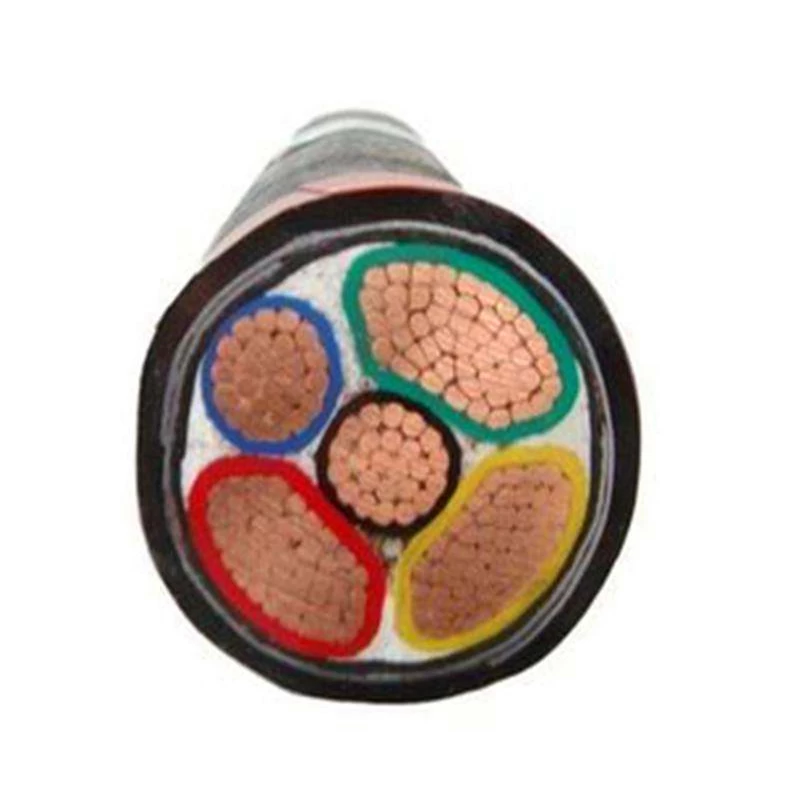

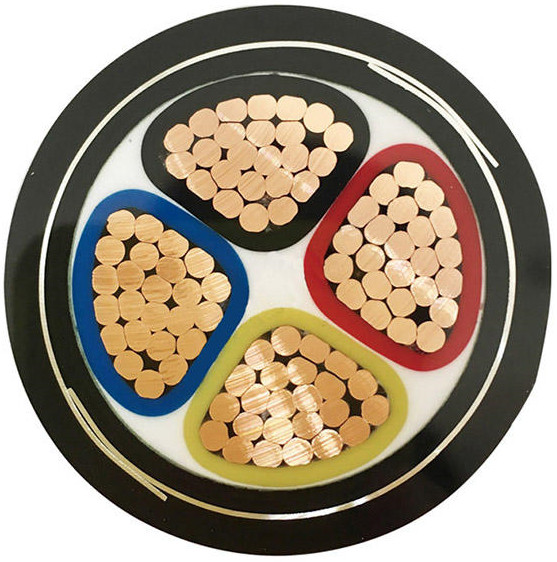

PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, solid class 1, or strand class 2.
---Insulation Material (inner insulation)
PVC (polyvinyl chloride).
---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: we will choose other colors according to the customer request.
---Filler Material
Fiberglass tape, or PVC (Polyvinyl chloride).
---Cabling Material
Non-woven fabrics
---Armoured Material
Galvanized steel tape.
---Sheath Material (out insulation)
PVC (polyvinyl chloride)
---Sheath Colour
Black, or others.
---Core Number
2～5 cores, 2C～5C.
---Voltage Rate (U0/U)
0.6/1kV, 600/1000V (Um: 1.2kV).
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Fixed: 20 x Out Diameter.
---Production Standard
GB/T 12706, IEC 60502, BS EN/IEC60502, BS 7870, DIN VDE 0276.
---Products Delivery
Within 10-15 working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90
& 105 degree, but the production process and insulation materials maybe has
a few of different.
---For the VV22 power cable, according
to the practice, the common specification is 25～300 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
