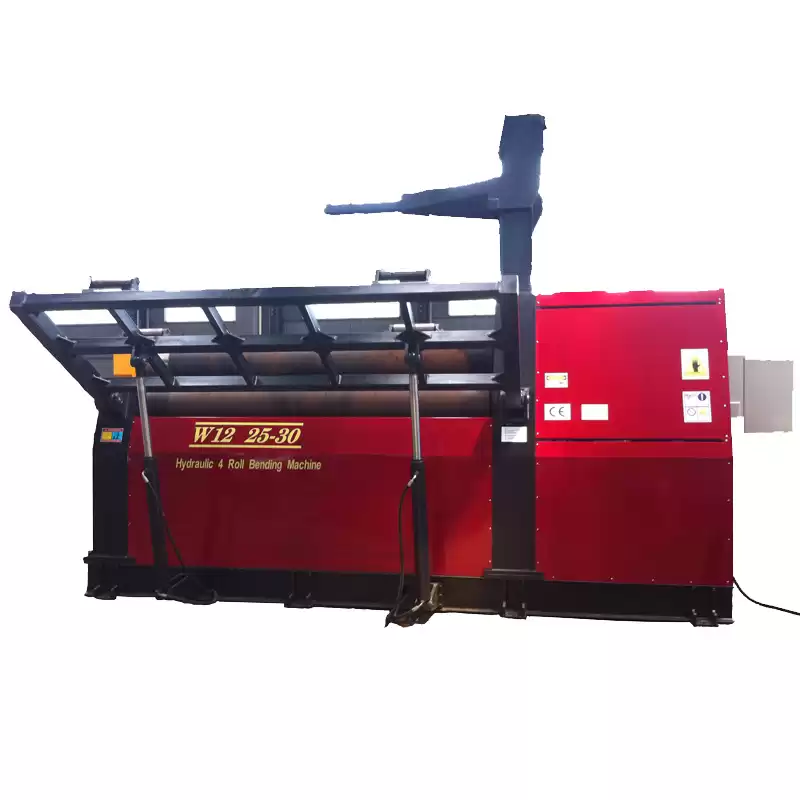

W12-25X3000 Hydraulic Four-Roller Plate Bending Machine
Details Features of Hydraulic Four-Roller Plate Bending Machine
1:The rest of the straight edge segment is greatly reduced - only one end of the board is fed. There is also the source of its outstanding pre bending capacity: clip point completely fell on the edge of the plate.
2:Automatic feeding material - with the feed side of the opposite side of the rear roll, can be used as a rear stop material, the plate immediately into a right angle parallel position, sheet metal flat easy, single operation can.
3:After the correction of the plate, the upper and lower parts of the middle of the clip to the middle of the clamp, so it is safe and easy to operate, there is no risk of sheet slippage.
4:In the front of the plate, the diameter of the cylinder can be made immediately. Because only in the machine tool side need to enter the space can be used, which means that the operation of the machine tool is less space.
5:After the cylinder volume is made, the end of the roll is made. A cylinder by bending forming.
6: aper coil is easy, can be rolled to the biggest angle of 30 degree cone. The side roll is inclined to determine the angle of the cone, and the center of the lower center can also tilt, clamp and drive plate.
7:In the rolling process, ensure the plate clamping and driving, four roller bending machine is the single most applicable on the NC and CNC systems through effective control of the bending machine.
8In the cylinder after rolling, rolling on the tail edge (four roller bending machine can bend ahead, can also bend back). A cylinder by bending forming.
Detail image of Hydraulic Four-Roller Plate Bending Machine

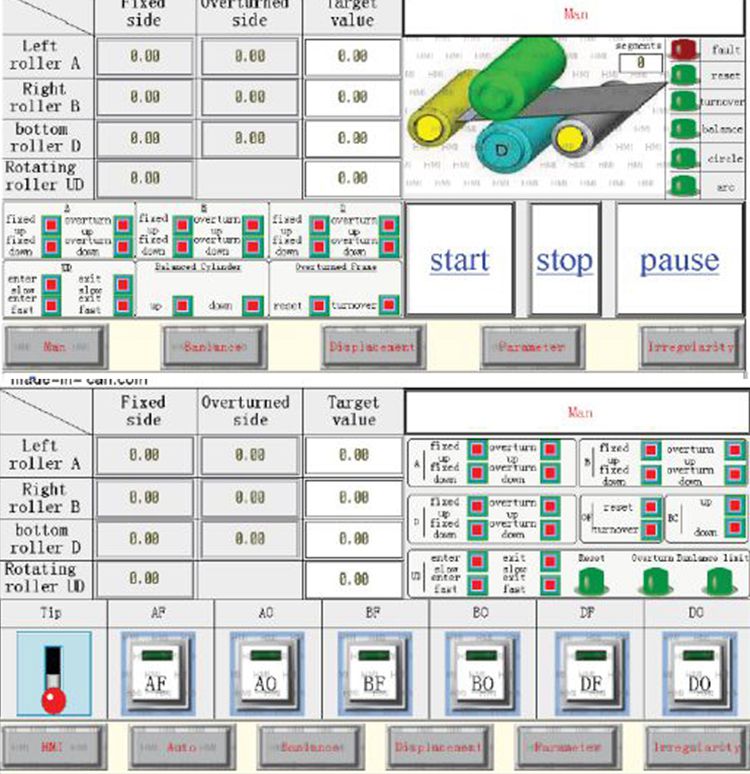

1)Numeric Controls
To roll a lot of identical plates, just press the “start” button. All the movements will be automatically performed by the CNC (as different materials change the diameters, manual corrections can be required, to improve the results).It is suggested to roll in one pass automatic mode up to 60~70% of the pre-bending capacity (multiple passes parts can be eventually programmed in Editor mode).Proven programs can be saved in memory, for future use.
Technical characteristics
a:10 programmable axis
b:Huge capacity for program memory
c:Illuminated graphic display on 10” screen
d:Operating mode：Manual mode；Automatic mode

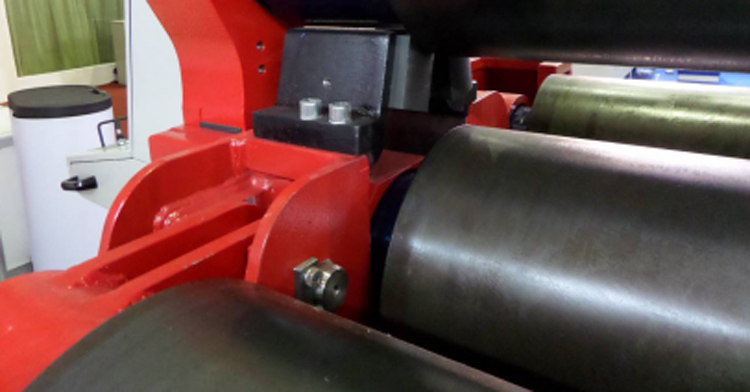

2)Cone
This is cone-rolling device

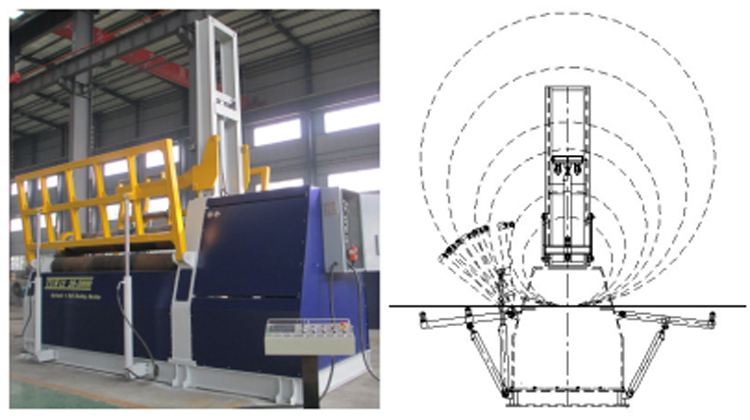

3)Support System(Optional Accessories)

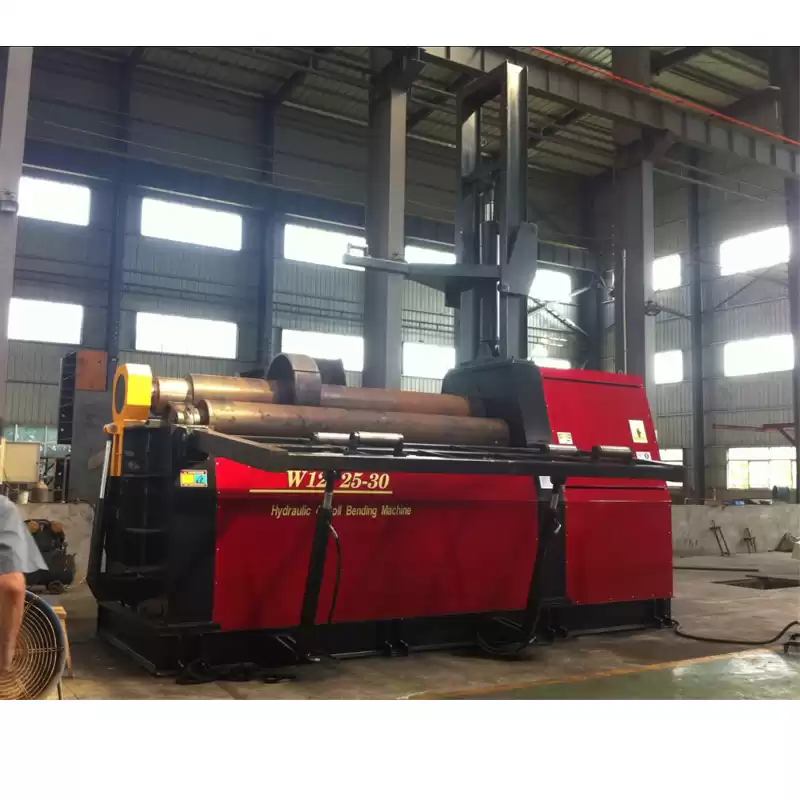

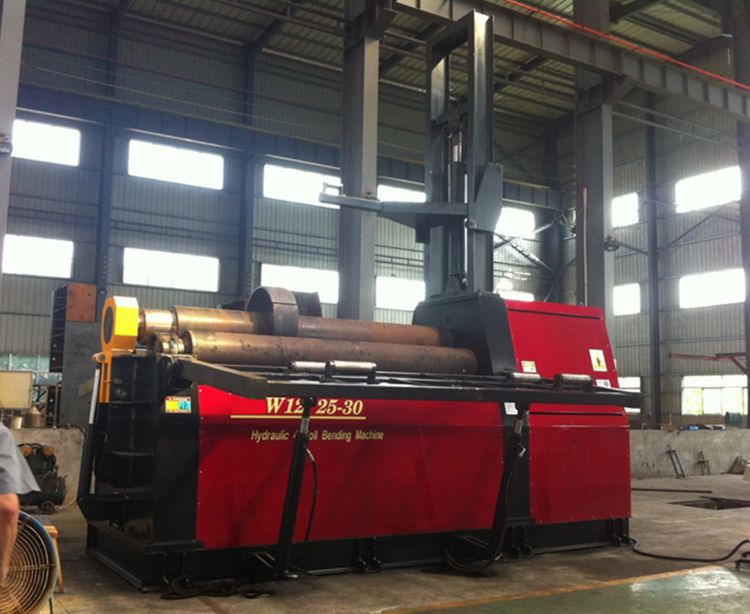

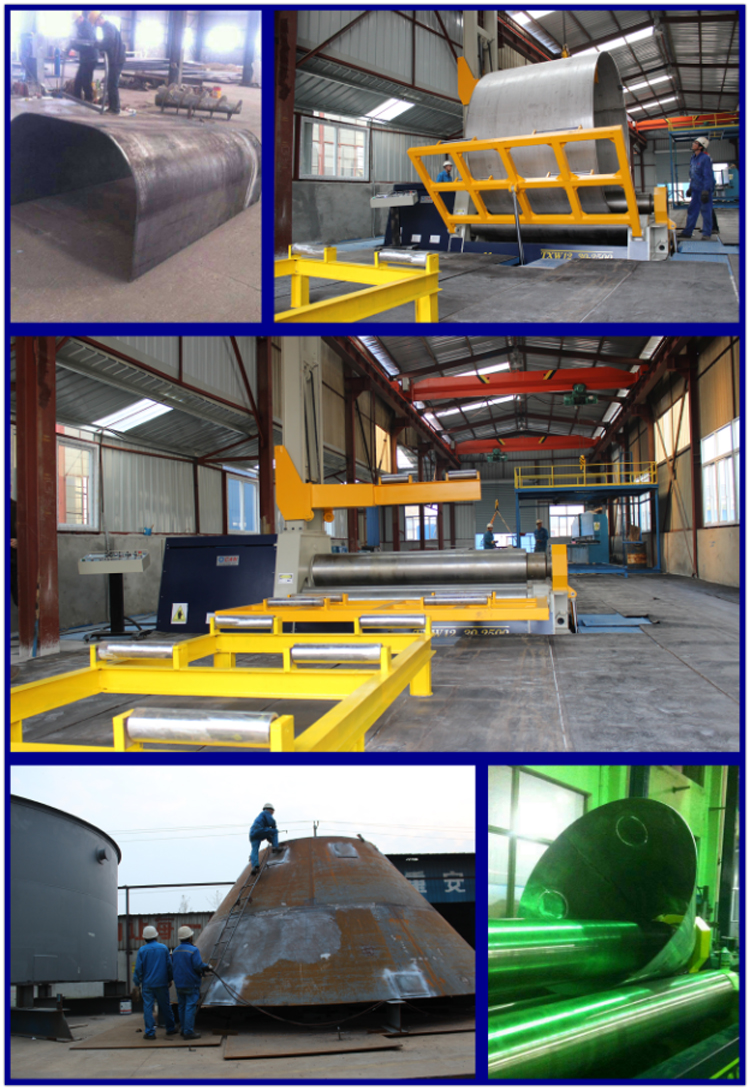

Detail Sample Image of W12-25X3000 Hydraulic Four-Roller Plate Bending Machine
FAQ:
A:Warranty :3 Years
B:Payment :TT or LC .
C:Delivery: Within 45 to 60 working days
