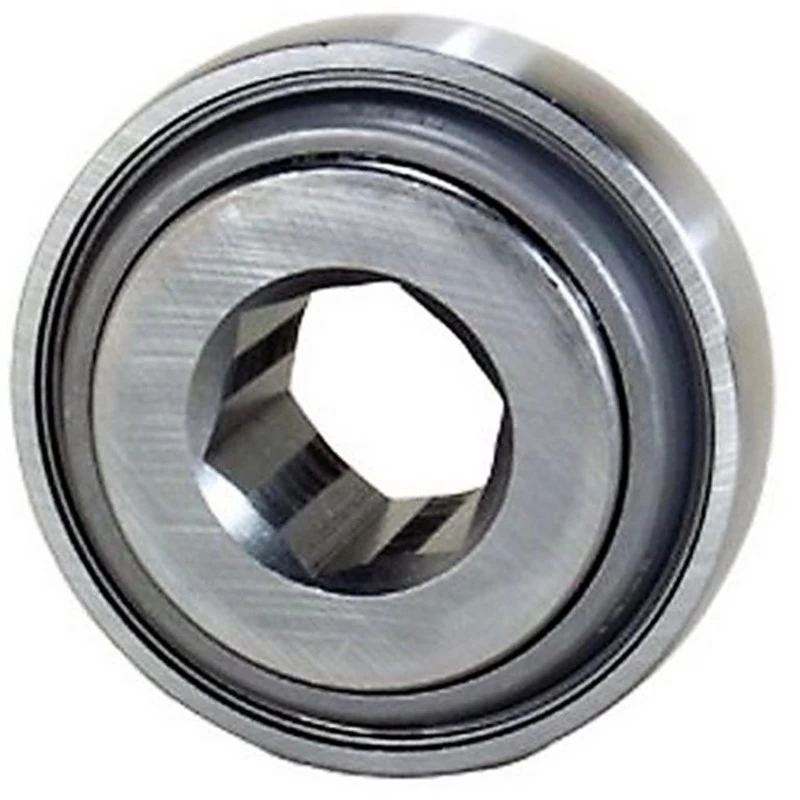

W210 PP8 agricultural machinery bearings
|
Bearing NO.
|
Type
|
Dimensions(in./mm)
|
Dynamic load ratings(N)
|
Static load ratings(N)
|
Weight
(kg)
|
|
d
|
D
|
C
|
B
|
|
W210 PP8
|
4
|
1.53
|
3.5433
|
1.189
|
1.189
|
35000
|
23200
|
0.836
|
|
W210 PP8
|
4
|
38.862
|
90
|
30.2
|
30.2
|
35000
|
23200
|
0.836
|
|
W211 PP2
|
4
|
2.18
|
3.937
|
1.311
|
1.311
|
43300
|
29200
|
1.01
|
|
W211 PP2
|
4
|
55.575
|
100
|
33.3
|
33.3
|
43300
|
29200
|
1.01
|
|
W211 PPB2
|
2
|
2.18
|
3.937
|
1.311
|
1.311
|
43300
|
29200
|
0.81
|
|
W211 PPB2
|
2
|
55.575
|
100
|
33.3
|
33.3
|
43300
|
29200
|
0.81
|
|
W214 PP2
|
4
|
2.7559
|
4.9213
|
1.563
|
1.563
|
62100
|
44800
|
1.902
|
|
W214 PP2
|
4
|
70
|
125
|
39.7
|
39.7
|
62100
|
44800
|
1.902
|
|
W214 PPB2
|
2
|
2.7559
|
4.9213
|
1.563
|
1.563
|
62100
|
44800
|
1.667
|
|
W214 PPB2
|
2
|
70
|
125
|
39.7
|
39.7
|
62100
|
44800
|
1.667
|
|
W214 PPB9
|
1
|
2.7661
|
4.9213
|
1.1024
|
1.75
|
62100
|
44800
|
1.902
|
|
W214 PPB9
|
1
|
70.26
|
125
|
28
|
44.45
|
62100
|
44800
|
1.902
|
|
WIR210-31
|
5
|
1.937
|
2.543
|
0.787
|
1.937
|
35000
|
23200
|
0.74
|
|
WIR210-31
|
5
|
49.2
|
90
|
20
|
49.2
|
35000
|
23200
|
0.74
|
|
WIR211-33
|
5
|
2.063
|
3.937
|
0.827
|
2.189
|
43300
|
29200
|
1.122
|
|
WIR211-33
|
5
|
52.388
|
100
|
21
|
56.6
|
43300
|
29200
|
1.122
|
|
WIR212-39
|
5
|
2.437
|
4.331
|
0.866
|
2.437
|
47700
|
32800
|
1.249
|
|
WIR212-39
|
5
|
61.912
|
110
|
22
|
61.9
|
47700
|
32800
|
1.249
|
Agricultural machinerybearings are specially designed for harsh environments in farming, seeding or lawn care applications. These bearings include single lip (F or G), double lip or triple lip seal options that have been joined to thick gauge steel shrouds to provide protection in the most demanding environments. FQN's performance and reliability have been verified by rigorous internal and independent laboratory tests.
Application range:
·Agriculture-combine harvesters, tillage equipment, hay bales, lawn mower regulators, cotton pickers, drilling machines, planters / seeders, wheel bearings, disc bearings ...
·Lawn & Garden-Mower wheels and main shaft.
·Conveyor-grain, aggregate
The FQN agricultural machinery bearing series offers the industry's widest range of standard inner diameter sizes and style options. The series includes Conrad bearings for flange installations, disk harrow bearings with round and square holes, hexagon socket bearings, 200 and select 300 series bearings and 4-point contact Gothic arc single and double row Bearings (with heavy-duty contact seals). These bearings are designed for various working conditions from mild to harsh environments.
Features:
Bearing:
o The widest range of industry-standard inner diameter sizes and style options
o Improved raceway geometry improves thrust and bending moment load capacity
o Super-precision raceways and advanced balls are used to improve accuracy and extend service life
·Assembly:
o Easy assembly / replacement with pre-assembled bearing + housing assembly products
