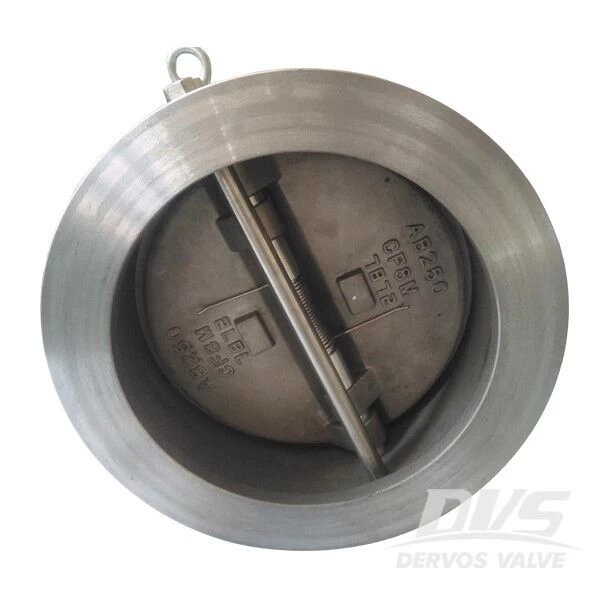

The dual plate wafer type check valve can match with
10 inch 300LB RF flange. The wafer check valve owns a compact and light body,
composed of WCB body and stainless steel trim.
Quick Detail
|
Type
|
Check Valve
|
|
Size
|
10”
|
|
Design & Pressure
|
Class 300
|
|
Construction
|
Dual Plate/Dual Disc Type
|
|
Connection
|
Wafer
|
|
Design & Manufacture
|
API 594
|
|
End to End
|
ASME B16.10
|
|
Connection
|
ASME B16.5
|
|
Pressure & Temp
|
ASME B16.34
|
|
Test & Inspection
|
API 598
|
|
Body Material
|
Cast Steel WCB
|
|
Trim Material
|
Stainless Steel CF8M
|
|
Media
|
W.O.G.
|

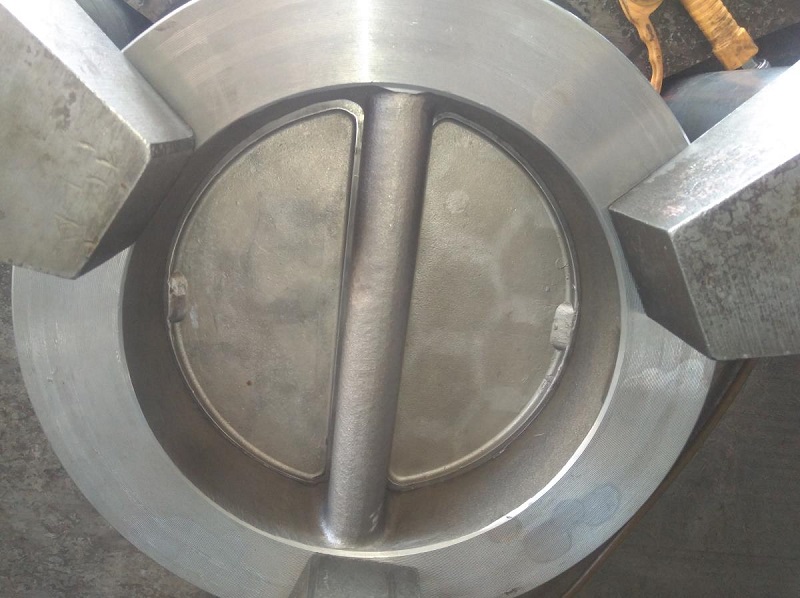

Pressure Testing

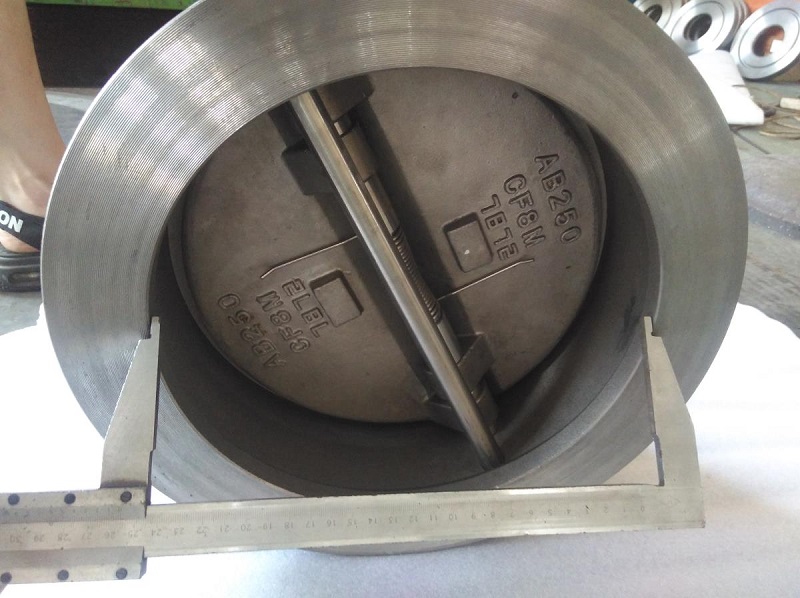

Dimension Checking
