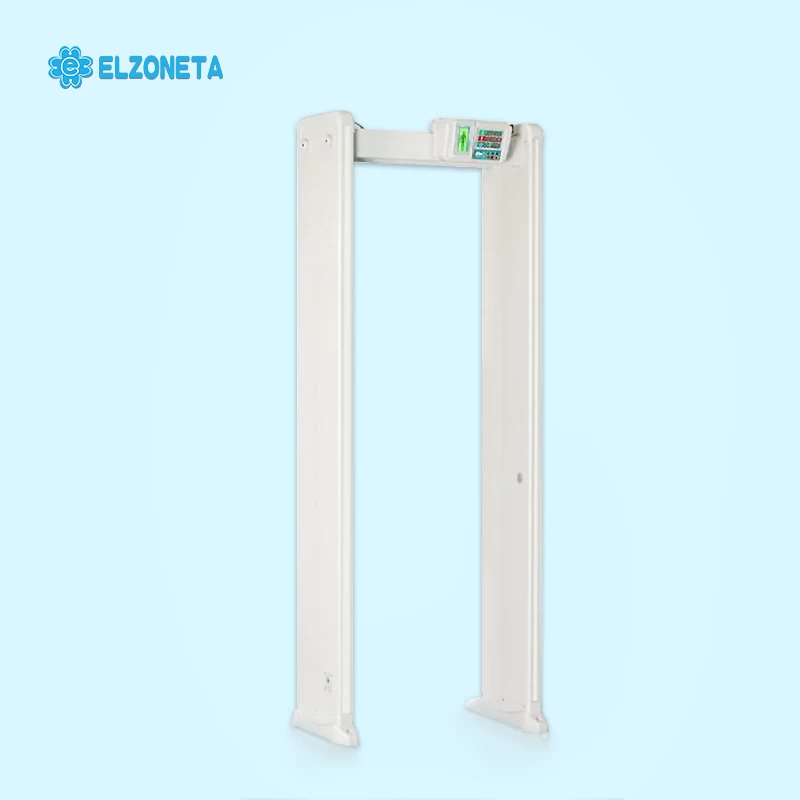

EC-ACS-DD01 Metal Detected Door 6 zones
Features and Functions
1．Adjustable sensitivity of each detection zone
2．Multi-alarm sounds to choose
3．Operating frequency can be adjusted manually or automatically
4．Detection technology: Even detection technology,no blind spot
5．Internet technology:Remote upgrade system and remote control system
6．Working band: 50 working bands
7．Sensitivity of each detection zone:400 level
8．Security level: 100 level
9．Statistics: Record the pass and alarm numbers
10．Query function: The system has real-time information query function
11．Intelligent Standby: The system has intelligent standby operation alerts
12．Detection speed: more than 60 people pass and detect in 1 minute
Advanced function
1. Intelligent partion: Can change detection zones according customers’ demands.
For example convert 6 zones to 12 zones,18 zones and 33 zones(optional)
2. Computer network function: Can connect PC terminal that change specification of WTMD.
Also can check Real—Time type amount of walked-through people via computer(optional)
3. We intergrated 72 application occasions in the program,so can change all zones.
Sensitivity when you choose different occaasion
4. Have 4 kinds infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON
Technical Parameters
Vertical dimension: 2220x460x850mm
Vertical channel size: 2000x700mm
Packing size: 2270x650x240mm
Net weight of main box/detection door: 40KG
Gross weight of main box/detection door: 48KG
Detection zones: 6 zones
Working voltage: AC90V~240V50/Hz
Power consumption: 20W
Each zone sensitivity: 1-400 Level
Security level: 100 Level
Working frequency range: 1-50 bands
Working environment temperature: -20℃~65℃

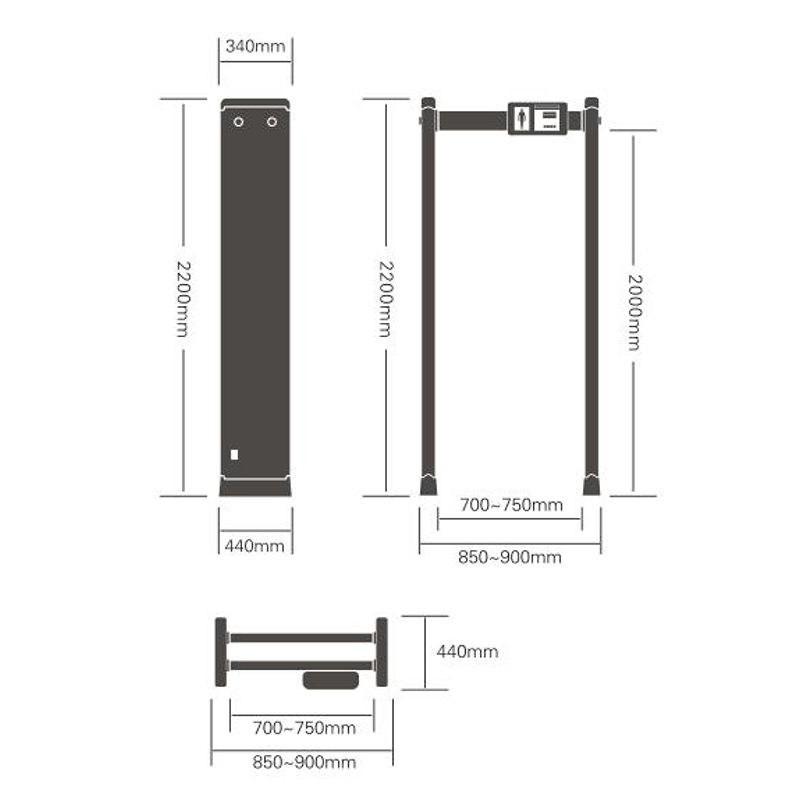

Dimension
