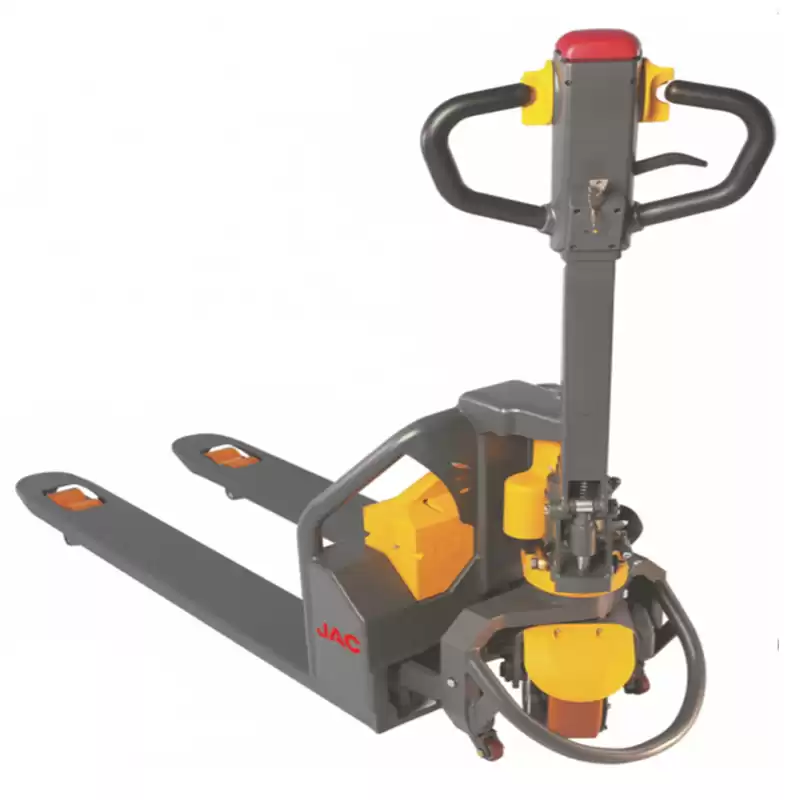

1. Advantages:
•48V large capacity maintenance-free lithium battery, long working time around 6hours.
•The charging time only needs 3 hours.
•10 seconds replacement of the battery(two groups exchanged battery can be used for 24 hours of continuous work).
•Brushless motor, maintenance-free, high efficiency.
•Stepless speed, smooth speed changing.
•Small and beautiful, flexible steering, which can successfully enter the narrow space, such as elevators, small super market.
•Multi-function Control Handle
incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch for ease of use.
•Ergonomic Spring-loaded
steering handle with comfort grip for reduced operator fatigue.
•Long Tiller with Large Hand Grip
for easy and comfortable hold, strain-free operation.
•Plug-in Battery Design
makes it easier to remove and change, no need additional tools or devices.
•Integrated Rocker Arm
The rocker arm is casted in single piece, intensifying the strength and structure.
•Compact Vehicle Design
Rugged and high-performing yet light weight body provides exceptional maneuverability in tight areas.
•Less Wiring, Easy Service
Mechanical and electronic components are easy to change and service.
•Brushless Motor
Stepless speed control provides better and smoother speed changing. Brushless motor is easy for maintenance.
2. Range of Application
•Indoor use, light duty work
•Warehouses freight handling
•Retail outlets
•Frozen food storage
•Chemical handing and processing facilities
3. Specification
|
Model
|
|
CBD12W-Li
|
CBD15W-Li
|
|
Load capacity
|
Q(kg)
|
1200
|
1500
|
|
Load centre distance
|
c(mm)
|
600
|
600
|
|
Fork height, lowered
|
h13(mm)
|
80
|
80
|
|
Tyre size, front
|
mm
|
Φ250
|
Φ250
|
|
Tyre size, rear(single)
|
mm
|
Φ80
|
Φ80
|
|
Wheels, number front rear(x = driven wheels)
|
|
1x-2/4
|
1x-2/4
|
|
Max. lift height
|
h3(mm)
|
110
|
110
|
|
Height of tiller in drive position min./ max.
|
h14(mm)
|
635/1200
|
635/1200
|
|
Overall length
|
l1(mm)
|
1651/1721
|
1651/1721
|
|
Length to face of forks
|
l2(mm)
|
502
|
502
|
|
Overall width
|
b1(mm)
|
550/680
|
550/685
|
|
Fork dimensions
|
s/e/l(mm)
|
45/160/1150(1220)
|
45/160/1150(1220)
|
|
Width overall forks
|
b5(mm)
|
550/680
|
550/685
|
|
Aisle width for pallets 1000×1200 crossways
|
Ast(mm)
|
1850/1920
|
1850/1920
|
|
Aisle width for pallets 800×1200 lengthways
|
Ast(mm)
|
1900/1920
|
1900/1920
|
|
Turning radius
|
Wa(mm)
|
1452/1522
|
1452/1522
|
|
Travel speed, laden/ unladen
|
km/h
|
4/4.5
|
4/4.5
|
|
Max. gradeability, laden/unladen
|
%
|
5/20
|
4/20
|
|
Battery voltage,nominal capacity K5
|
V/Ah
|
48/20
|
48/20
|
|
Battery dimensions l/w/h
|
mm
|
340x130x307
|
340x130x307
|
|
Battery weight
|
kg
|
10
|
10
|
|
Service weight (with battery)
|
kg
|
140
|
145
|
Injuries from back or shoulder muscle
strains are one of the most common types of workplace injuries for
employees, especially for those who maneuver heavy pallet trucks around
busy workplaces all day, every day. One-fifth of work-related injury
complaints are related to back pain, and the manual handling industry is
one of the biggest culprits. Our lightweight pallet truck can
effectively prevent employees from straining their backs.
