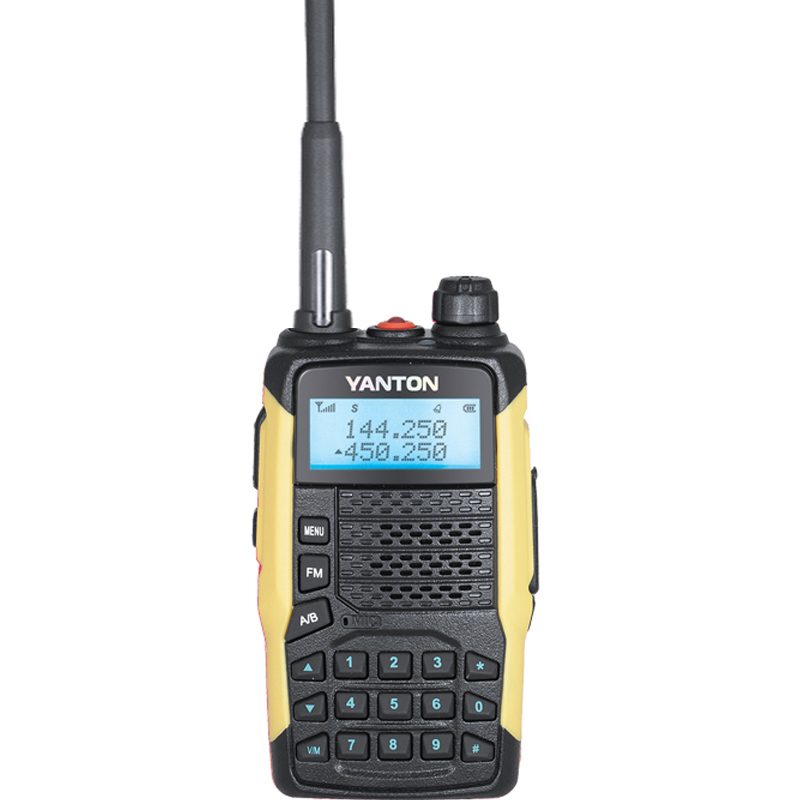

Walkie Talkie Dual Band VHF UHF Portable CB Radio Station
Portable VHF UHF CB Two Way Radio,GT-03 dual band radio has Multi-function operation mode, scrabmler, DTMF, CTCSS/DSC; provides cost-effective using experience.
Quick Details
1.Output Power:4W/5W
2.Frequency Range:136-174MHz&400-480MHz
3.Dual Band, Dual Display, Dual Standby
4.2*128 Channels Storage
5.Emergency Alert
6.FM Radio and 25 Stations Storage
7.CTCSS/DCS Scanning
8.0-9 Grades VOX Selectable
9.Multi and Priority Channel Scan Function
10.Channel Name Display and Setting
11.Power-on Message Display
12.Frequency Difference Setting
13.PC Software Programmable, Wired Clone Function
14.Reverse Frequency
15.Wide/Narrow Band(25kHz/12.5kHz)
16.Busy Channel Lock-out(BCLO)
17.Transmitter Time-out Timer(TOT)
18.End-tone Elimination
19.LED Setting
20.Beep Setting
21.Transmit Over Beeper
22.Dual Monitor
23.Receive Power Saving
24.Battery Power Display
25.Repeater Shift Direction
26.Frequency Spacing Function
27.Shortcut Menu Operation Mode
28.High/Low TX Power Selectable
29.2200mAH Li-ion Battery
Specification
|
GENERAL
|
|
Frequency
Range
|
136-174MHz/350-390MHz/400-480MHz
|
|
Operating
Temperature
|
-20℃to +55℃
|
|
Frequency
Combination
|
please
lock frequency synthesize
|
|
Frequency
Stability
|
±2.5ppm
|
|
Memmory
Channel
|
2*128channel
|
|
Working
Voltage
|
7.4v
|
|
Antenna
Impedance
|
50Ω
|
|
Operating
Mode
|
simplex
of co-frequency or alien
|
|

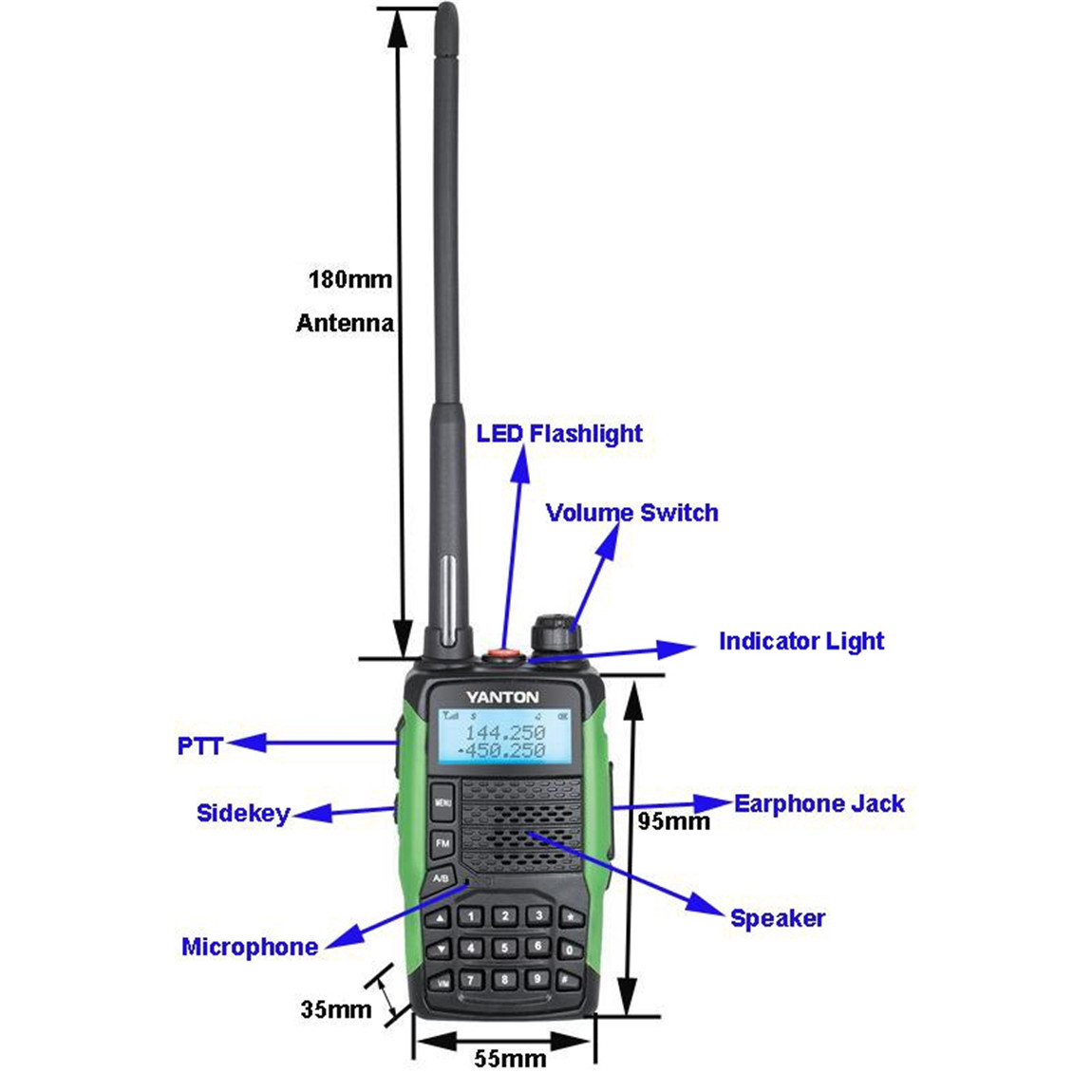

Dimensions
|
122*60*38mm
|
|
Weight
|
232g
|
|
TRANSMIT PART
|
|
RF
power
|
5w
|
|
Modulate
Mode
|
F3E
|
|
Max.Freq.Deviation
|
≤5KHz
|
|
Remain
Wave Radiation
|
＜-60dB
|
|
Transmitting
Current
|
≤1000mA
|
|
RECEIVER PART
|
|
Sensitivity
|
＜0.20uV
(12dB SINAD)
|
|
Squeich
Sensitivity
|
＜0.20uV
|
|
Intermodulation
Antijamming
|
50dB
|
|
Audio
Power output
|
500mW
|
|
Receiving
Current
|
≤100mA
|
|
Squelch
Stangby
|
20mA
|
Portable VHF UHF CB Two Way Radio
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
