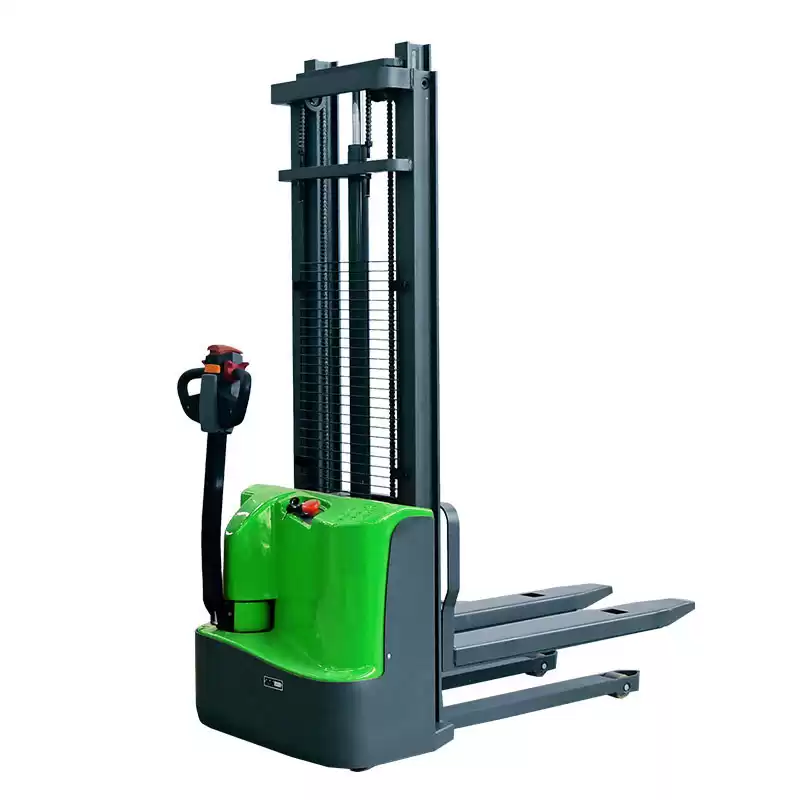

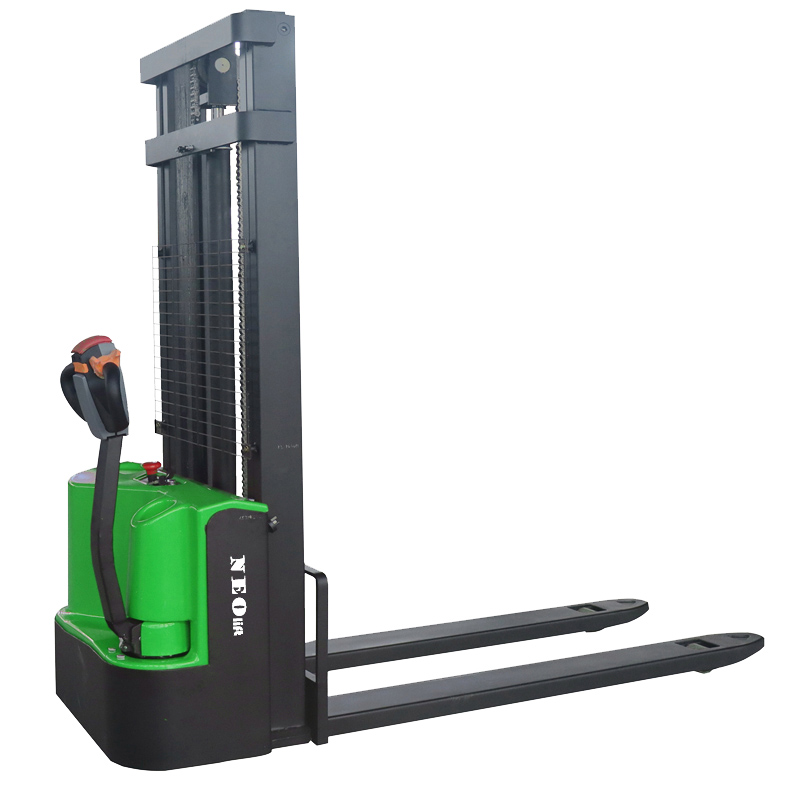

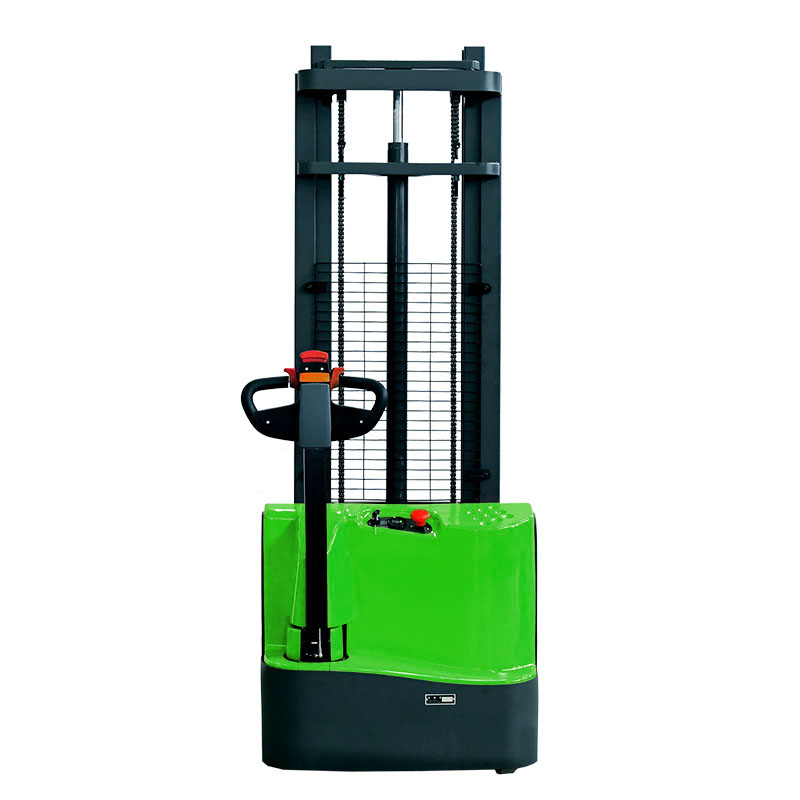

Walkie Type Electric Battery Powered Pallet Stacker

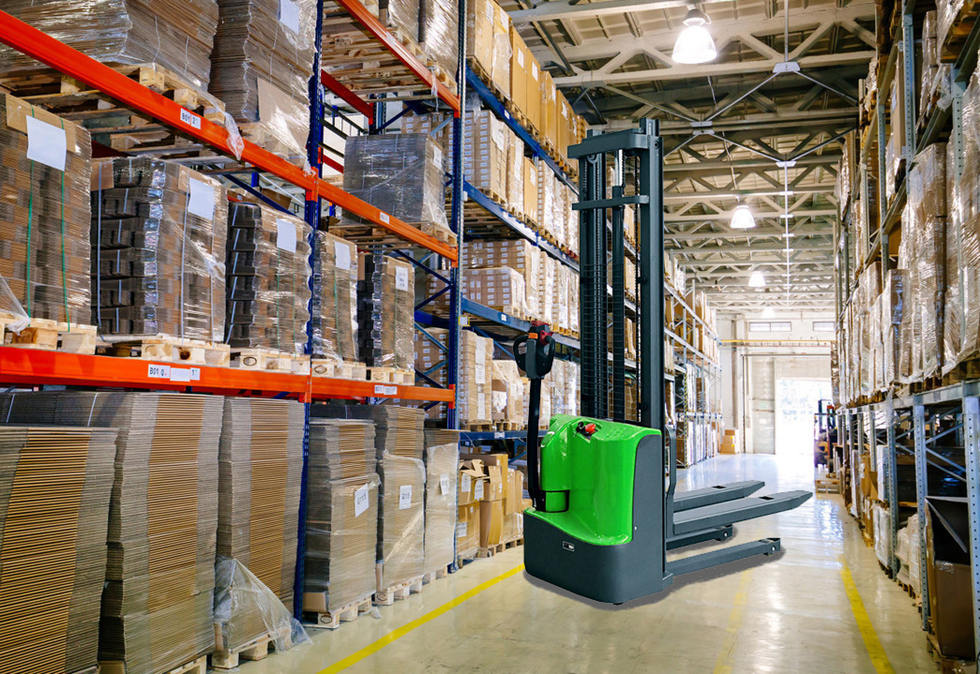

Electric walkie pallet stacker,loading capacity 1200-2000KG with lifting height 1600-5000mm.For short-distance handling and stacking of goods in warehouses, supermarkets, workshops, home interiors and palletized goods. Working time: under light working conditions, regular work 4-5 hours.

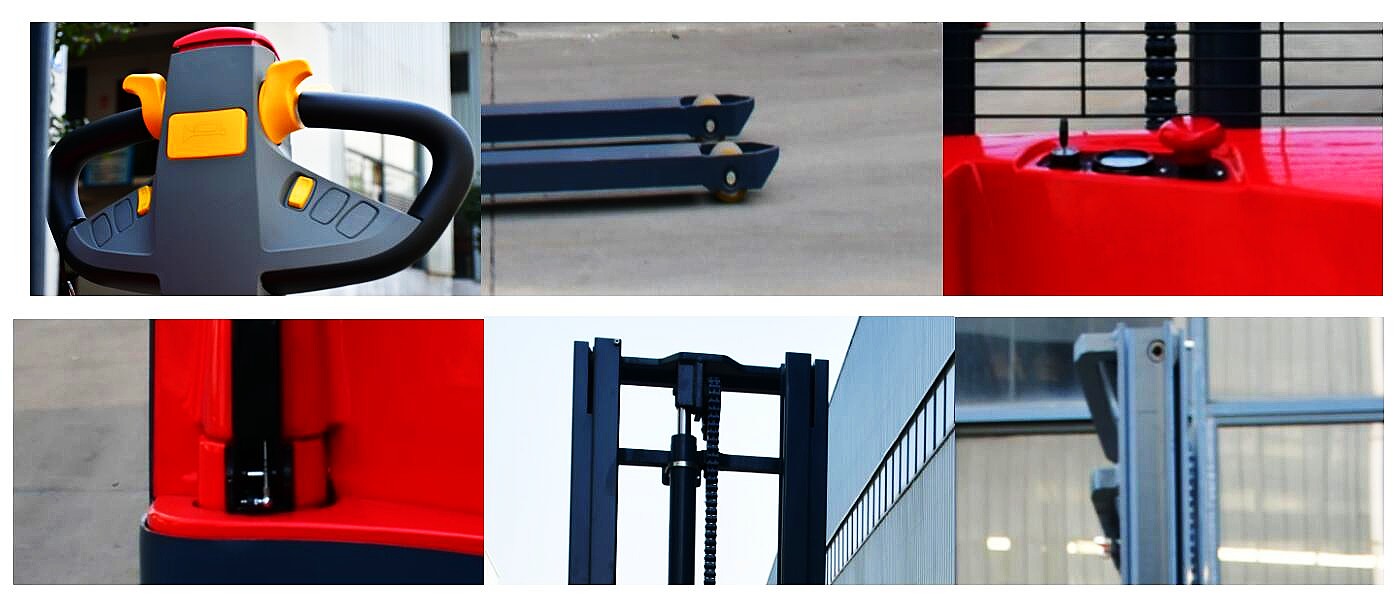

Features:
1. The mast is 10#H-type hot-rolled mast channel steel, which is stronger.
2. The body structure is compact, the stacking channel is small, within 2.1M; the four fulcrum design has good stability.
3. Maintenance-free battery.
4. The operating handle can be rotated 90 degrees left and right, and the handle can be braked at the vertical angle and the lowest angle.
5. It has the function of anti-slip on the slope, emergency braking to ensure safety.
6. It has the function of descending buffer. When the fork is less than a certain height from the ground, it will automatically decelerate.Effective protection of goods.
7. The car body is equipped with a protective net to prevent the leakage of hands and goods.

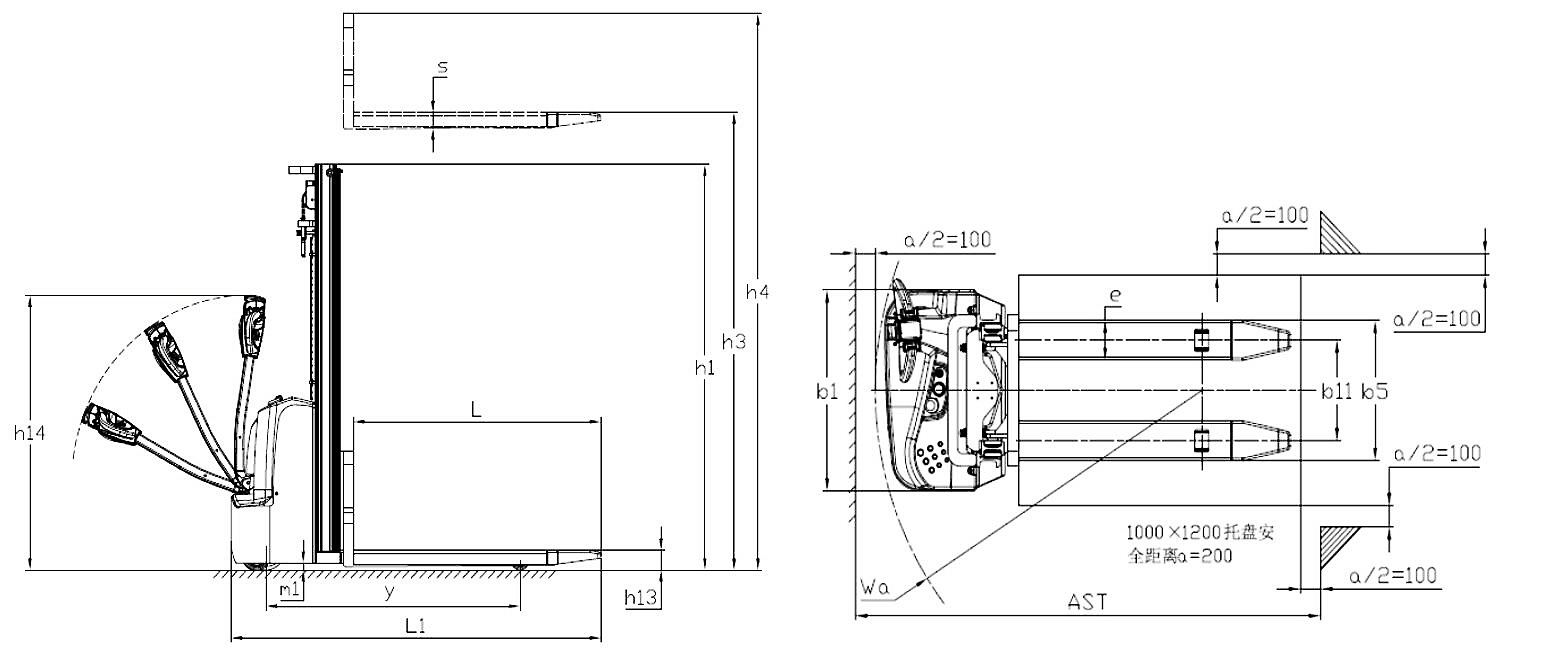

Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NSD12 |
NSD15 |
| Power type |
|
Battery |
Battery |
| Rated load |
kg |
1200 |
1500 |
| Service Weight(incl.battery) |
kg |
560 |
590 |
| Lift height |
mm |
3000 |
3000 |
| Handle height(min/max) |
mm |
800/1200 |
800/1200 |
| Fork size |
mm |
1150/160/60 |
1150/160/60 |
| Braking method |
|
Electromagnetic |
Electromagnetic |
| Drive motor power (S2-60min) |
kw |
0.75 |
0.75 |
| Lift motor power, (S3-15%) |
kw |
2 |
2 |
| Battery, voltage/rated capacity |
V/Ah |
2×12/80 |
2×12/80 |
| Battery weight |
kg |
50 |
50 |
| steering system |
|
Mechanical steering |
Mechanical steering |
| Battery replacement method |
|
Battery |
Battery |
| |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate：
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
