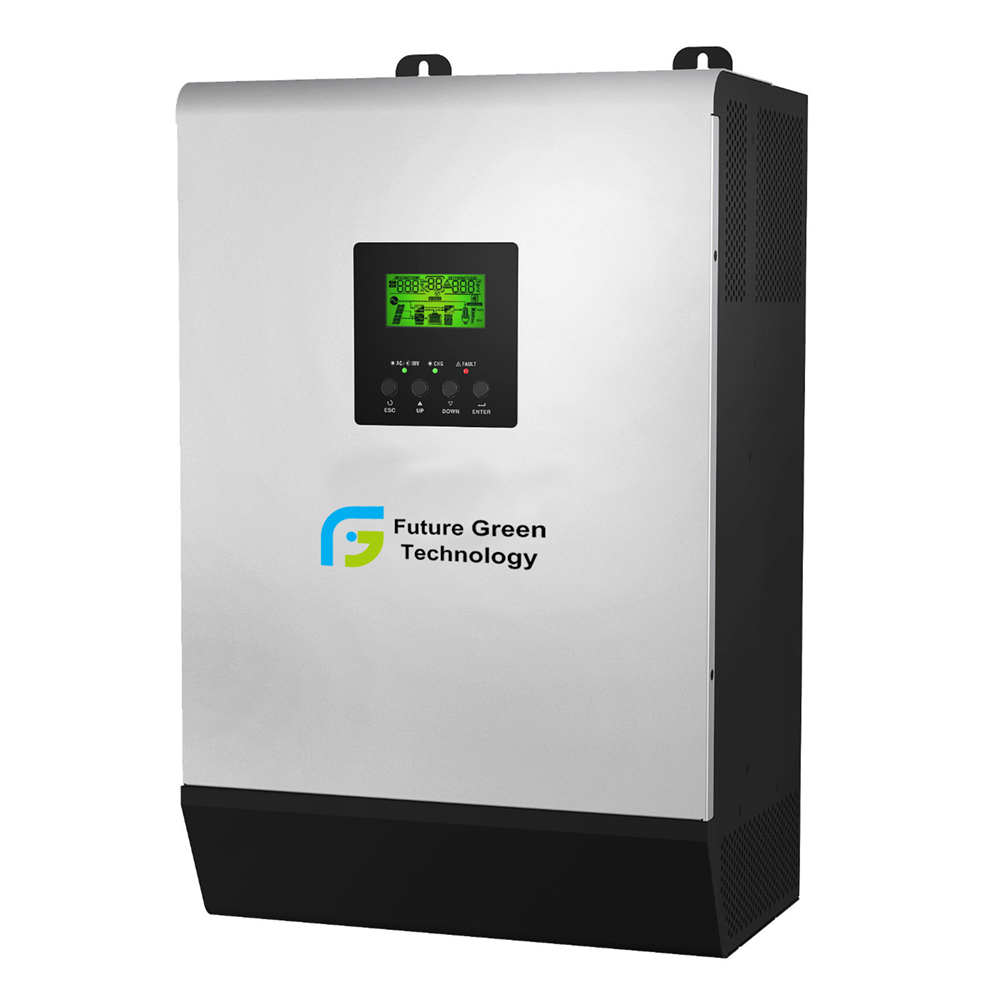

Wall-mounted 5000W Off Grid Pure Sine Wave Solar Power System Inverter

Specialized in solar design & sales for wholesale and DIY customers

See our 4.9-Star Google Reviews

Check out our featured Customer Installs

LED or LCD display

  • SampleAvailable
Facebook Twitter Pinterest LinkedIn 分享

Features:
1.Pure sine wave output
2.CPU control technology; SCM control
3.Strong ability of impact resistance
4.Wide input voltage range: 90-280V; Four step AVR (three step boost, one step reduction voltage)
5.Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.
6.Anti reverse connection protection and high-low voltage protection(option)
7.Special overload protection: When it is overload, it will lock the unit automatically, when it restores, it will restart the unit automatically again.
8.Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.
9.Powerful charge current
10.LED or LCD display (option)
11.Meet the need of different power supply
12.Use MOSFET and IGBT


Model 5000W 8000W 10000W
Inverter Rated capacity(W) 5000W 8000W 10000W
Inverter Input Rated Battery Voltage 48V 96V 192V 96V 192V
Commercial Power range (VAC) 100/110/120/127/220/230/240 (+25%,-35%)
Frequency(Hz) 50±0.5/60±0.5
Solar Input  Input power(W) 2400W 4800W 19200W 4800W 19200W
Maximum power (WP) 4800WP 9600WP 38400WP 9600WP 38400WP
Solar Controller (Optional)   Control Type  PWM or MPPT (Optional)
Rated Voltage 48V 96V 192V 96V 192V
Rated Current  50A 50A 100A 50A 100A
Equilibrium charging 58V 116V 232V 116V 232V
Float charging pressure 54.8V 110V 220V 110V 220V
Under voltage protection 44.4V 88.8V 178V 88.8V 178V
Inverter Input Commercial Power range (VAC) 100/110/120/127/220/230/240 (+25%,-35%)
Frequency(Hz) 50±0.5/60±0.5
Inverter Output Rated capacity 5000W 8000W 10000W
Waveform  Pure sine wave
Frequency(Hz)  50±0.5/60±0.5
AVR voltage range(VAC) No
Protection Over Load Protection  30 seconds delay shutdown for 105~130% exceeded
Battery Type Sealed, maintenance-free lead acid
Battery protection Automatic self-test, discharge protection, over-charge protection, smart management system.
Recharge current 30A(Maximum)
DC voltaget 48V 96V 192V 96V 192V
battery input voltage range DC:44V~60V DC:88V~120V DC:176V~240V DC:88V~120V
DC:176V
~240V
Working Environment Working Temperature 0ºC ~ 40ºC (0m~1500m)
Noise 60dB
Store Temperature 0ºC ~ 40ºC
Humidity <95%
Size(L*W*H) 470*260*500mm 550*260*710mm
Packing Size(L*W*H) 540*320*560mm 620*330*770mm
Net weight(kg) 42 72 72 82 82
Gross weight(kg) 46 77 77 87 87
Remarks Specifications subject to change without prior notice
Our company accept customized special specifications products


Protect function:
1. Lack-voltage alarm protection
2. Low-voltage protection
3. Over voltage protection
4. Over load protection
5. Short-circuit protection
6. over temperature protection
7. AC input low voltage protection
8. AC input over voltage protection
9. Battery reverse connection protection (Optional)


Case Studies

 >>View More>>




CRRC 5kw

Project: CRRC Super Capacitor Test
Capacity: 5kW
Type of Module: FGET Multicrystalline 265Wp
Date of Completion November 2017
Owner:  CRRC Cooperation Ltd.

Installer: FGET

30kw System Replace

Owner:  CRRC Cooperation Ltd.
Project: CRRC Solar System replace
Capacity: 30kW
Type of Module: FGET Multicrystalline 265Wp
Date of Completion November 2016

Installer: FGET

Burkina Faso 5kw

Project: Burkina Faso 5kw

Capacity: 5kW
Type of Module: FGET Multicrystalline 250Wp
Date of Completion: March 2017

Owner:  Yacouba Zongo

Packing & Delivery

 >>View More>>



Carton Packing

20, 10 or 4 pieces in one carton for batteries smaller than 12V24AH，one in one carton for larger batteries.

Batteries Layer

Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.

Fumigation Free Tray

As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them.

Our Certification

 >>View More>>




Company Certificate

Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.

ISO Certificate

 SGS ISO9001 quality management system certificate, ISO14001 environment system certificate



MSDS & Transport

Our batteries have UL and CE approvals. MSDS and Report for Safe Transpo

Our Services:

Samples and OEM, Warranty and After-Sale Service:

Sample can be provided for quality testing

  •  OEM Welcomed
  •  Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
  •  After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
