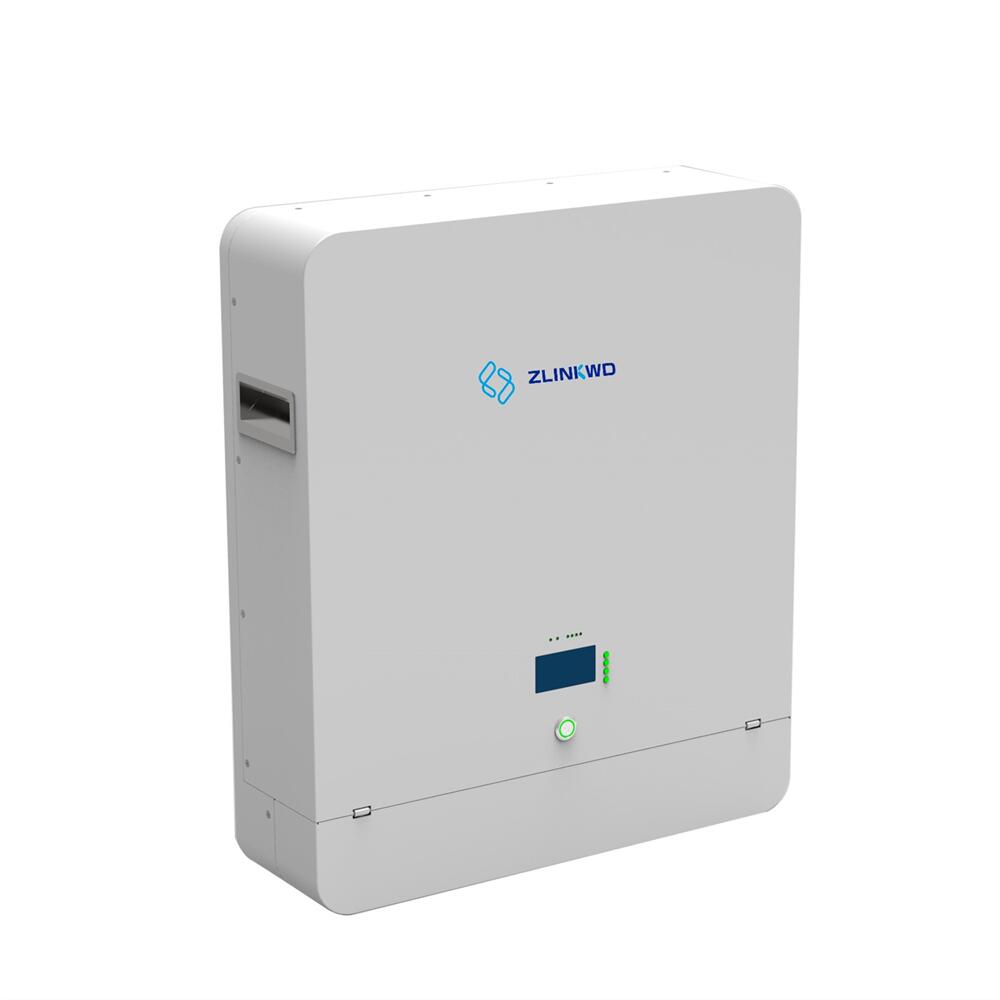

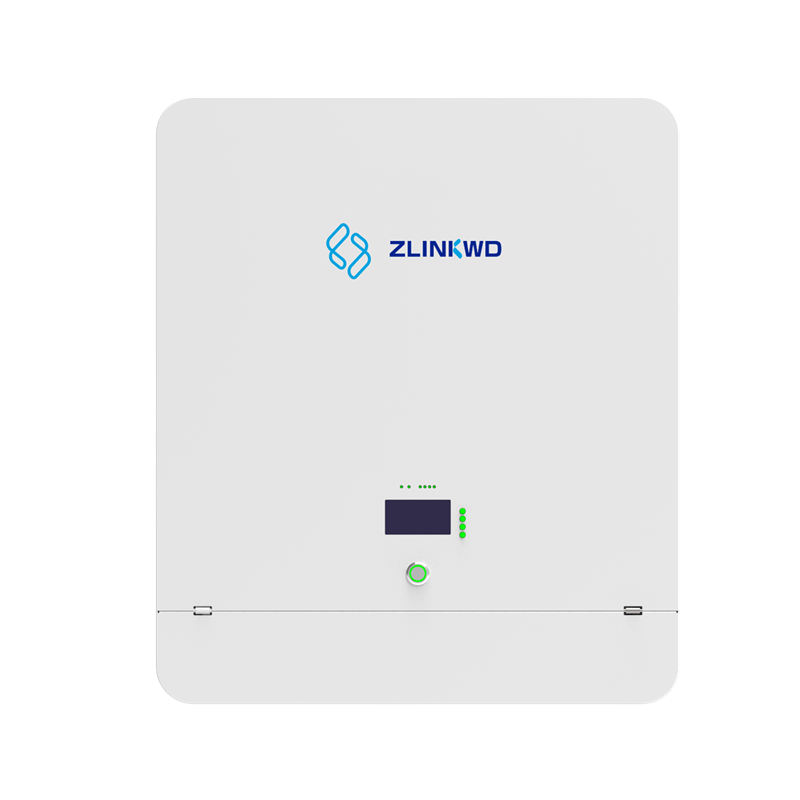

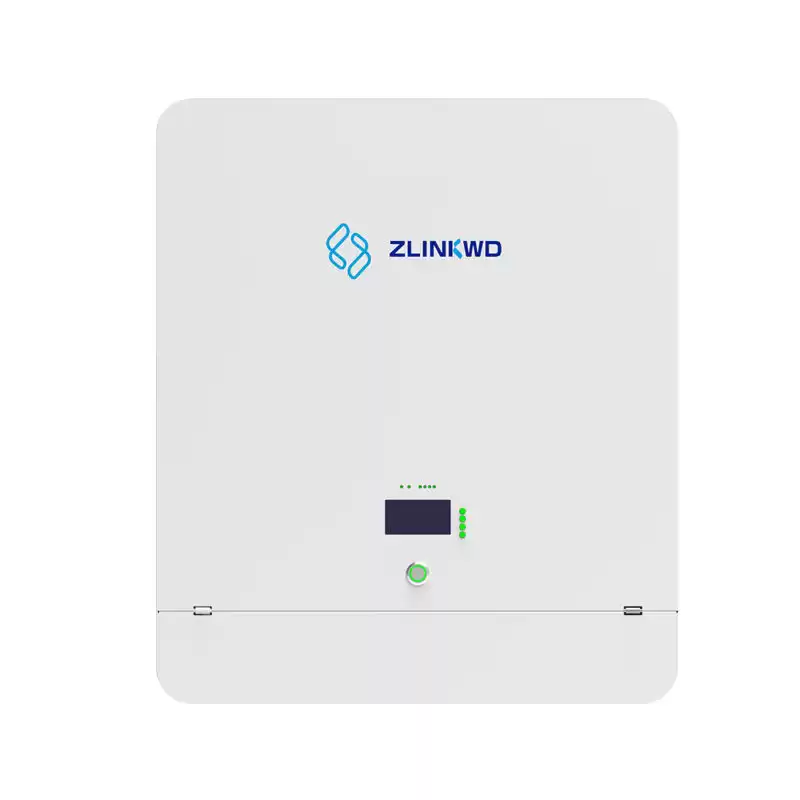

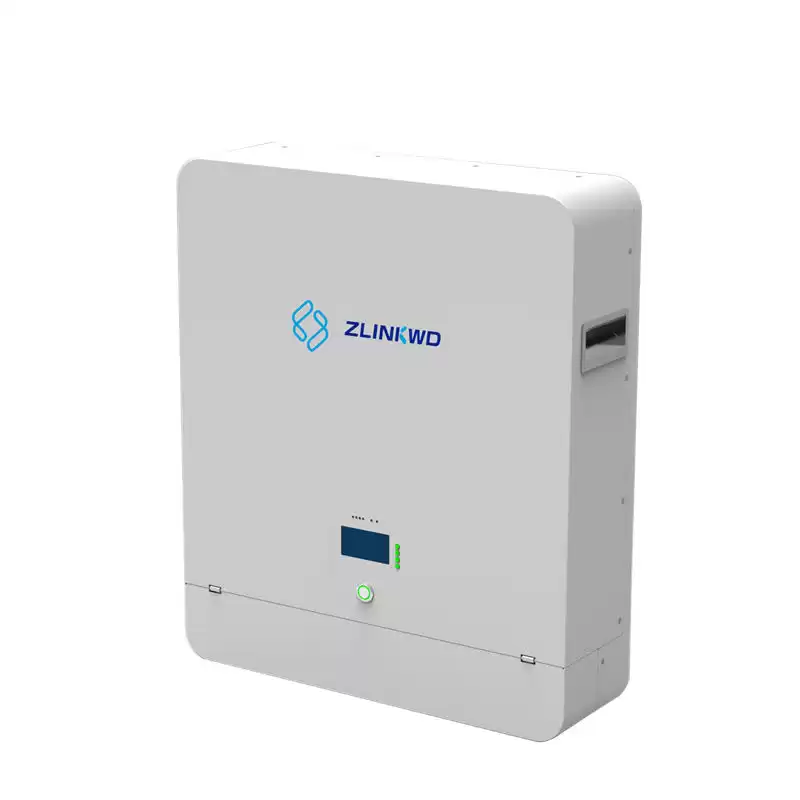

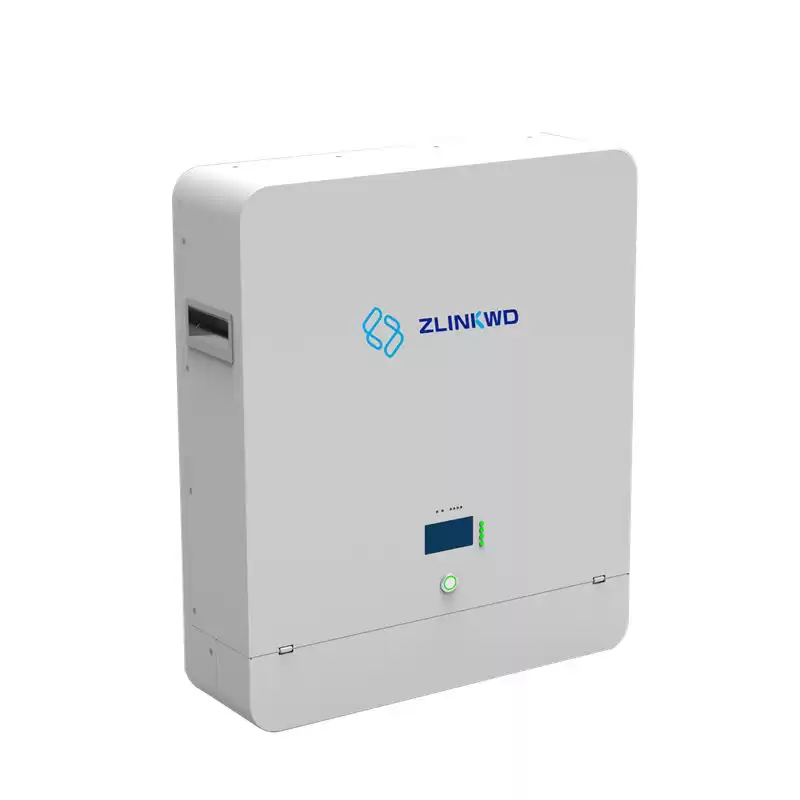

Product Overview
Wall-mounted household energy storage battery system design is used for photovoltaic power generation,energy storage, backup power, etc.
The main features of the system are as follows:

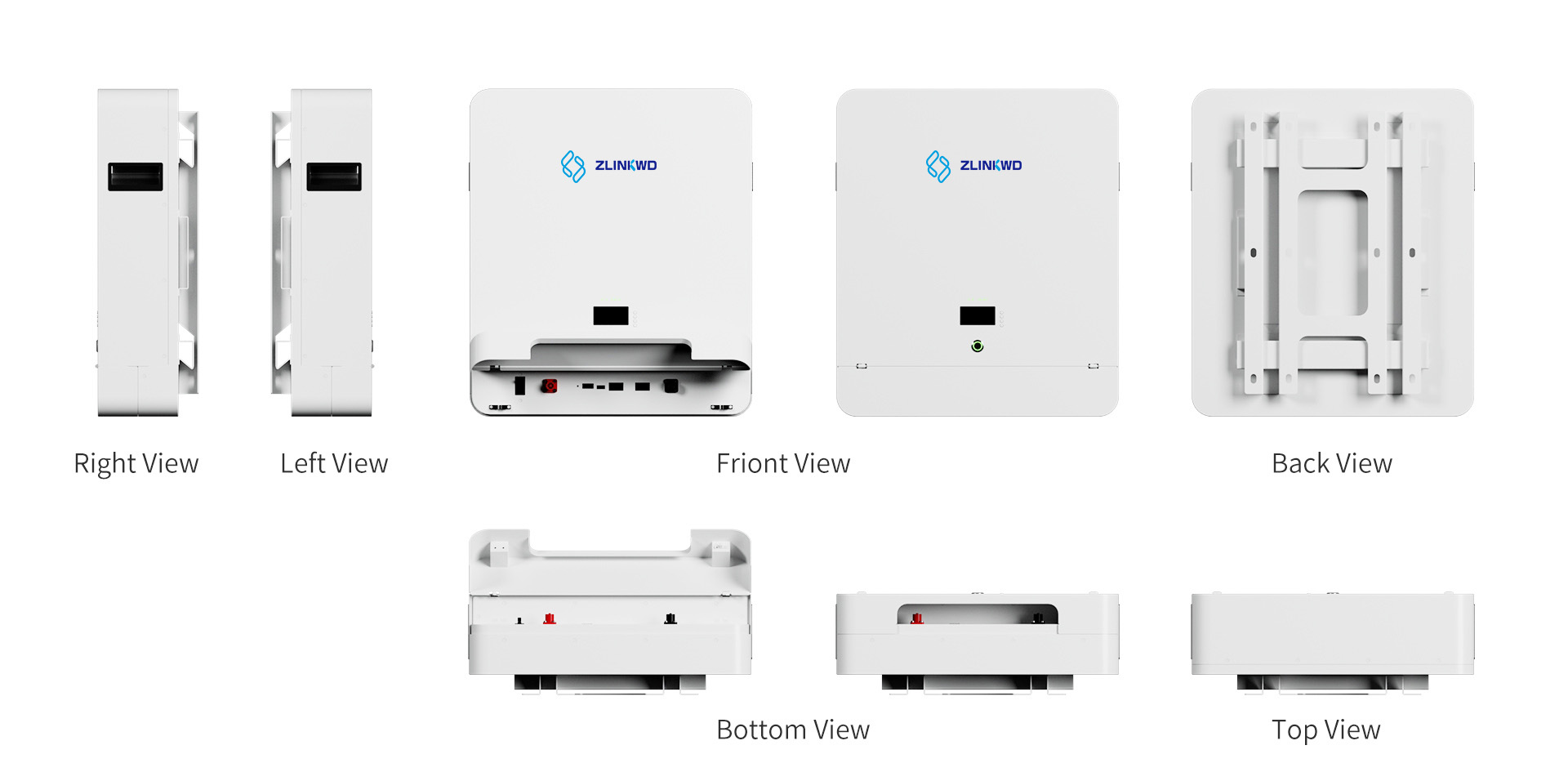

>Exclusive appearance design;
>4-way battery temperature monitoring;
>Supporting both CAN and RS485 communication, matching different brands of inverters.
Application Scenarios
Uninterruptible power supply or power backup system for household daily use, farm facilities, household new energy vehicles, solar energy storage, etc:
-
-
-
-
Household New Energy Vehicles
Home Energy Storage Battery System Parameters
| Model |
ZHS51100 |
ZHS51200 |
| Nominal voltage |
51.2V |
51.2V |
| Nominal capacity |
100Ah |
200Ah |
| Product size(mm) |
560*650*160 |
590*780*190 |
Weight
(including hanging frame) |
58.5KG |
103.5KG |
| Battery internal resistance |
≤100mΩ |
| Cycle times |
≥4000 cycles @80% DOD,25°C,0.5C |
| Design life |
≥10 years |
| Charging voltage |
56.0V±0.5V(16 series) |
| Maximum operating current |
100A |
150A |
| Discharge cut-off voltage |
48V±1.0V(16 series) |
| Charging temperature range |
0℃~60℃
(working below 0℃ will affect the performance of battery capacity) |
| Discharge temperature range |
-20℃~60℃
(working below 0℃ will affect the performance of battery capacity) |
| Storage environment |
40℃~55℃@60%±25% humidity |
| Communication |
RS232-PC, RS485(B)-PC RS485(A)-Inverter, CANBus-Inverter |
| Certification |
UN38.3, MSDS, UL1973(Cell), IEC62619(Cell) |
FAQ
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
