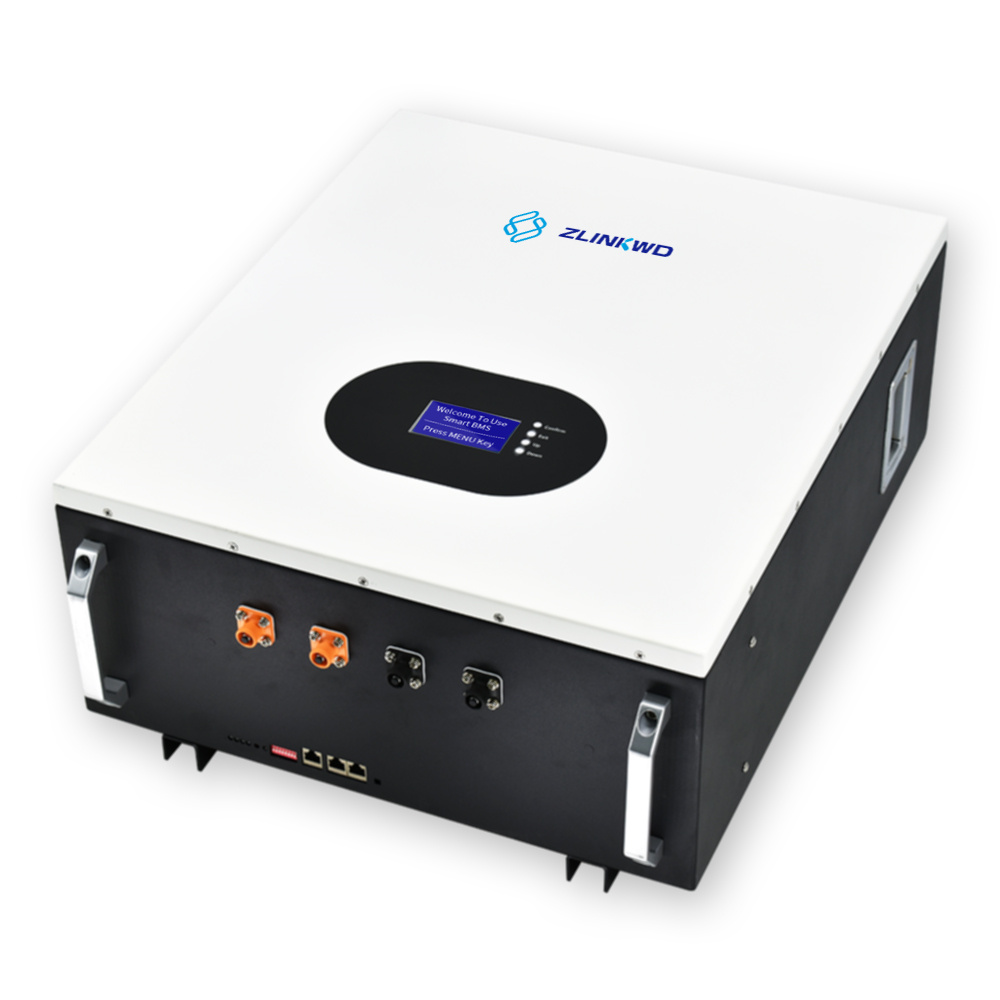

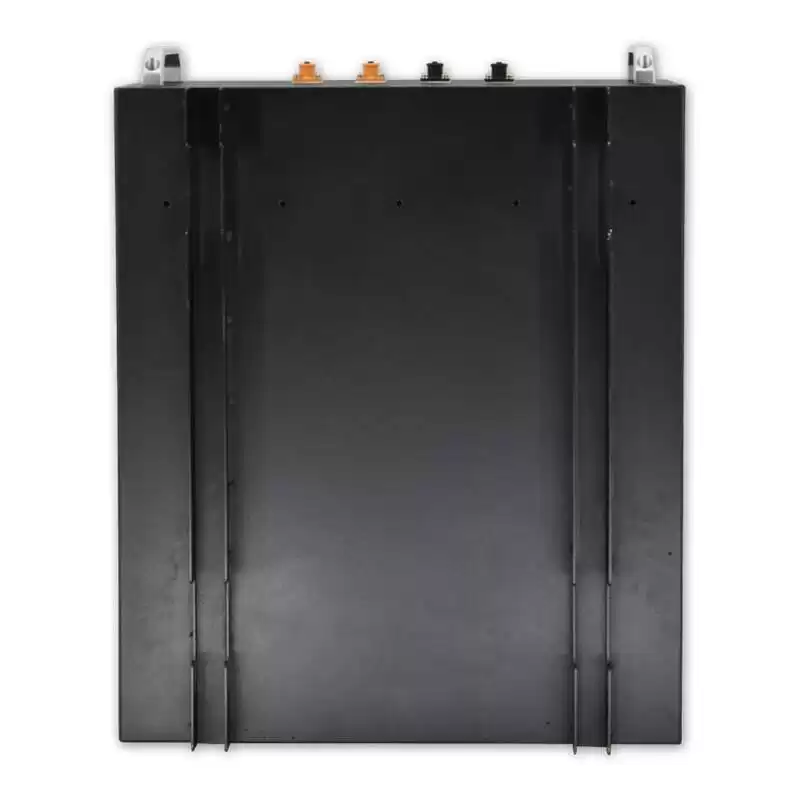

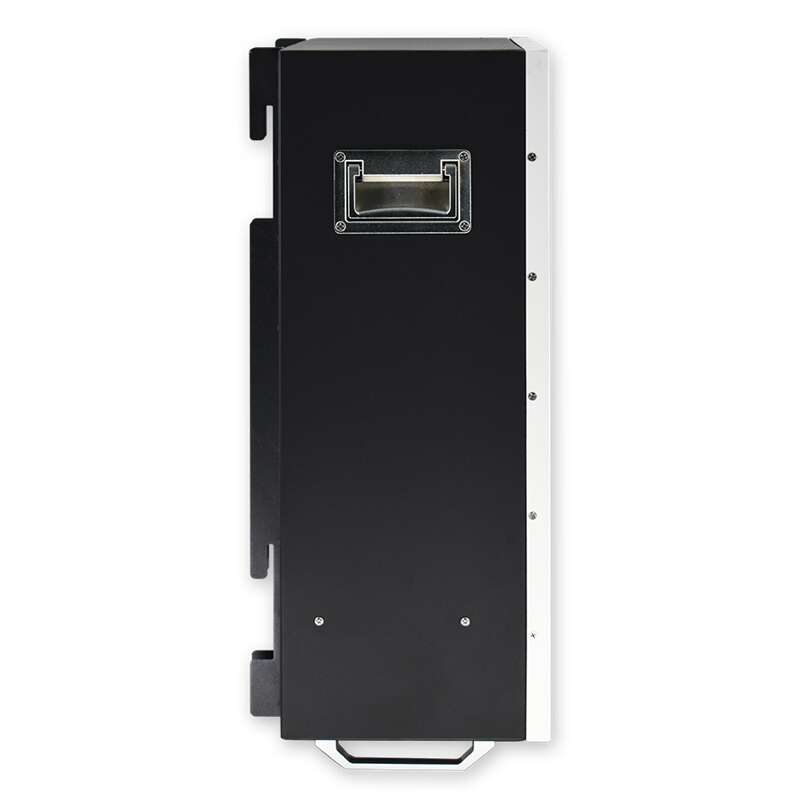

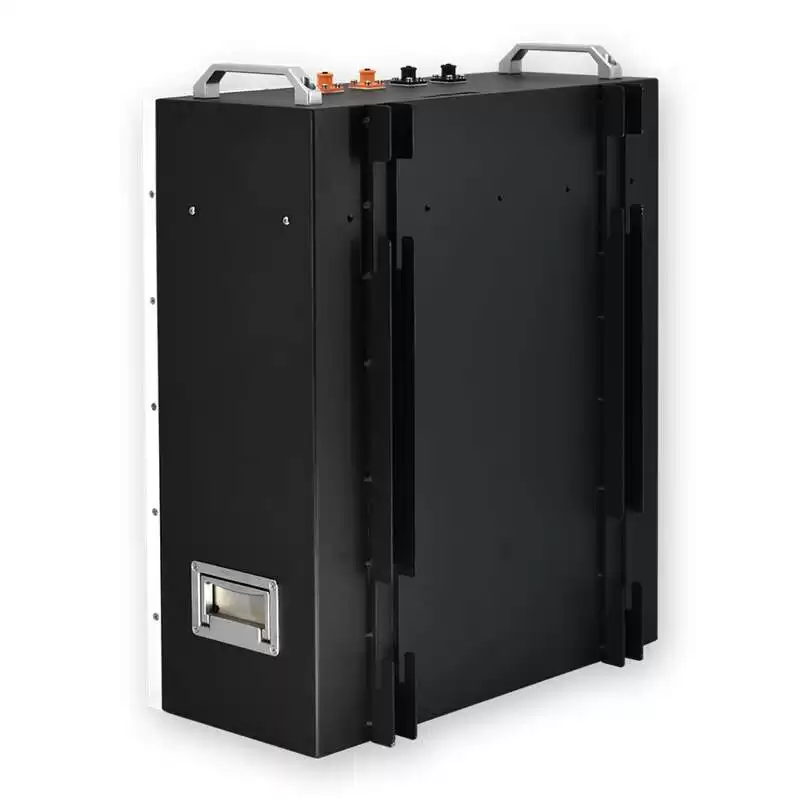

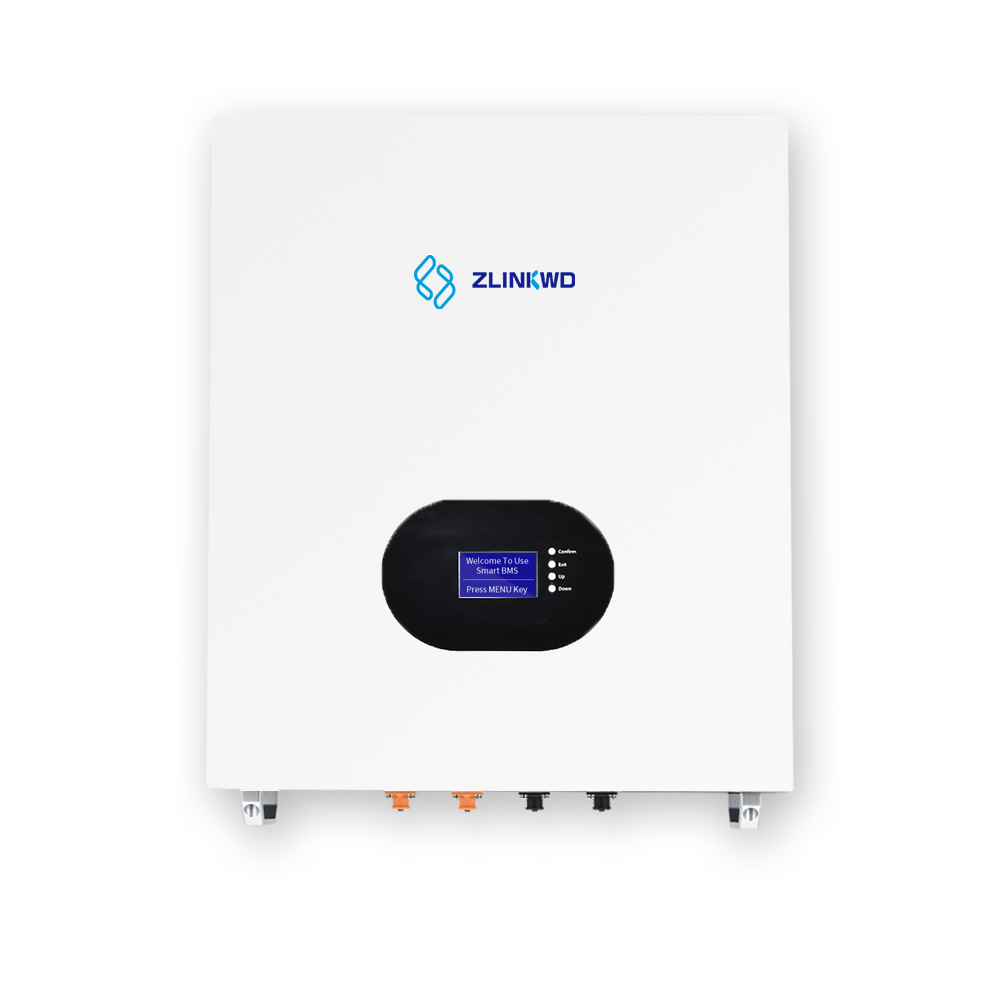

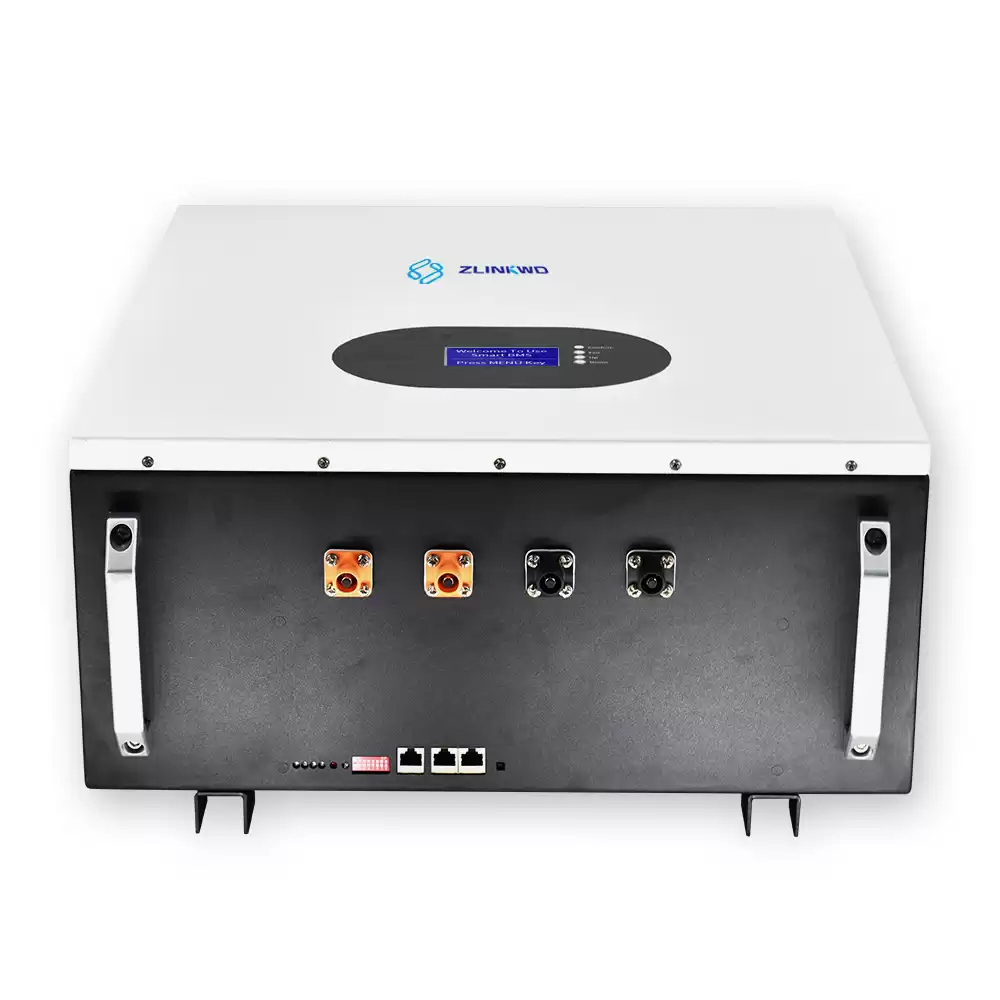

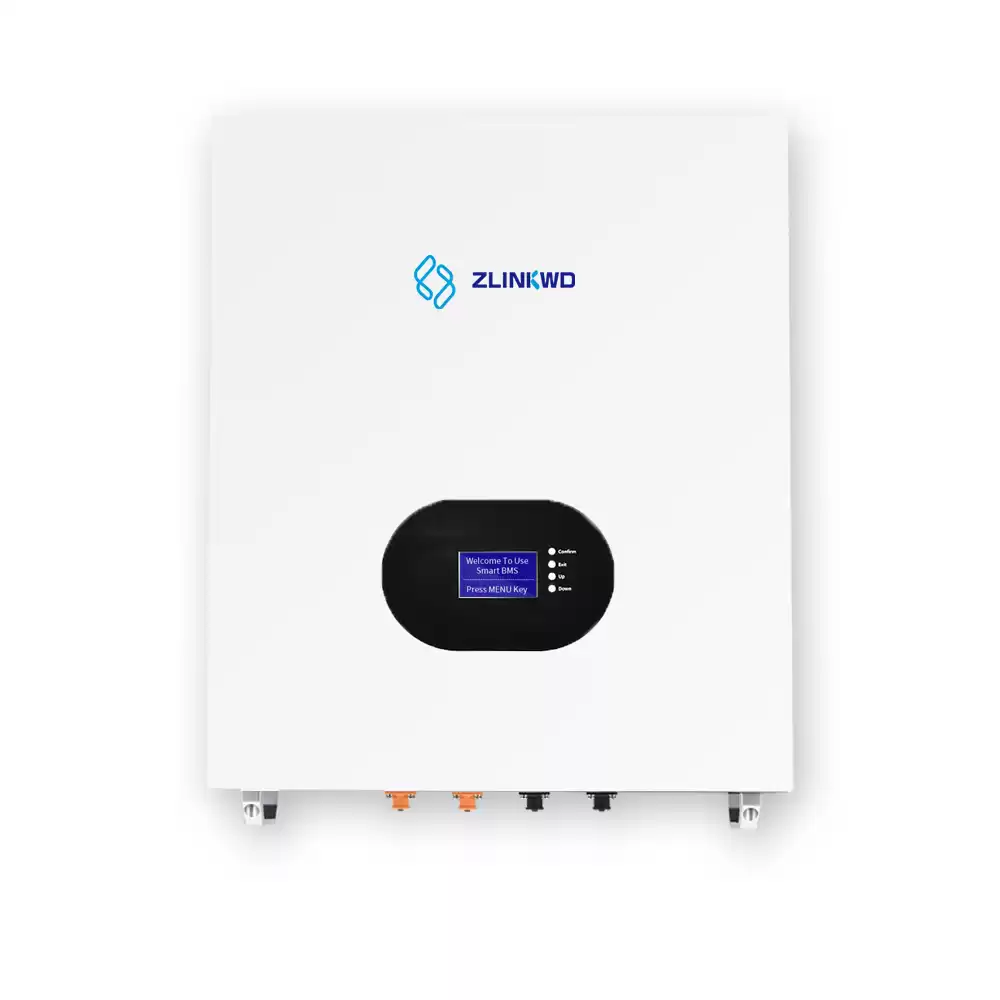

Wall-mounted lithium ion battery PWB48100

wall-mounted lithium ion batteries provide a convenient way to store energy generated by solar panels, wind turbines, or other renewable sources, allowing the stored energy to be used later when it is needed. Wall-mounted lithium ion batteries are becoming increasingly popular for residential and commercial applications because they are durable, long-lasting, and environmentally friendly.



  Product Overview

Solar Wall Mounted Batteries

Wall-mounted household energy storage battery system design is used for photovoltaic power generation,energy storage, backup power, etc.

The main features of the system are as follows:

>Exclusive appearance design;

>4-way battery temperature monitoring;

>Supporting both CAN and RS485 communication, matching different brands of inverters.

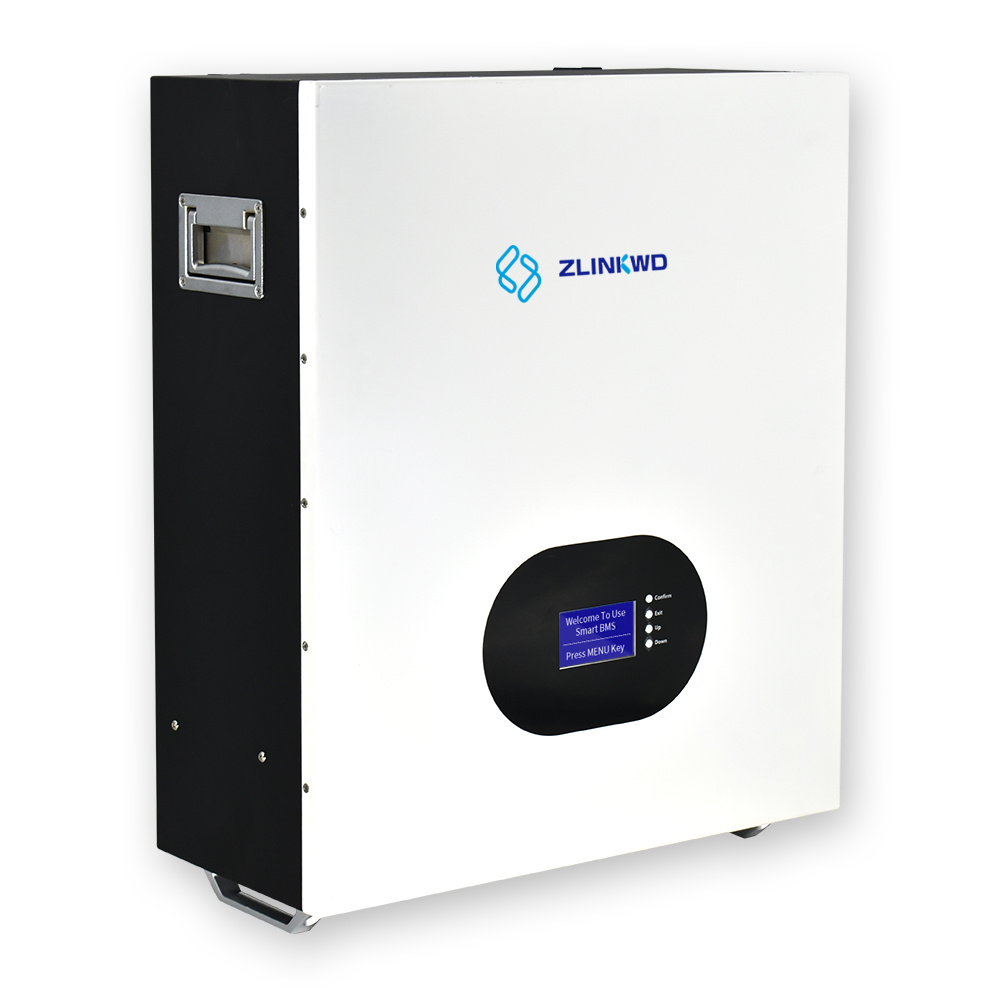

Wall-mounted lithium ion battery Powerwall Household Storage Battery

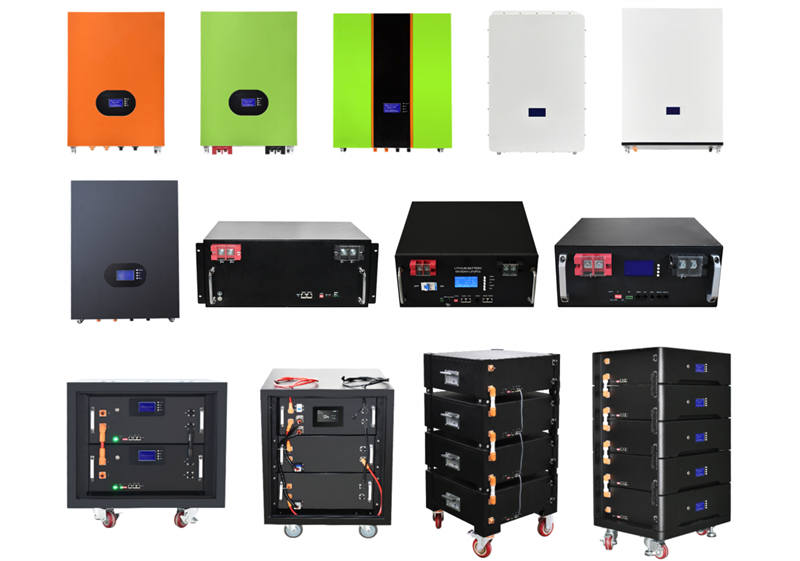

The battery case appearance customization, high voltage and function customization service can be provided according to customer requirements.

Energy Storage System Batteries

  Application Scenarios

1. Off-grid residential homes
2. Emergency backup power
3. Electric vehicle charging
4. Smart home automation
5. Commercial and industrial applications

  •  Home Energy Storage Battery System
    Household Daily Use

  •  Home Energy Storage Battery System Parameters
    Farm Facilities

  •  Home Energy Storage Battery System Parameters
    Solar Energy Storage

  • Household New Energy Vehicles
    Household New Energy Vehicles



   Technical Parameter Table

  Technical Parameter Table
Model ZL-PWB48100 ZL-PWB512100
Battery cell material Lithium iron phosphate(LiFePO4)
Nominal  capacity 48V 51.2V
Nominal  capacity 100AH 100AH
Nominal energy 4.8KWH 5.12KWH
Output  power 4.8KW 5.12KW
Self-discharge rate ≤3%  per  month
Lifespan 6000cycles@80%DOD@0.5C  discharge  rate
Battery cell type Prismatic battery cell
Battery celllayout 15S1P                                                         16S1P
Product  dimension 605*405*200mm
Packing  dimension 650*610*410mm
Net weight 45 KG/100 LBS 47 KG/103 LBS
Gross weight 58KG/128   LBS                                               60   KG/132LBS

IP level
IP54
MAX parallel 16  PCS
Working   temperature          -20℃~60℃/-4°F~140°F;It's adviced to be used at therange of 0°℃~40℃/32°F~104°F
Storage  temperature
Short term(within 1 mon):-20℃~45℃/-4°F~113°F;Longterm(within lyear):10°℃~40°℃/50°F~104°F
Power terminal
Tool-free quick connect terminals

Max discharge current
100A

Max charge current
100A

Discharge protection voltage
40.5V                                                         43.2V
Charge protection voltage 54.75V                                                         58.4V
Float charge voltage 54V                                                           57.6V
Overcurrent protection 110A
BMS pre-charge function Suported, pre-charge time range 1ms~5000ms
Short-circuit protection Supported, recover when re-charge
Communication   port RS485/CAN
Communication   protocol Pylontech/Goodwe/Growatt/DEYE/Sofar/Solis/Must/SMA/Luxpower/Nictron/oltronic/Megarevo/SRNE



     FAQ

Q. What's price?

A: We provide reasonable price and recommend suitable batteries to our customers.



Q. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.



Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed



Q. Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.



Q.Which certificates do you have?

A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.



Q. Can your battery be wired in series or parallel?

A: YES,YOU can connect up to any of these batteries in parallel. For series, suggest within 3 units.



Q. What is your Shipping way?

A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
