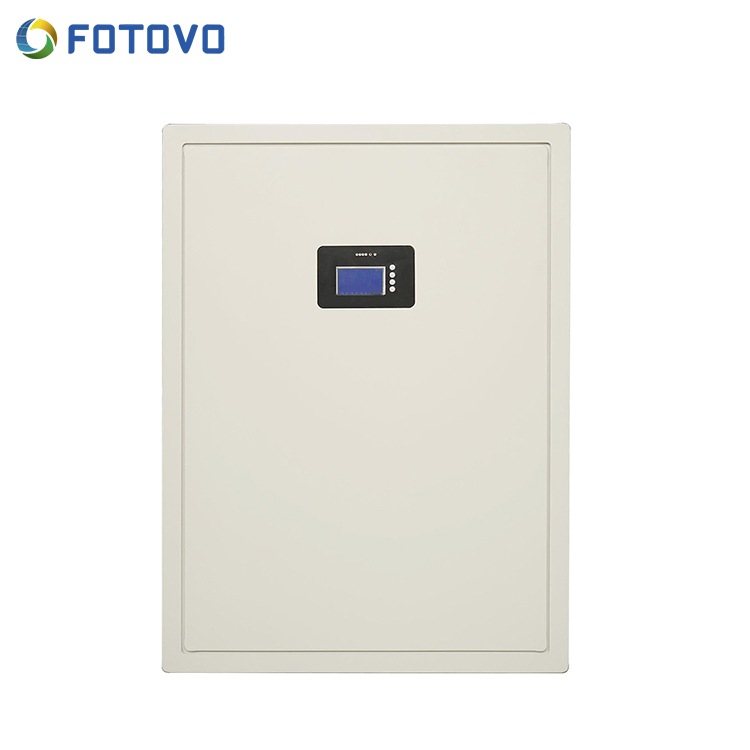

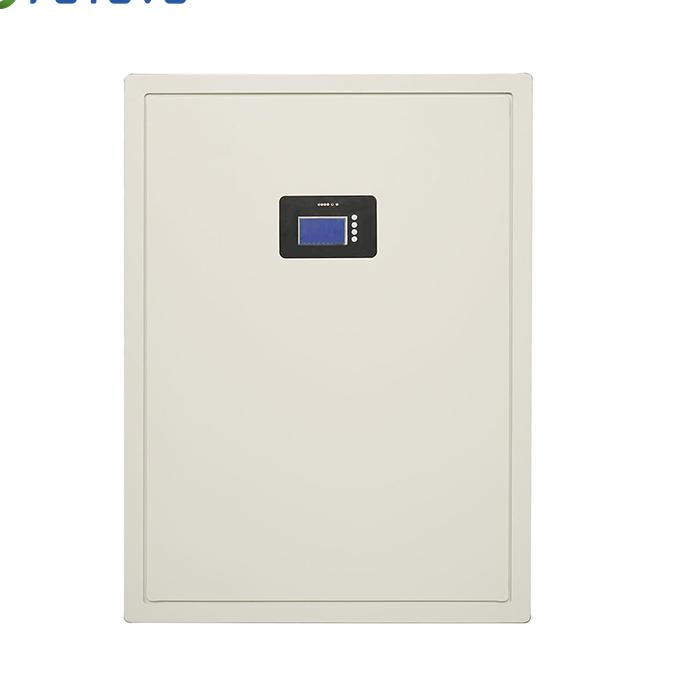

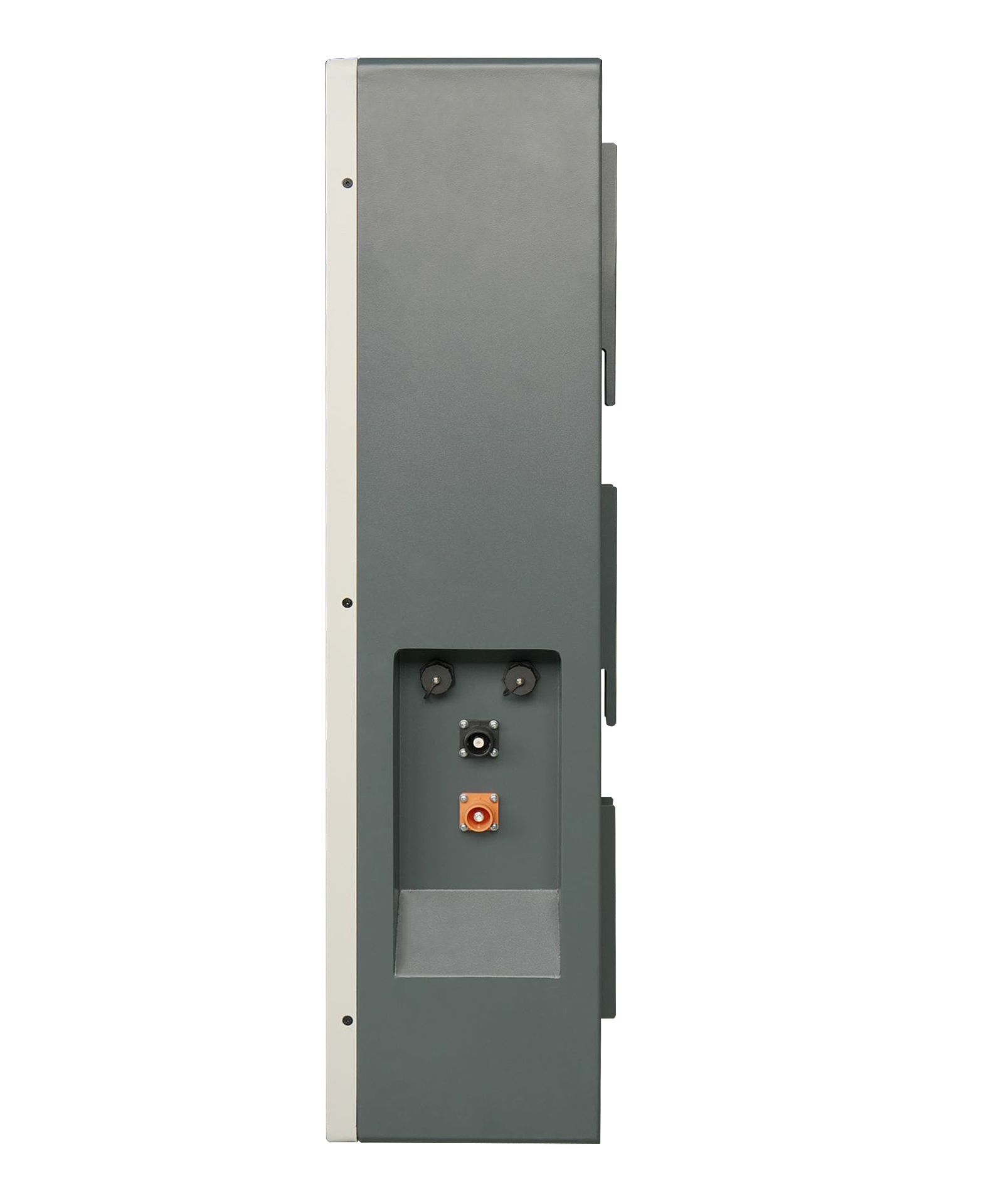

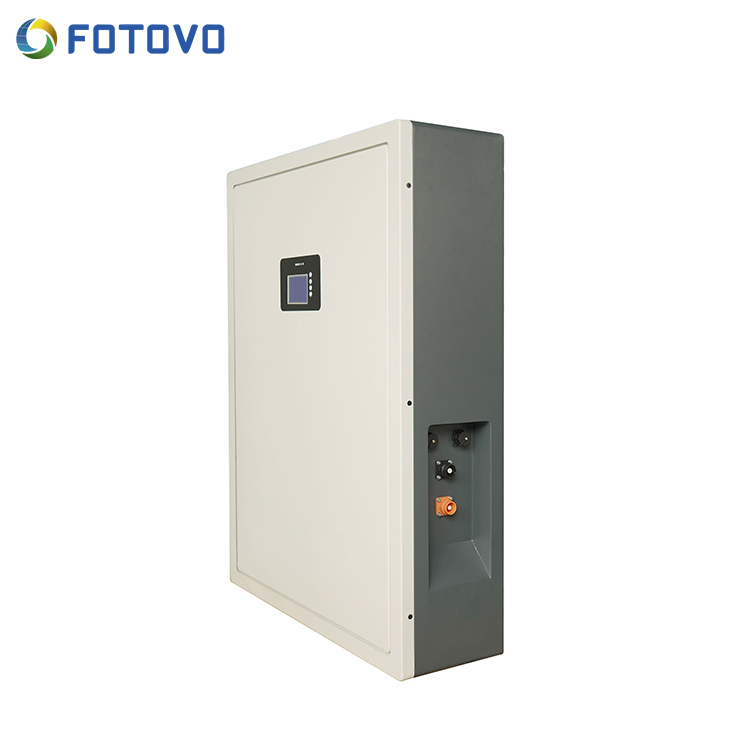

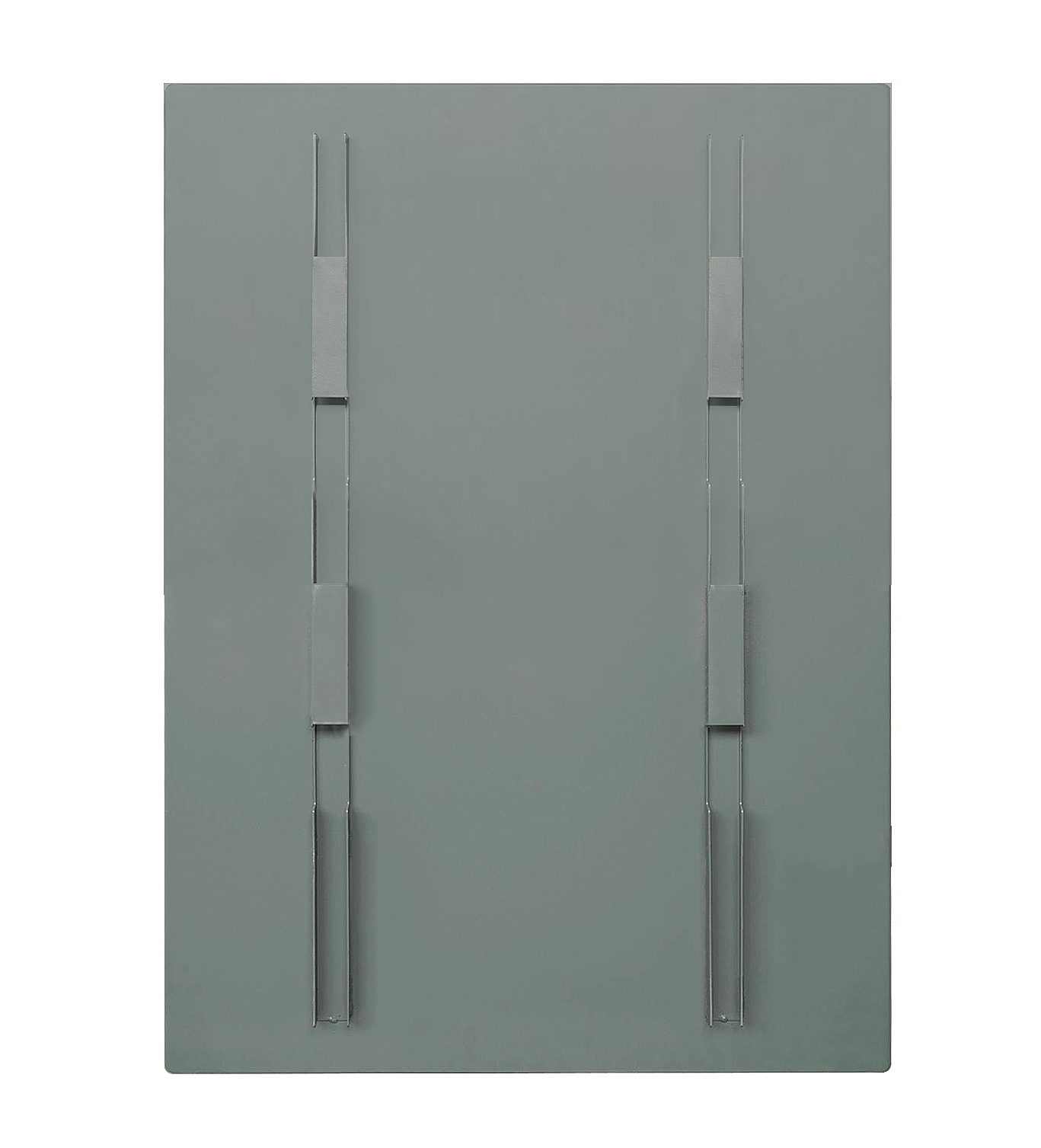

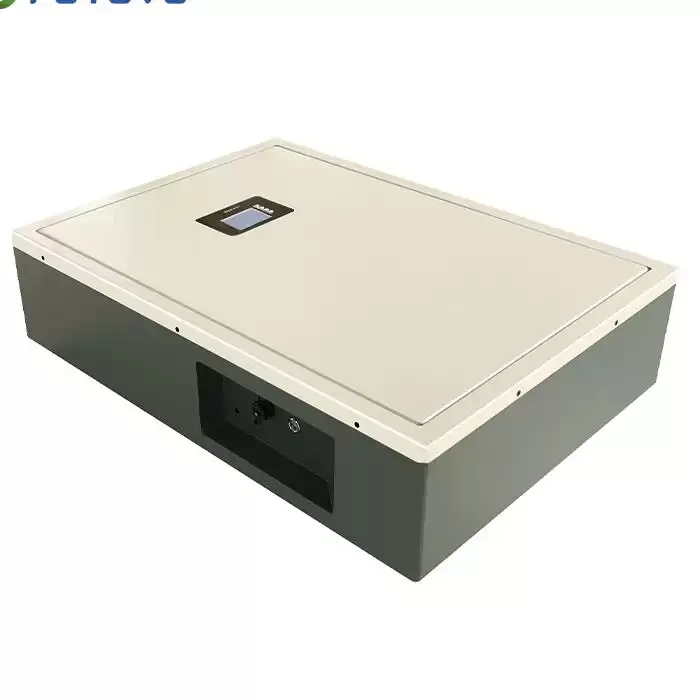

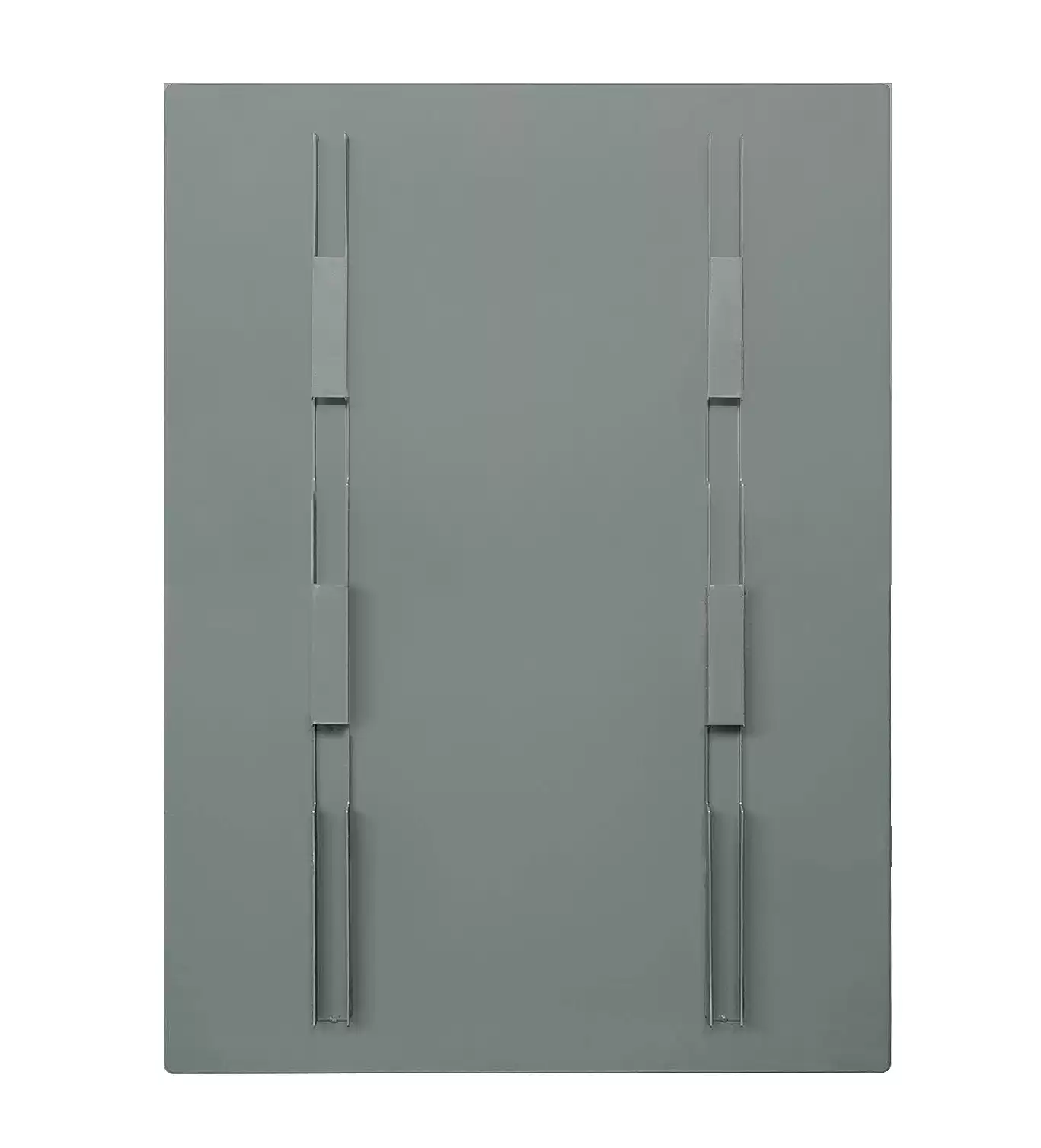

Wall mounted solar lithium ion battery pack 51.2v 200ah


  • CertificateCE FCC ROHS ISO9001
  • Warranty5 years
Facebook Twitter Pinterest LinkedIn 分享
Details Images
Product Paramenters
Item
Specifications
Cell Configuration
14S1P
Rated Voltage
51.1V
Working voltage range
42V~58.1V
Rated capacity
207Ah
Rated Energy
10.57KWh
Standard charging/discharging current
50A @25±2℃
Max. charging current
100A@25±2℃
Max. discharging current
100A@25±2℃
Port
Shenzhen, Shanghai
Working temperature range
0～40℃(Charge)
-20～40℃(Discharge)
Storage temperature
-10℃~35℃(one month)
25±2℃(three months)
65%±20%RH
Weight
72Kg±3kg
Dimension
(730)×(510)×(174.5)mm
Cycle life
4000 cycles @25℃
50A charging/discharging 80% DOD
Altitude
0~3000m
IP grade
IP65
Communication interface
CAN and RS485
Humidity range
5~8%
Products Description

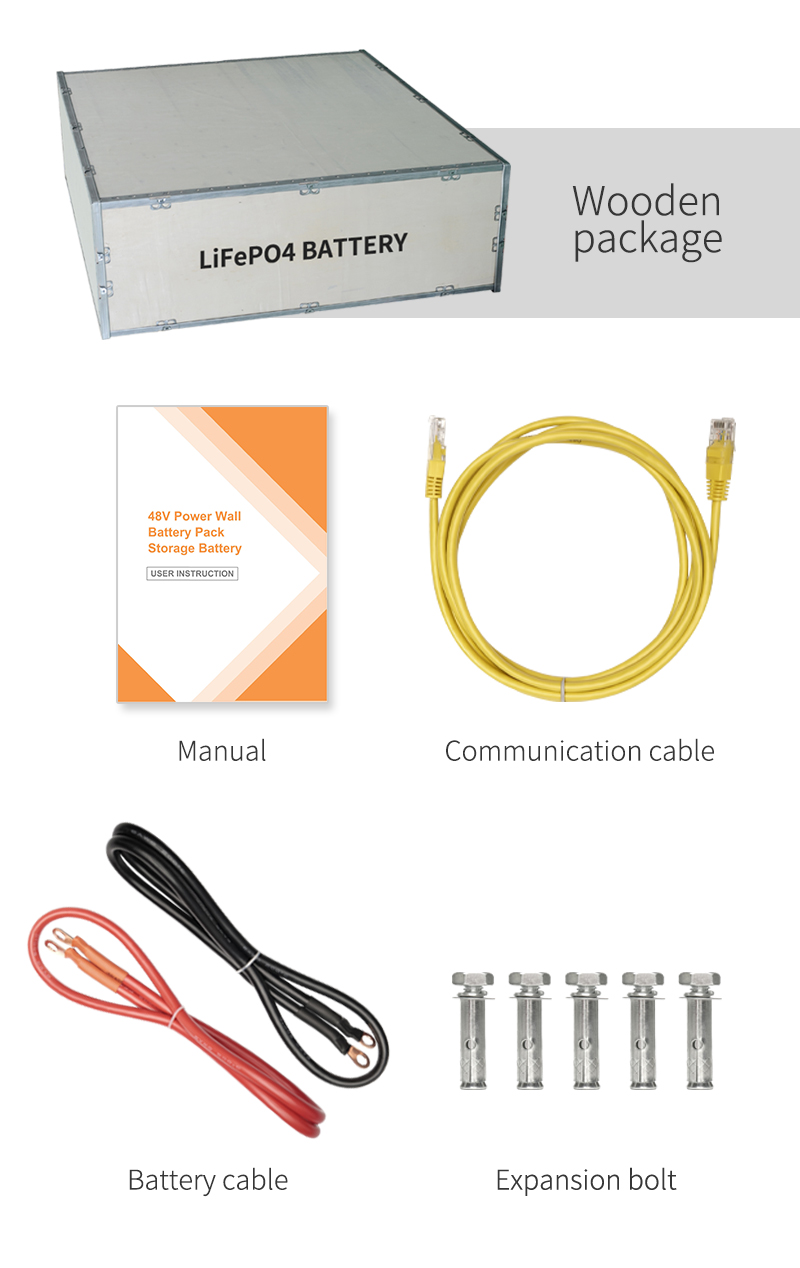

Package list
* 1 * 51.1V 207Ah Battery Pack
* 1 Wall Mount Bracket A
* 1 * Wall Mount Bracket B
* 4 * Wall Mount anchor
* 1 set 1.5M Battery Cable (battery to inverter)
* 1*1.5M Battery Cable (battery to inverter)
* 1*Bubble Level
Company Profile
Certifications

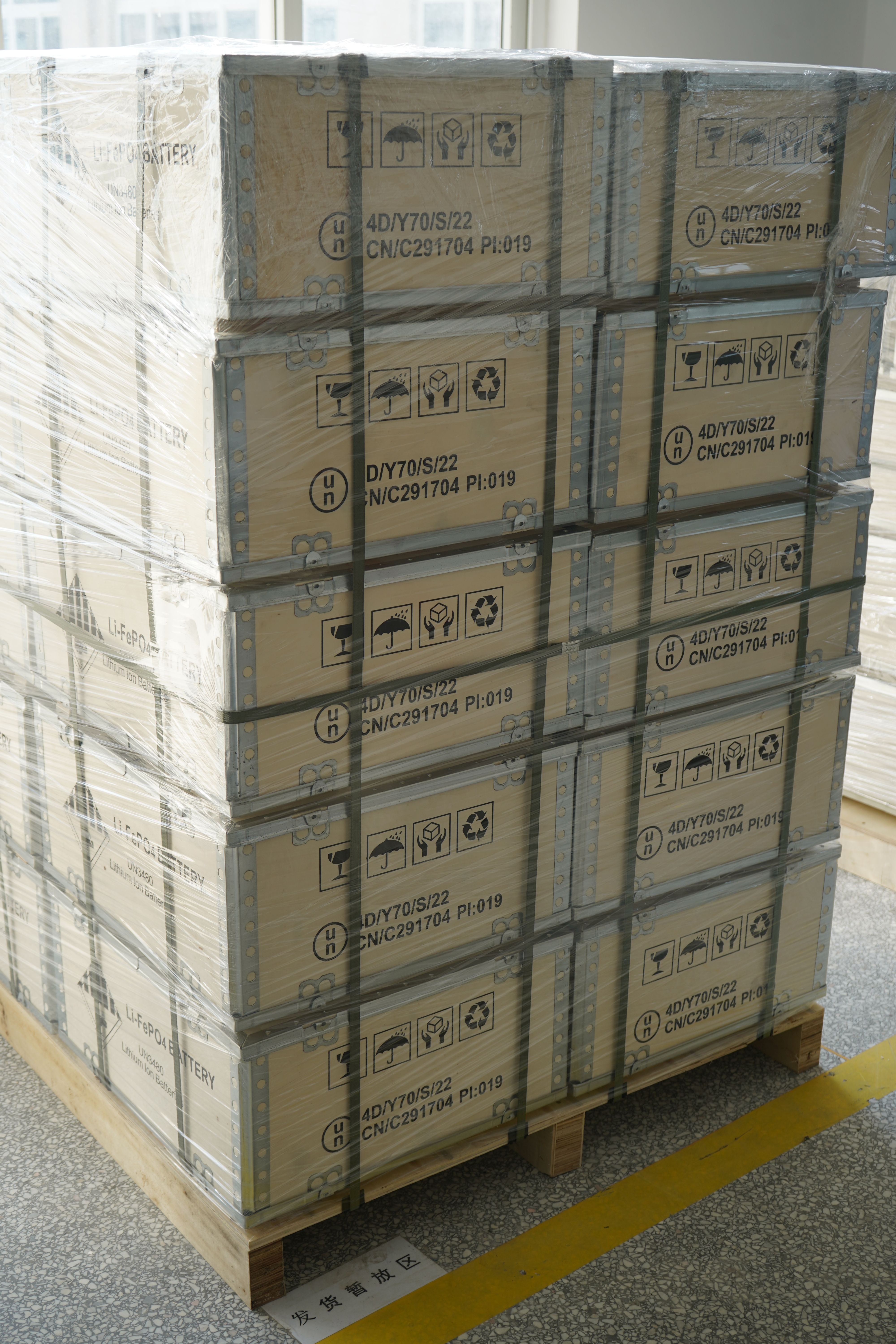

Product packaging
