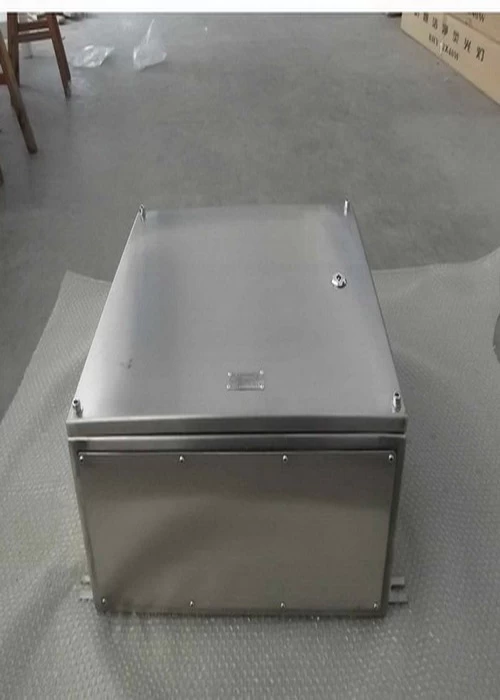

Wall Mounted SS Control Boxes With Rivets
Feature:
* Material: stainless steel 304,316,201
* Thickness: 1.2mm,1.5mm
* Dimension:400mm x 400mm x 200mm
* Door: single door
* Spare parts: back mounting plate, lock, hinge
* Surface treatment: Polishing, brushing
* Installation: indoor/outdoor wall mounted
* Function: Power control
* Certificate: CE
* Working environment: air port, building, hotel, shopping centre, housing estate, school,
Factory, port, natural gas.
Wall mounted type control box all use stainless steel welded plate bending, non indoor and outdoor type. To do perspective windows and doors, door with sealing rubber strip. To prevent the infiltration of rainwater, the box body is equipped with outlet holes and mounting plate, the outlet hole is factory is additionally provided with a sealing plate.
Product Description
stainless steel distribution box
1. Material: SUS304(Other material can be optional)
2. Surface Treatment: Wire Drawing,Mounting Plate is Galvanized
3. Class of Protection: IP56(According to GB4205-1993) PU Foaming Sealing
Specifications:
|
Part Number
|
Enclosure Dimensions
|
Mounting plate dimensions
|
|
0016-ECPB-TCH
|
200 ×300 ×150
|
150 × 250
|
|
0017-ECPB-TCH
|
300 ×300 ×150
|
250 × 250
|
|
0018-ECPB-TCH
|
300 ×400 ×150
|
250 × 350
|
|
0008-ECPB-TCH
|
300 ×400 ×200
|
250 × 350
|
|
0009-ECPB-TCH
|
400 ×400 ×200
|
350 × 350
|
|
0010-ECPB-TCH
|
400 ×500 ×200
|
350 × 450
|
|
0011-ECPB-TCH
|
400 ×600 ×200
|
350 × 550
|
|
0012-ECPB-TCH
|
600 ×600 ×200
|
550 × 550
|
|
0013-ECPB-TCH
|
600 ×800 ×200
|
550 × 750
|
