Wall-mounted Type 30000 Times Cycle Life LTO 48 Volt Off Grid Solar Wind Hybrid Power System Batteries



This new  lithium titanium oxide (LTO) for ESS,LTO battery in its anode to achieve excellent characteristics, including safety, long life, low-temperature performance, rapid charging, high input/output power and large effective capacity.LTO battery module for ESS is the latest technology, Wall-mounted LTO battery Can be used in both off-grid and hybrid setups, compact size, modular expansion.







Product Name

Wall-mounted Type 30000 Times Cycle Life LTO 48 Volt Off Grid Solar Wind Hybrid Power System Batteries


Highlights


  • Long lifetimes - 30000 cycles @85% DOD (dependant on actual DOD, usage & temp.) and low self-discharge rate
  • Easily scalable and stackable 5kWh modules - up to 200kWh in a single installation
  • A self-designed BMS protects the cell from overcharge, over-discharge, over current, short circuit .
  • Built-in accessible 125A DC breaker On/Off switch - increases safety .
  • Fast charge and good low temperature performance
  • Wall-mounted Type Acceptable,easy to assemble

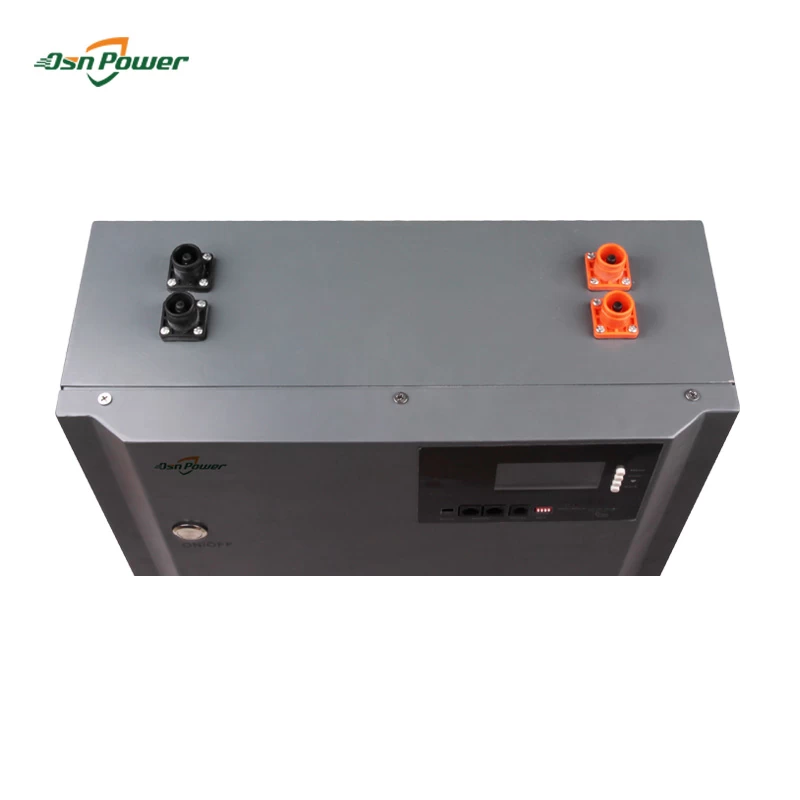

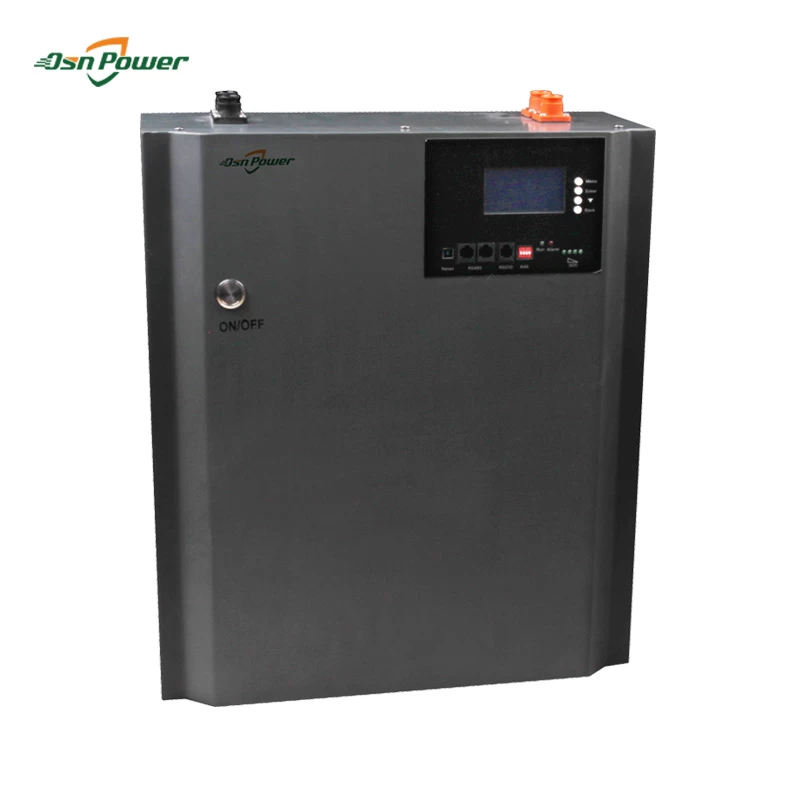

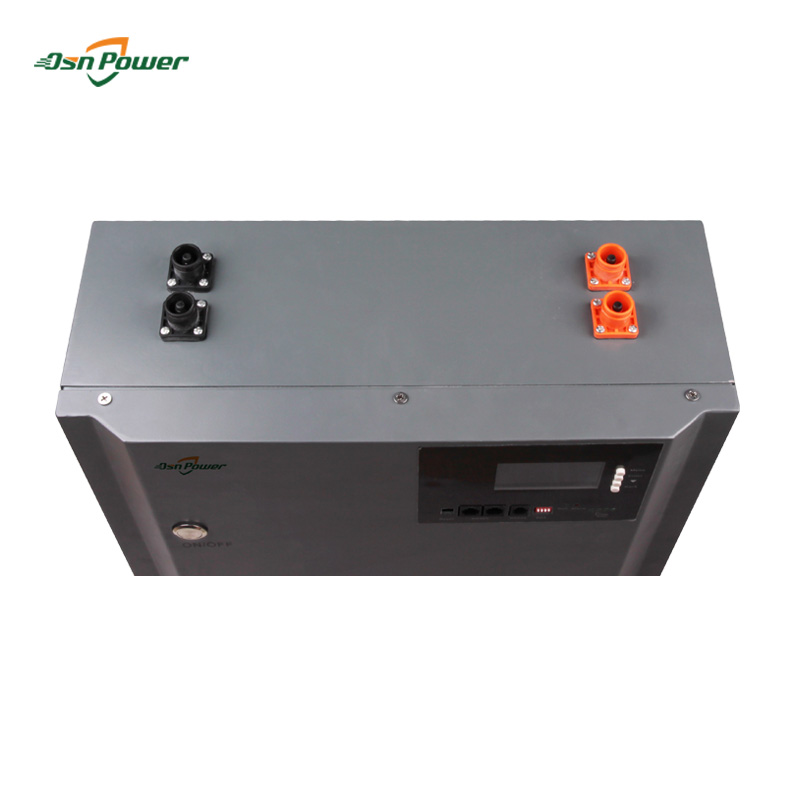

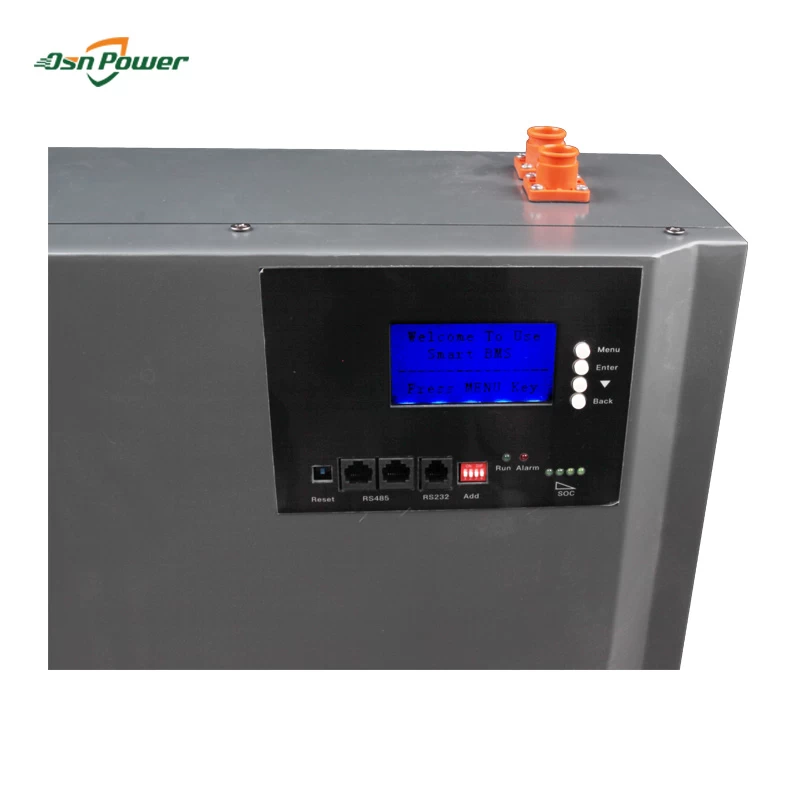

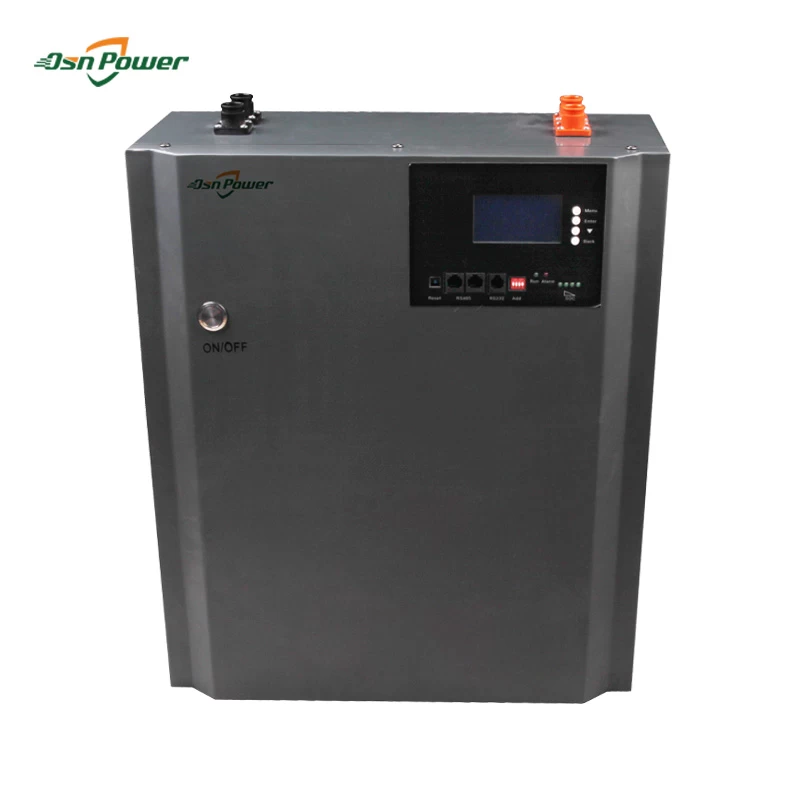

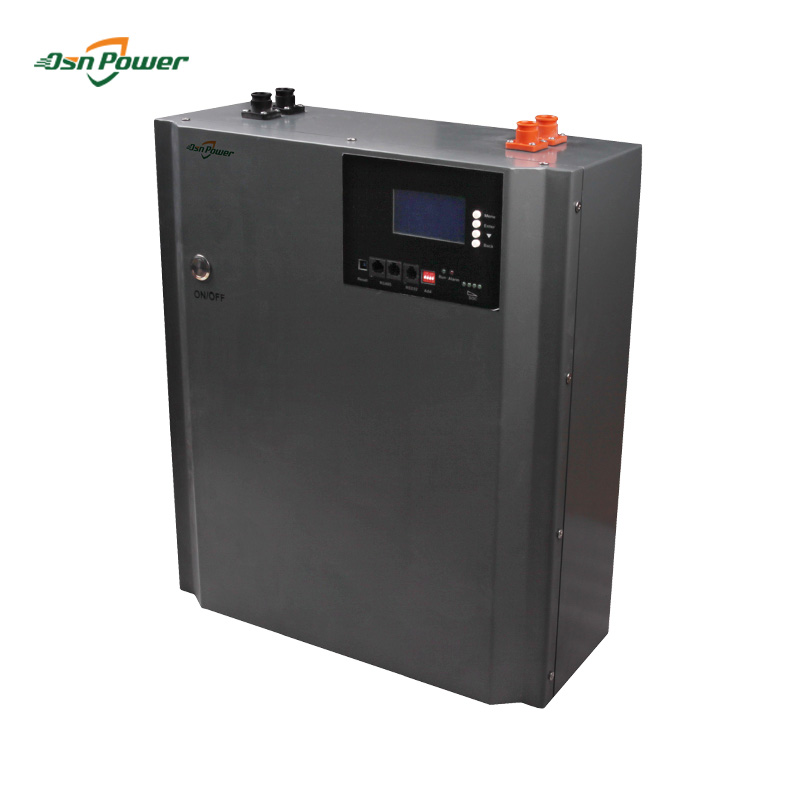

LTO 48V 80Ah Wall-mounted  Solar Power System Batteries Picture as Below


Our 48v 80Ah LTO solar battery pack is scalable energy storage from 5kwh to 200 kWh


Specification for LTO 48V 80Ah Wall-mounted  Solar Power System Batteries

MODEL

OSN-ESS-LTO4880

PERFORMANCE

Rated Capacity

80 Ah

Nominal Voltage

50.6 V

Discharge Ending Voltage

44 V

Charging Limited Voltage

59.4 V

Max. Charging Current

200 A

Max. Continuous Discharging Current

200 A

Parallel Connection

Optional (up to 16P). When paralleling Max. charging current = 20A

Containing Cell

Yinlong LTO 2.3V 40Ah

Design Life

More than 30 years

Cycle Life

30000 cycles @85% DOD (dependant on actual DOD, usage & temp.)

Discharge Rate

1C

Response Time

> 1ms

MECHANICAL SPECIFICATIONS

Dimensions (W*D*H)

Can Be Customized


Weight

105Kg

Enclosure

steel enclosure with protection handles

The size can be customized

OTHER

Operating Temperature

 -50 to +60°C

Storage Temperature

-40 to +60°C

Humidity

5% to 95% Relative Humidity (Non-condensing)

Warranty

5 years


Other Features


  • Faster charge: 10mins fully charged


  • Higher discharge rate: Up to 10C

  • Wide working temperature range: -50°C ~ 65°C

  • Super long cycle life:  over 30,000 times


Application:

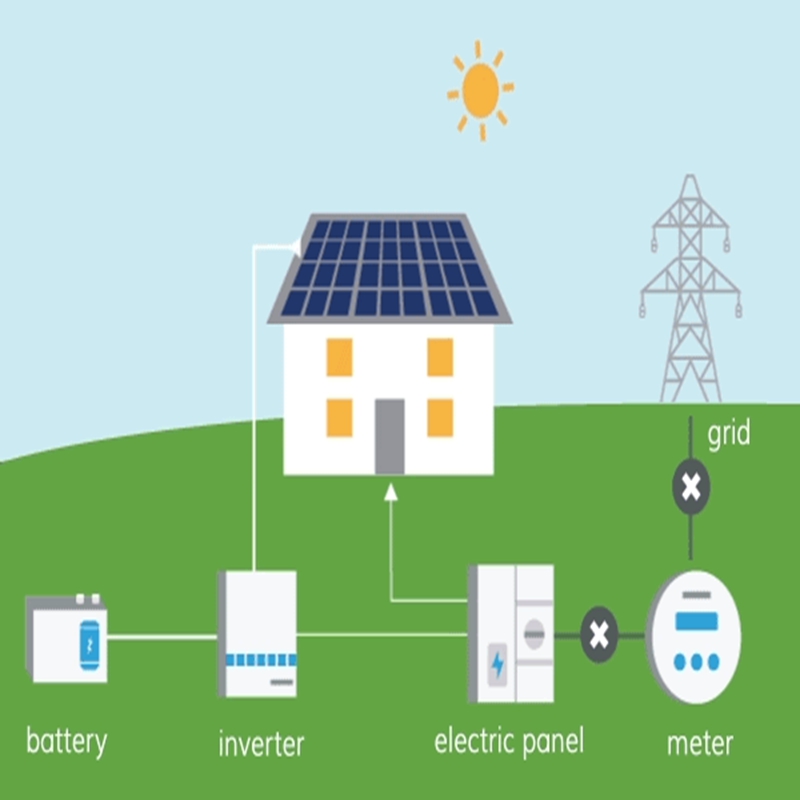

Home Solar Energy Storage


Related Products

Energy Storage System


With 10 years experience of making LiFePO4/NCM/LTO packs, we can customize any packs for you.

Please email us at service@osnpower.com to get solution and quotation.
