Warehouse Longspan Medium Duty Racking

The medium duty racking standard specification of upright can reach 200mm, for the different load capacity,the thickness is available in 0.8mm -1.2mm. The beam is L-shaped tube,the thickness is divided into 0.8mm-1.2mm, and thickness of plate is 0.4-0.7mm.Load capacity :150-300kg.


  • Load Capacity200-300kg
  • MaterialCold Roll Steel

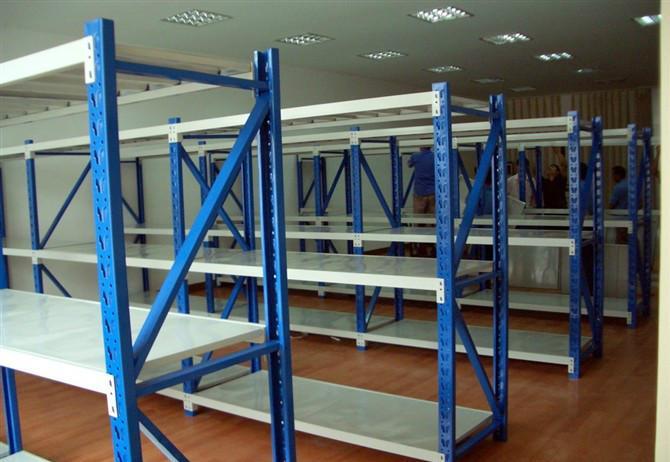

Warehouse Long span Medium Duty Racking


The industrial warehouse storage long span racking widely used in warehouse,distribution center, parts store, production line and so on.It is produced by high quality Q195 cold roll steel,making the system very sturdy and robust.Layers are easily adjusted without using special tool,each level of medium duty shelves can take the max load to 300kgs/layer.The units are usually supplied with steel decking,it improves the load capacity.The steel deck can also be powder coated on request.

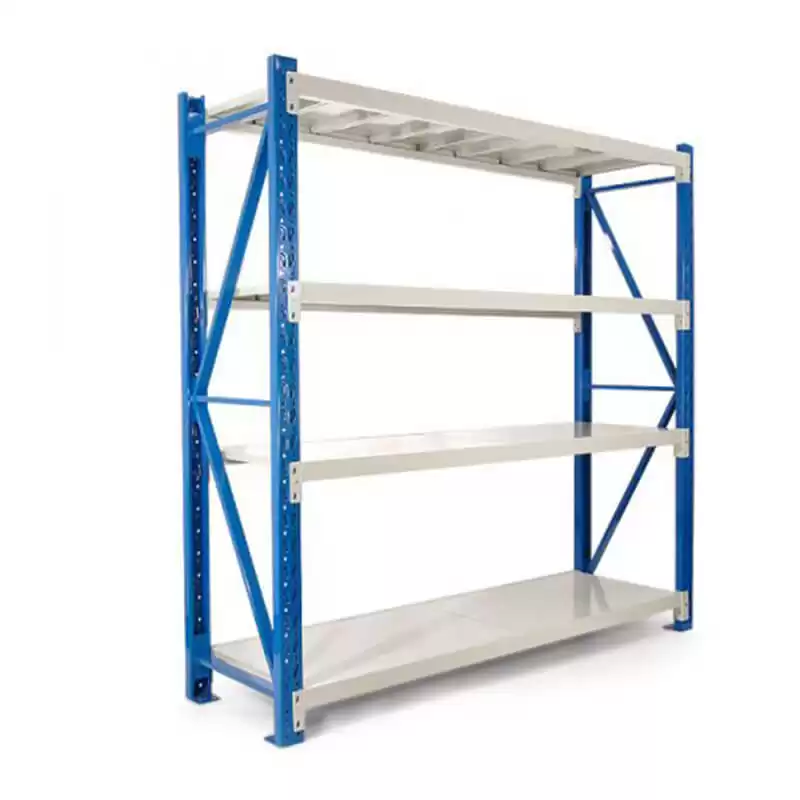

 steel storage longspan rack


Product Features


1)Personalized customization,we can customize the color, printing and other personalized steel shelving according to your needs.
2)Knock down structure,metal storage shelves easy to assemble,short time for skilled workers to assemble steel shelving.
3)Robust construction.The solid metal material has the anti-rust performance, may satisfy your long-term use.
4)Easy to assemble.metal storage shelves are easy to assemble steel shelving. It is recommended to use rubber hammer for assembly instead of bolts,screws and nuts.
5)Adjustable steel shelving,the distance of each shelf can be adjusted as required.


Some standard specifications of medium duty racking


Uprights


Beams


Size Thickness Loading Capacity
120X50X200mm
Upright: 0.8-1.2mm

Beam: 0.8-1.2mm

Decking: 0.4-0.7mm

200-300kg
150X50X200mm
200X50X200mm
120X60X200mm
150X60X200mm
200X60X200mm

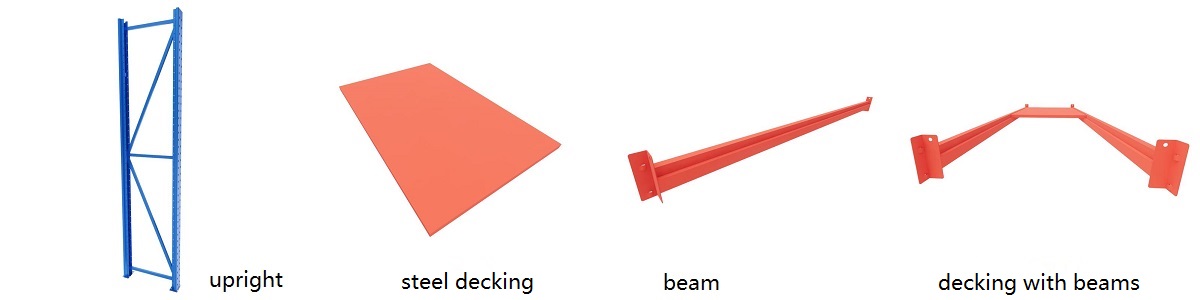

Components Drawing

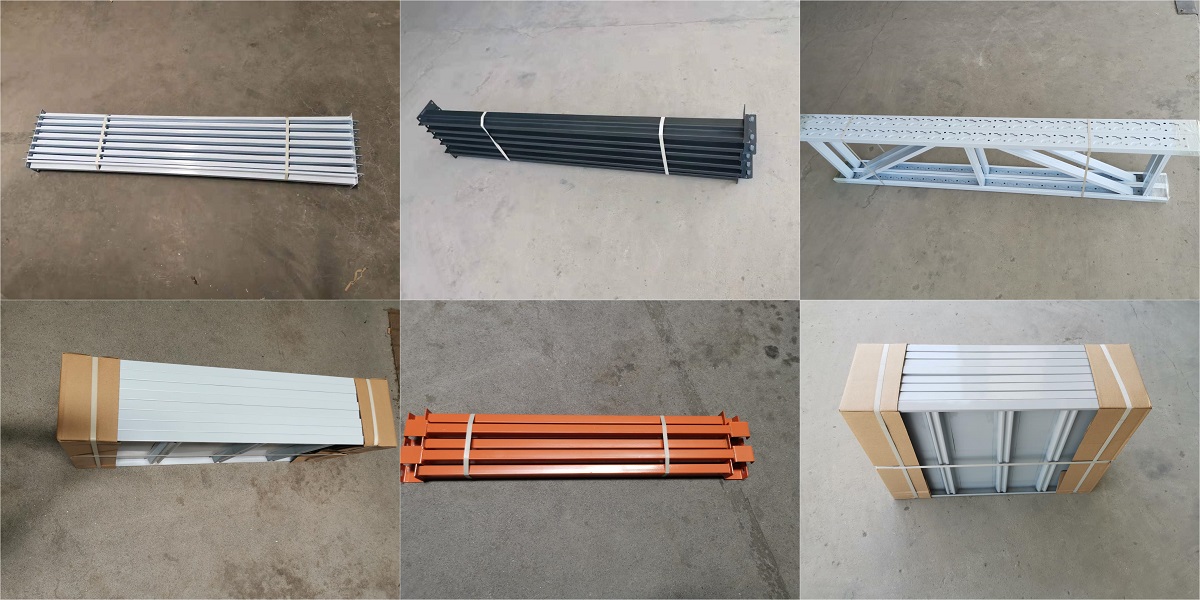

Packing



How to get a quotation?


In order to provide most appropriate quotation with detail solution, please give us as follow details in advance:


1: The racking dimension and total quantity.
2: Usage areas and layout plan.
3: Loading capacity you expect.
4: Other details such as the temperature of cold storage,the height of warehouse,and so on.


FAQ


Q:Are you a manufacture or just a trading company?

A:We are a manufacturer and exporter,we have 2 factories in Xiamen and Jiangsu,an independent export company --Xiamen Keeptop.

Q: Can you provide the layouts?

A: We have a professional design team to attend your OEM/ODM requests.

Q What is the delivery time?

A: It is about 10-15 days for a 40'container.

Q: What is your after-sales service time?

A: We guarantee after-sale service in 24 hours.
