Waste Compactor Truck HOWO Right hand drive
Function:
Waste compactor vehicle HOWO (also called as Hydraulic garbage compactor truck, rear loader garbage truck, garbgae compacting truck, refuse compactor trucks, rubbish compactor trucks, industrial garbage truck compactor) is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.
All our compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can be converted into various special garbage truck according to clients' special requirement.
Features:
---- HOWO chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance
Specifications:
Waste Compactor Vehicle HOWO (6 CBM)
|
General
|
Vehicle Brand
|
POWERSTAR
|
Chassis Brand
|
Sinotruk- HOWO
|
Overall Dimension
|
6230 * 2000 * 2490 mm
|
GVW / Kerb Weight
|
8,000kg / 4,890kg
|
Cab
|
Cab Capacity
|
2 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
HOWO
|
Power
|
120 HP (88 KW)
|
Displacement
|
3856ml
|
Emission Standard
|
Euro 3 or 4
|
Chassis
|
Drive Type
|

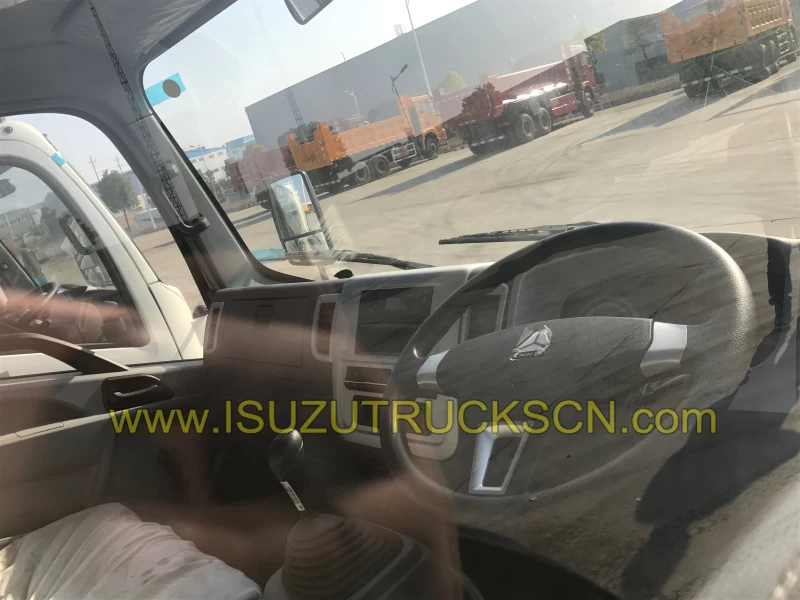

4X2, (left hand drive or Right hand drive)
|
Transmission
|
5 speed levers with 1 reverse
|
Wheelbase/No. of axle
|
3360 mm / 2
|
Tire Specification
|
7.00-16
|
Tire Number
|
6 tires and 1 spare tire
|
Max Speed
|
95 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Body Capacity
|
5 CBM
|
Fill Hopper Capacity
|
0.8 m3
|
Sewager Tank volume
|
200 L
|
Body Material
|
Weather resisting steel
|
Filling work cycle time
|
20~25 s
|
Filling lift time
|
6~9 s
|
Filling lift capacity
|
8 Tons
|
Discharge time
|
18~22 s
|
Max compression force
|
12 Tons
|
Discharge model
|
Horizontal Ejection
|
Control
|
Electrically Hydraulic control
Manual Hydraulic control
|
Emergency Stop Button
|
Hopper Both Sides
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
Working
Principles of Garbage Compactor
Different bin optional:
Detail pictures:

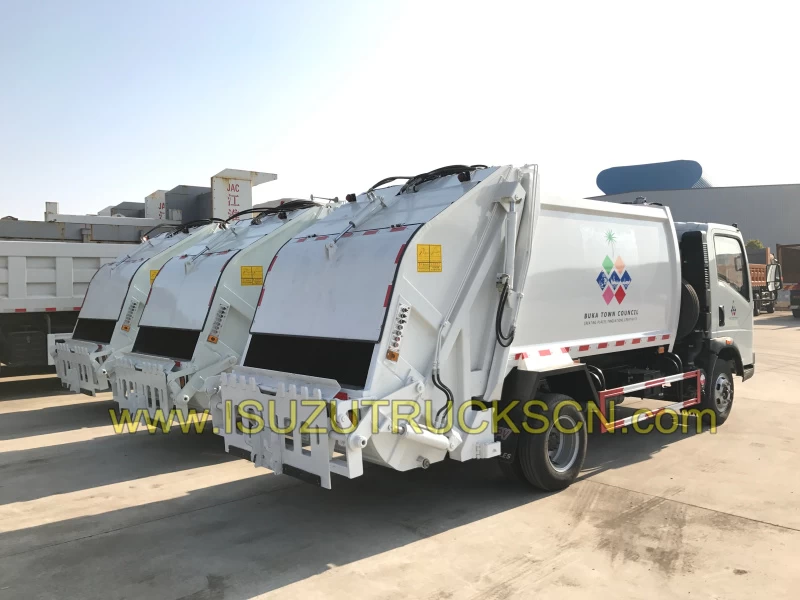

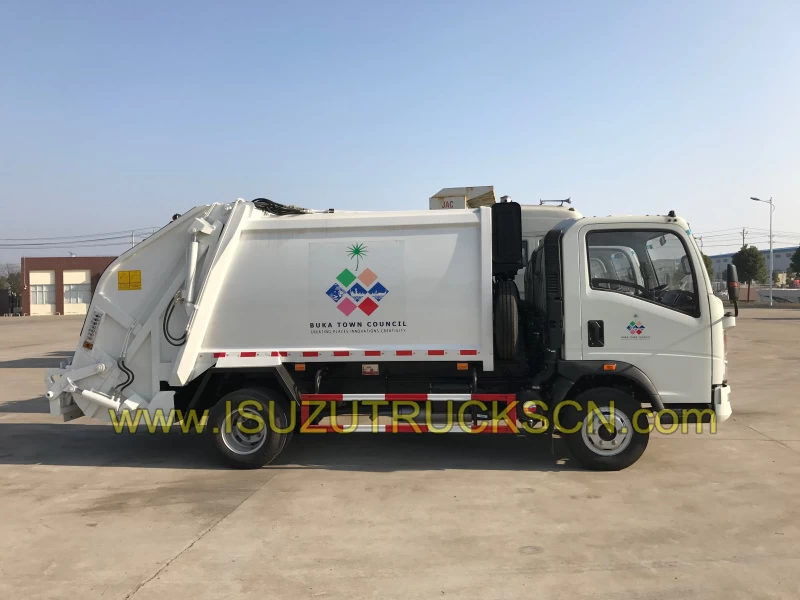

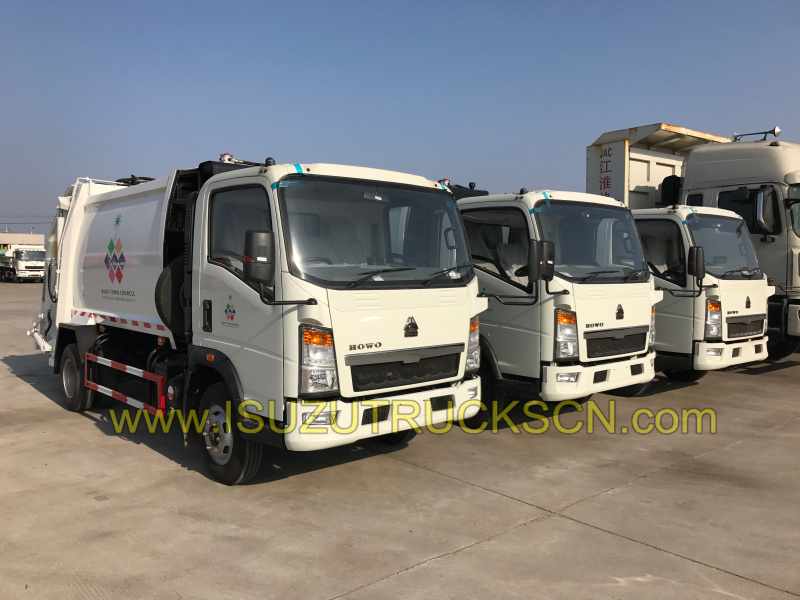

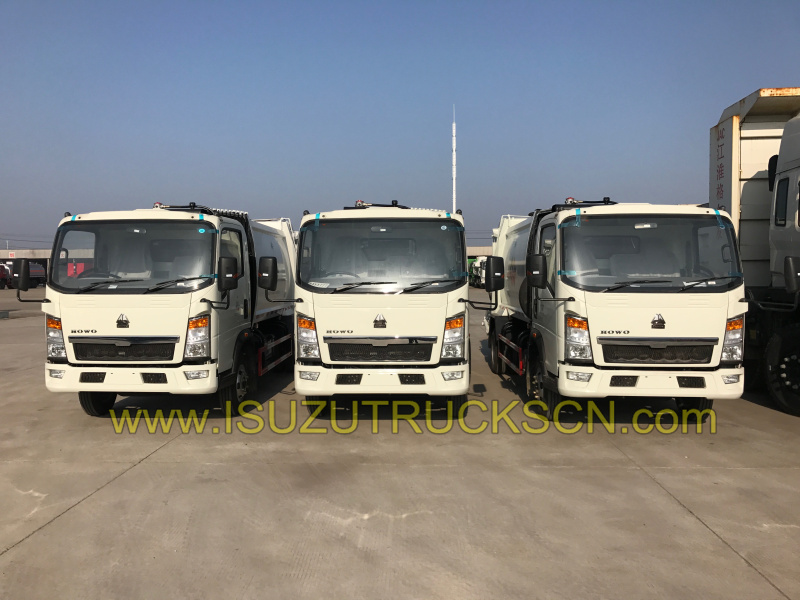

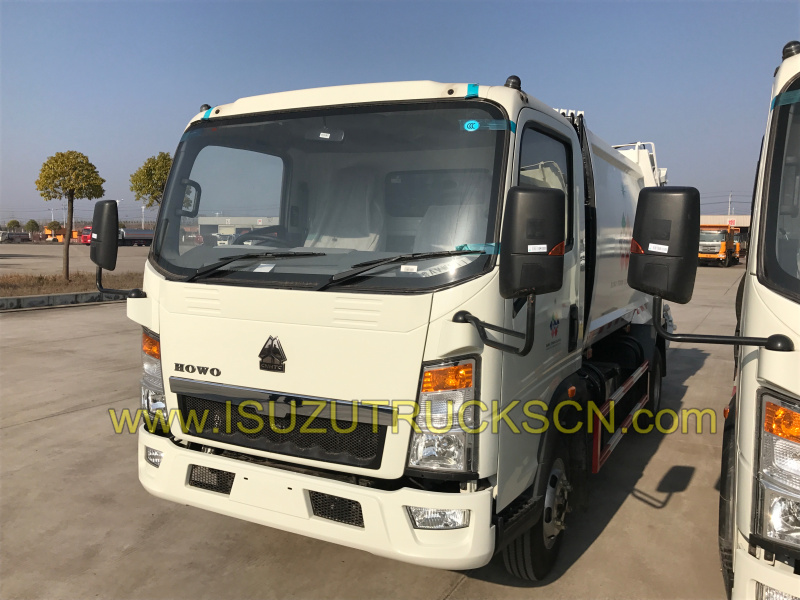

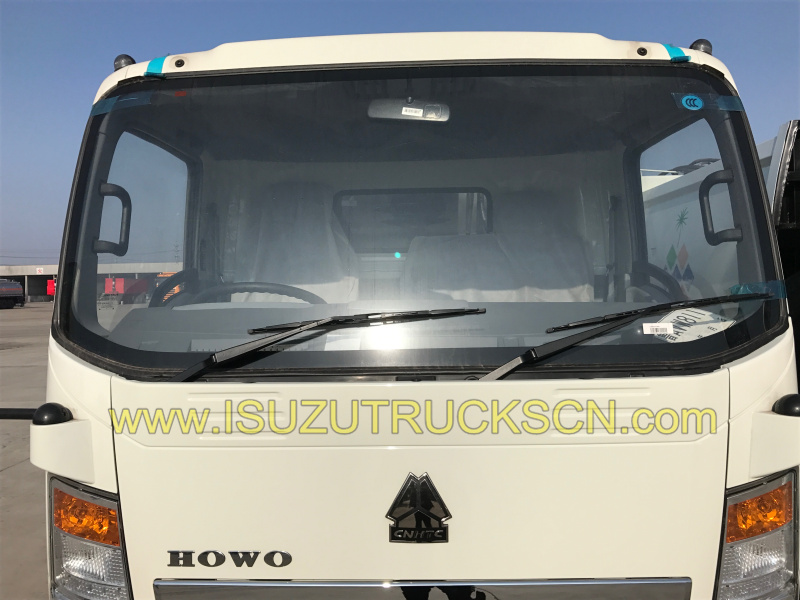

Hydraulic garbage compactor truck HOWO Rear loader garbage truck
Control box in the cabin
Operation manual of 4cbm Compression Garbage Truck Isuzu

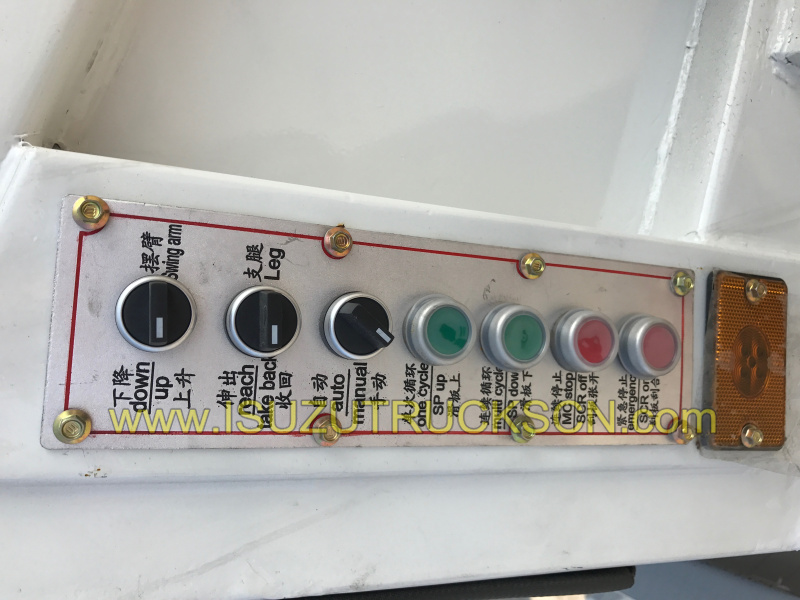

Control box outside
