Waste Garbage Truck Dongfeng 5 CBM

Garbage truck, compacot vehicle, Truck mounted solid waste compactors, sanitation garbage compactor, bin lorry, waste collection compactor truck,Garbage compactor recyling truck, waste collection transport truck,



 Rubbish Compacting Truck Dongfeng 5 CBM

 Rubbish Compacting Truck Dongfeng 5 CBM

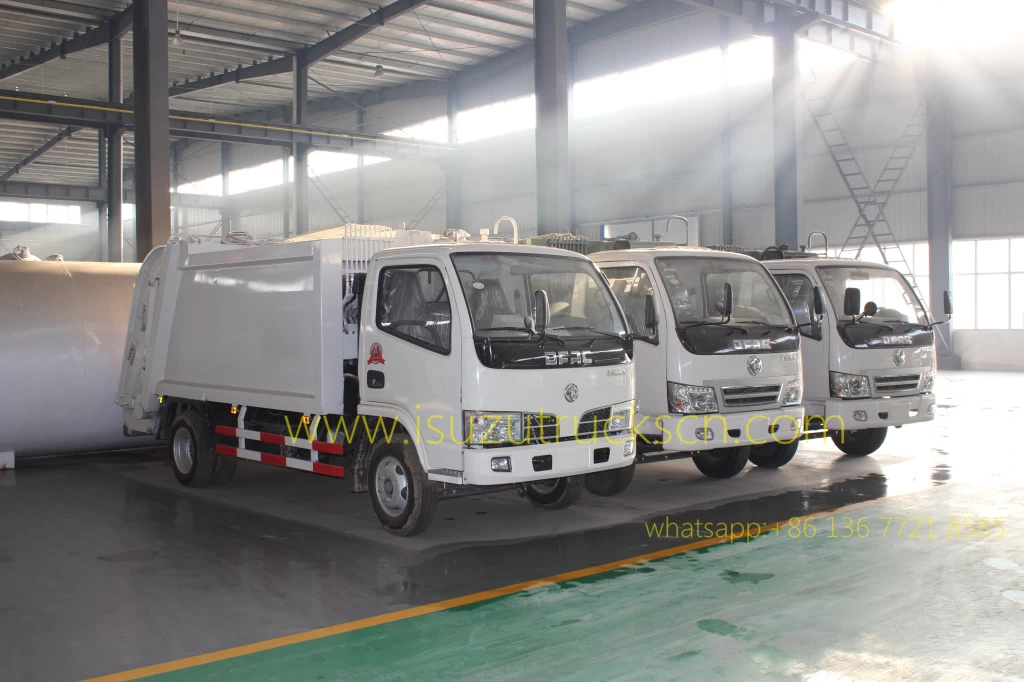

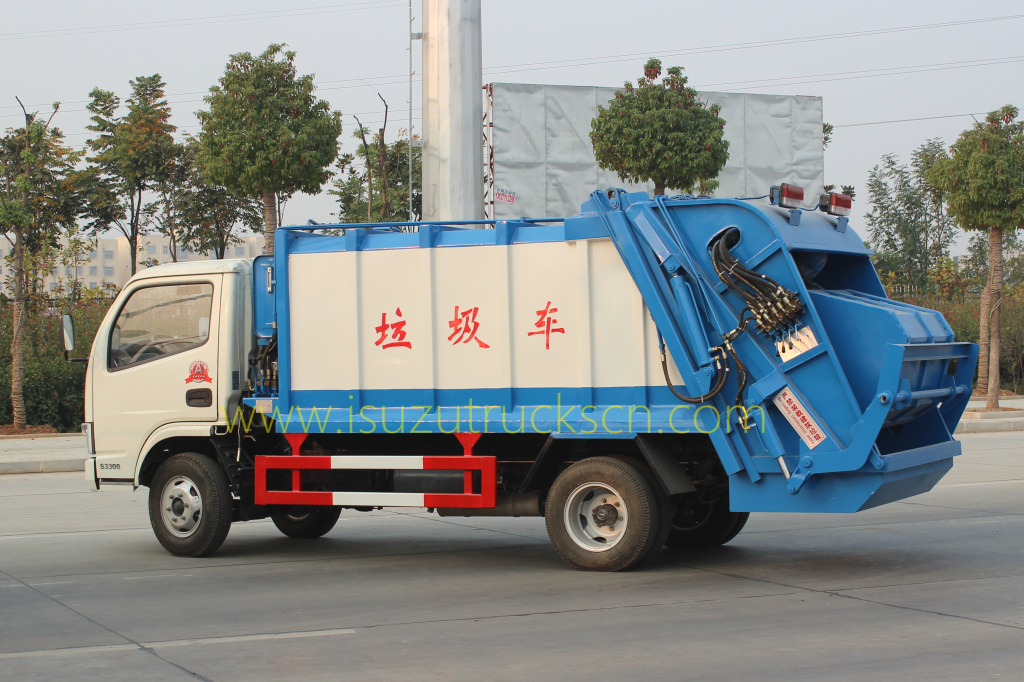

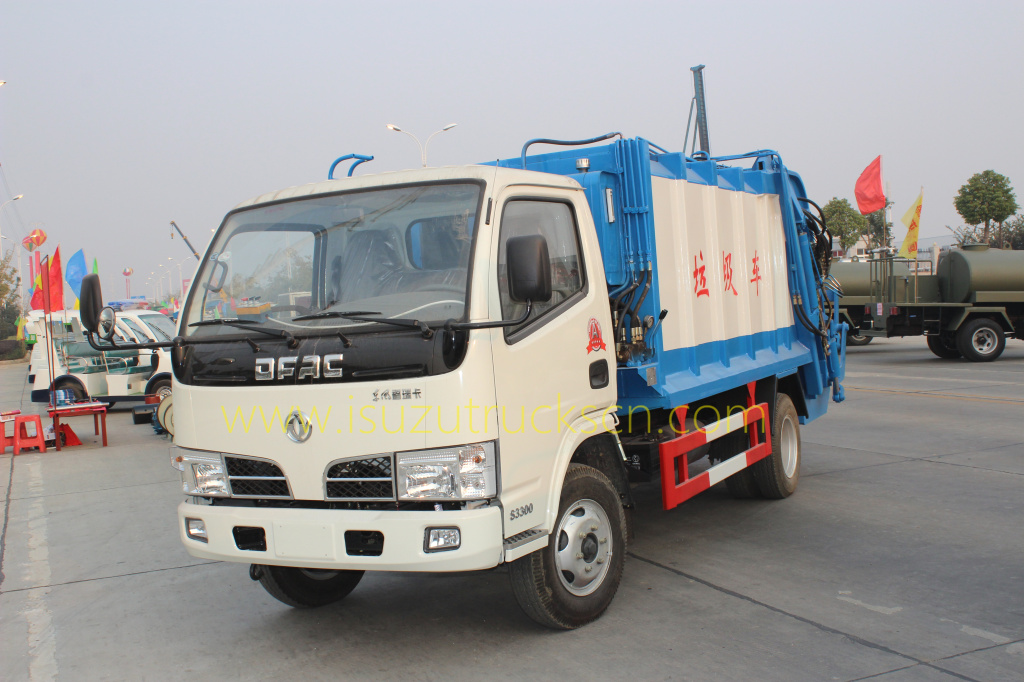

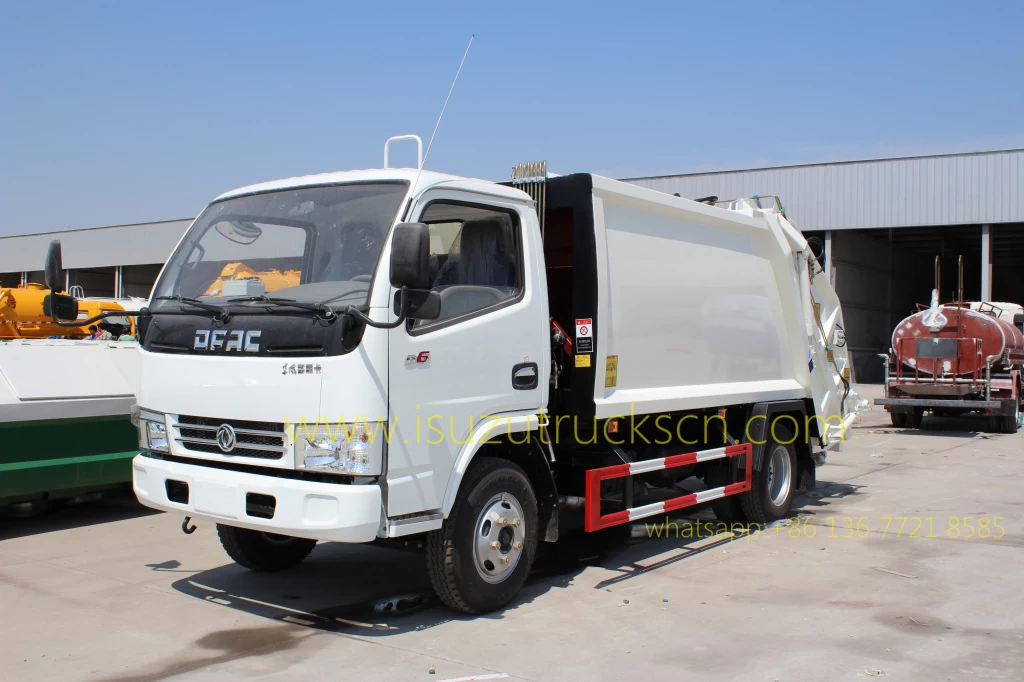

 pictures for Rubbish Compacting Truck Dongfeng 5 CBM   pictures for Rubbish Compacting Truck Dongfeng 5 CBM

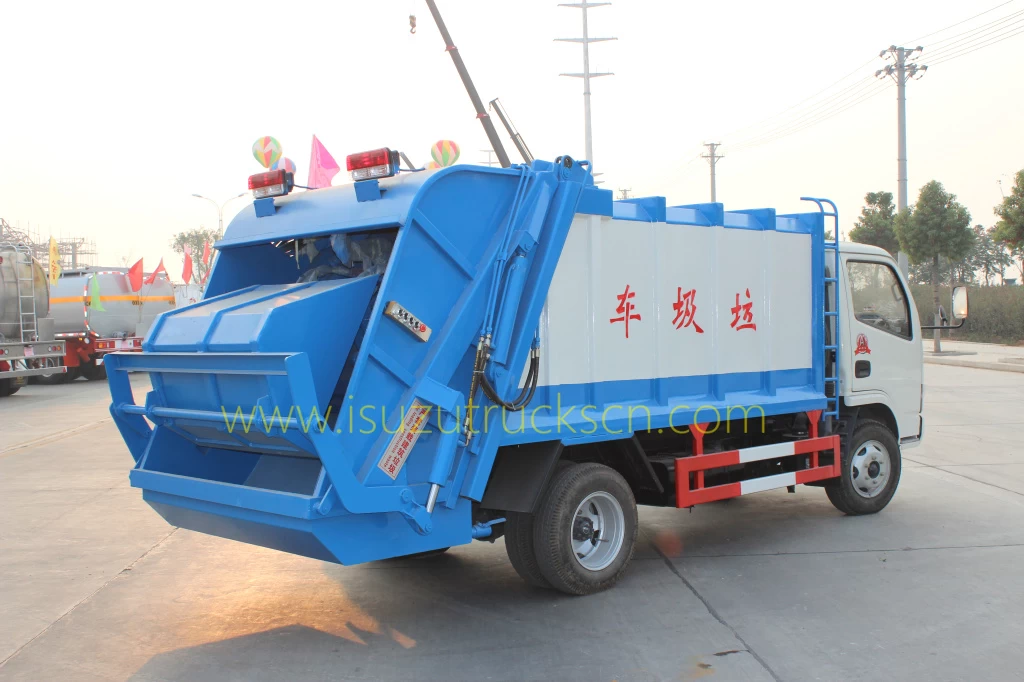

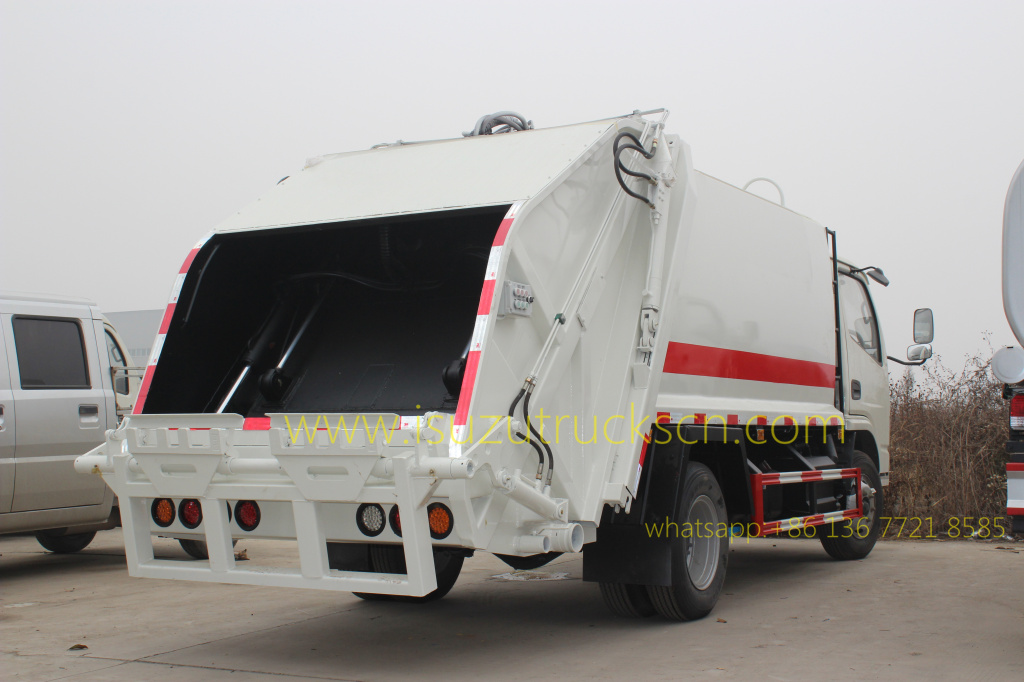

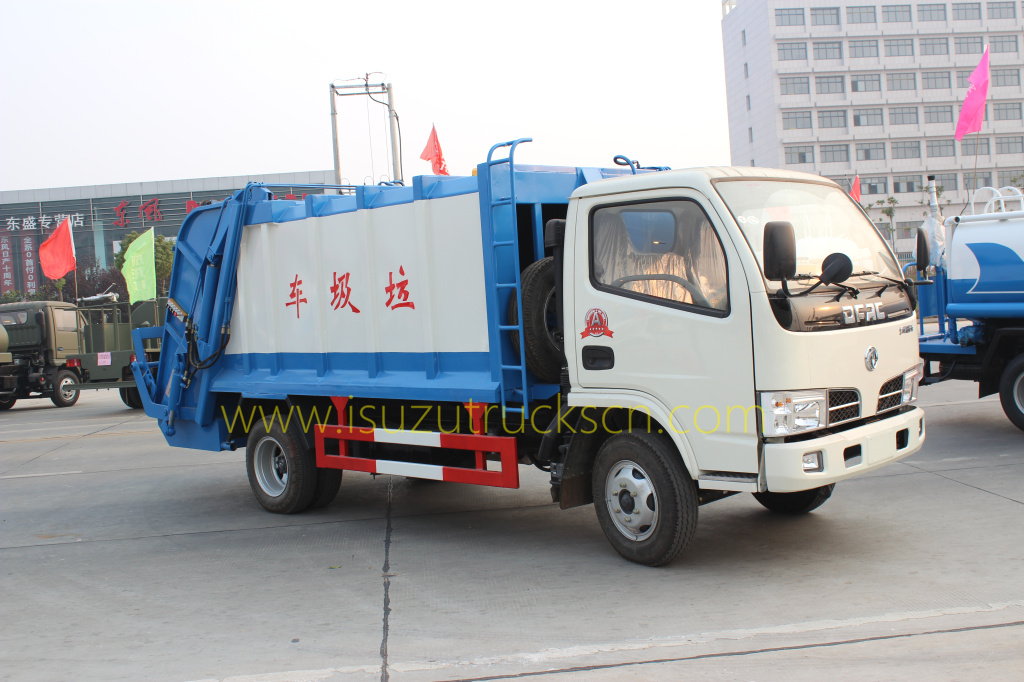

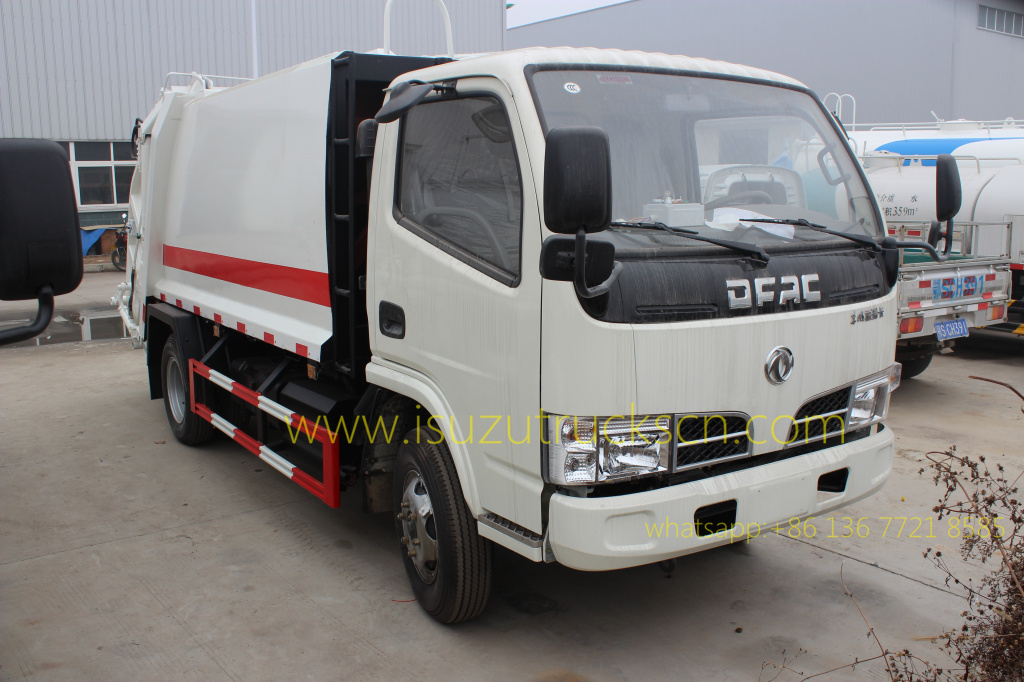

 pictures for Rubbish Compacting Truck Dongfeng 5 CBM    pictures for Rubbish Compacting Truck Dongfeng 5 CBM


Function:

Waste compactor garbage truck Dongfeng 5CBM (also called as refuse collection vehicle, narrow garbage coompactor, new garbage compactor truck, compression type garbage truck, new design compactor garbage truck, garbage compactor disposal truck)  is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.


All our compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can be converted into various special garbage truck according to clients' special requirement.


Features:

---- ISUZU chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance

Specifications:



Refuse Compactor Vehicle Dongfeng (5 CBM)

General

Vehicle Brand

POWERSTAR

Chassis Brand

DONGFENG

Overall Dimension

6230 * 2000 * 2490 mm

GVW / Kerb Weight

8,000kg / 4,890kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

95 HP (70 KW)

Displacement

3856ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (left hand drive or Right hand drive)

Transmission

DF 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body Capacity

5 CBM

Fill Hopper Capacity

0.8 m3

Sewager Tank volume

200 L

Body Material

Weather resisting steel

Filling work cycle time

20~25 s

Filling lift time

6~9 s

Filling lift capacity

8 Tons

Discharge time

18~22 s

Max compression force

12 Tons

Discharge model

Horizontal Ejection

Control

Electrically Hydraulic control

Manual Hydraulic control

Emergency Stop Button

Hopper Both Sides

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.



  technical drawing for 3 Ton Isuzu Garbage Truck With Compactor


Working Principles of Garbage Compactor

Technical drawing for Isuzu NPR Refuse compactor (Garbage compactor truck)

Different bin optional:


 bin hopper for garbage compactor truck

  bin hopper for garbage compactor truck

 bin hopper for garbage compactor truck    bin hopper for garbage compactor truck


Detail pictures:

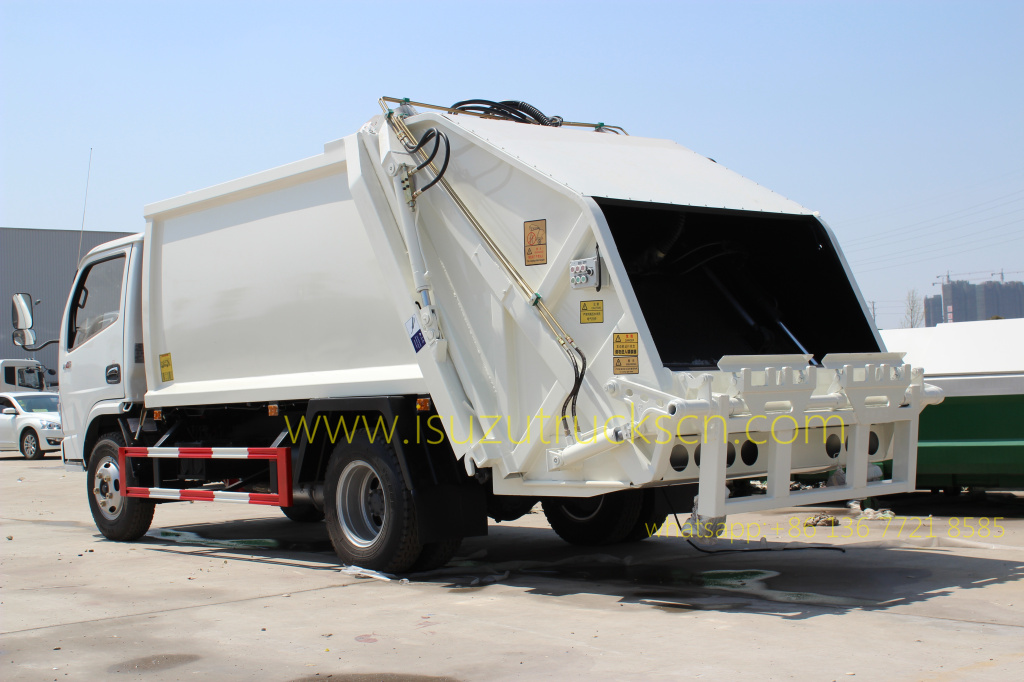

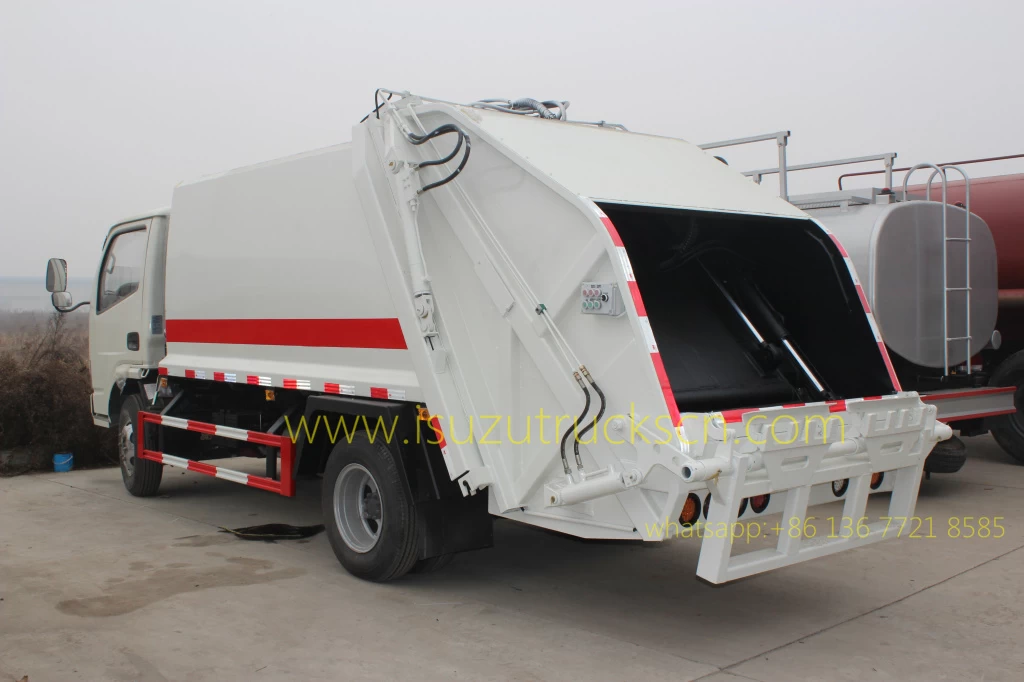

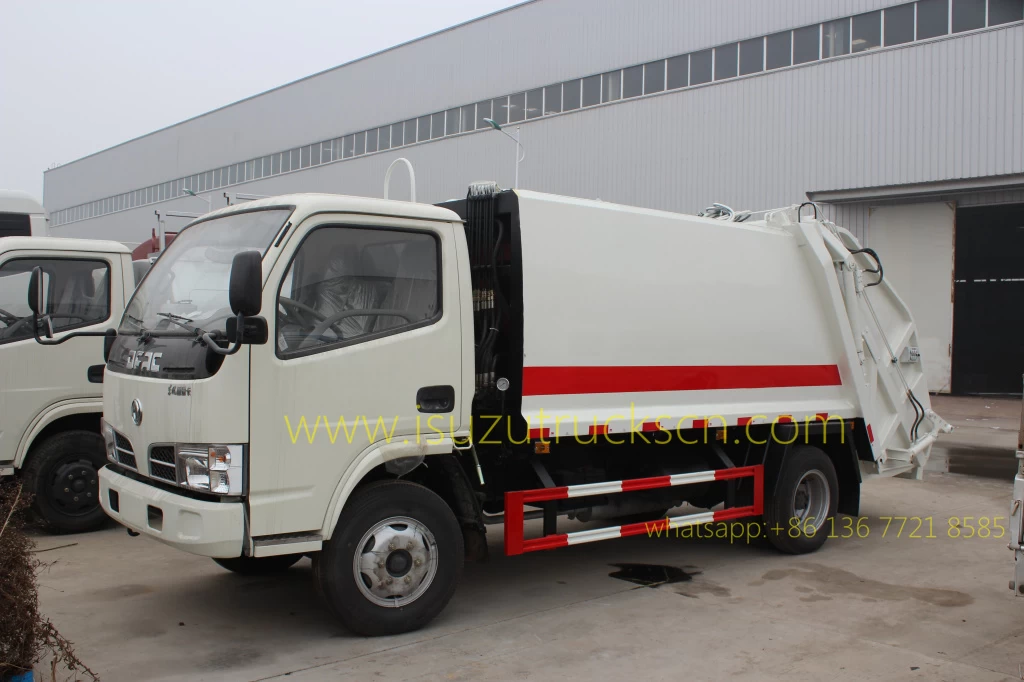

 specifications and pictures for Rubbish Compacting Truck Dongfeng 5 CBM

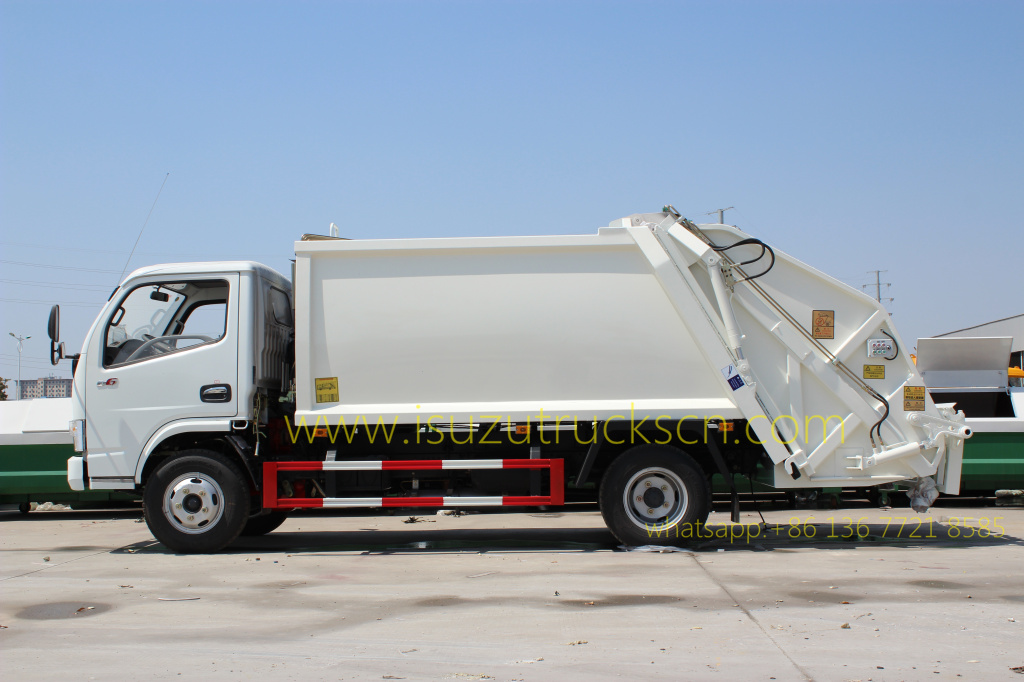

 specifications and pictures for Rubbish Compacting Truck Dongfeng 5 CBM

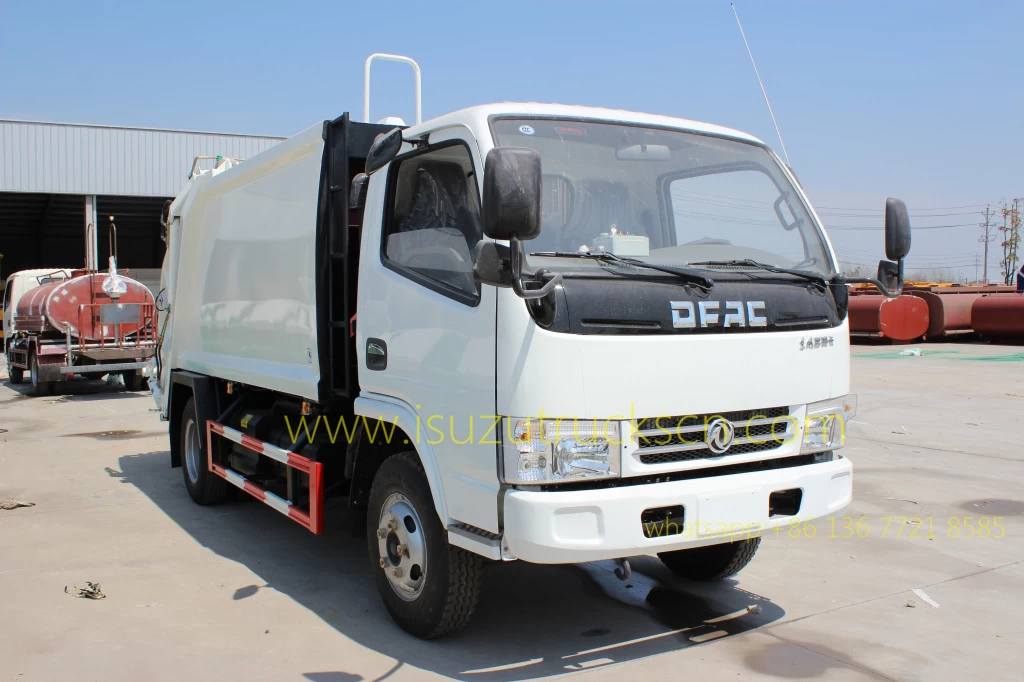

 specifications and pictures for Rubbish Compacting Truck Dongfeng 5 CBM

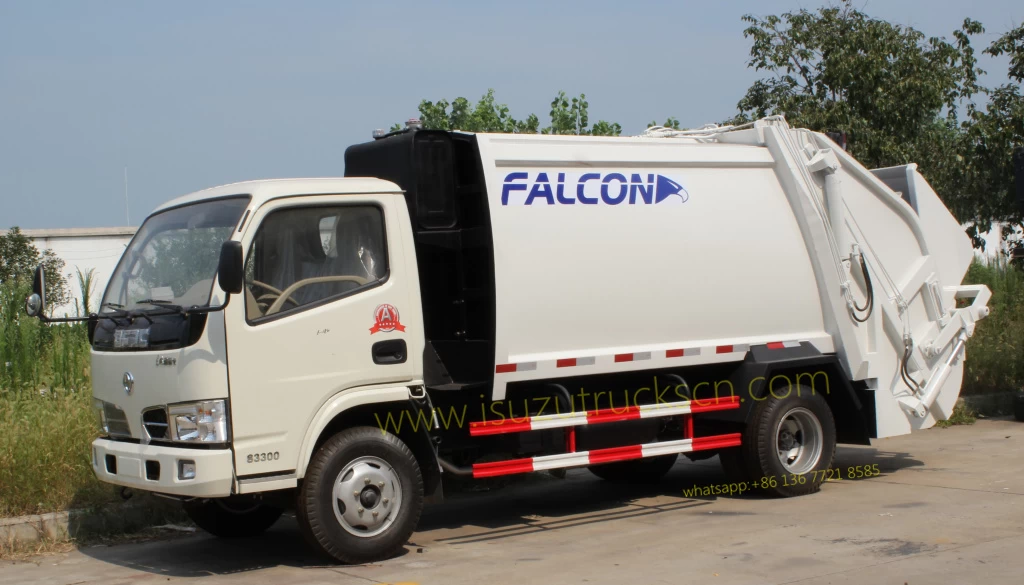

 specifications and pictures for Rubbish Compacting Truck Dongfeng 5 CBM







 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures


 how to operation garbage compactor truck?    how to operation garbage compactor truck?

 how to operation garbage compactor truck?    how to operation garbage compactor truck?

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

Control box in the cabin

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

Operation manual of 4cbm Compression Garbage Truck Isuzu

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

Control box outside

Operation manual for Isuzu refuse compactor garbage trucks

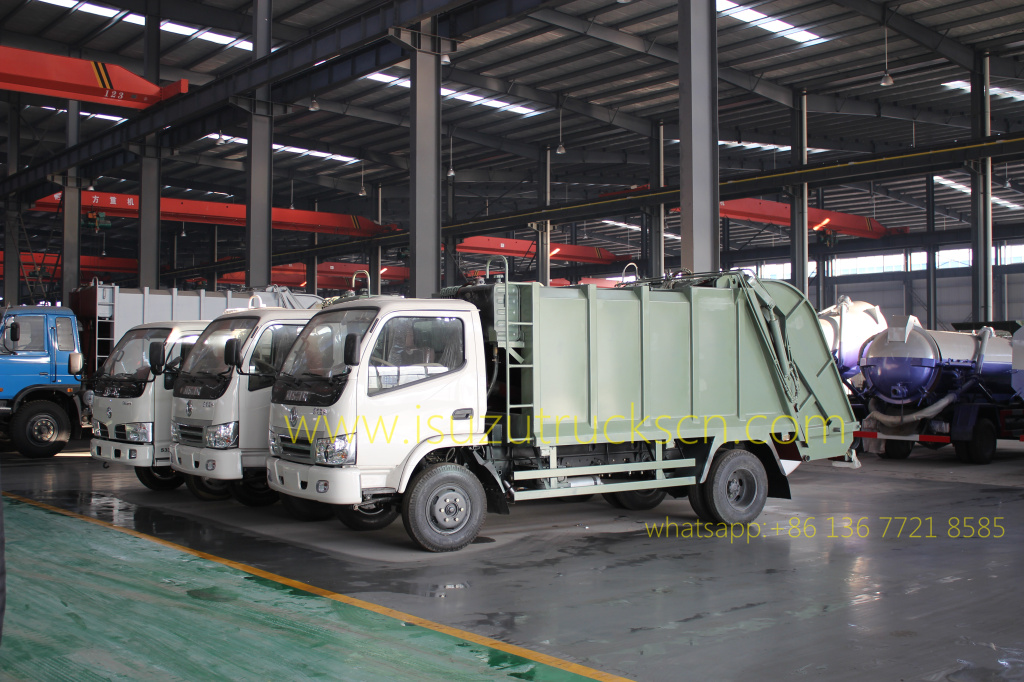

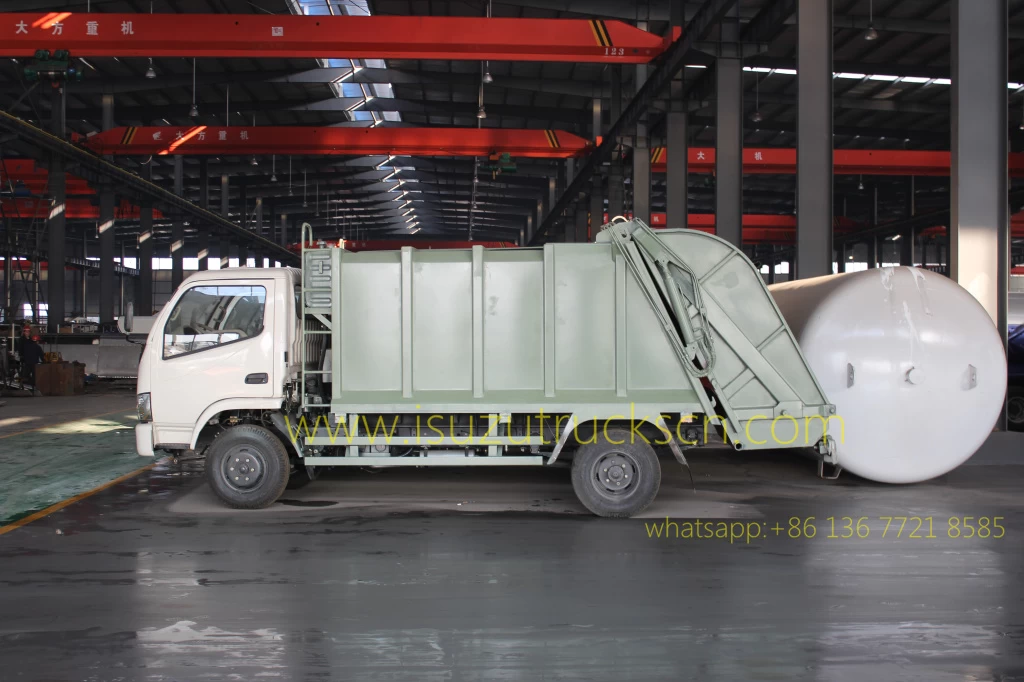

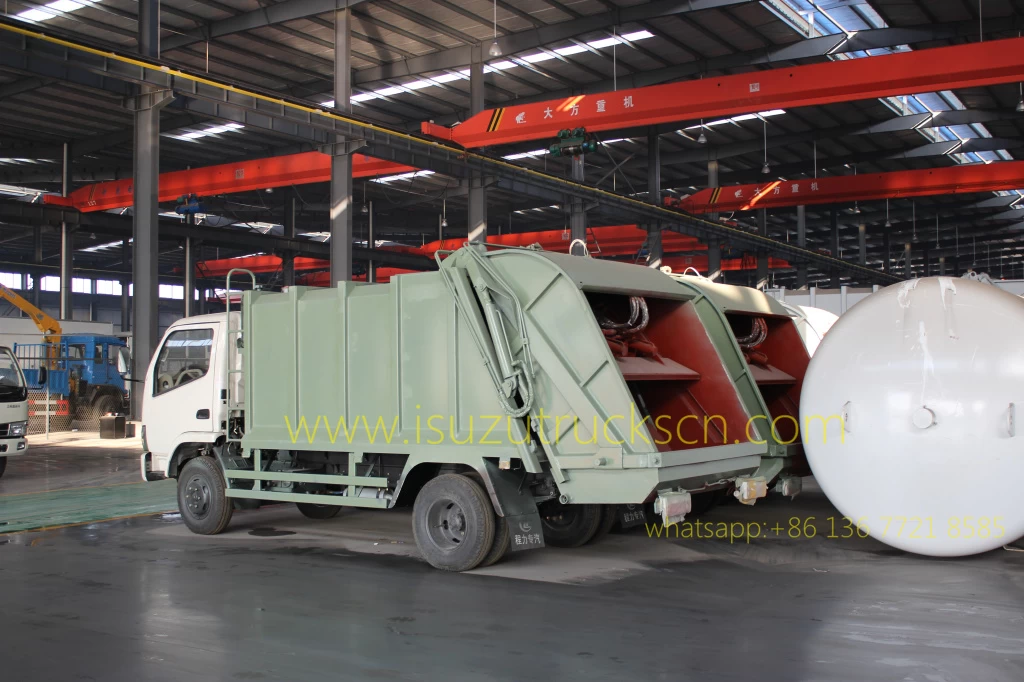

Workshop of build 5CBM  Dongfeng Garbage Compactor Truck:

Workshop of build 5CBM Dongfeng Garbage Compactor Truck:

Workshop of build 5CBM Dongfeng Garbage Compactor Truck:

Workshop of build 5CBM Dongfeng Garbage Compactor Truck:

Workshop of build 4CBM
