Water Carrring Truck Beiben 20cbm
Function:
Water carring truck Beiben (also called water carriers,water tank truck, water spray truck, water bowser truck, water bowser, truck tank water, water distribution truck, water sprinkler, water lorry) is produced for transportation and distrubition of industrial and drinking water, spraying and washing of streets and tunnels, dust and environmental control and fire-fighting purposes. In order to achieve those different operations , each water tanker truck is equipped with various features and it’s designed according to capacity of the carrier vehicle.
Areas of Application and Use
- Transportation and distrubition of drinking water
- Transportation and distrubition of industrial water
- Pressurized street and road cleaning
- Pressurized tunnel cleaning
- Dust and environmental control
- Fire fighting service
Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:
| Water Carring Trucks Beiben (20,000 litres) |
| General |
Vehicle Brand |
POWERSTAR |
| Chassis Brand |
BEIBEN / North Benz |
| Overall Dimension |
9900 * 2500 * 3300 mm |
| GVW / Kerb Weight |
25,000 kg / 10,520kg |
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
WEICHAI engine |
| Power |
270 Hp (199 KW) |
| Displacement |
5199 ml |
| Emission Standard |
Euro III |
| Chassis |
Drive Type |
6X4, left or Right hand drive |
| Transmission |
FAST 9-Speed Gearbox |
| Wheelbase/No. of axle |
4500+1350 mm / 3 |
| Tyre Specification |
12.00-20 |
| Tyre Number |
10 tyres and 1 spare tyre |
| Max Speed |
110 km/h |
| Paint |
Metallic paint |
| Superstructure |
Tank Capacity |
20,000 Litres ( About 5,700 US gallons) |
| Tank Material |
Carbon steel |
| Flow Speed |
1000 litres / min |
| Delivery Head |
45 m |
| Suction Head |
6 m |
| Hose |
High quality PVC hose, anti-aging |

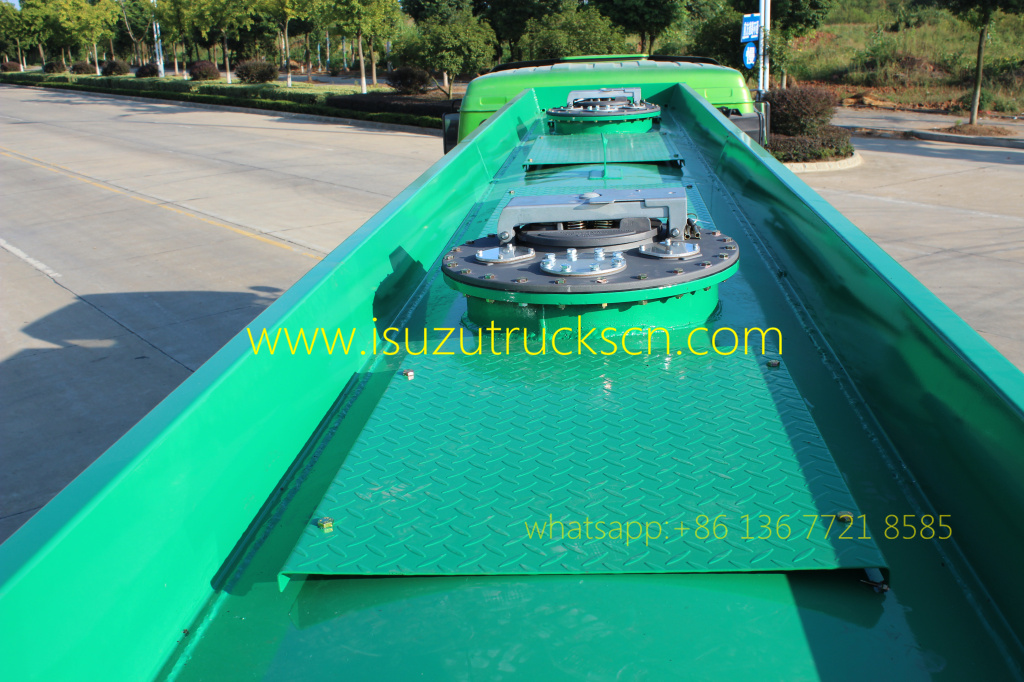

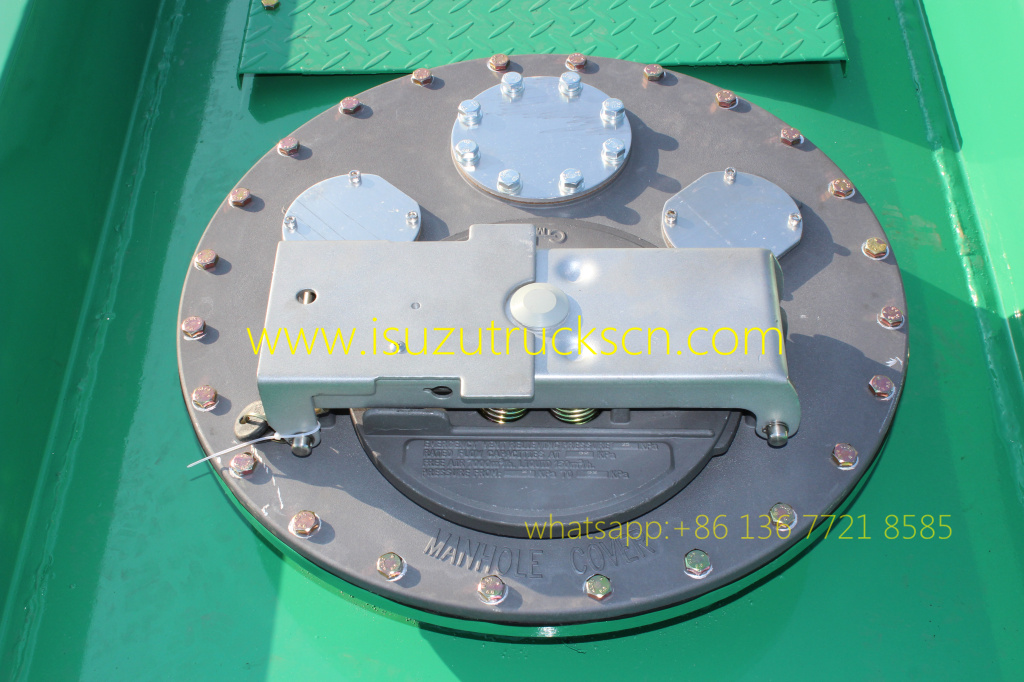

| All other standard accessories: manhole, ladder, inlet, discharge……. |
| Optional |
** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. |

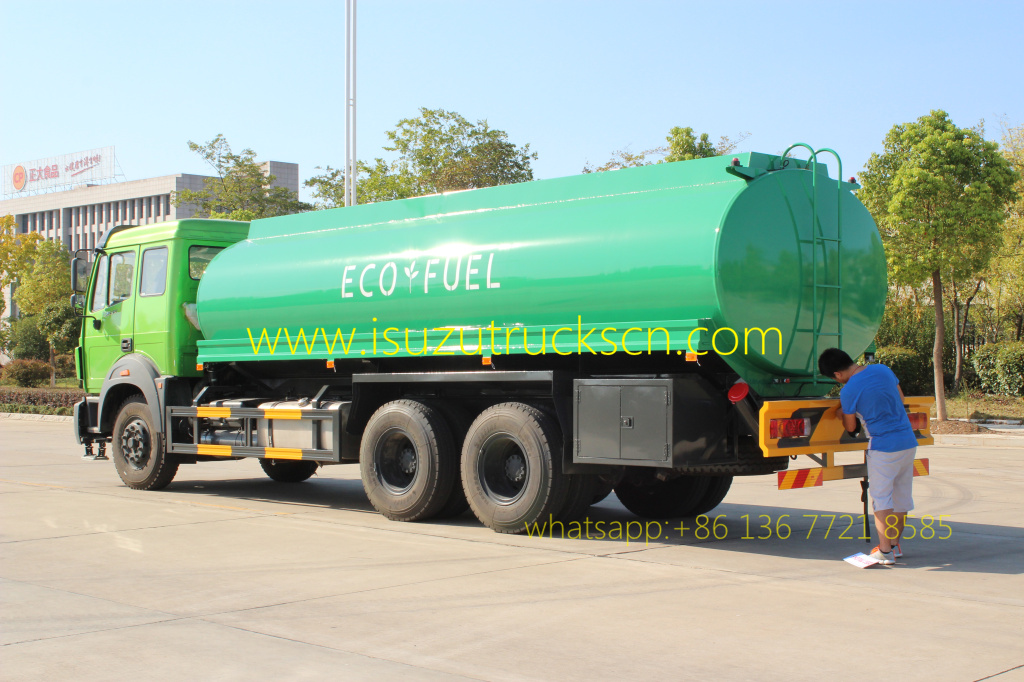

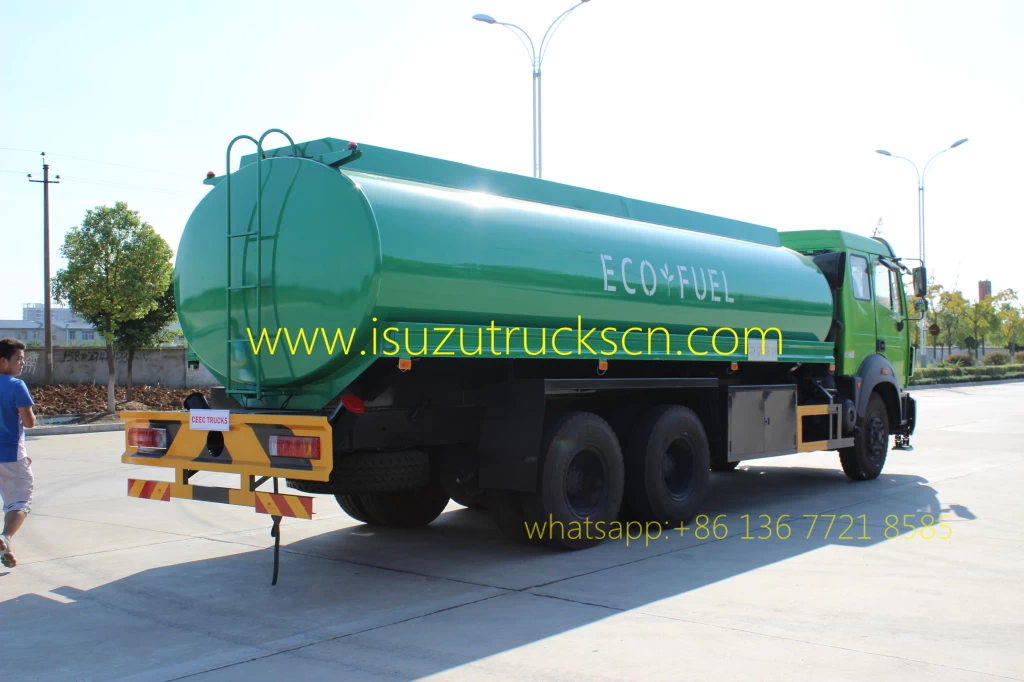

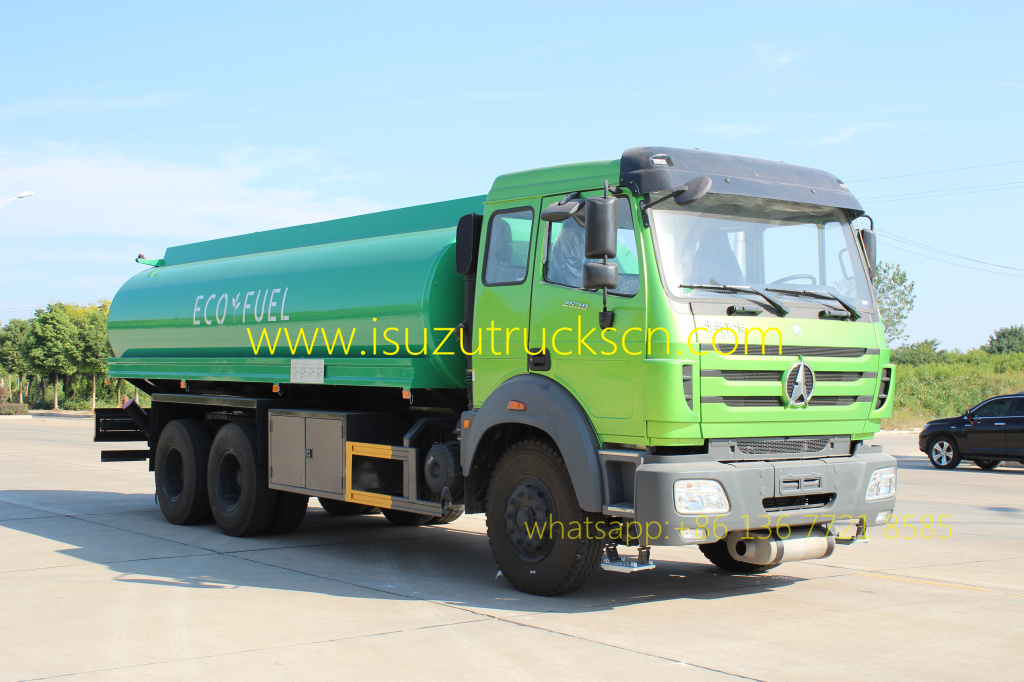

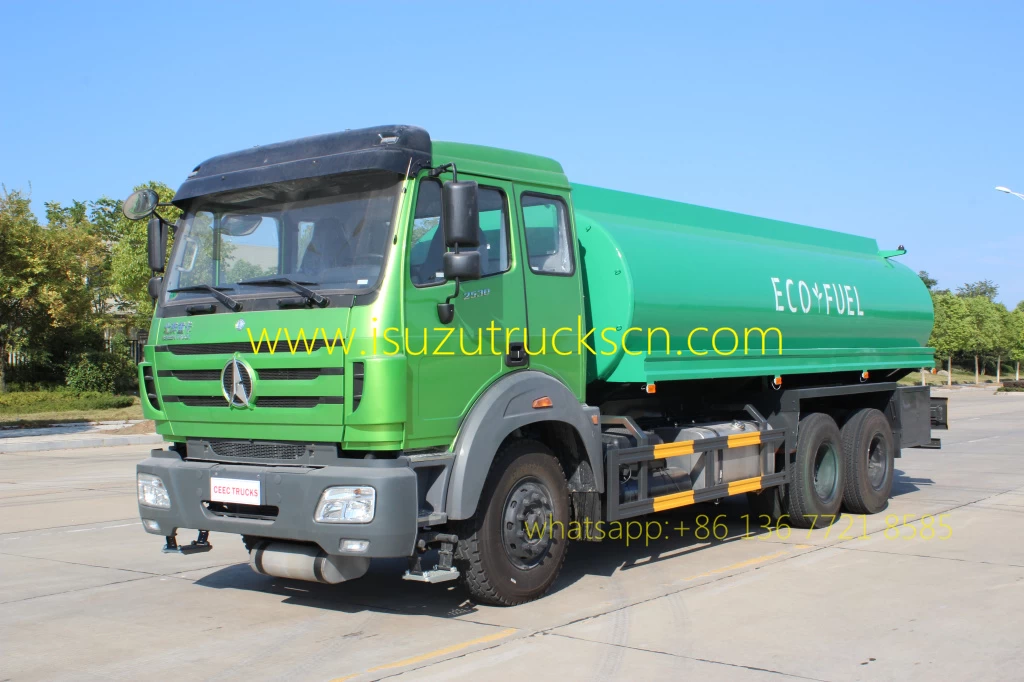

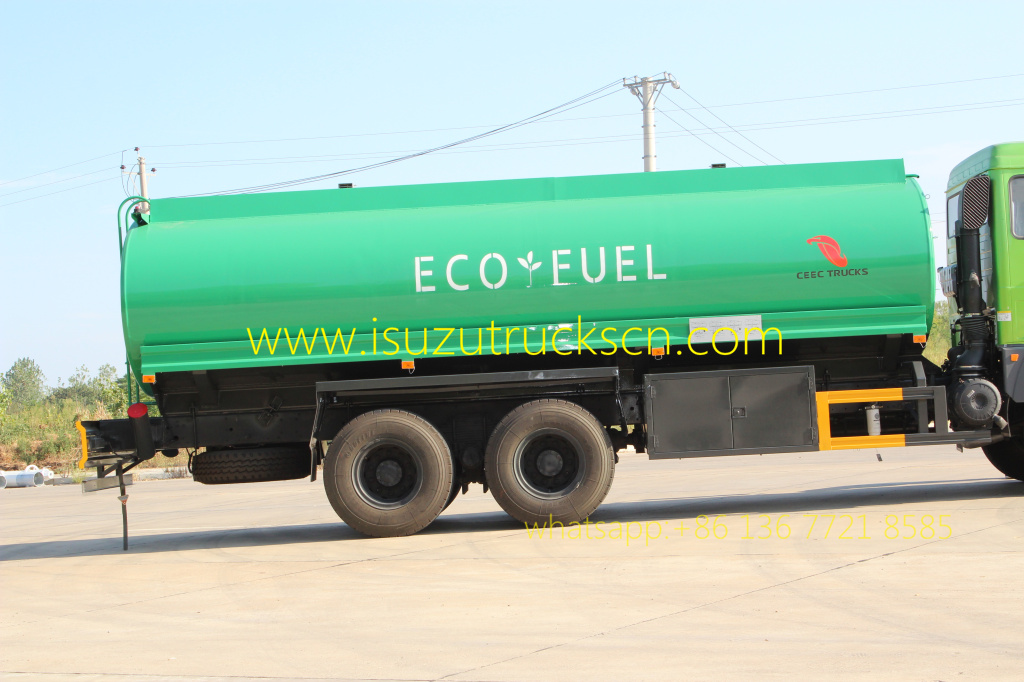

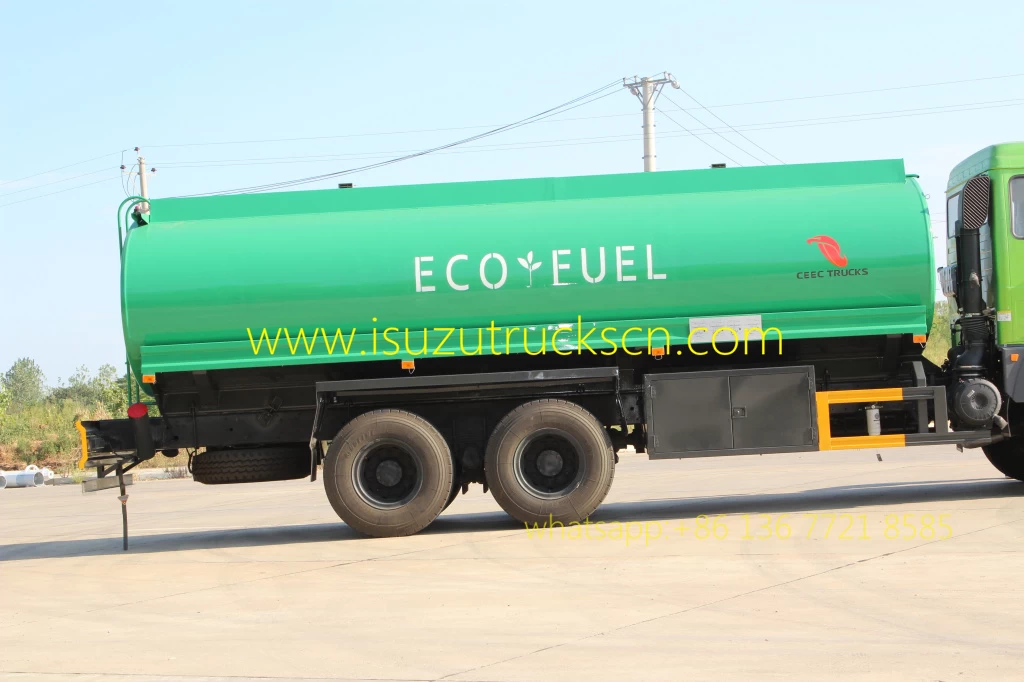

Recently Built Water Tank Truck :
