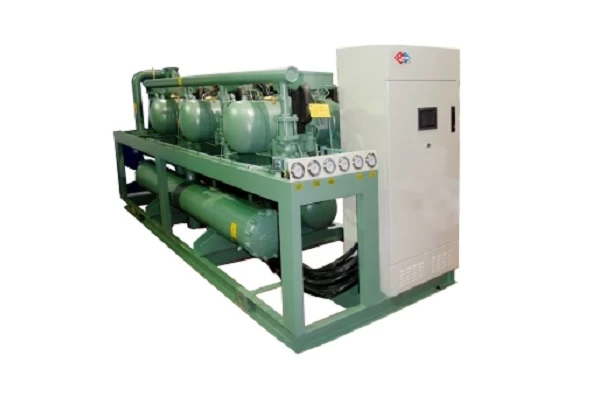

Water Cooled Condensing Unit
Introduction: H.Stars condensing unit is specially designed for the production process of
cryogenic treatment such as freezing, refrigerating and cooling; it is assembled with a semi-closed screw compressor and
equipped with shell-and-tube type condenser. Suitable for food
processing,refrigeration and various special low temperature industrial and
commercial cooling systems.
Brand: H.Stars
Cooling capacity range: 21500~1907500Kcal/h
Applications: Food processing,
refrigeration and various special low temperature industrial and commercial
cooling systems.
Unit parameters
Cooling capacity range: 21500~1907500Kcal/h, Evaporation temperature: -40°c ~ -10°c
Field of application: Food processing, refrigeration and various
special low temperature industrial and commercial cooling systems.
Unit characteristics
1. H.Stars condensing unit adopts advanced high-efficiency screw compressor to
match high-quality condenser and microcomputer processing module;
2. The unit has compact structure,
stable operation, perfect energy control system, low noise, safe and reliable;
3, the unit provides high and low
pressure, phase loss ,reverse phase, motor overload, anti-ice protection
and other functions to protect the compressor, and cooling
system. The pressure control and safety valve
arrangement ensure the safety of the unit.
4. The unit has passed the professional
operation test in the factory, and its function is perfect and widely used.
Condensing unit model classification
1. High temperature type: evaporation
temperature as low as -10℃. Mainly used in large and medium-sized
supermarkets, hotels, restaurants, refrigerated display cabinets, food
preservation, hospitals, pharmaceuticals, electronics and other industries;
2. medium temperature type: evaporation
temperature is as low as -30℃. Mainly used in food processing industry,
cold drink industry, cold storage, hospital, pharmaceutical, electronics
industry;
3. Low temperature type: evaporation temperature as low as -40℃.It is mainly used in large-scale cold
storage, transportation, hospital, pharmaceutical, electronics and other
industries for quick freezing, preservation and quality assurance;
If customers need special
low-temperature condensing equipment, Guangzhou H.Stars Company can provide
technical solutions and equipment manufacturing for the specific requirements
of the project.
