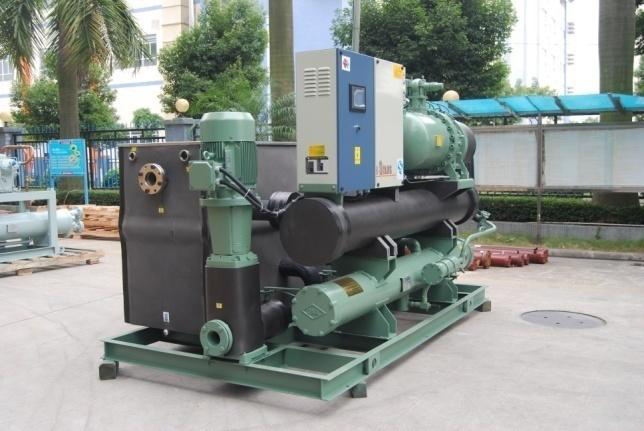

Water Cooled Industrial Chiller Units

Water Cooled Industrial Chiller Units

Introduction

Water-cooled screw type low-temperature chiller is designed for refrigeration, refrigeration and industrial cooling. It requires a complete range of models to meet the requirements of different cooling capacity and temperature requirements.

Cooling Consumption for reference

Industrial Chiller Unit for Plastic Industry

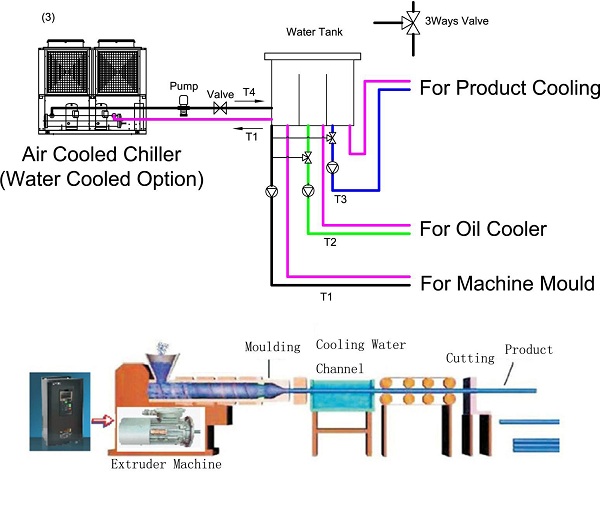

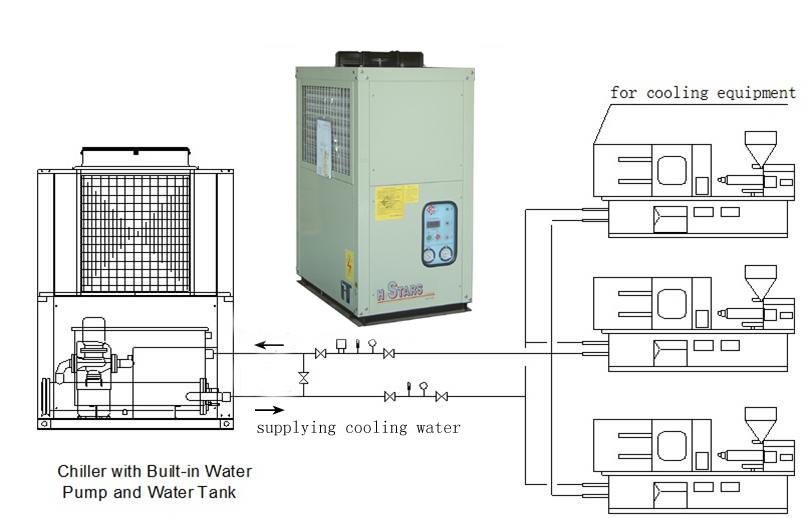

Cooling System Drawings - Industrial Cooling for Plastic Injection Machines

Features of Industrial Chiller for Plastic Industry

Higher Energy Efficient : COP of 12℃ outlet water temperature higher (15~20%) than normal unit of 7℃ outlet water temperature, means energy-saving efficient.

Oversized Condenser and Evaporator: Oversized condensers not only make for a long lasting compressor, they are also designed to operate in extreme conditions, i.e., above 45℃ and as low as -25℃, or at any temperature in between.

Heat Recovery: Supplying 55℃ free hot water, Heating Capacity approx. 1/3 of Cooling Capacity, increasing unit efficient about 5%.

Integrated System: Built in water tank and water pumps module set (with valves and strainer assemble in a module), no piping and wiring errors, simple installation, save time and labor cost.

Water Tank: For supplying a stable outlet water temperature, also supplying multiple outlet water temperature to different cooling requirements application.

Water Pumps: With pump controller making unit reliable and easy operation.

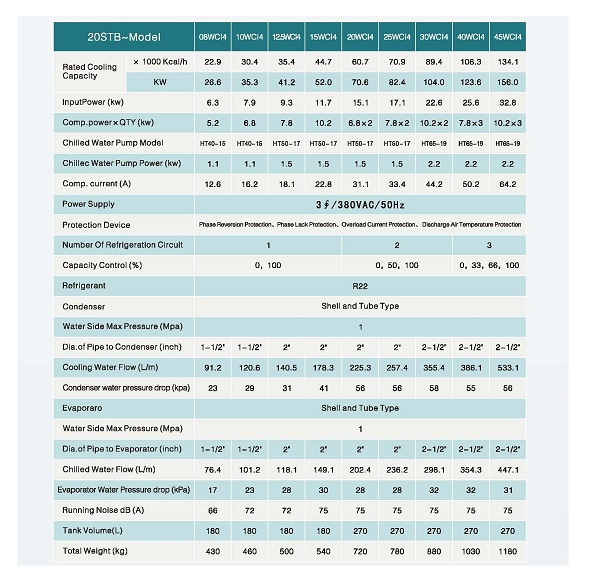

Technical Parameters of Water Cooled Industrial Chiller Units

Notes

1. These are our standard chiller units, our factory accept produce non-standard unit according to your specification(inlet/out water temperature, power supply, refrigerant, etc.)

2. Rated Cooling Capacity Base: Chilled Water In/Outlet 17°C/12°C, Cooling Water In/Outlet: 30/35°C ,Air ambient: 35°C, fouling factor: 0.088m²·°C/KW;

3. Chilled Water Range: 5~ 20°C;

4. Cooling Water Range: 15 ~ 40°C;

5. Changes of Specification for improvement may be made without notice.
