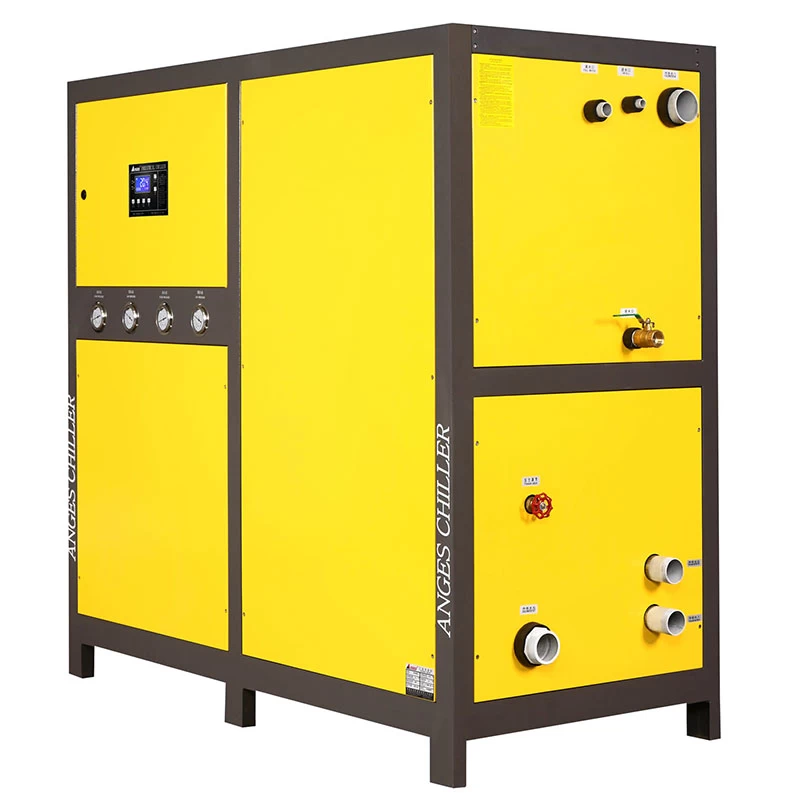

25Ton Water Cooled Reciprocating Chiller AWK-50(F)
Specification
|
Model Item
|
AWK-50(F)
|
|
nominal cooling capacity
|
kcal/h
|
138632
|
|
kw
|
161.2
|
|
input power
|
kw
|
35.2
|
|
power supply
|
3PH 380V 50HZ
|
|
refrigerant
|
type
|
R22/R407C/R410A/R134A
|
|
type of control
|
expansion valve
|
|
compressor
|
type
|
hermetic scroll type
|
|
power(kw)
|
31.2
|
|
condenser
|
type
|
shell and tube
|
|
cooling water flow(m3/h)
|
33.4
|
|
inlet/outlet pipe caliber（inch）
|
3
|
|
evaporator
|
type
|
shell and tube+water tank
|
|
chilled fluid flow(m3/h)
|
27.8
|
|
volume(L)
|
480
|
|
inlet and outlet pipe diameter(inch)
|
3
|
|
pump
|
power(kw)
|
4
|
|
lift(m)
|
22
|
|
safety protection
|
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
|
|
weight
|
kg
|
1700
|
|
dimension
|
mm
|
2400*1100*1980
|
Note: 1.Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃
Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
The temperature range of cooling water is from 18℃ to 37℃;
Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.
We reserve the right to modify the above dimensions or parameters without further notice.
