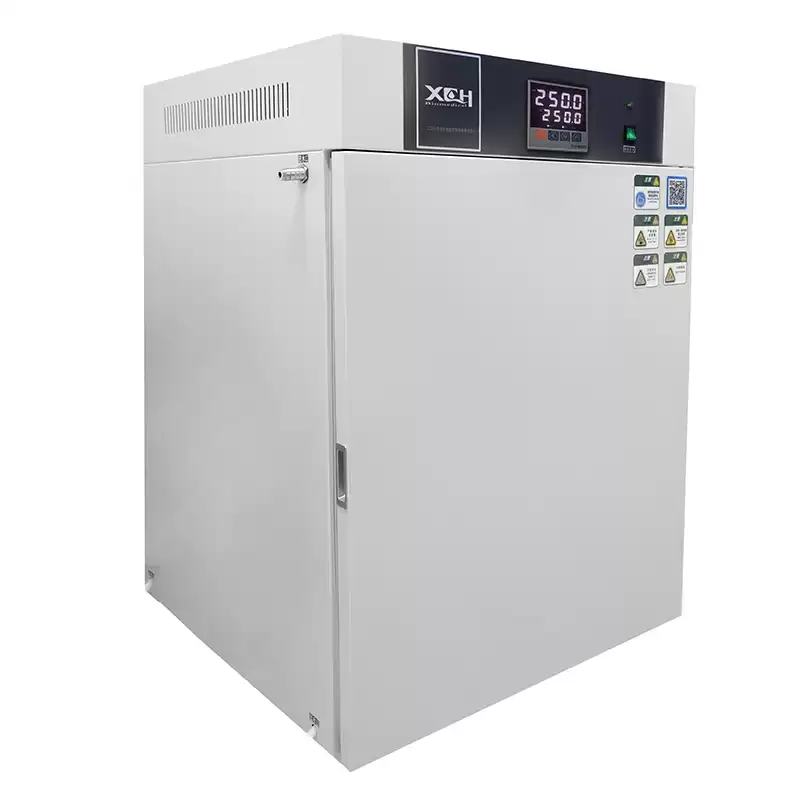

Water jacketed thermostatic incubator
The water-jacket incubator is a special thermostatic incubator used for bacterial incubation, cultivation, ferment and other thermal experiments on hygiene, medicine, biochemistry, industry and agricultural science.
Key Features:
• Water jacket insulation design, small temperature fluctuation, good uniformity.
• Liner is stainless steel material, four corners half circle arc over plating, shelf can be free loading and unloading.
• With built-in glass door, it is convenient to observe the changes of culture directly
• Temperature Fluctuation ≤ ±0.3℃ ,Temperature Uniformity ≤ ±0.5℃（@37℃）
• Timing Range: 1-9999min
• Power: AC 220V±10% 50HZ
• Optional : printer or RS485 interface
Main Application
Necessary equipment in scientific research laboratories for storing bacteria and biological culture in colleges and universities,medical and biological research departments, and can be equipped with ultraviolet sterilization system to sterilize the inside of the cabinet regularly, effectively killing the floating bacteria in the circulating air in the cabinet, so as to effectively prevent the pollution during cell culture.
Model & Parameters:
| MODEL
|
TEMP RANGE
|
CAPACITY
|
INTER DIMEN
W×D×H
|
EXTER DIMEN
W×D×H
|
POWER
|
TRAYS
|
|
XCH-9050GHP
|
RT+5℃ ～ 65℃
|
50L
|
350×350×410(mm)
|
500×500×700(mm)
|
0.4KW
|
2
|
|
XCH-9080GHP
|
RT+5℃ ～ 65℃
|
80L
|
400×400×500(mm)
|
550×550×800(mm)
|
0.6KW
|
2
|
|
XCH-9160GHP
|
RT+5℃ ～ 65℃
|
160L
|
500×500×650(mm)
|
650×640×950(mm)
|
0.8KW
|
2
|
|
XCH-9270GHP
|
RT+5℃ ～ 65℃
|
270L
|
600×600×750(mm)
|
750×740×1050(mm)
|
1.3KW
|
2
|
