Water lorry truck Isuzu water sprinkler

ISUZU water lorry tanker, water tank bowser, water sprinkler truck, water spray truck, water tank truck, water tank, water bowser, water transport truck



Water Lorry Tank ISUZU Water Sprinkler

Water Lorry Tank ISUZU Water Sprinkler pictures

Function:

Water sprinkler Isuzu (also called water sprinkler truck, water tanker truck, water bowser, water bowser, water tank truck, mobile water truck, water tank vehicle, water lorry, water ruck is produced for transportation and distrubition of industrial and drinking water, spraying and washing of streets and tunnels,  dust and environmental control and  fire-fighting purposes. In order to achieve those different operations , each water tanker truck is equipped with various features and it’s designed according to capacity of the carrier vehicle.

Areas of Application and Use

  • Transportation and distrubition of drinking water
  • Transportation and distrubition of industrial water
  • Pressurized street and road cleaning
  • Pressurized tunnel cleaning
  • Dust and environmental control
  • Fire fighting service
Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:



Water Truck Tanker ISUZU (4,000 litres)
General Vehicle Brand POWERSTAR
Chassis Brand ISUZU
Overall Dimension 5980 * 1900 * 2200 mm
GVW / Kerb Weight 7,300 kg / 3,620kg
Cab Cab Capacity 3 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 4KH1
Power 98 Hp (72 KW)
Displacement 2777 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00-15
Tyre Number 6 tyres and 1 spare tyre
Max Speed 98 km/h
Paint Metallic paint
Superstructure Tank Capacity 4,000 Litres ( About 1,050 gallons)
Tank Material Carbon steel
Flow Speed 1000 litres / min
Delivery Head 45 m
Suction Head 6 m
Hose High quality PVC hose, anti-aging
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.


ISUZU WATER TRUCK TANKER

Recently Built Water Tank Truck:

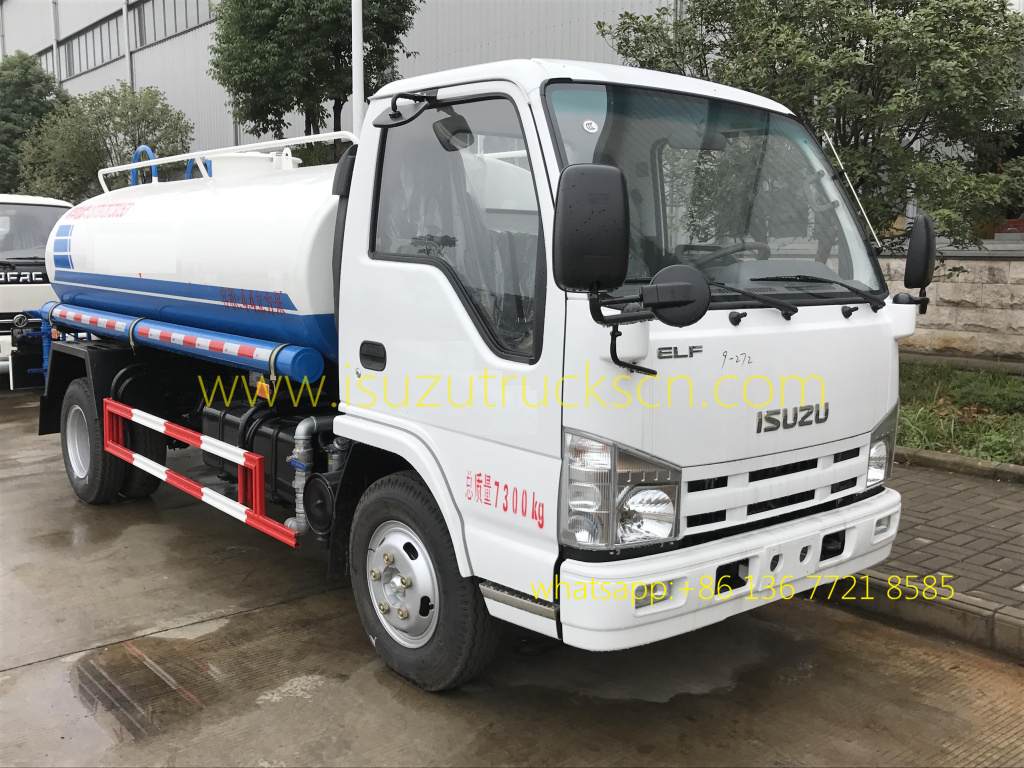

mobile water bowser truck Isuzu detail pictures

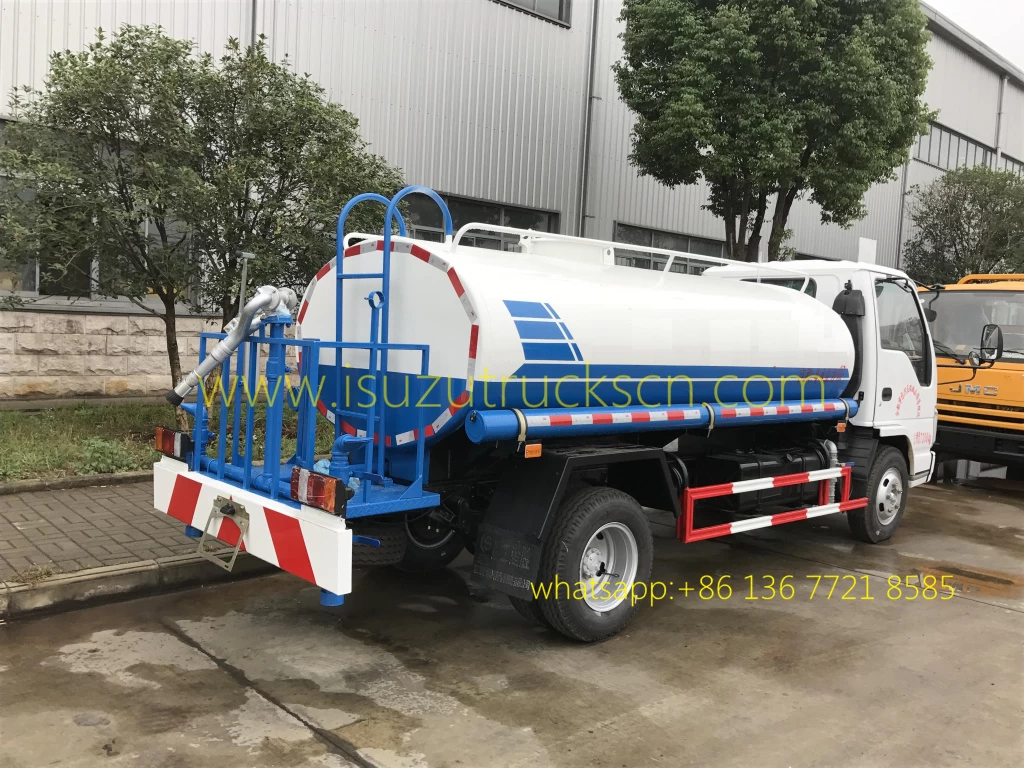

Pictures for Water Truck Tanker ISUZU (4,000 litres)

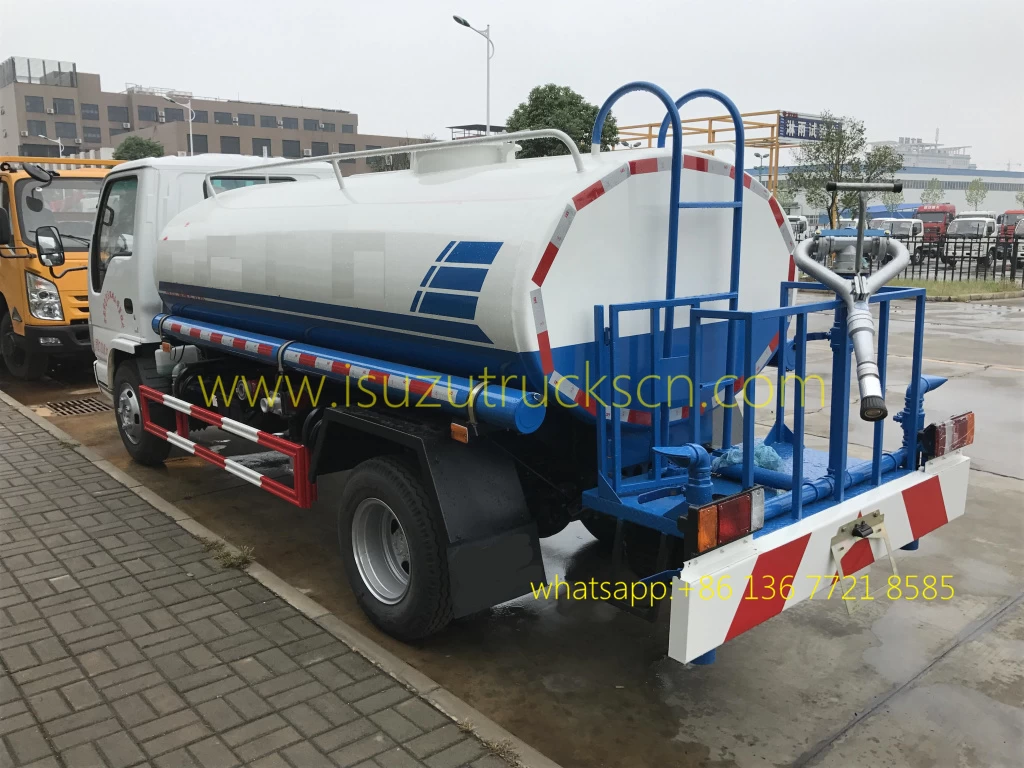

mobile water bowser truck Isuzu detail pictures

Pictures for Water Truck Tanker ISUZU (4,000 litres)

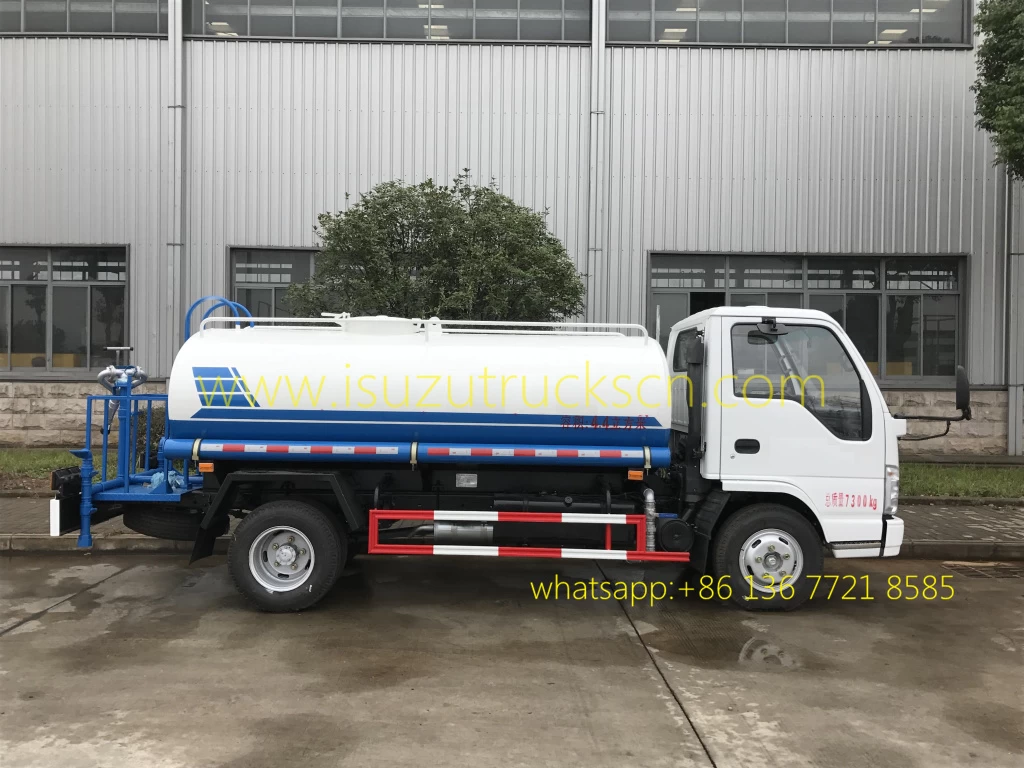

mobile water bowser truck Isuzu detail pictures

Pictures for Water Truck Tanker ISUZU (4,000 litres)

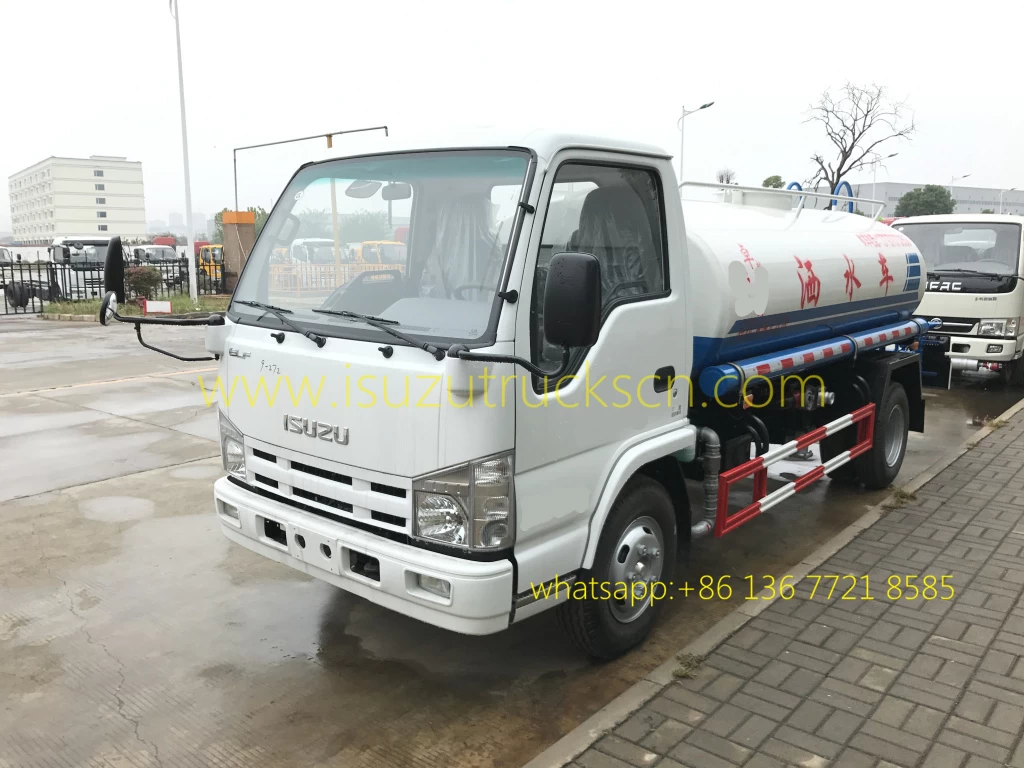

mobile water bowser truck Isuzu detail pictures

Pictures for Water Truck Tanker ISUZU (4,000 litres)

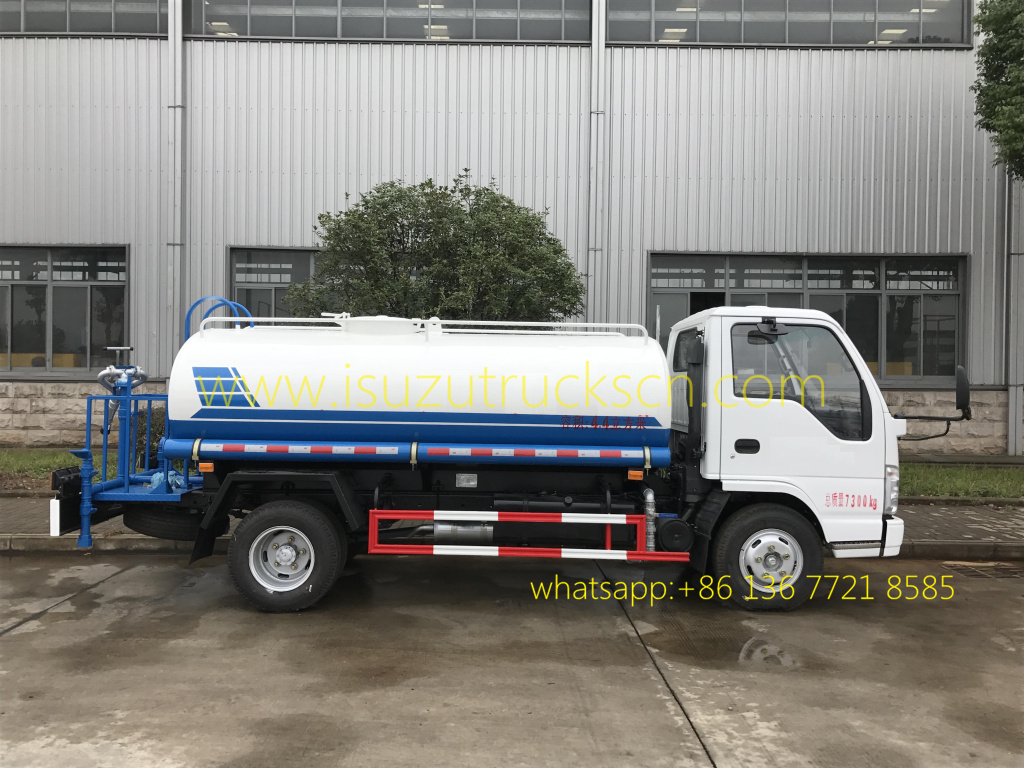

mobile water bowser truck Isuzu detail pictures

water tank capacity of the water trucks

Tank capacity
5,000 Liters
(Anti-corrosion treatment)
Material
Carbon Steel
4mm
rollback truck rollback truck
Tank shape
Ellipse
Water Pump
WEILONG gear pump
Manhole Cover
500 mm

Discharge Hose  &

Hose Box

Standard
rollback truck rollback truck
water pump for Isuzu water trucks tanker

water leverl gauge for isuzu water bowser

Valve Control Station

tow truck hydraulic tow truck hydraulic tow truck hydraulic



Float Ball Liquid Level Indicator

tow truck hydraulic tow truck hydraulic tow truck hydraulic

Discharge hose and hose box for water tanker Isuzu 5000L

Warning lights for water truck isuzu tanker

Hose & Hose box

tow truck hydraulic tow truck hydraulic tow truck hydraulic



Roating light with Music

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures

Pictures for Water Truck Tanker ISUZU (4,000 litres)

 3000L 5000L ISUZU NKR Water Truck Tanker for sale



ISUZU WATER TRUCK TANKER



isuzu water sprinkler



ISUZU WATER VEHICLE





How to works of our Isuzu water tank truck?

ISUZU WATER TRUCK TANKER



ISUZU WATER TRUCK TANKER



isuzu water sprinkler
