SZS Series Gas/oil fired Water Tube Saturated Hot Water Boiler
-
For Water tube boilers, furnace is outside the drum. Size of the furnace can be enlarged or reduced to meet demand for combustion and increased vapor capacity.
-
Drum of water tube hot sell steam boilers generally is not directly heated. Tubes containing water and vapor are set in the furnace and smoke tubes as heating surface. This remarkably improves heat transfer and safety.
-
Pre-heating, evaporation, over-heating are completed in the economizer, water wall, convection bank and super-heater.
-
Vapor-water system, combustion system and auxiliary system for a water tube boiler are complicated though structure of single part is rather simple.
Advantages Of Gas/Oil Fired Saturated Hot Water Boiler
-
Ignition, combustion, water feeding, load adjustment, safety protections of Devotion SZS Water Tube Boilers are all automatically controlled, which deliver higher safety and reliability, easy regulation and operation
-
Compact structure and small size use less metal materials.
-
Membrane water walls are well leakproof which prevents the boiler room from being polluted by ashes.
-
Thorough combustion results in high heat efficiency and low ash content in the smoke.
-
The boiler is packaged for delivery. Easy for shipping and installation, thus save investment on foundation.
-
Aesthetic Appearance, easy to disassemble and maintenance.

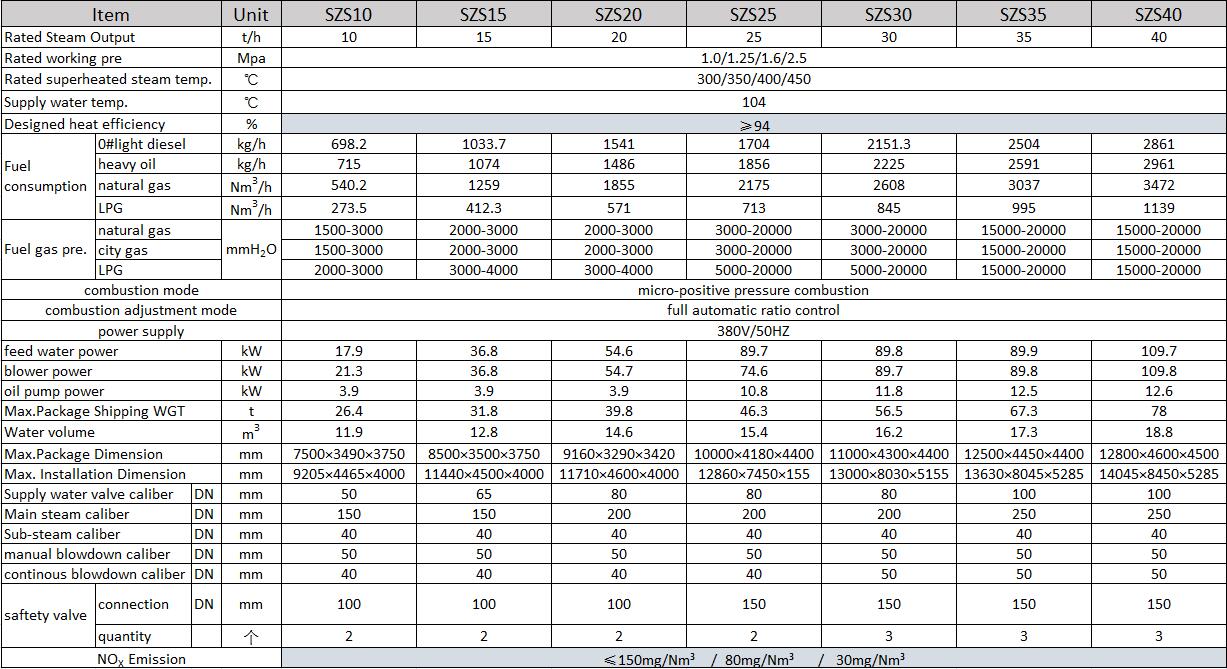

SZS Water Tuble Superheated Steam Boilers Technical Data

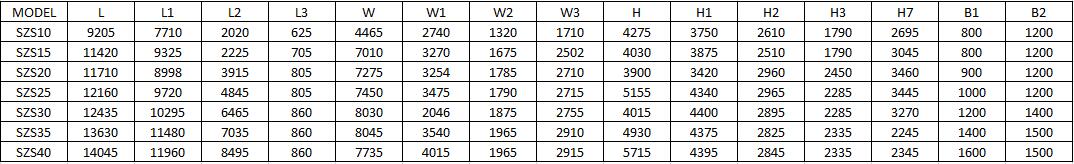

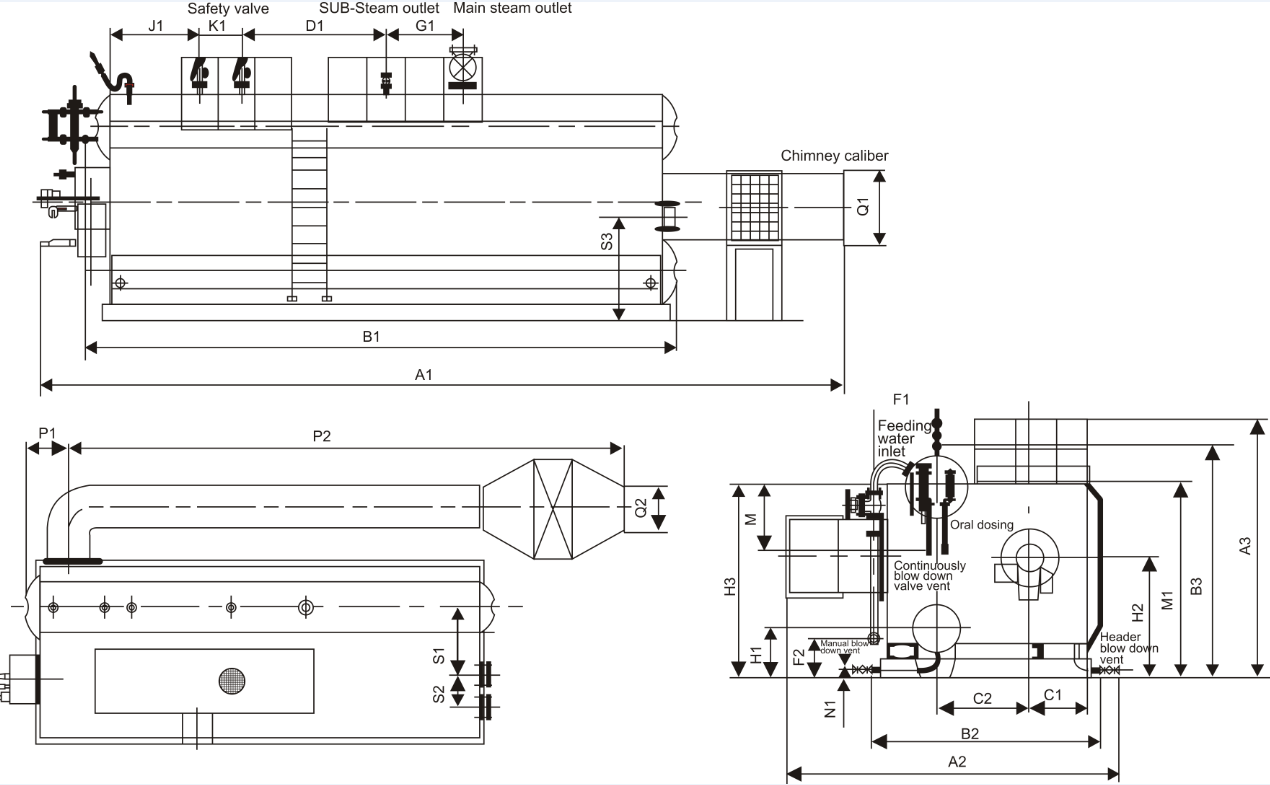

SZS Water Tube Superheated Steam Boiler Installation Dimension

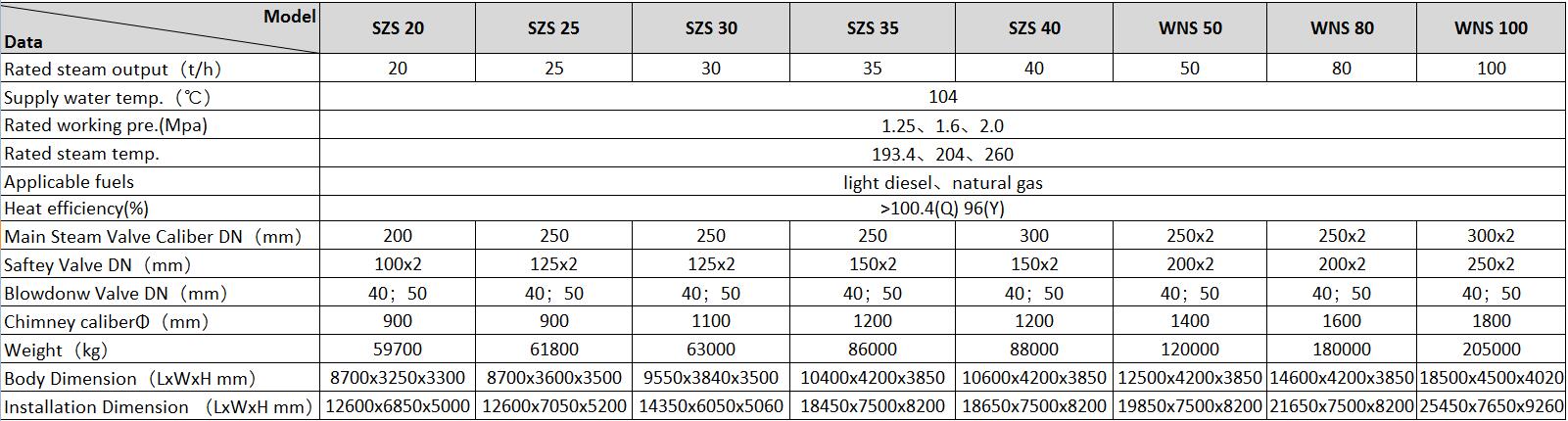

SZS Water Tube Steam Boiler Technical Data

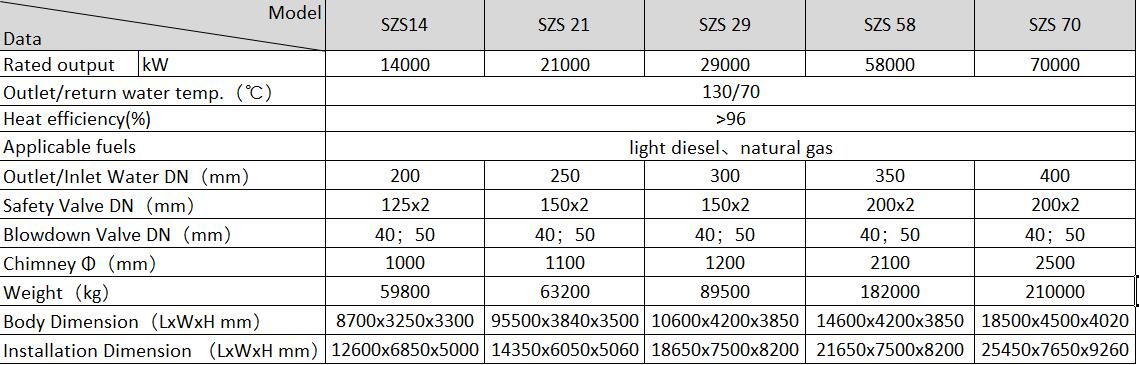

SZS Water Tube Hot Water Technical Data
