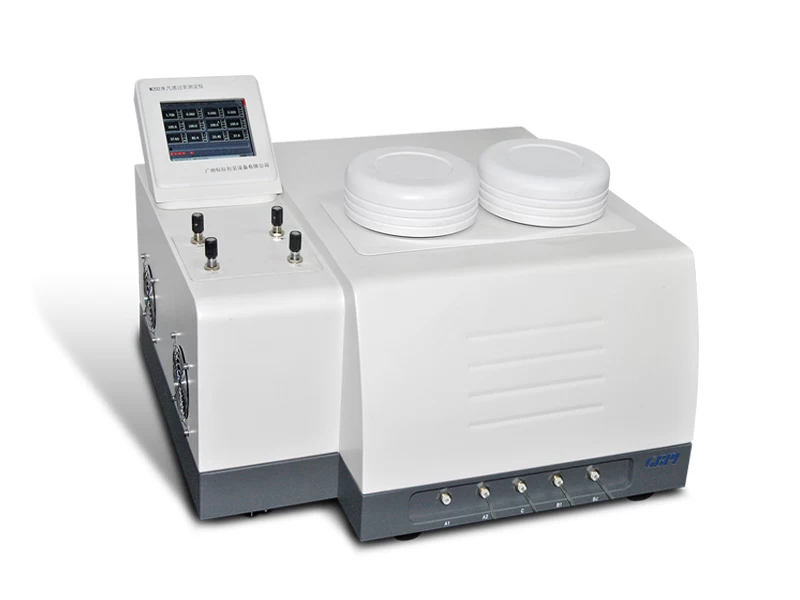

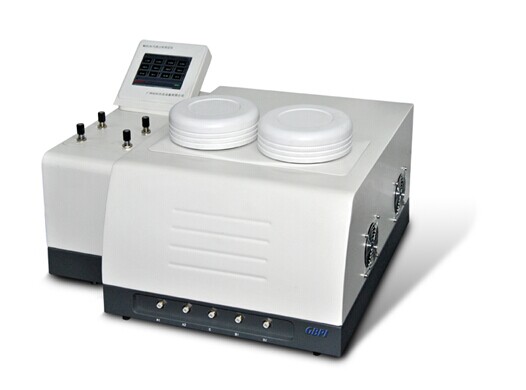

W202 Water Vapor Permeability Analyzer Application
How to test packaging materials water vapor transmission rate (WVTR) and what function does water vapor permeability testers have? GBPI Supply Unique and Certificated Water Vapor Permeation Analyzer to test different packaging material WVTR such as plastic film, composite film, coextrusion film, aluminum-plated film, aluminum foil, infusion bag, sheets, paper, paper board, solar battery panel, cellophane, ceramics and porcelain, and various containers such as bag, pouch, bottle, can, bowl, box, widely used in the industries of food, pharmaceuticals, personal care, household, electronics and so on.
What is W202 water vapor permeability analyzer Working principle
GBPI W202 Water Vapor Permeability Tester use Electrolytic detection sensor to test packaging material WVTR.
Fix the test sample in the middle of test chamber to separate the chamber into upper room and lower room. When humid gas flows in upper room and dry gas in lower room, the water molecules in upper room penetrate through the sample into the dry gas, and electrolytic sensor system detect and analyze the water content and calculate the water vapor transmission rate.
W202 high barrier material water transmission rate Tester Features
1. Leakage protection; over range protection; auto save data when power is cut off; incorrect operation warning.
2. W202 Water Vapour Permeation Tester Wholly automatic, software easy to use. Curves of transmission rate, water vapor density, humidity and temperature, auto record and continuous display. Can easily monitor interaction of parameters and the whole testing process.
3. Highly modularized. Setting, testing, baseline, calibration, report etc are independent. Powerful data analysis. Easy to operate.
4. Built-in computer, can work without external computer.
5. Support quick test, applicable to evaluation test.
6. Two chambers can work independently at the same time for two different samples.
7. Software upgrade, data backup and fault diagnosis through USB port.
8. Temperature control: International advanced electromagnetic technology, program controlled, no need of external accessories. Precision 0.1℃.
9. Humidity control: Dual gas flow method, with broad range, high precision and stable flow.
10. Standard gas calibration and standard film calibration.
11. Auto judgment and auto stop.
W202 Water Vapour Permeation Analyzer Working Real-time Curve
