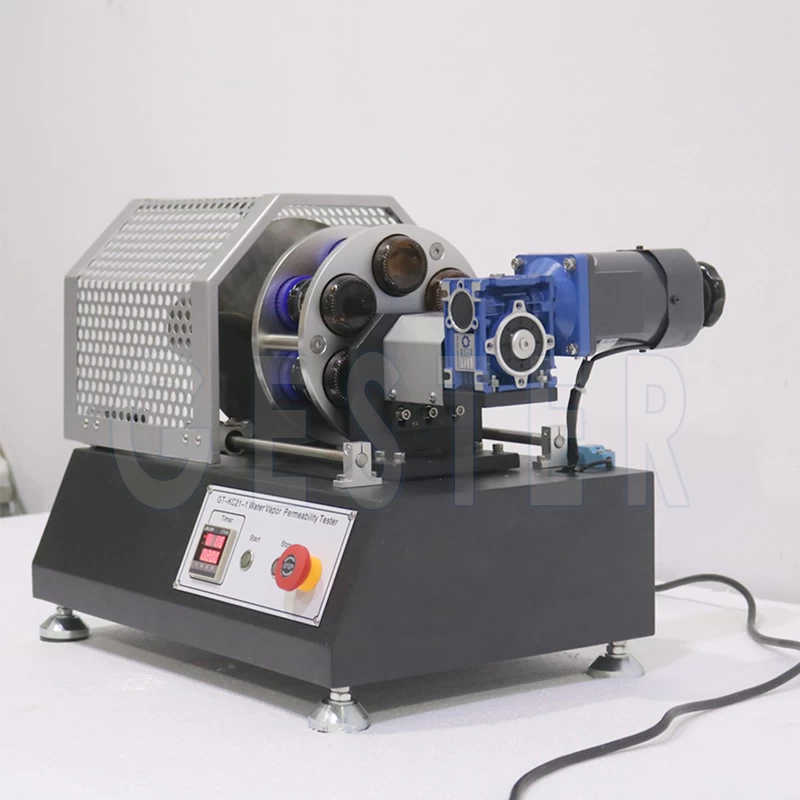

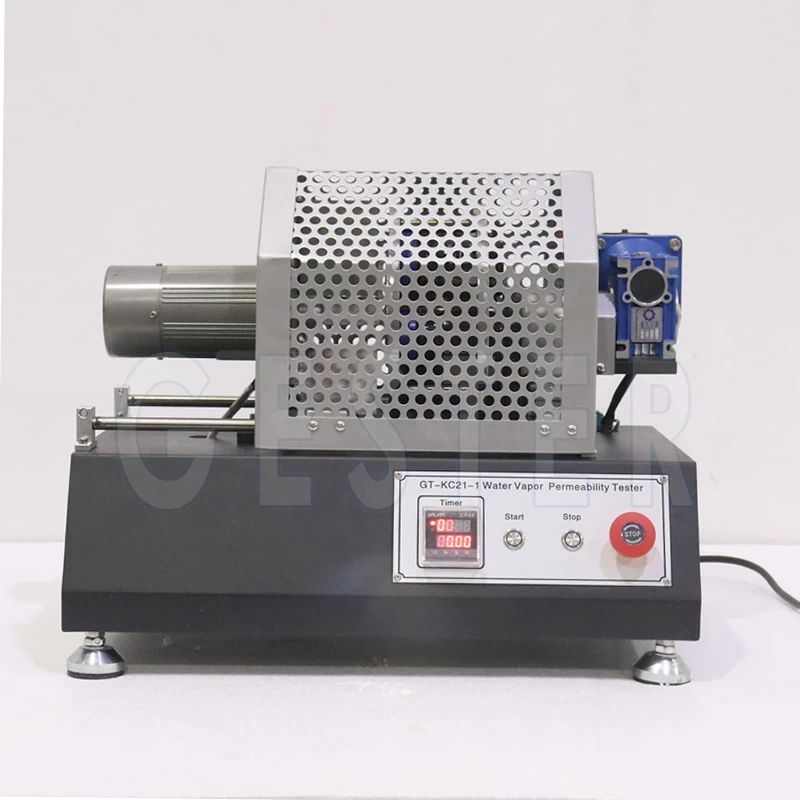

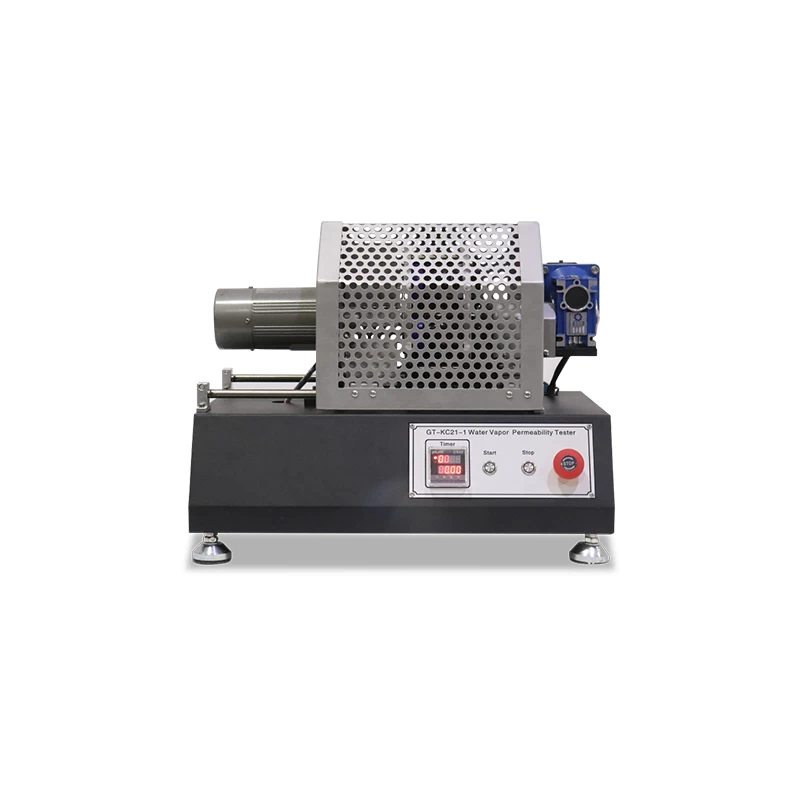

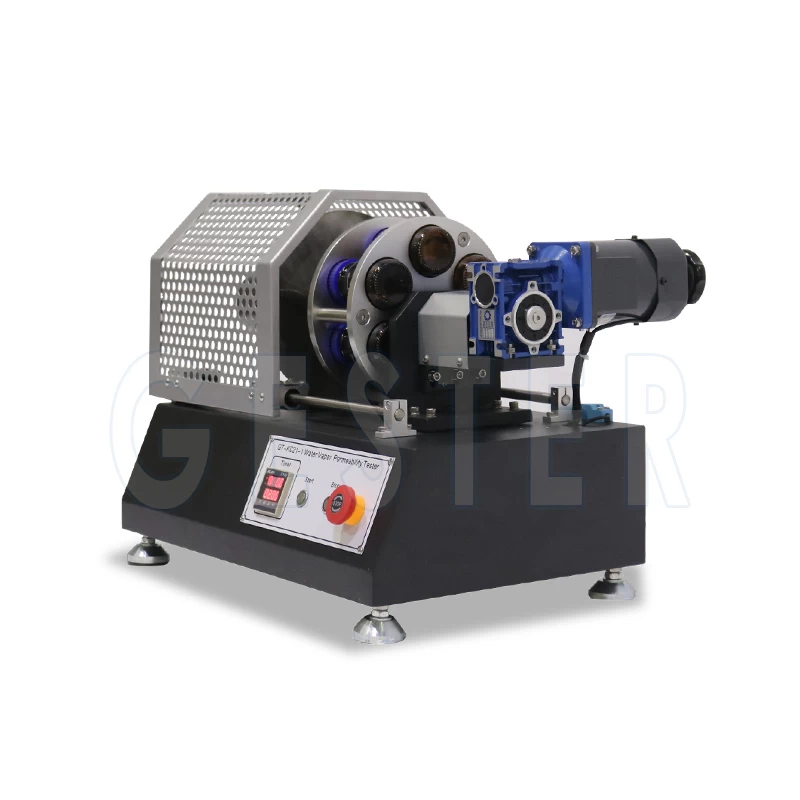

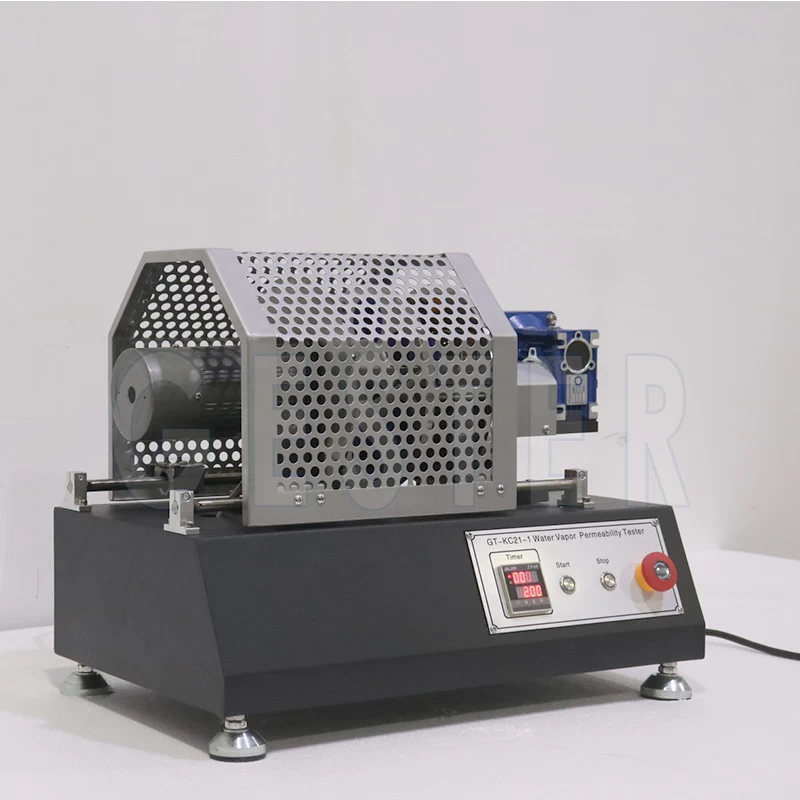

Water Vapor Permeability Tester GT-KC21-1
Product Introduction
|
Application:
Water Vapor Permeability Tester is used to determine the water vapor permeability for vamp and upper shoe materials. Using in the conditioning room under the standard stipulated temperature (23 ± 2)℃ and humidity (50 ± 5)% RH.
Standards:
EN ISO 20344 Section 6.6.2, AS/NZS 2210.2 Section 6.6.2
GB/T 20991 Section 6.6.2 , EN 344-1 Section 5.13, BS 3144,
DIN 5333. SATRA TM172
|
Key Specifications
Model
|
GT-KC21-1
|
Testing bottle number
|
6pcs
|
Bottle mouth diameter
|
30mm
|
Bottles holder speed
|
75 ±5cpm
|
Fan blades
|
90 x 75 mm, 3 flat blades in planes inclined at 120° to each other
|
Fan rotate speed
|
(1400 ± 100) r/min
|
Specimen size
|
￠34mm
|
Power supply
|
1∮AC220V 50/60HZ
|
Dimensions
|
56X37X38cm
|
Weight
|
50kg
|
Shoes Material Water Vapor Permeability Tester Accessories (A):
Standard Accessories
|
6pcs
|
Testing Bottles
|
|
1pc
|
Power Line
|
Water Vapor Permeability Tester Accessories (B):
