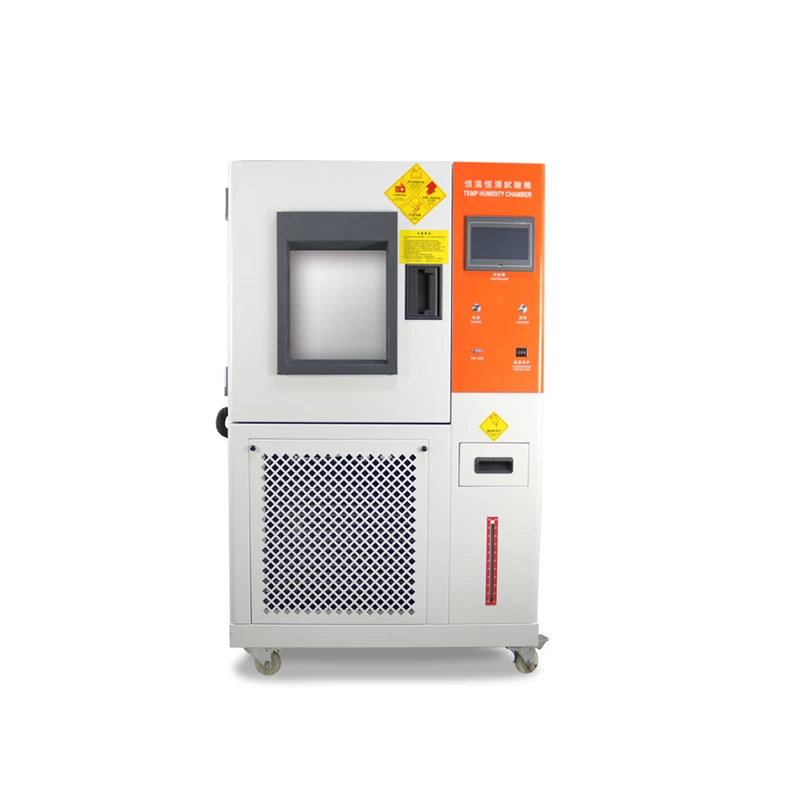

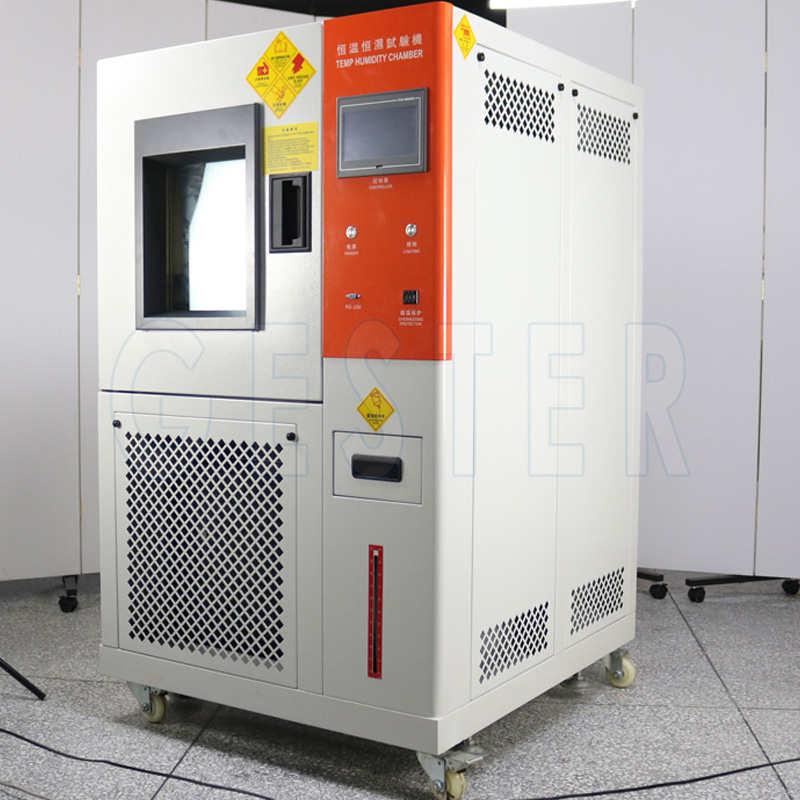

Water Vapor Permeability Tester GT-KC21
Product Introduction
|
Application:
GT-KC21 Water Vapour Permeability Tester; Under the standard stipulated (23 ± 2)°C and the (50 ± 5)% RH environment, to test water vapor permeability for vamp and upper shoe materials (including surface and lining).
Standards:
EN ISO 20344 Section 6.6.2 and 6.8
AS/NZS 2210.2 Section 6.6.2 and 6.8
GB/T 20991 Section 6.6.2 and 6.8
EN 344-1 Section 5.13,
|

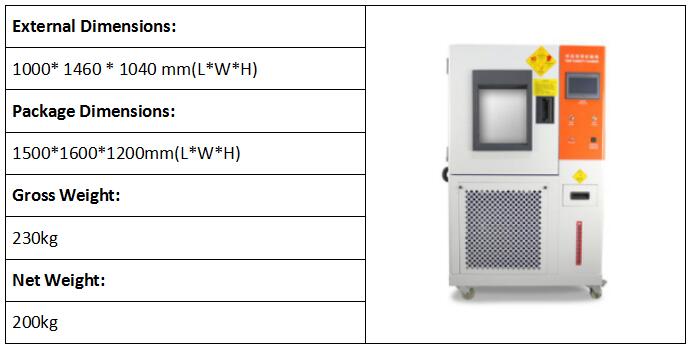

Dimensions
Key Specifications
Model
|
GT-KC21
|
Testing condition
|
Temperature: (23 ± 2)°C
Humidity: (50 ± 5)% RH
|

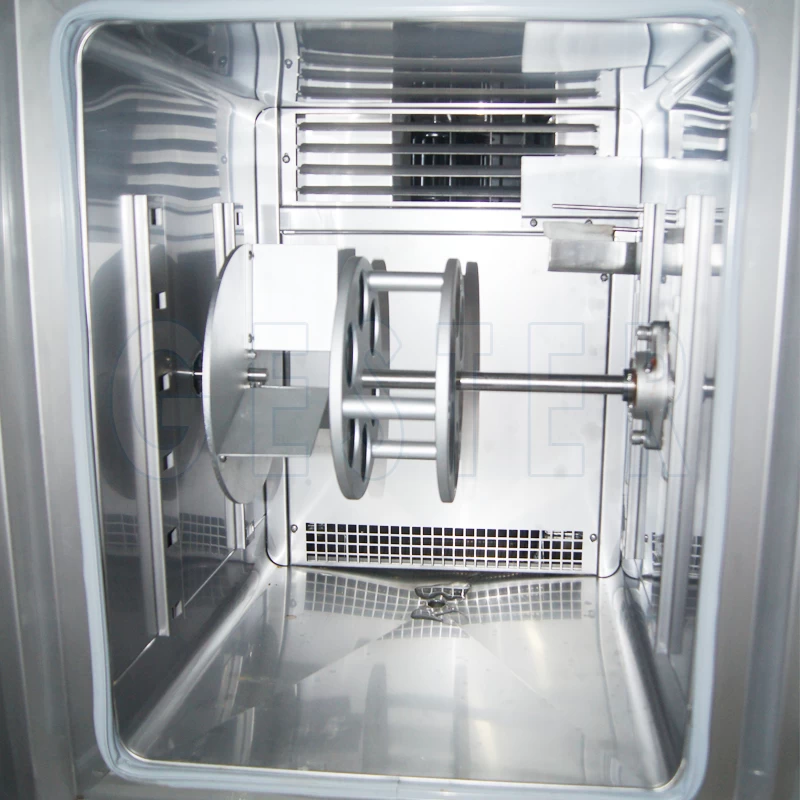

Testing bottle number
|
6pcs
|
Bottle mouth diameter
|
30mm
|
Bottles holder speed
|
75 ±5cpm
|
Fan blades
|
90 x 75 mm, 3 flat blades in planes inclined at 120° to each other
|
Fan rotate speed
|
(1400 ± 100) r/min
|
Specimen size
|
￠34mm
|
Control system
|
Programmable Microprocessor Control
|
Temperature range
|
0~100℃
|
Humidity range
|
20%～98%RH
|
Power supply
|
1∮AC220V 50/60HZ
|
Standards
|
EN ISO 20344 Section 6.6.2 and 6.8
AS/NZS 2210.2 Section 6.6.2 and 6.8
GB/T 20991 Section 6.6.2 and 6.8
EN 344-1 Section 5.13
|
Standard Accessories
|

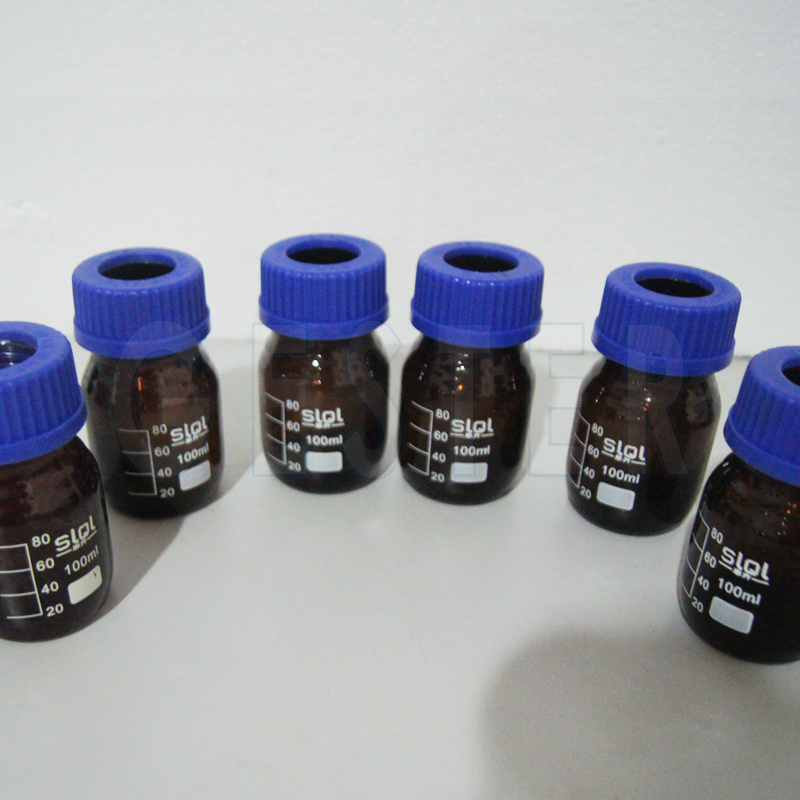

Testing Bottles 6pcs
|
Power Line 1pc
|
Option Accessories
|
GT-D10 Drying Oven
|
GT-C48 Pneumatic Sample Press (cutter: 70 ± 5 x 45 ± 5 mm,and ￠34mm)
|
GT-KC51 Water Vapor Absorption Tester
|
GT-KC51 Water Vapor Absorption Tester
|
