Application
The water vapor absorption tester measures the water vapor absorption performance of the
material.
Test Principle
A sample is clamped between the opening end of the experimental pot (containing the specified
amount of water) and the watertight seal. The kettle is stored at a specified temperature for a
certain time, and then the change in mass of sample is measured.
Structure

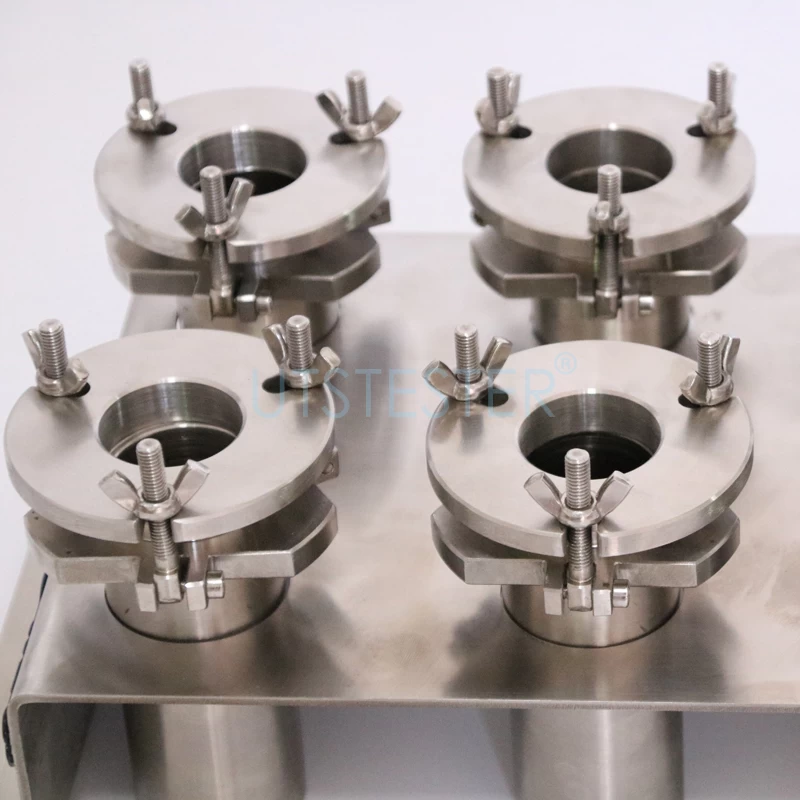

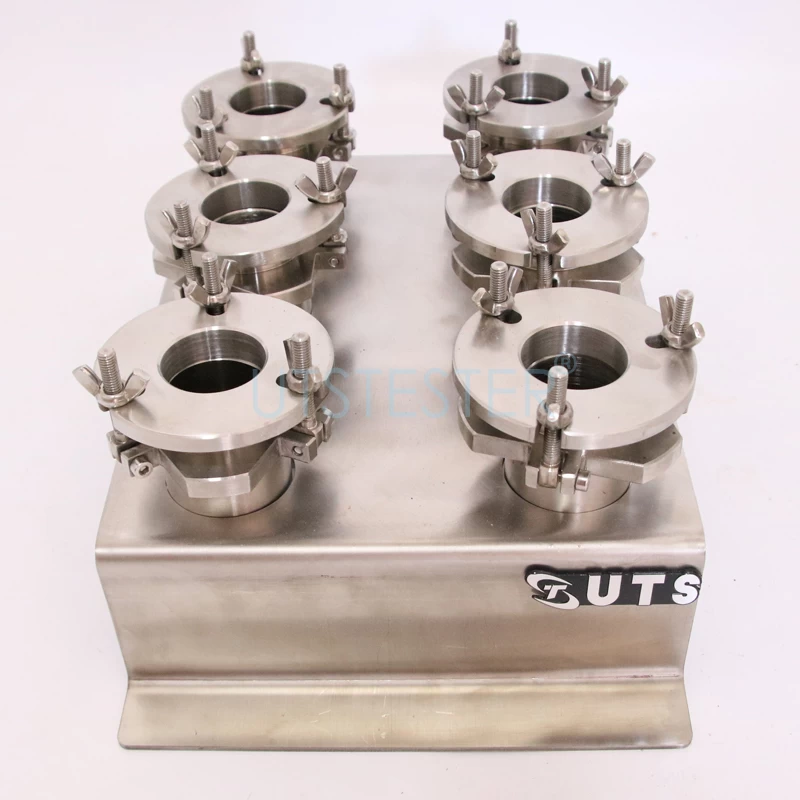

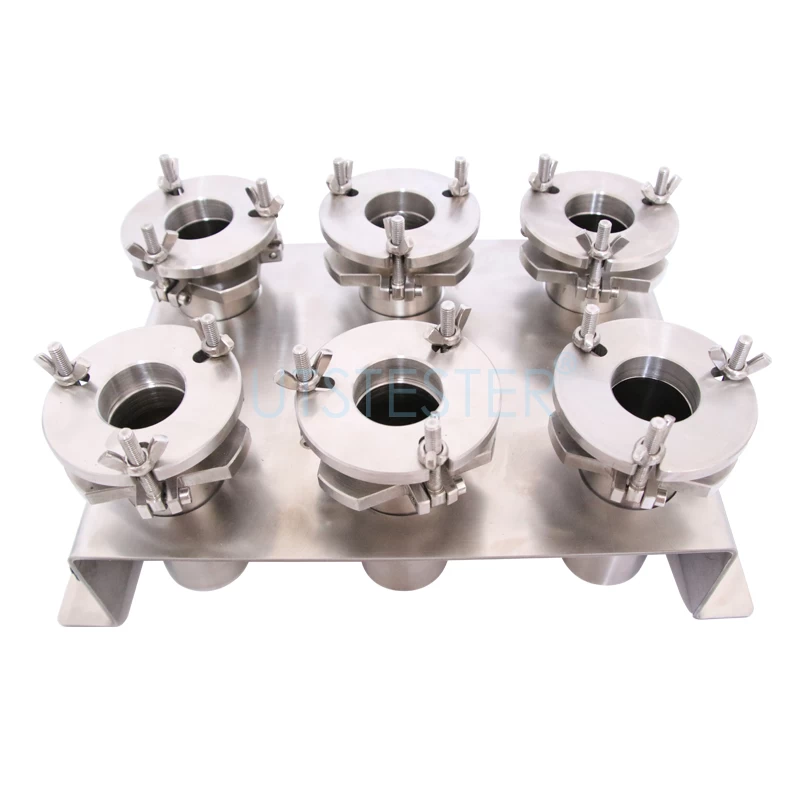

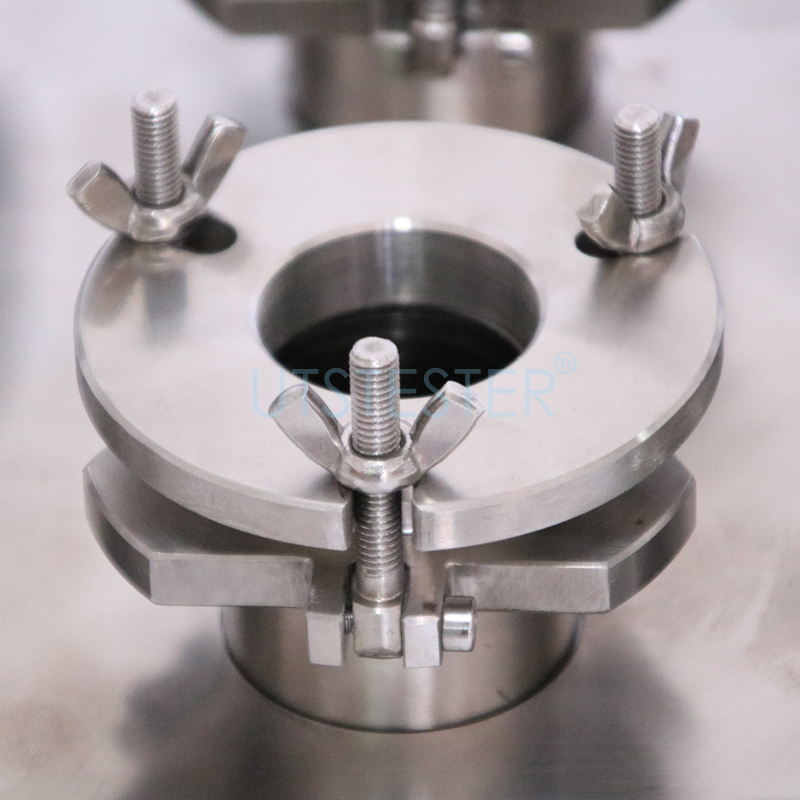

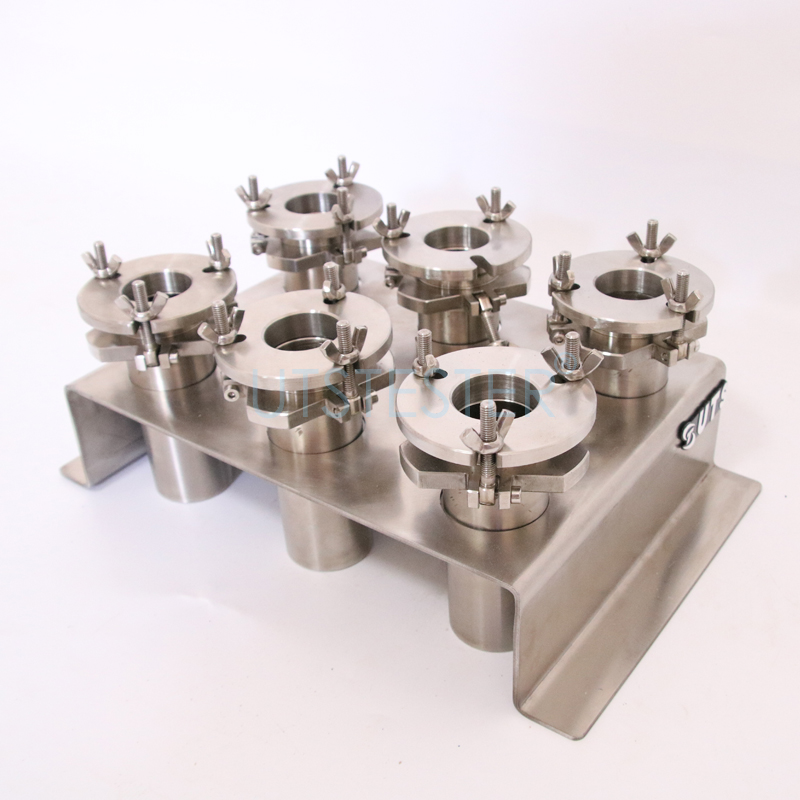

H071 Water Vapour Absorption Tester, consists of six test pots, each with an internal diameter
of 35 mm and a volume of 100 cm cubed, including a movable cover which can be clamped
reliably at the opening end of the test pot. A non-permeable sealing layer is pressed against
the back end of the test pot through the lid.
In addition to the H071 Water Vapour Absorption instrument, a laboratory ruler and stopwatch
must be used to measure the water vapor absorption. (Purchase from UTS company)
Features
Beautiful appearance
Water Vapour Absorption Tester in stainless steel material, durable and beautiful.
Accurate size
Each with an internal diameter of 35 mm and a volume of 100 cm cubed, which comply with standards
Test pot variety
Test pots available with 6 or 8 to meet different demands.
Precision & standard based
ISO 17025 Calibration Certificates are able to convince the cutting accuracy of Water Vapour Absorption Tester.
Standard
ISO 17229; EN 420;EN ISO 20344 ; AS NZS 2201.2; GB T 20991; EN 344-1;SATRA TM178

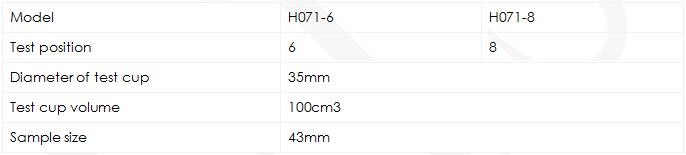

Key Specification
Accessory
Application
