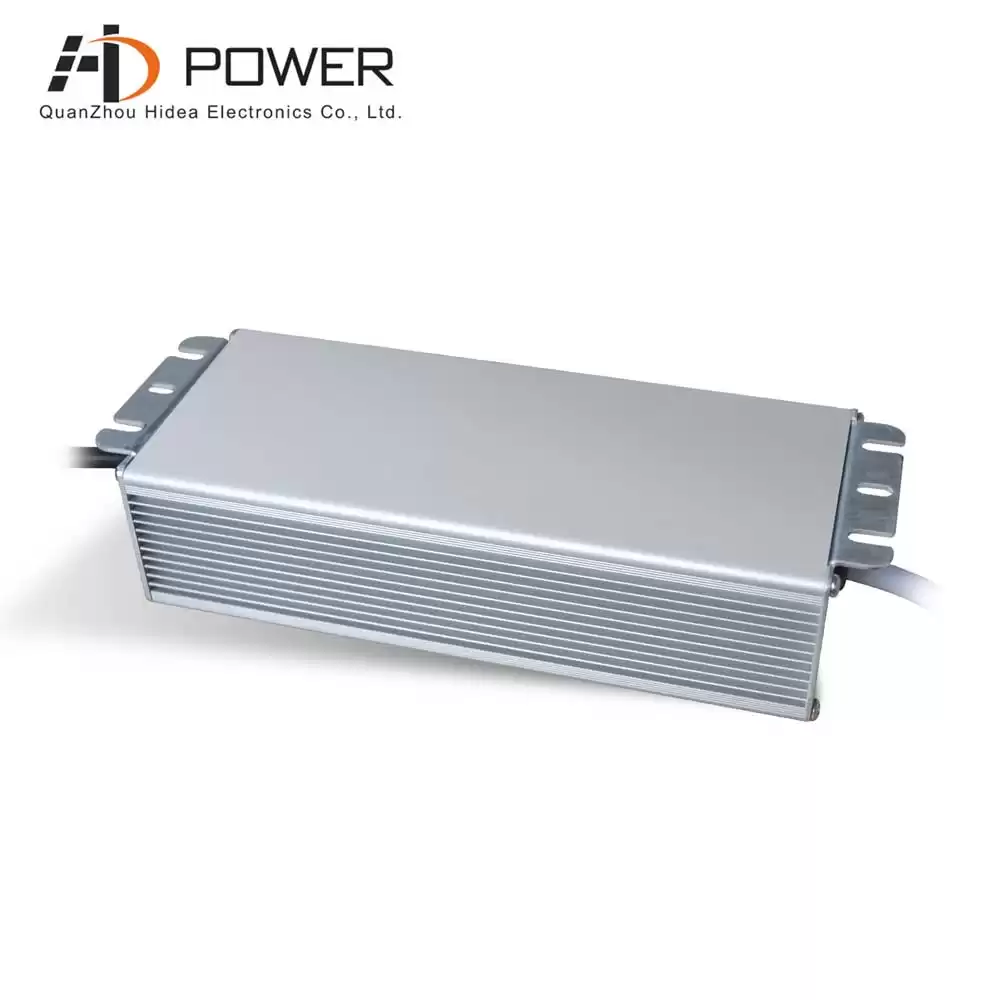

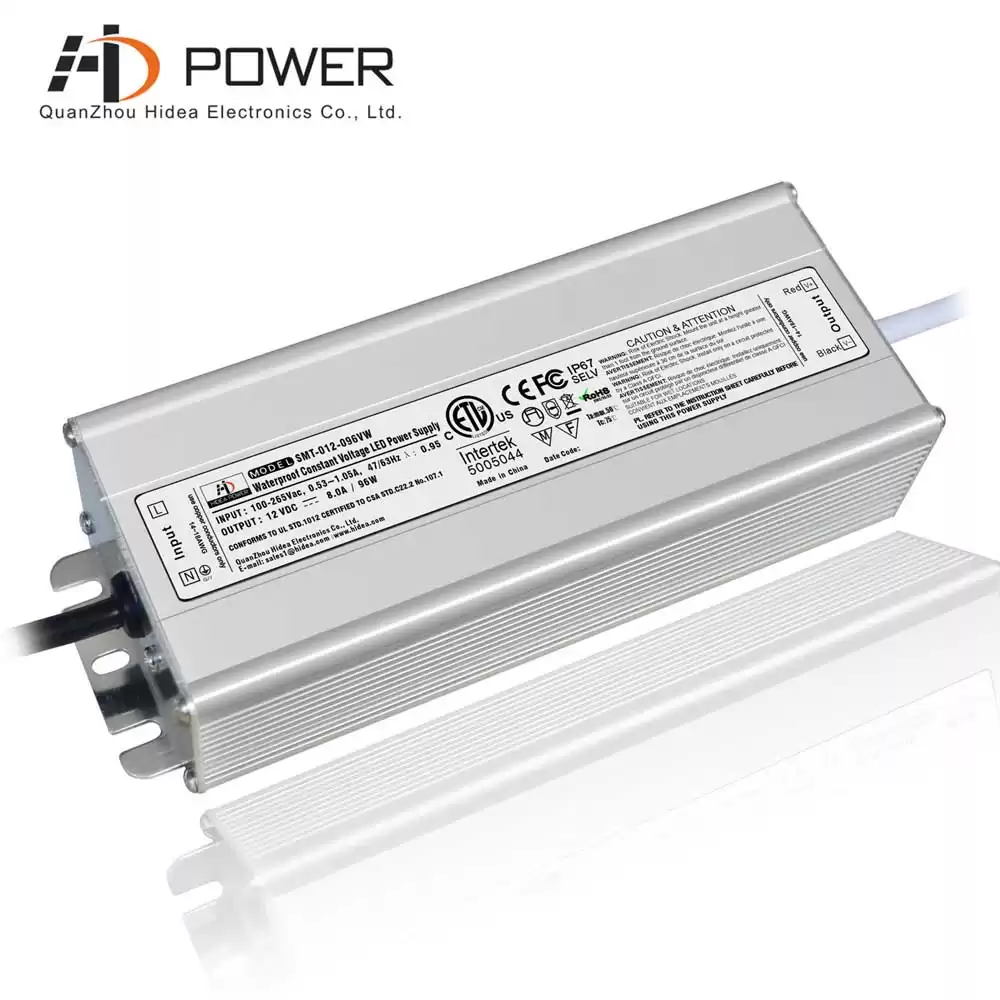

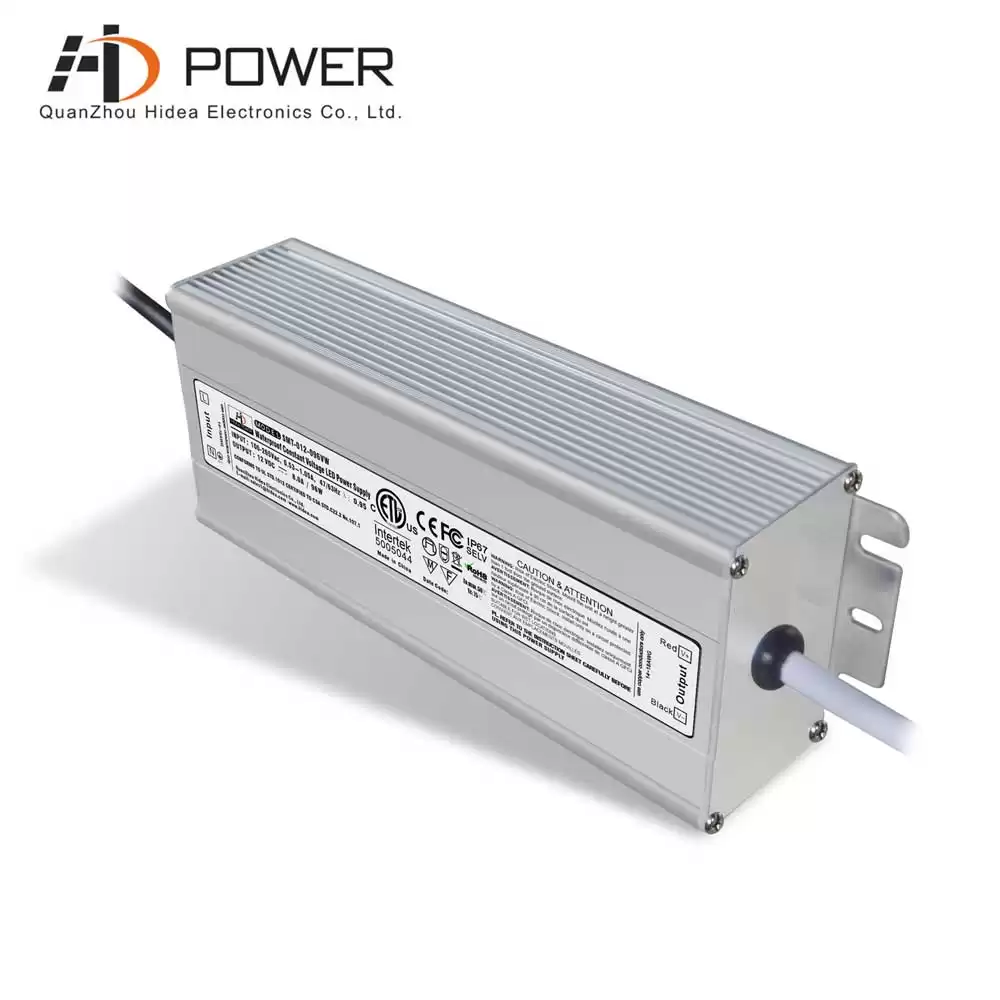

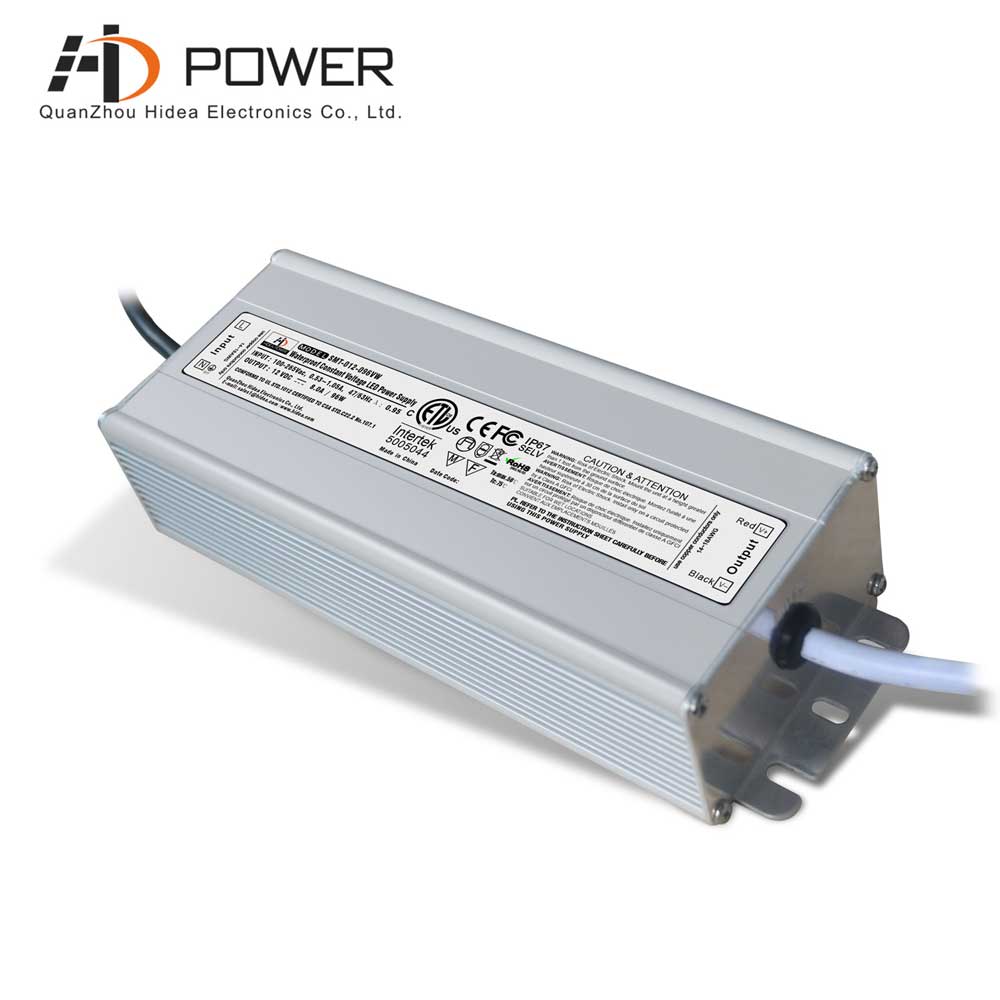

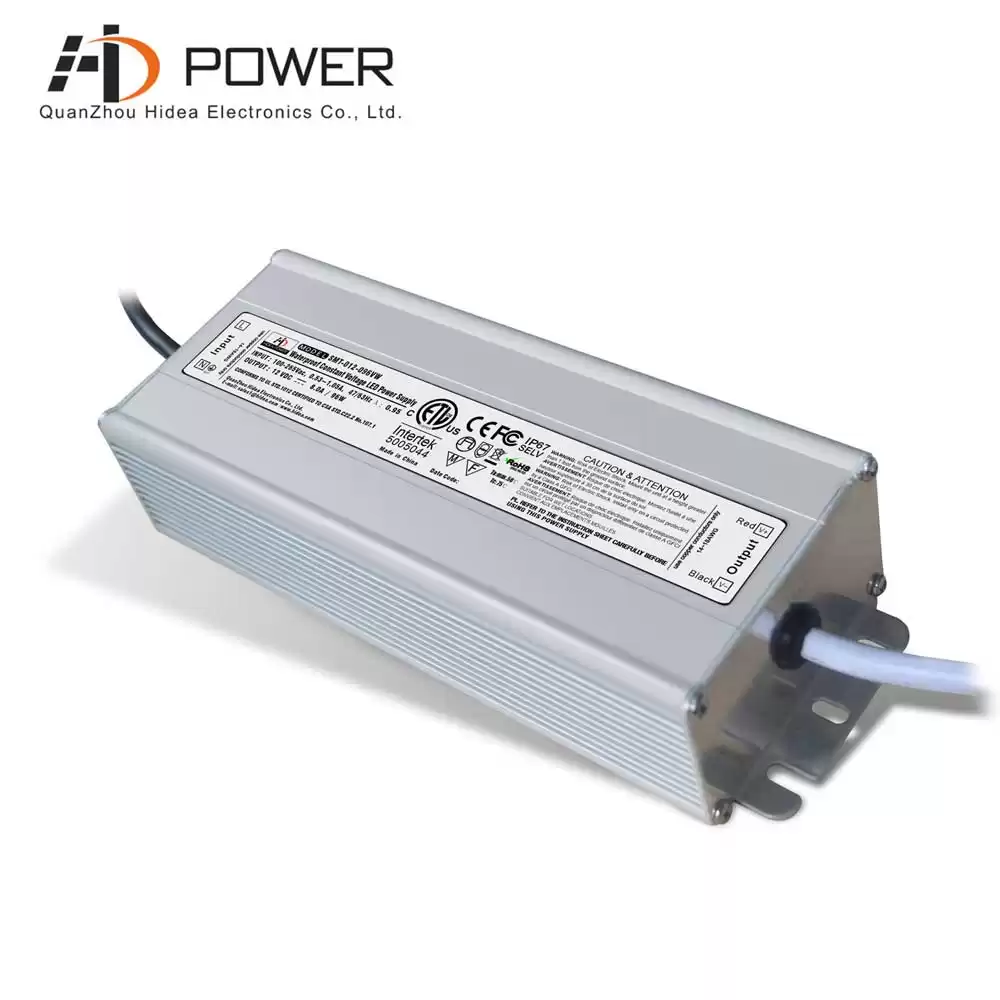

Waterproof 100 watt led power supply non dimmable led driver
96W waterpoof non dimmable led driver in 12vdc, ETL ,CE, ROHS approval, aluminum case design, universal 100-265vac input, work with STEP 1 DEZIGNS LED 3mm wide Mini High Output Tape Lights 100w.
Specification
|
MODEL
|
SMT-012-096VW
|
SMT-024-096VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
8.33A
|
4A
|
|
CURRENT RANGE
|
0~8A
|
0~4A
|
|
RATED POWER
|
96W
|
96W
|
|
RIPPLE&NOISE(max)
|
150mV
|
150mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
±0.5V
|
|
SETUP RISE TIME
|
80ms/110V,220VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/110V,220VAC
|
|
INPUT
|
VOLTAGE RANGE
|
100~265VAC
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
0.95
|
|
EFFICIENCY(Typ.)
|
﹥87%
|
|
AC CURRENT(Typ.)
|
0.92A/110VAC, 0.86A/220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/110VAC, 220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof IP67)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
CE ETL Mark(LVD)
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type

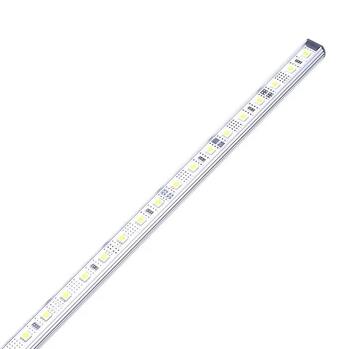

100 watt led power supply is electronic led driver in 12vdc and 24vdc, IP67 design for indoor dry or damp or wet environment installations, work well with LED TITAN high output light bars 12v dc.
