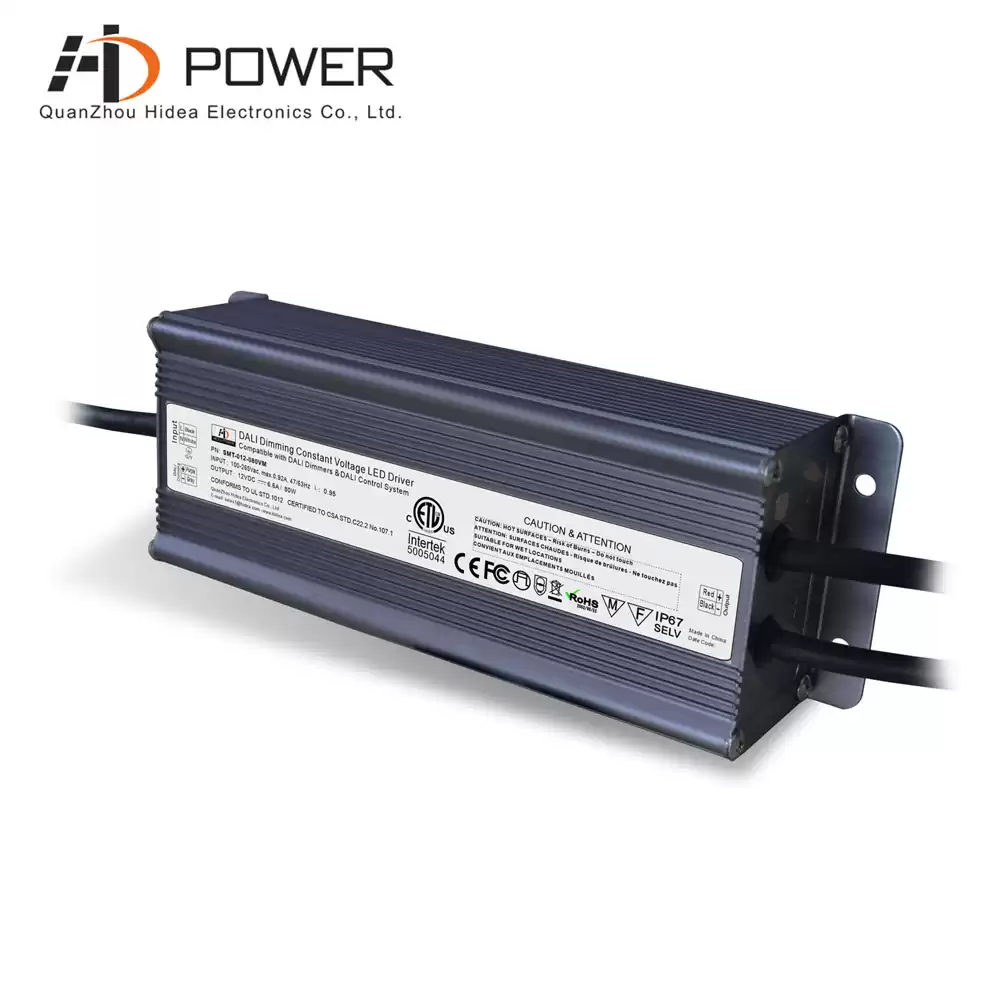

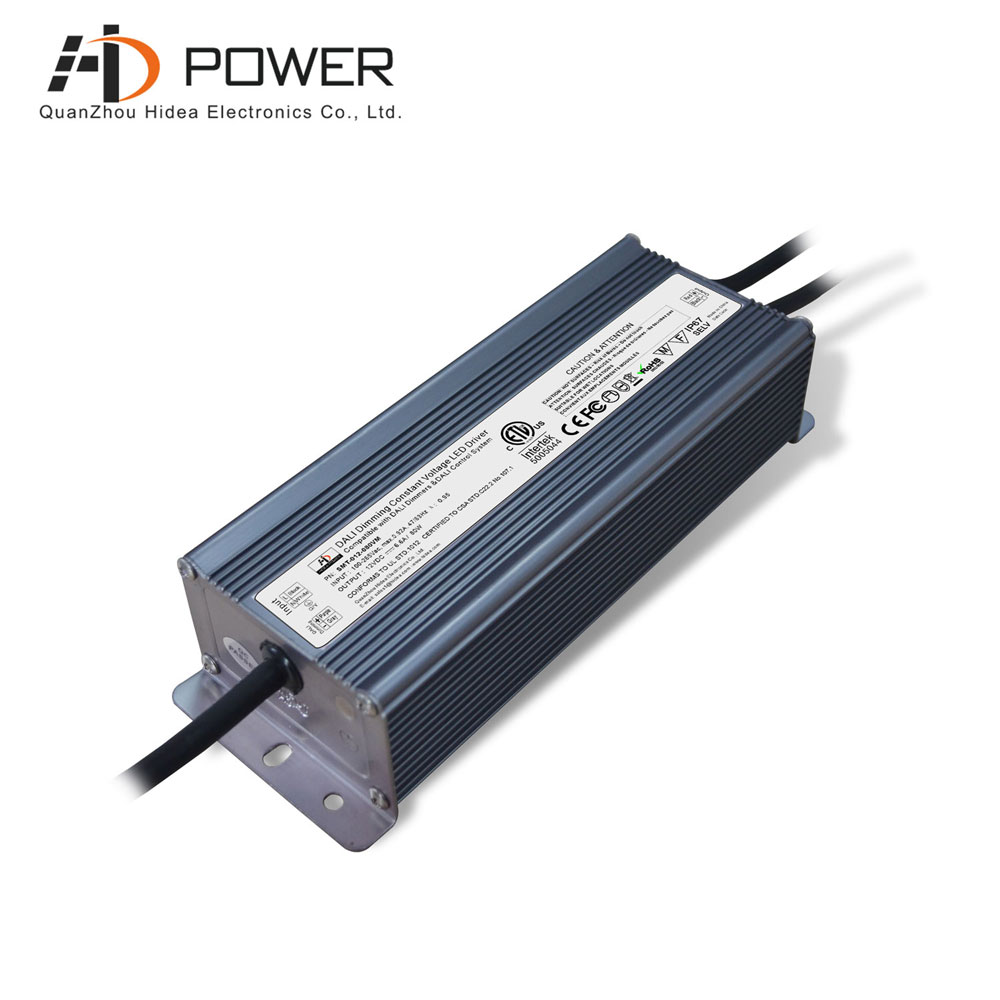

waterproof 12v/24v constant voltage dali dimmable led strip light driver for outdoor
hideapowertech smart dali series 80W constant voltage dimmable led power supply, built-in active PFC function, working efficiency up to 88%, with short circuit/overload/overtemperature protection function, 5-year warranty
Specification
|
Model
|
SMT-012-080VM
|
SMT-024080VM
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±3%
|
|
Rated current
|
0~6.6A
|
0~3.3A
|
|
Rated power
|
80W
|
80W
|
|
Input
|
Voltage Range
|
100-130VAC/170-265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)
|
PF≧0.90/110V / PF≧0.90/220V
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
|
AC Current(Typ.)
|
0.92A/110VAC
|
|
Leakage current
|
﹤0.5mA/110V , ﹤0.7mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Load
|
≦120%
|
|
Over Circuit
|
≦1.4*I out
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
|
|
Others
|
Weight
|
1.1Kg
|
|
Size
|
200*68*46mm(L*W*H)
|
|
packing
|
329*279*176mm/10pcs/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.
|
|
2.Tolerance:includes set us tolerance, line regulation and load regulation .
|
|
3.The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
|
Compatible Light Type
120w 12v DALI dimmable led driver all parameters NOT specially mentioned are measured at 110V, 220VAC input, it can compared with Volka Lighting led strip width 9.6, and to installed indoors and outdoors project.
