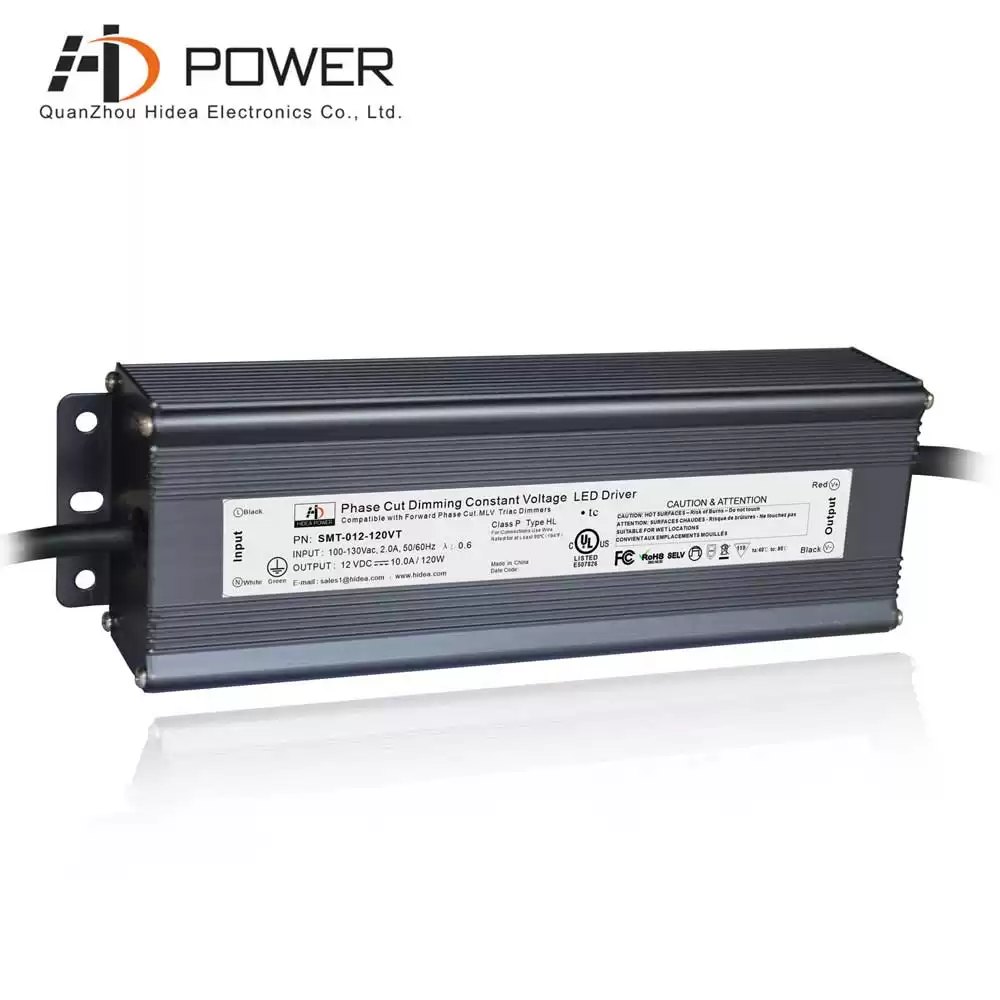

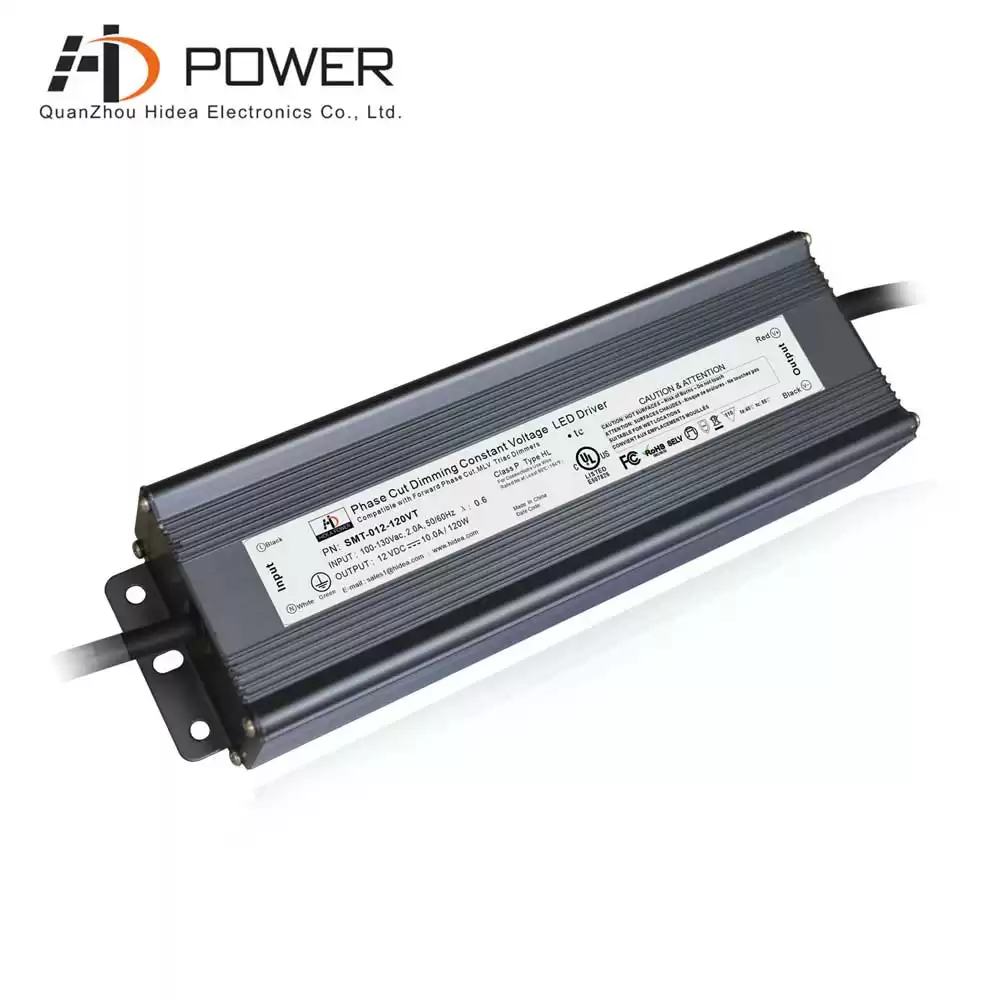

waterproof 24v 120W constant voltage triac dimmable led strip lighting driver power supply
This waterproof constant voltage triac dimmable 120W led driver has built-in active PFC function, PF>0.8, working efficiency up to 84%, and has a 5-year warranty
Specification
|
Model
|
SMT-012-120VT
|
SMT-024-120VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
10.00A
|
5.00A
|
|
Rated power
|
120W
|
|
Input
|
Voltage Range
|
100~130V AC/170~265V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.8/110V,PF≧0.81/170V,PF≧0.82/220V,PF≧0.82/265V
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>83%
|
|
AC Current(Typ.)
|
0.66A/110VAC 0.63A/170VAC 0.57A/220VAC 0.52A/265VAC
|
|
Leakage current
|
﹤0.27mA/110V/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over voltage
|
≦140VAC(100~130V) , ≦270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV)
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
230*70*46mm(L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
This triac dimming driver is able to work with kinds of iindoor and outdoor LED lighting in dimmable/ non dimmable, UL listed to be used in North American market. work well with Seura lighted mirror 12v/24v.
