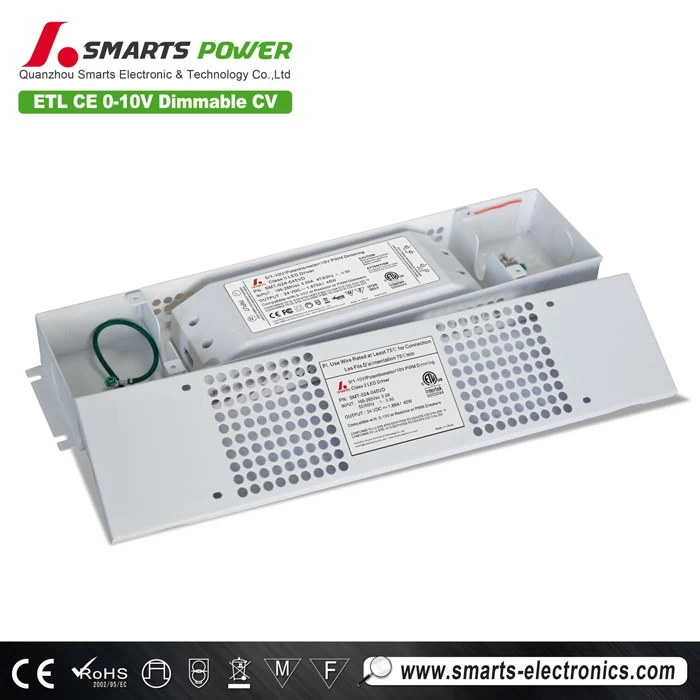

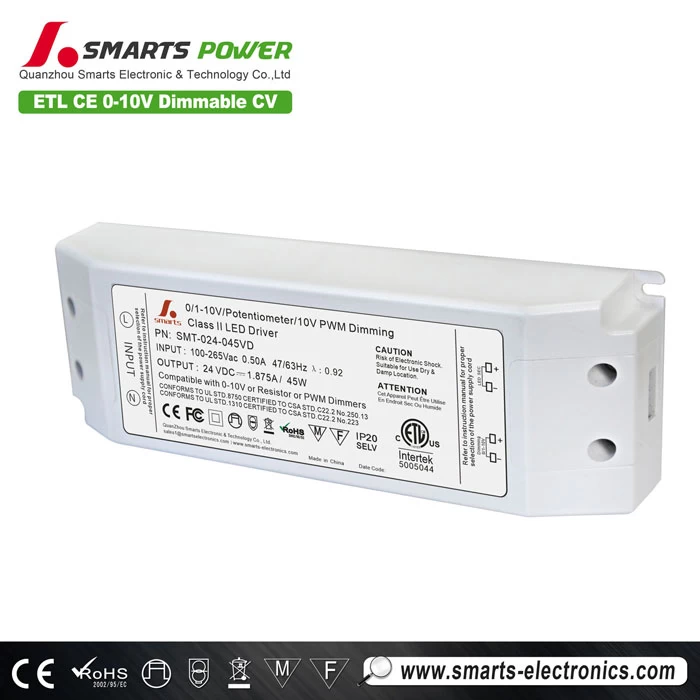

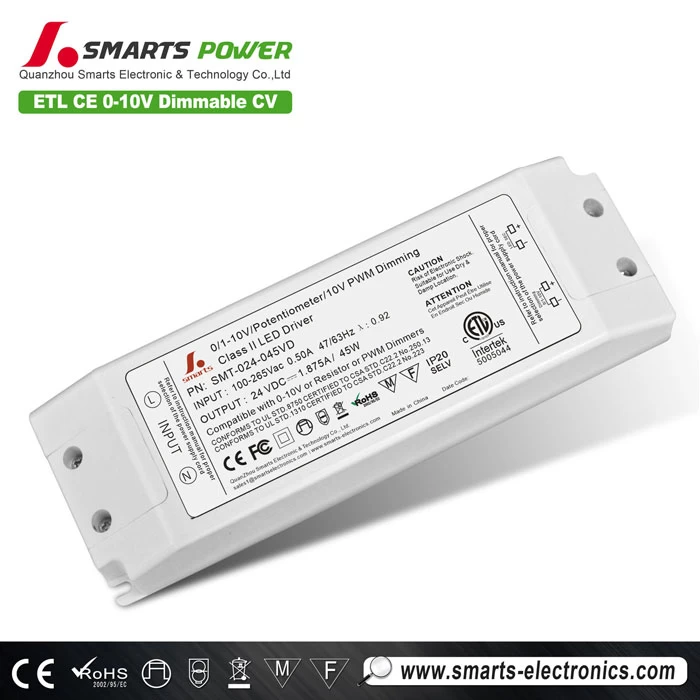

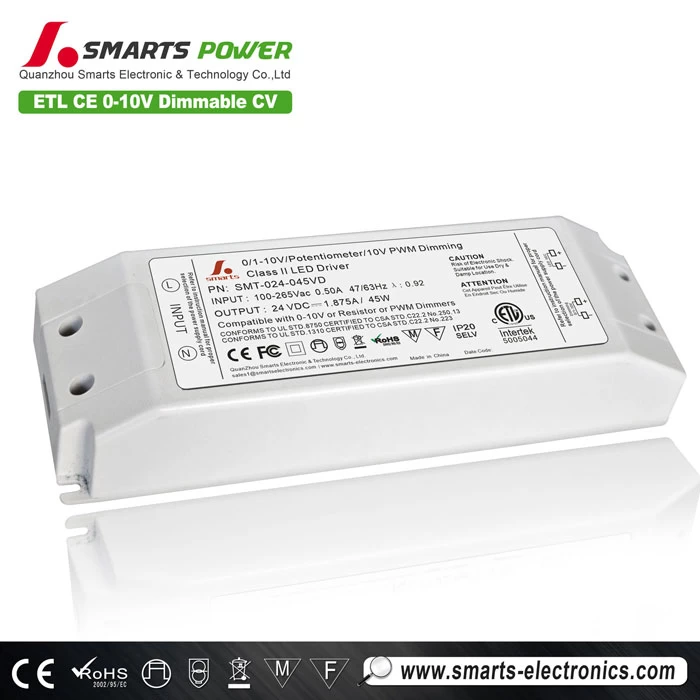

waterproof 24v 45w 0-10v dimmable led power supply
Product Description
Product parameters
|
Model
|
SMT-012-045VD
|
SMT-024-045VD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0～3.75A
|
0～1.87A
|
|
Rated power
|
45W
|
|
Input
|
Voltage Range
|
100～130VAC, 170~265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.90/110V / PF≧0.90/220V
|
|
Full Load Efficiency（Typ.）
|
>88%（110V）/ >88%（220V）
|
>88%（110V）/ >88%（220V）
|
|
AC Current（Typ.）
|
0.52A@110V
|
0.26A@220V
|
|
Leakage current
|
﹤0.35mA/120VAC / ﹤0.7mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Current
|
≦1.4*Iout
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40～+50℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z
axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
0.4Kg
|
|
Size
|
180*60*35mm（L*W*H）
|
|
packing
|
355*215*215mm/20pcs /CTN 185*65*45mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V~220VAC input , rated load
and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|

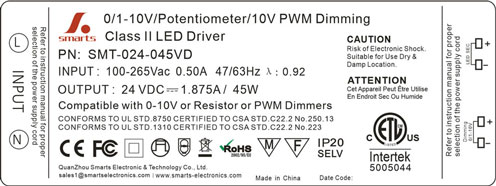

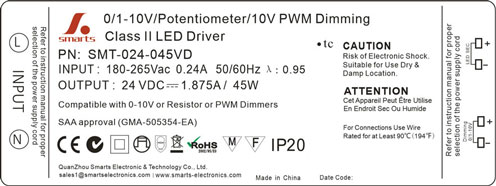

Label
|

|
Features
-
High efficiency,save energy ,protected environment.
-
High stability and low ripple, increase light efficiency and decrease light attenuation.
-
Meet to safety standard and EMC
-
Assure LED stability long lift and light efficiency by constant voltage.
-
Protections:Short circuit/Overload/Over temperature
-
Cooling by free air convection
-
100% full load burn-in test.
-
Suitable for LED lighting
-
Brand electrotronic components.
-
ROHS material.
Environment
-
Working temp: -30~+50℃ (Refer to output load derating curve)
-
Working humidity: 20~99% RH non-condensing(Waterproof)
-
Storage temp. humidity: -40~+80℃,10~99%RH
Safety
-
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
-
Withstand Voltage : I/P-O/P: 3000KVAC
-
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
-
Indoor LED illuminating lights
-
LED Neon, LED urban Decoration
-
LED Lighting Advertising,LED Display
-
Safety Protection Apparatus
-
Telecommunications, Networks
-
Vehicle Lights, Controller Panels
