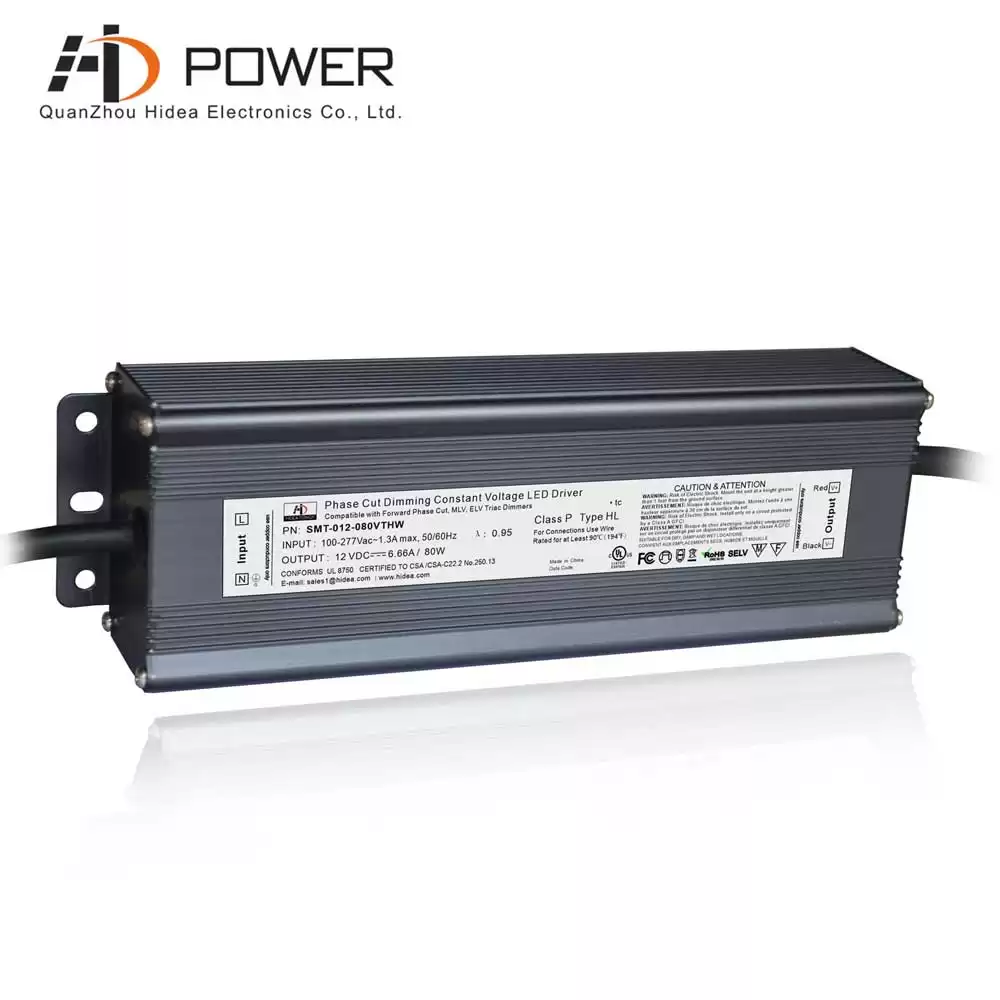

waterproof 277vac triac dimmable constant voltage led driver 80w 24v
277VAC input voltage 80W 24V LED driver, the dimming mode is triac dimmable, the dimming range is 0-100%, suitable for outdoor commercial and home lighting projects, passed UL certification, 7-year warranty
Specification
|
Model
|
SMT-012-080VTHW
|
SMT-024-080VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated current
|
6.66A
|
3.33A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
100~277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
>82%
|
|
AC Current(Typ.)
|
1.33A/110VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
﹤0.5mA/110V
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.05Kg
|
|
Size
|
230*70*43mm (L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible LED Stripe Type
Waterproof constant voltage 80W triac dimmable led driver aluminum housing, passed UL certification, with short-circuit/overload/over-temperature protection design, in line with global safety lighting regulations, 7-year warranty
