Waterproof 3x3m To 10x10m Pagoda Gazebo Tent Aluminium Tent

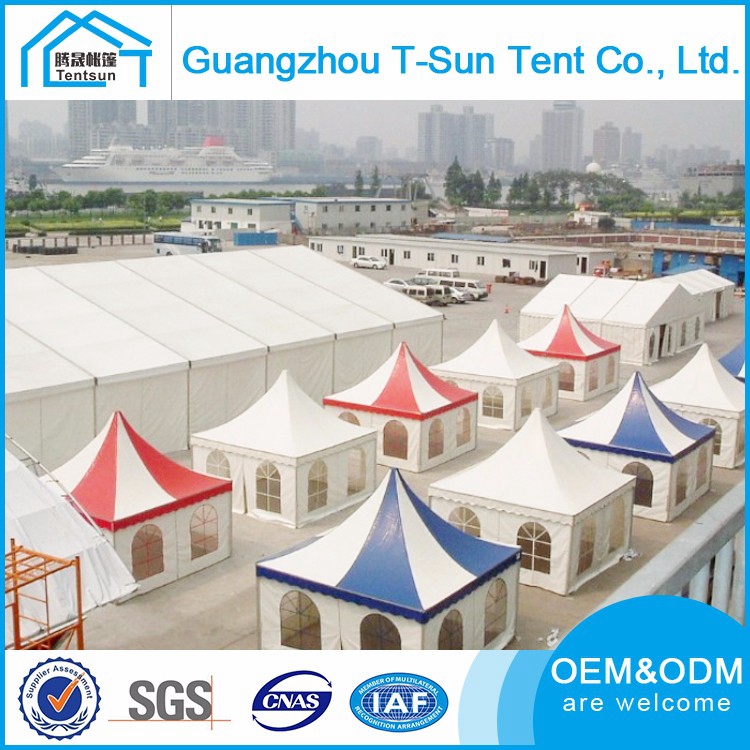

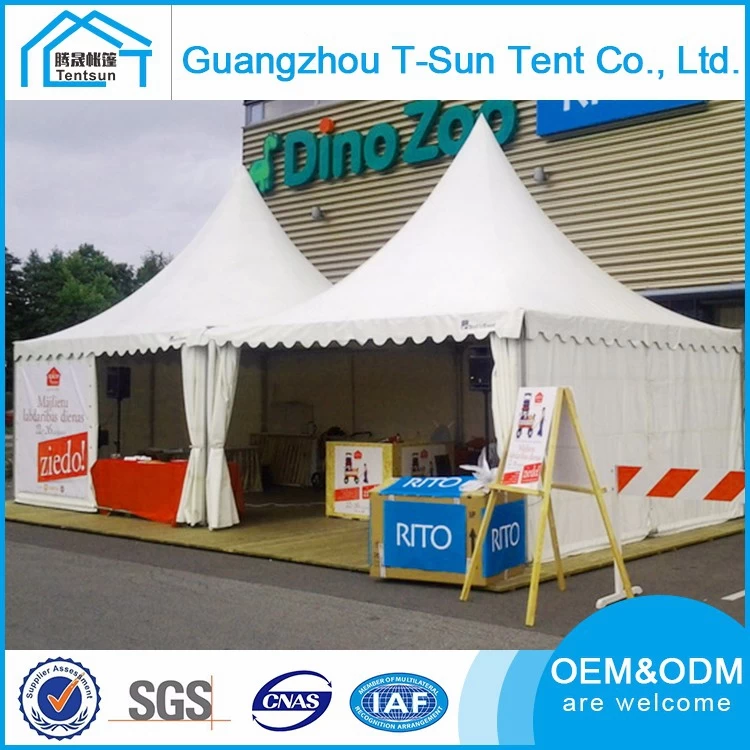

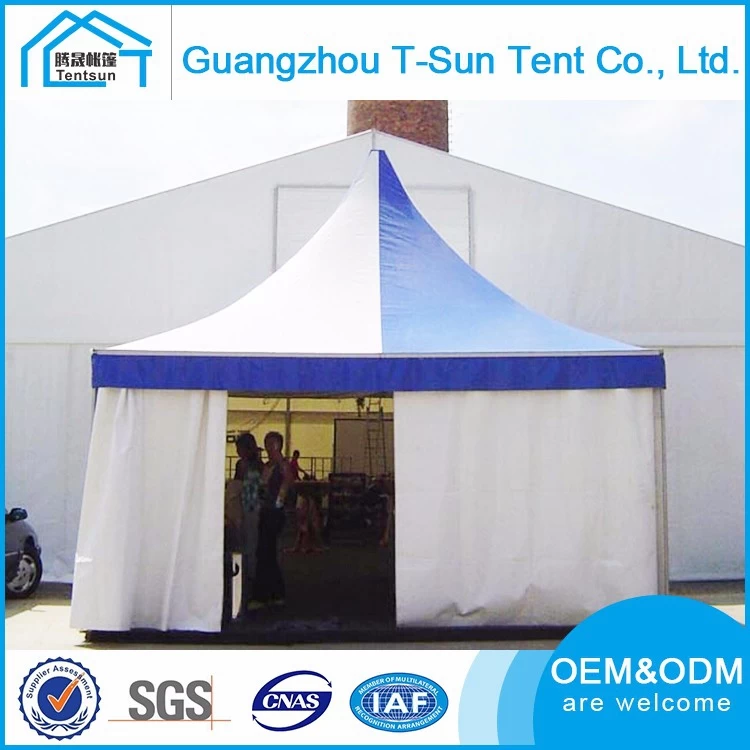

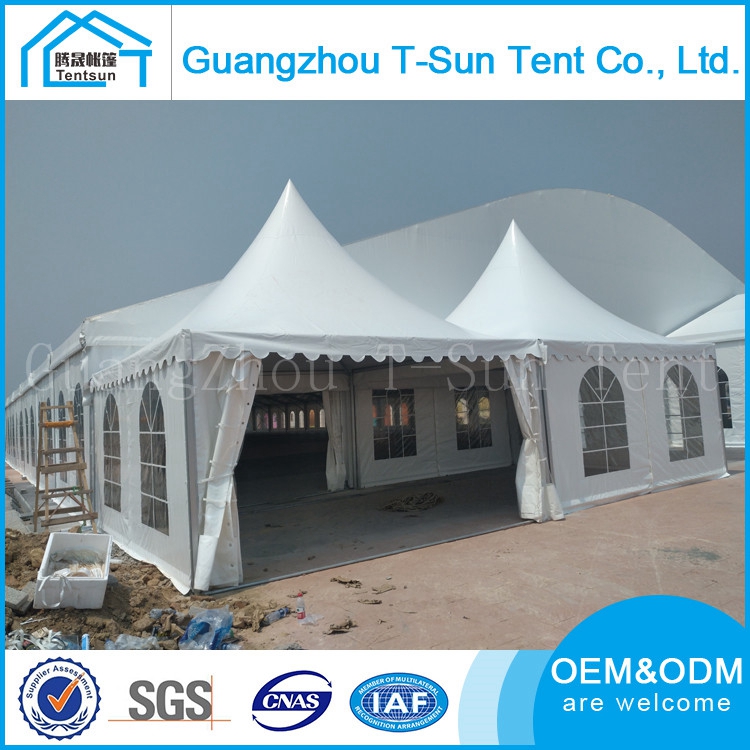

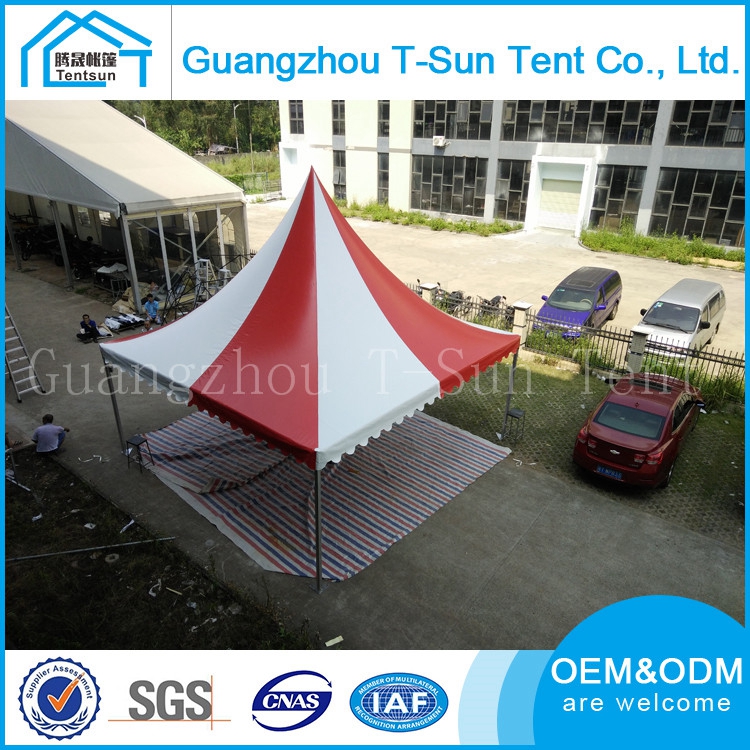

Pagoda tent structures are available in a variety of square sided units from 3m through to 10m in clear span width.
|
Model
|
Size(m)
|
Eave height(m)
|
RIdge height(m)
|
Main profile size(mm)
|
|
PGA03
|
3x3
|
2.5
|
4.3
|
65x65x2.5
|
|
PGA04
|
4x4
|
2.5
|
4.8
|
65x65x2.5
|
|
PGA05
|
5x5
|
2.5
|
5.4
|
65x65x2.5
|
|
PGA06
|
6x6
|
2.5
|
5.9
|
65x65x2.5
|
|
PGA08
|
8x8
|
2.6
|
6.0
|
122x68x3
|
|
PGA10
|
10x10
|
2.6
|
6.5
|
122x68x3
|
Details for 3x3m, 4x4m, 5x5m, 6x6m pagoda tent
Frame:6061/T6 hard press extruded aluminium alloy frame with 3 channels, 65x65x2.5mm, anodized, anti-rust,
Roof cover: 850g/sqm double pvc coated blockout polyester fabric( waterproof , UV-protection , flame -retardant, different colors available, like white, red, green, blue, black etc
Side cover: 650g/sqm double pvc coated translucent polyester fabric(waterproof , UV-protection , flame-retardant, different colors available, like white, red, green, blue, black etc
Connectors: Hot-dip galvanized steel.
