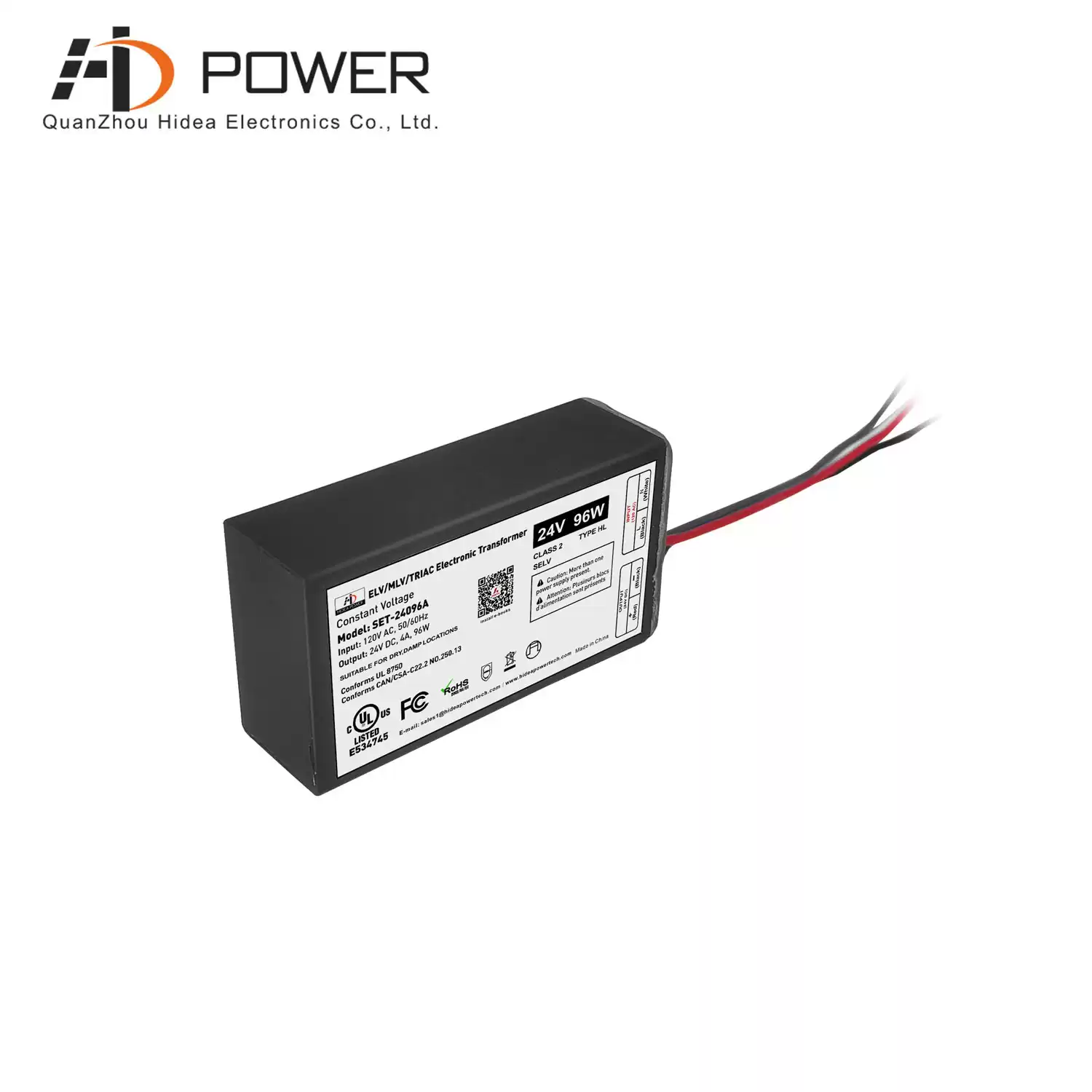

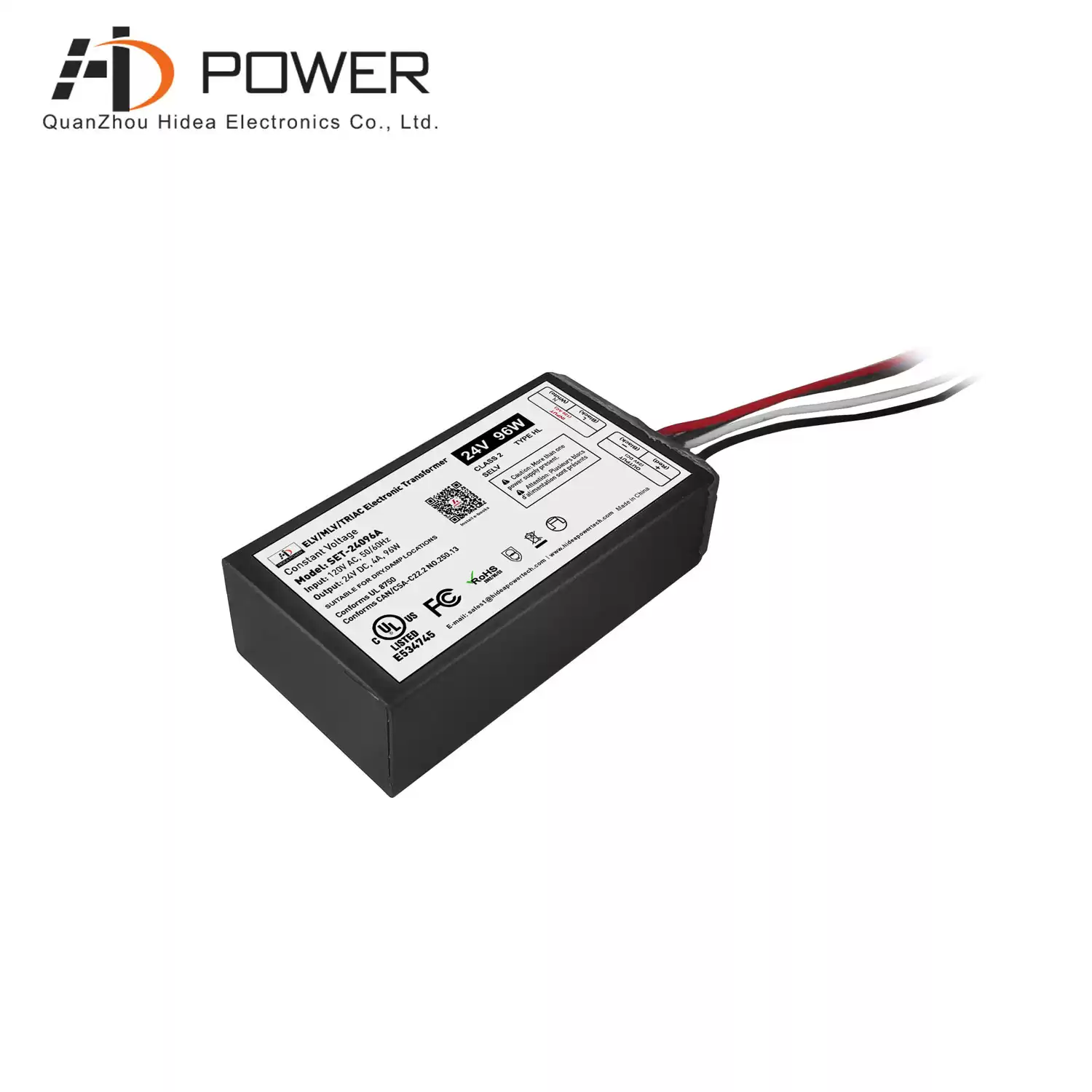

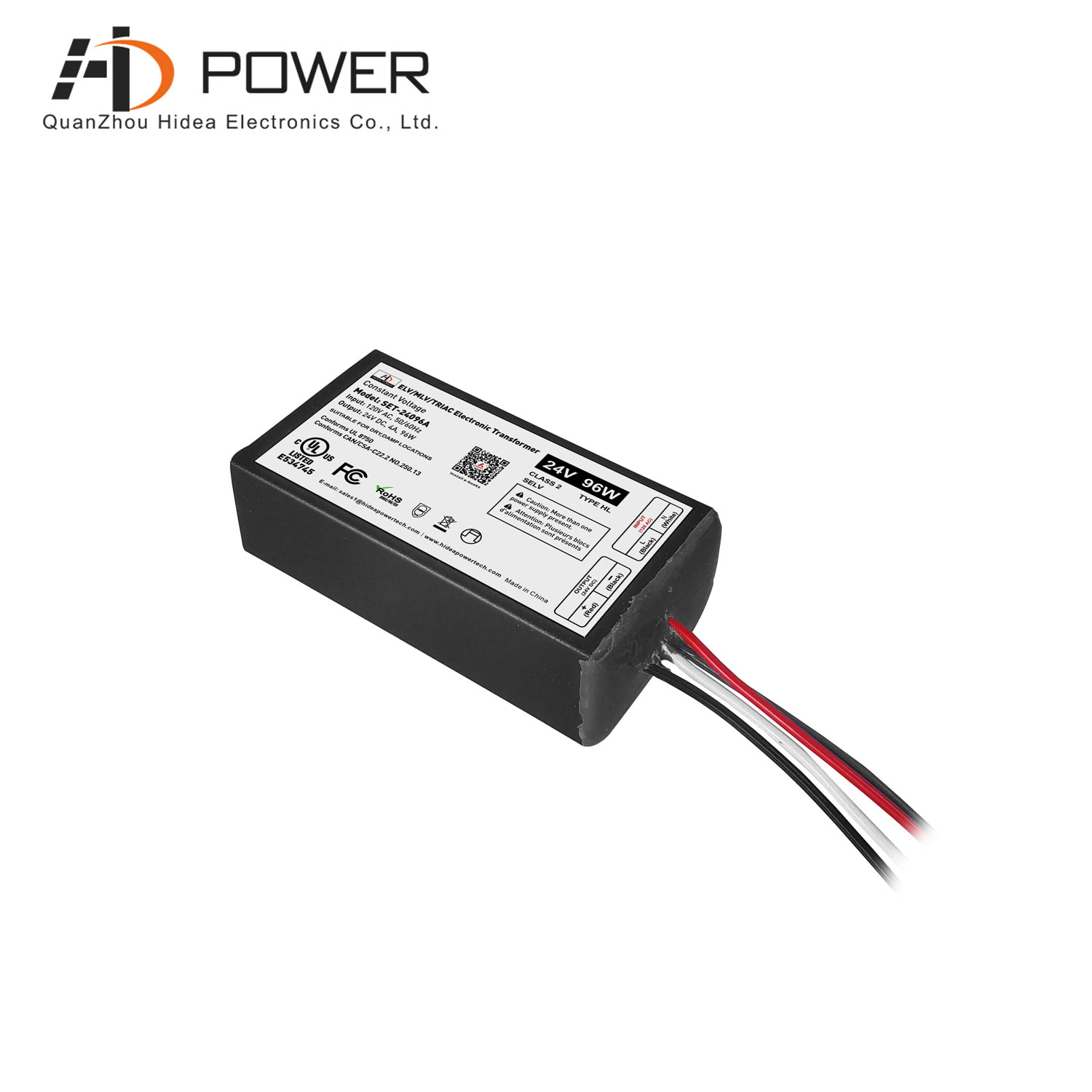

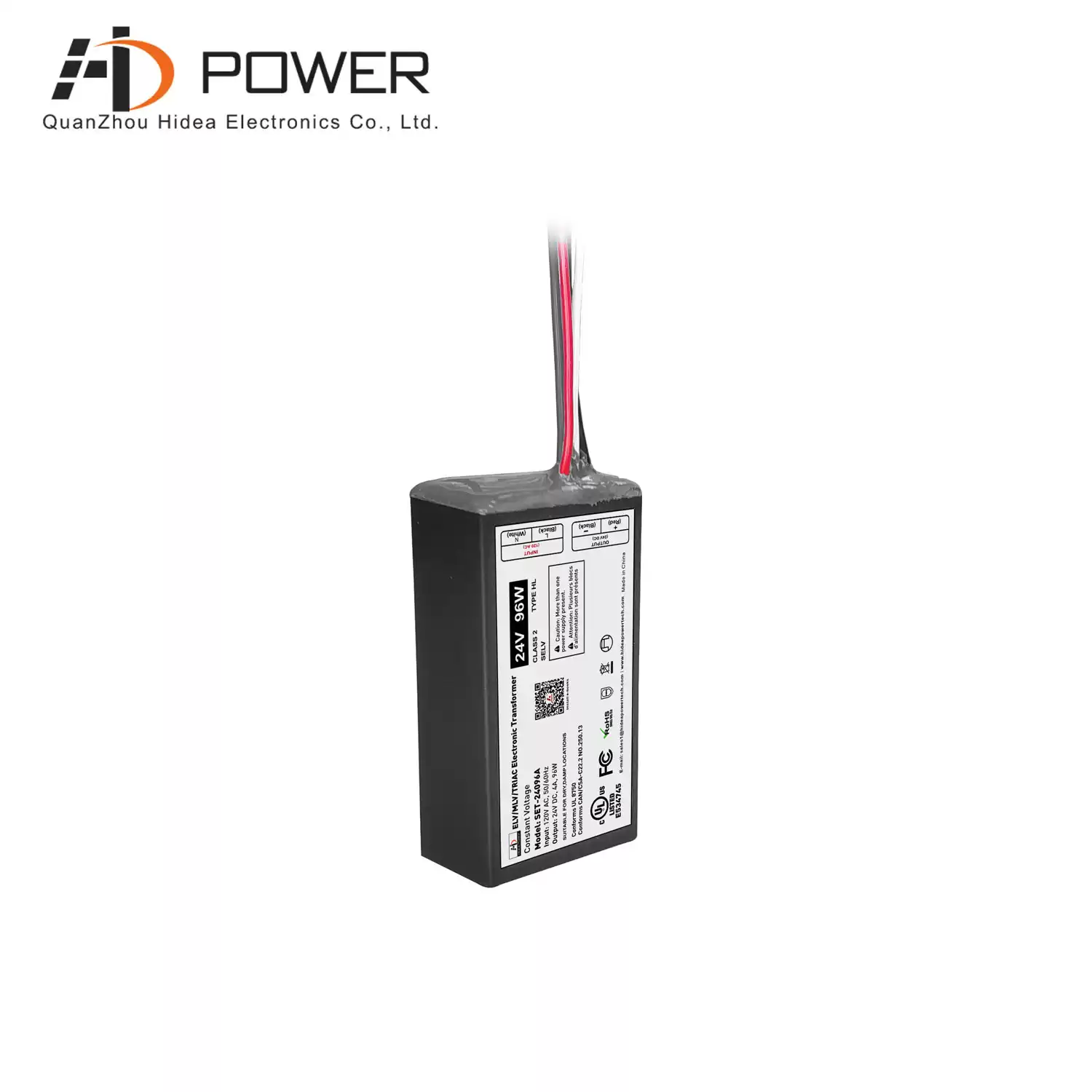

waterproof 96w ip67 triac dimmable constant voltage led strip light driver power supply
UL Certified triac dimmable 96W 24V led electronic transformer Aluminum case for outdoor Built-in active PFC function, power factor >0.98，with a 3 year warranty
Specification
|
Model Number
|
SET-24096A
|
|
Output Type
|
|
Reted Power
|
96W
|
|
Reted Voltage
|
24V
|
|
Reted Current
|
4A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input Type
|
|
Voltage Range
|
120V
|
|
Frequency Range
|
47-63HZ
|
|
Efficiency(Typ.)
|
88%@120VAC
|
|
Total Harmonic Distortion
|
THD< 20%(@100% load)
|
|
Power Factor(typ.)
|
0.98@120VAC
|
|
AC Current(Typ.)
|
0.92A
|
|
Inrush Current(Typ.)
|
-
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, Class 2
|
|
Safety standards
|
I/P-O/P:1.88KVAC
|
|
OTHERS
|
|
Dimension
|
2.83x1.57x0.98 inch (L*W*H)
|
|
Packing
|
-
|
Related Products
|

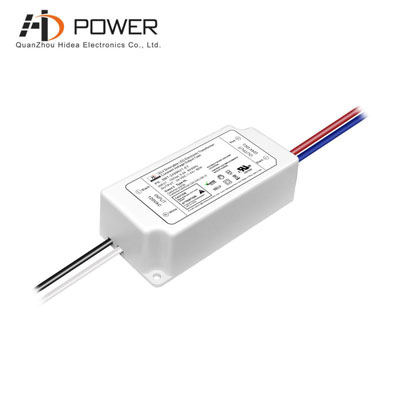

mini size plastic case 96W constant voltage led driver Dimming mode Triac/ ELV/ MLV, dimming range from 0 to 100% UL certified
