Waterproof electronic 0 10v dimmable led driver 12v 100w

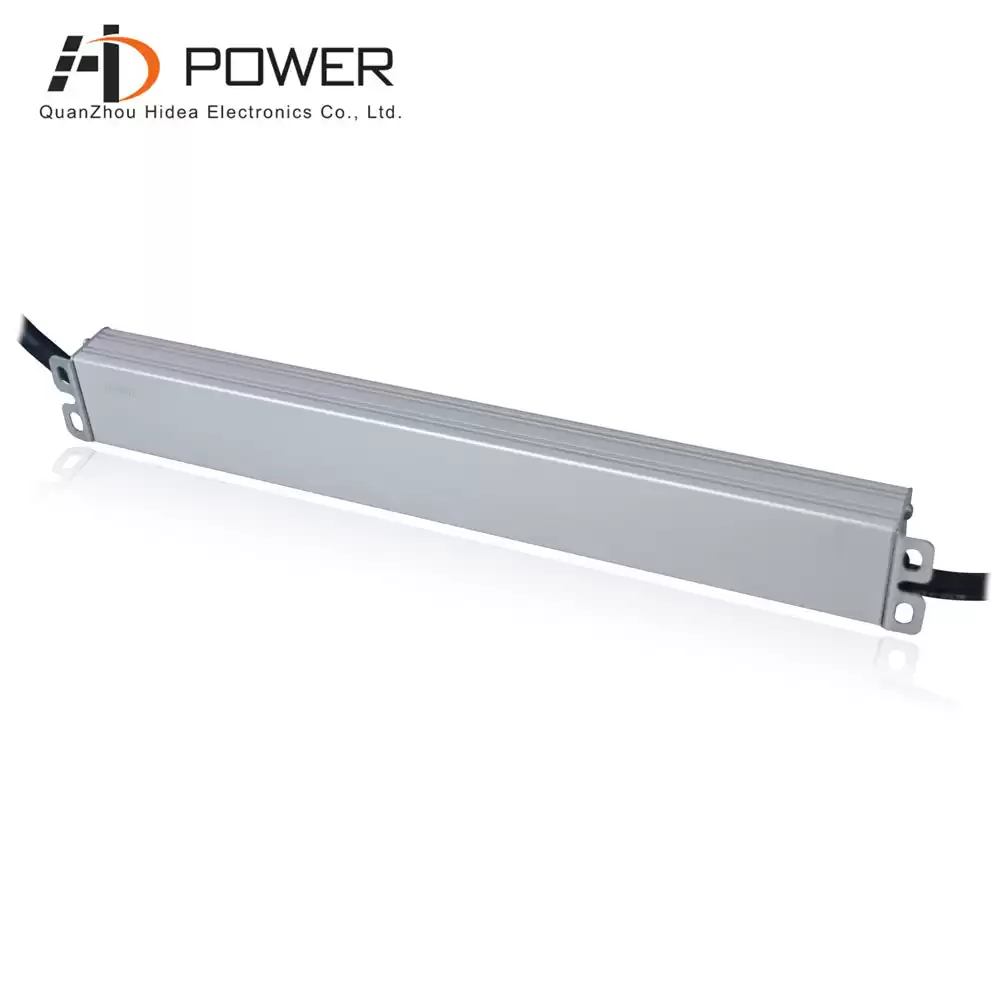

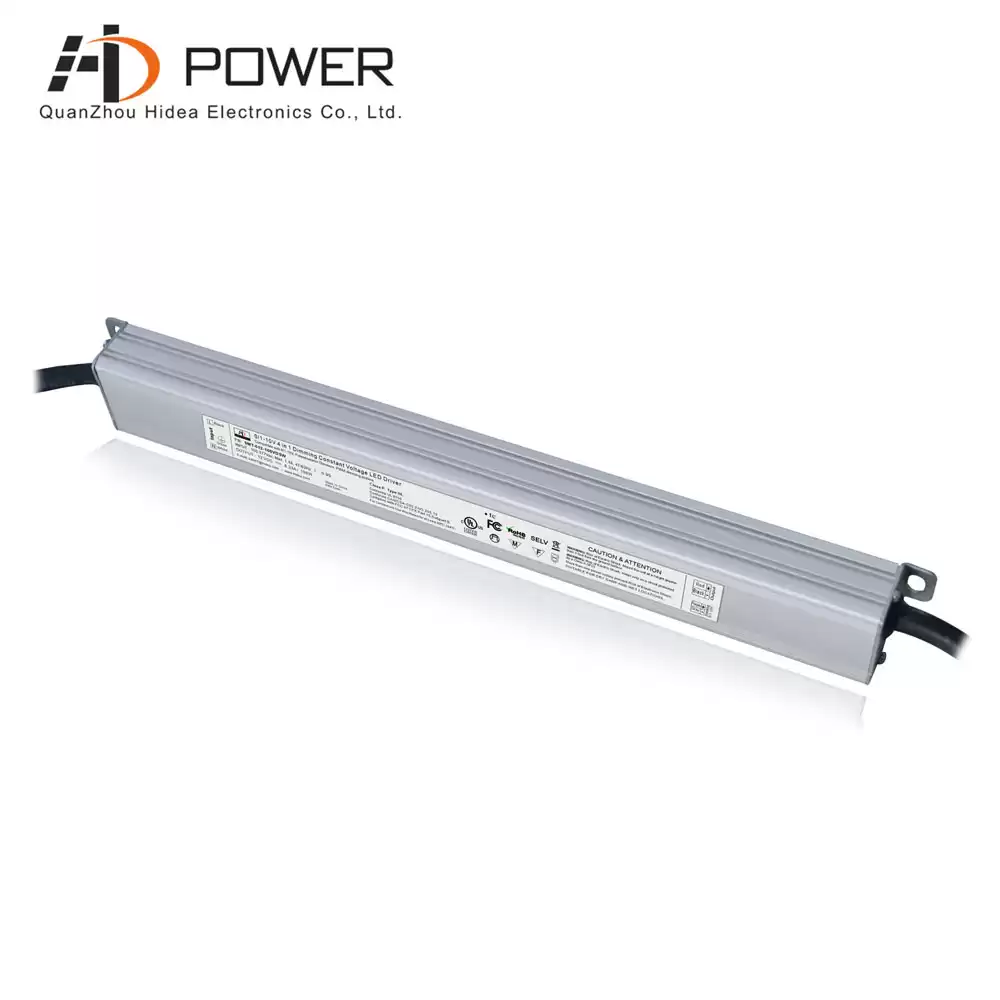

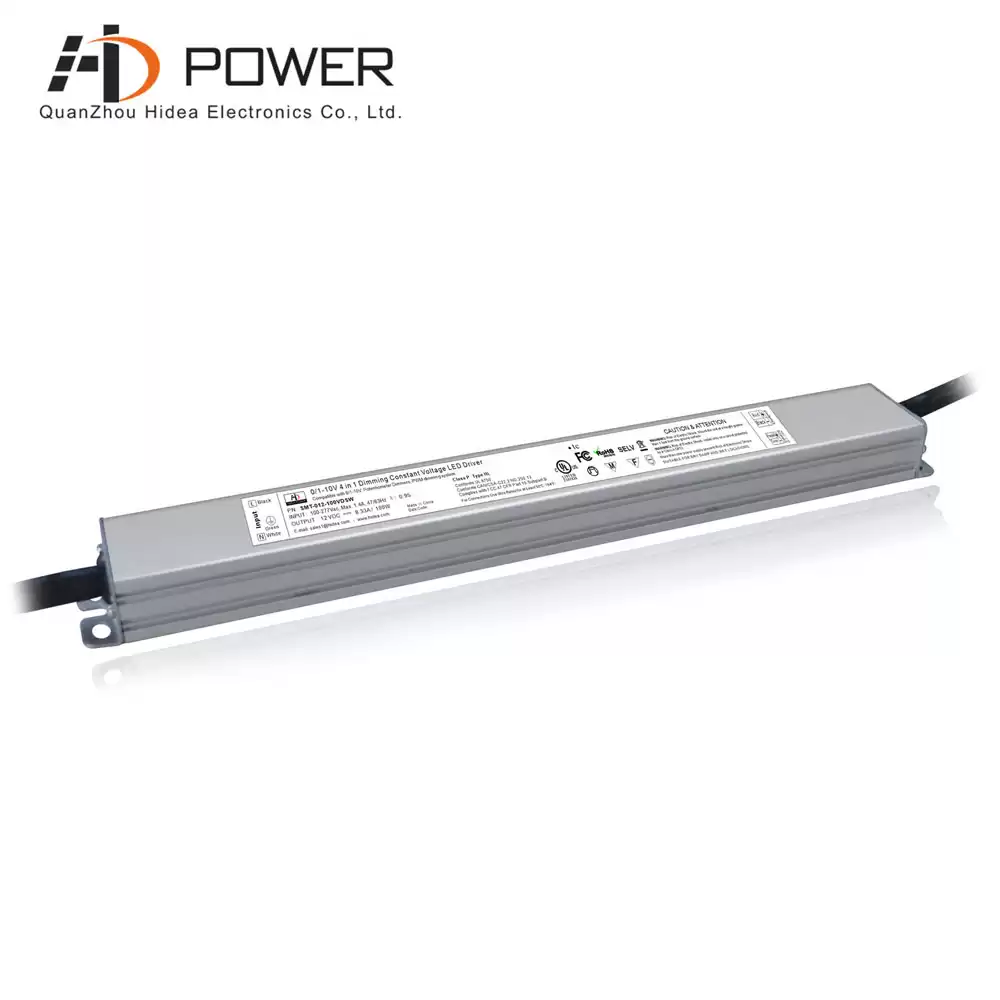

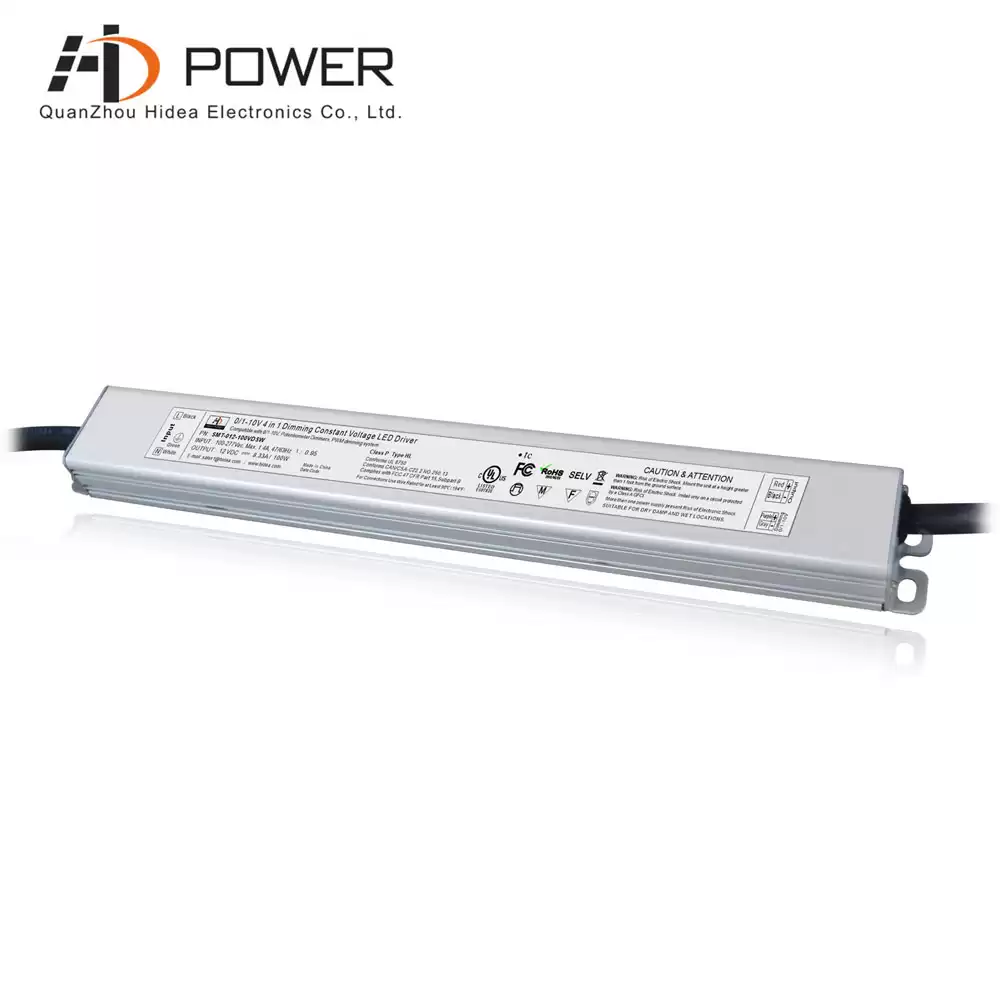

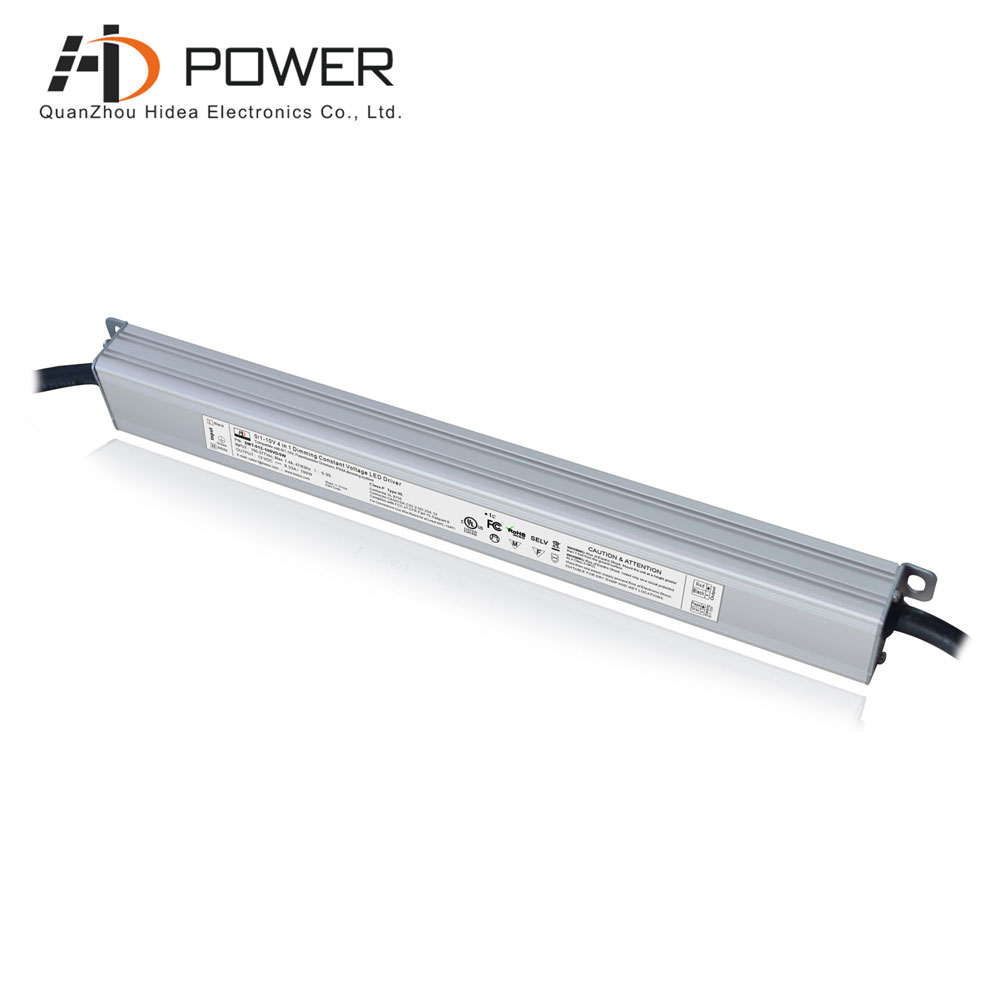

Waterproof electronic led driver 12v 100w SMT-012-100VDSW is 0-10v / 10v pwm / resistance dimming led drivers, widely use in commercial lighting like LV lighting Chandelier.
Label
Specification
|
model
|
SMT-012-100VDSW
|
SMT-024-096VDSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
8.33Amp
|
4Amp
|
|
Rated power
|
100W
|
96W (class 2)
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.99/110V ; PF≧0.95/277V
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Full Load Efficiency(Typ.)
|
84%@120VAC, 86%@277VAC
|
85%@120VAC, 88%@277VAC
|
|
AC Current(Typ.)
|
1.40A
|
|
Inrush Current(Typ.)
|
11A,50%,1.04ms@110V, 27A,50%,960us@277V
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 ,CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P: 1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,Alight industry level
|
|
Others
|
Weight
|
0.55Kg
|
|
Size
|
330*32*23mm (L*W*H)
|
|
packing
|
360*27*17.5mmmm , 50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
|
|
Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type

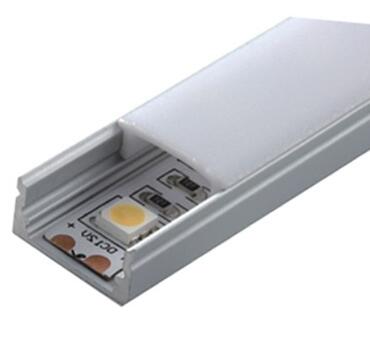

Waterproof electronic led driver in 12vdc or 24vdc type are UL listed, slimline size design use, max. height about 20mm be used in narror area, work with NATECH LIGHTING Linear/aluminium bar 12v.
Related Products
|

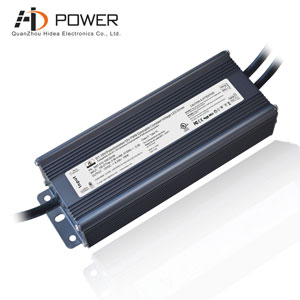

 0-10V dimmable led driver 100w in standard size, indoor / outdoor use, aluminum case IP67.
Mode：SMT-012-100VDHW
Dimming Mode : 0-10V Dimming
Output Power : 100W
intput voltage：100~277V AC
Size：230*68*45MM （L*W*H）
|
