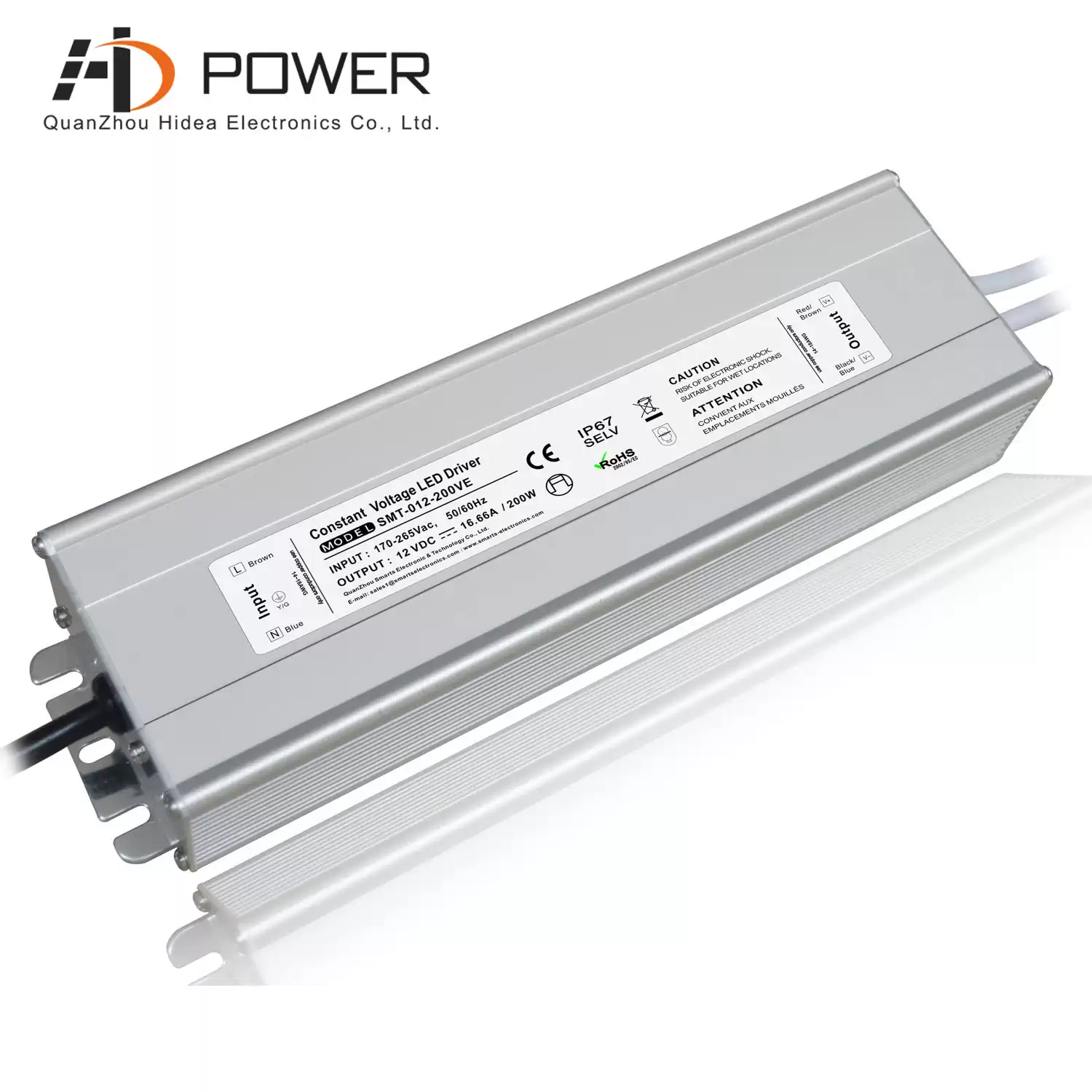

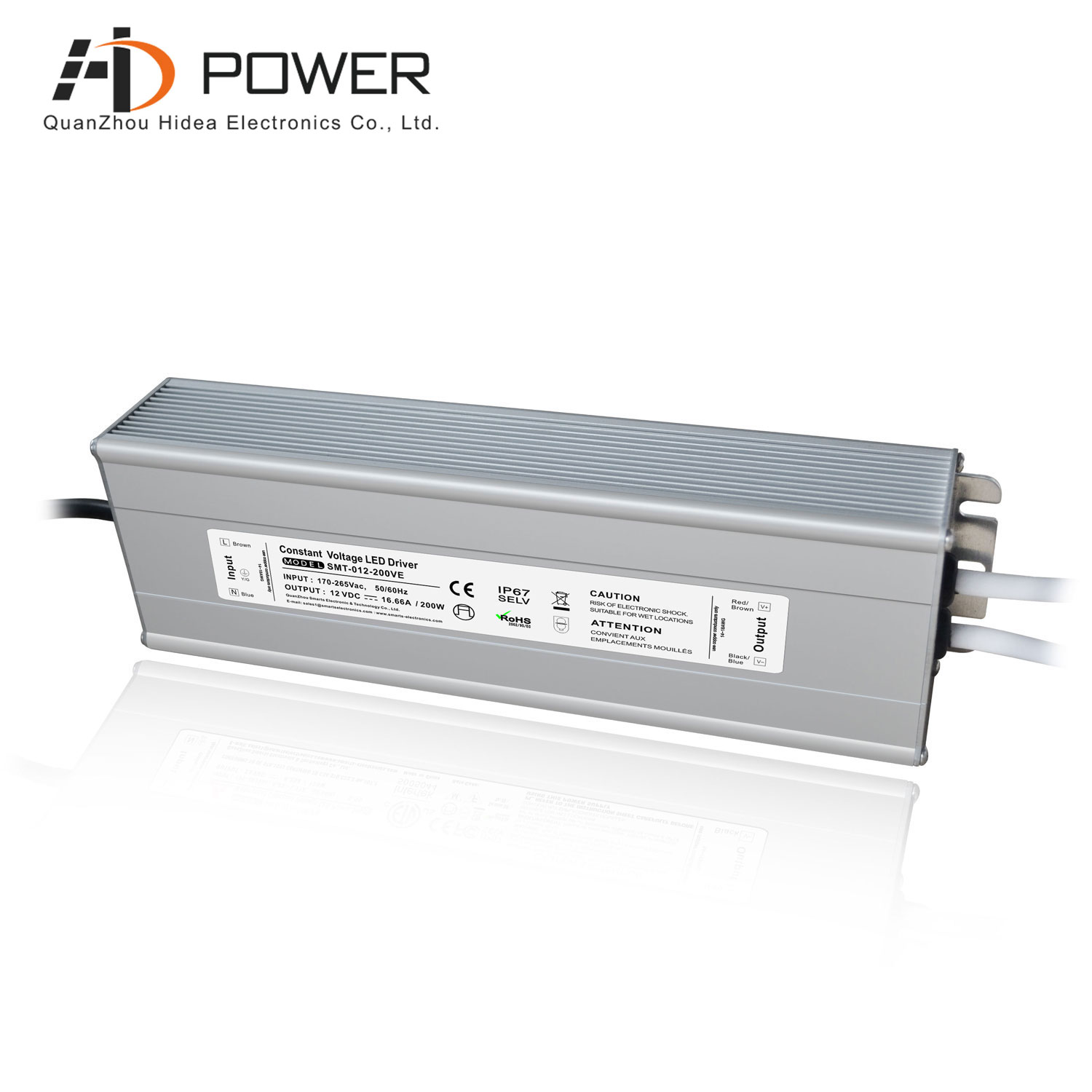

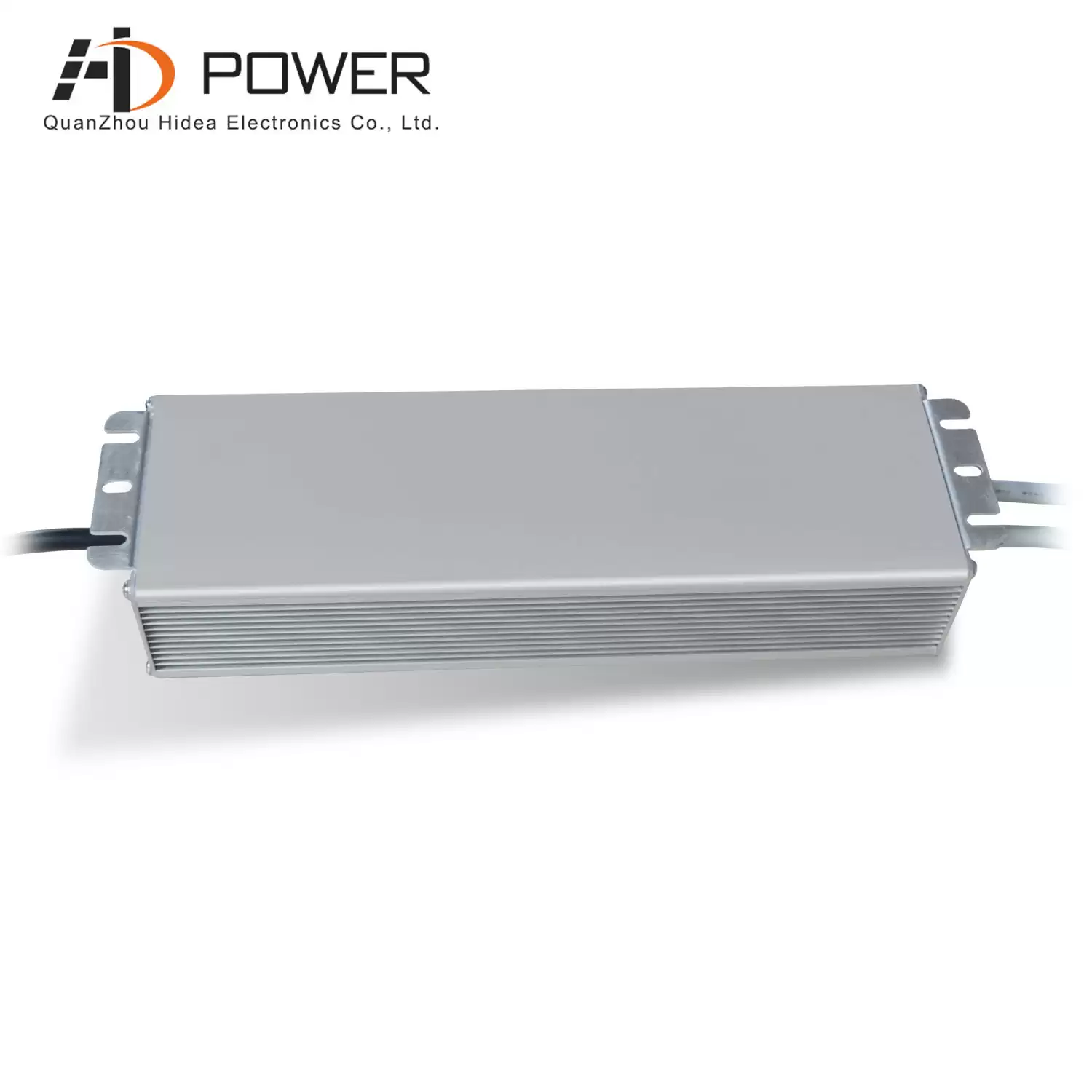

waterproof electronic ac to dc led strip light driver 12v 200w led power supply transformer
Waterproof and constant voltage with short circuit/overload/high temperature protection design 200W LED Strip Light Power Supply, Hidea Power provided it with 2 years of warranty, the quality is guaranteed
Specification
|
MODEL
|
SMT-012-200VE
|
SMT-024-200VE
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
16.67A
|
8.33A
|
|
CURRENT RANGE
|
0-16.67A
|
0-8.33A
|
|
RATED POWER
|
200W
|
200W
|
|
RIPPLE&NOISE(max)
|
<760mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
|
INPUT
|
VOLTAGE RANGE
|
190-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
no PFC
|
|
EFFICIENCY(Typ.)
|
》86%
|
|
AC CURRENT(Typ.)
|
1.62A/220VAC
|
|
PROTECTION
|
Short circuit
|
Hiccpe mode,recovers automatically after condition is removed
|
|
Overload
|
18A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
INGRESS PROTECTION
|
IP67 design for indoor or outdoor installations
|
|
STORAGE TEMP
|
-40~+80℃
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13;SELV;IP67 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

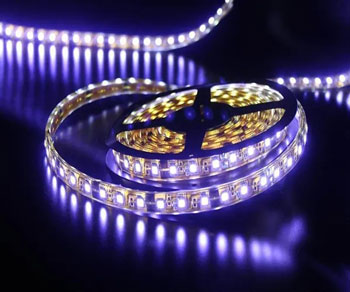

Compatible Low Voltage Device Type
SMT-012-200ve IP67 12V 200W constant voltage LED drive is used for indoor and outdoor LED lighting projects to pass CE certification, which can connect to most constant voltage lights on the market to achieve stable lighting
Related Products
|

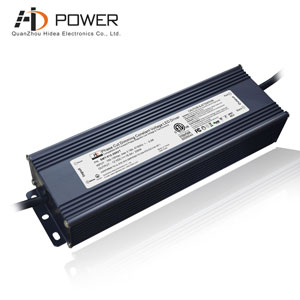

Triac Dimming constant voltage 200W LED driver IP67 aluminum shell waterproof performance
