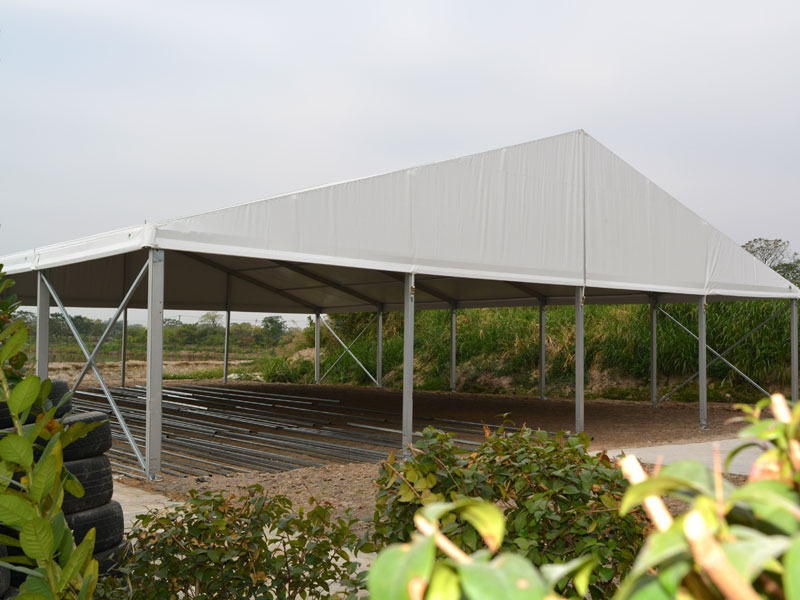

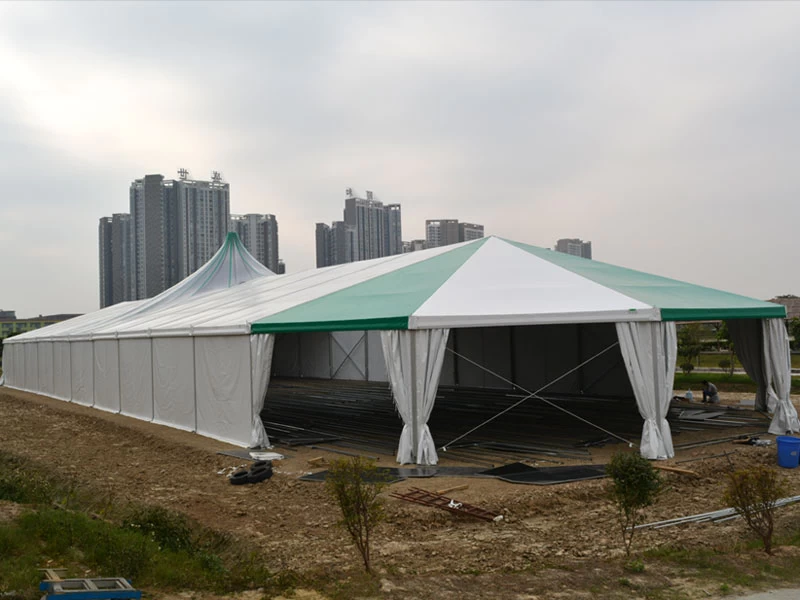

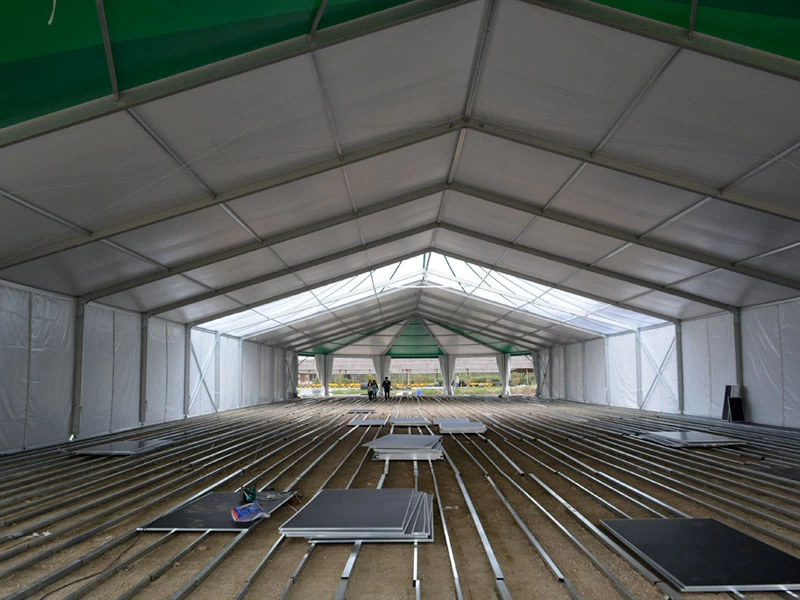

waterproof Industrial Warehouse Tent
Superbtent offer the waterproof industrial warehouse tent from 20m up to 60m, the clear span structures giving you maximum storage area and room for equipment. They are offered with translucent or blackout fabric membrane roofs with standard off-the-shelf structures that withstand up to 130 MPH winds and snow loads of 30. Our warehouse and industrial storage tents are at home in harsh environments and are guaranteed to keep your inventory staff and equipment secure.
Industrial Storage Tent's Available sizes:
● Clear span available from 6m to 30m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
Industrial Storage Tent's Features:
● Derivative of standard “A frame” tents by adding an additional high peak system.
● Can be combined with standard A frame, and/or 1/2 multi-sided tents at two ends freely to get special and elegant appearance.
● No exterior guy ropes or staking required.
● No poles inside, 100% interior space can be used.
● Relocatable, easy to install, dismantle and transport.
● Accessories available: Transparent PVC roof covers and walls, clear windows sidewalls, glass walls, ABS hard walls, sandwich walls, lining decoration, glass door, sliding door, flooring system, weight plates, anchors, 1/2 multi-sided ends , high peak etc.
Industrial Storage Tent's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
Industrial Storage Tent's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
The Specification of waterproof Industrial Warehouse Tent
|
Type
|
Span
(m)
|
Side
height (m)
|
Ridge
height (m)
|
Side
(m)
|
Roof
Pitch
|
Longest
Component (m)
|
Wind
Load (km/h)
|
|
BS20/4-5DEC
|
20
|
3.9
|
7.1
|
6.2
|
18°
|
10.7
|
100
|
|
BS25/4-5DEC
|
25
|
3.9
|
7.9
|
7.7
|
18°
|
10.7
|
100
|
|
Main
frame Profile
|
204x120x4mm（4-channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Twin Steel Plate
|
|
Roof
Fixing
|
Bar
Tension
|
|
Frame
Material
|
Hard
Pressed Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double
PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
