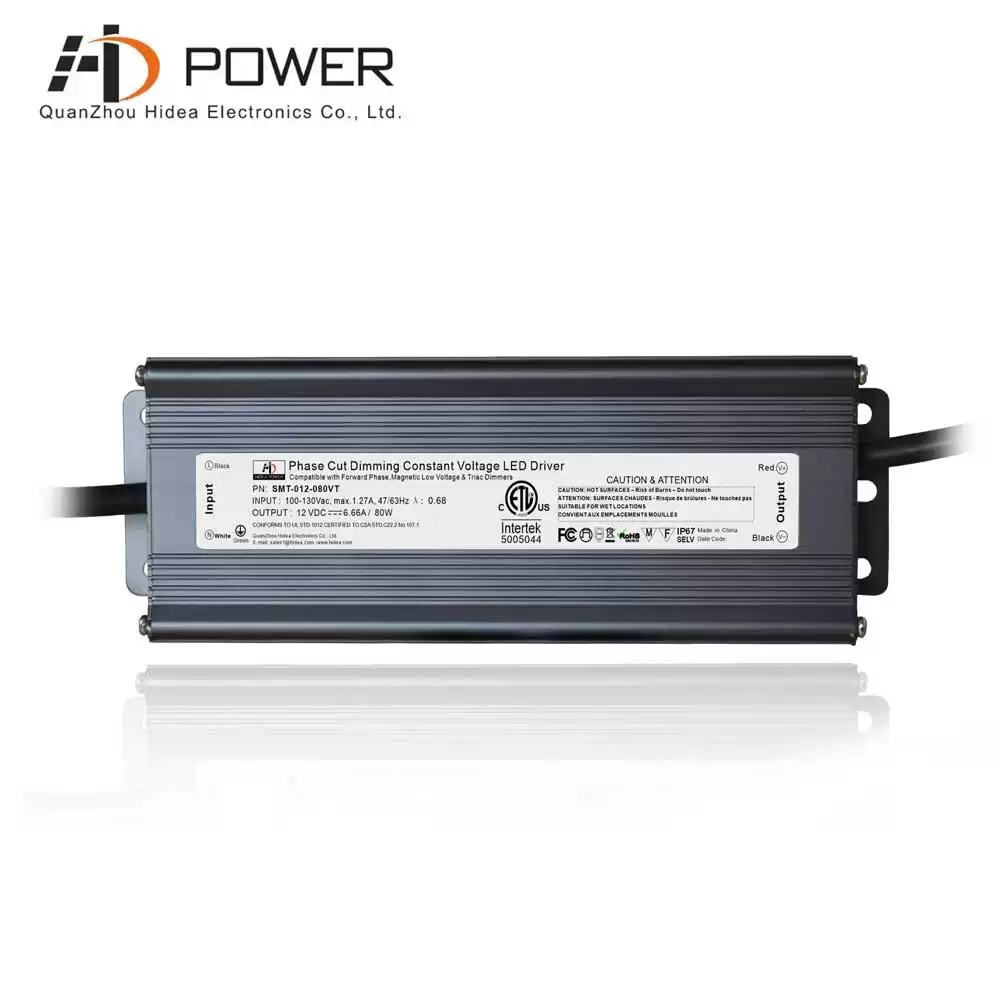

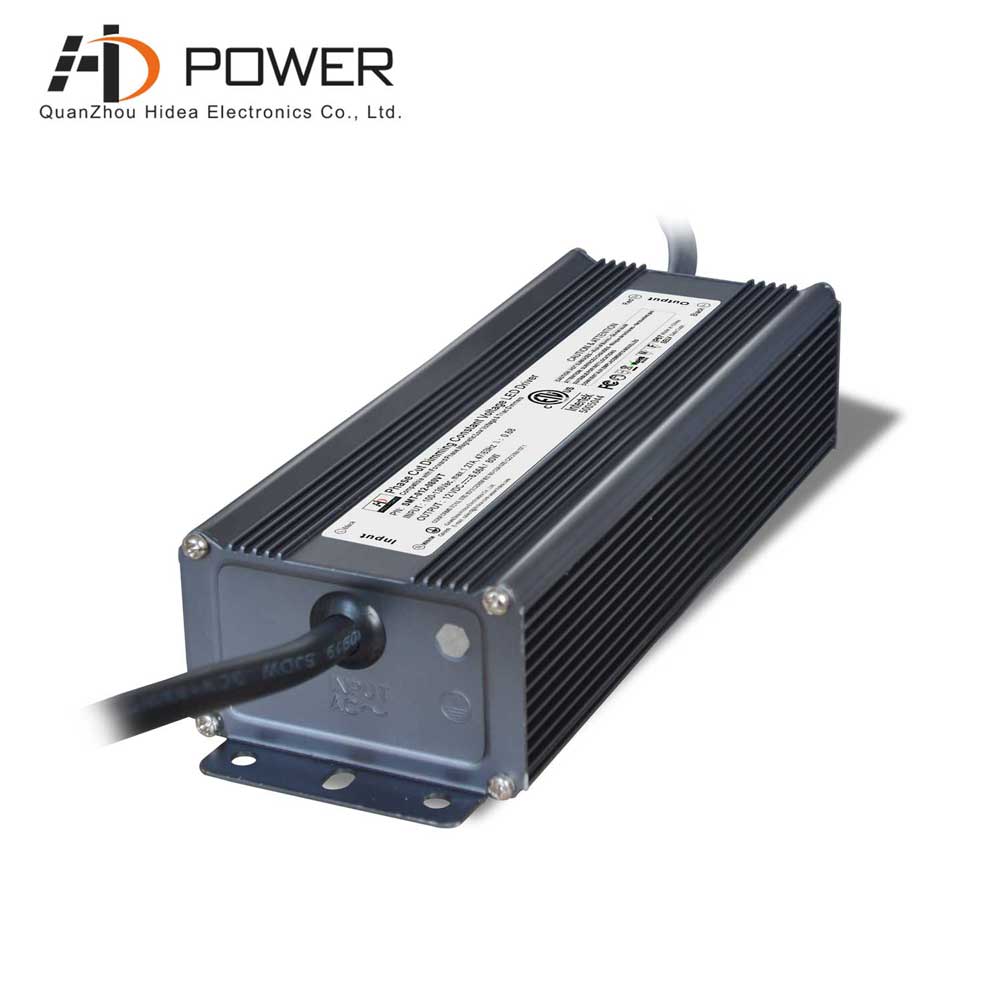

It is 12v 80w triac dimmable led drivers without min load limited. Only compatible with leading edge dimmers MLV dimmer, the standard version can not work with ELV dimmer. It can work well with Ledwatcher's led pack lights.
Specification
|
Model
|
SMT-012-080VT
|
SMT-024-080VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
6.66A
|
3.33A
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
100~130VAC
|
|
Frequency Range
|
50~60HZ
|
|
Power Factor
|
0.65(Full loading)
|
|
Efficiency(Typ.)
|
83%
|
83%
|
|
AC Current(Max.)
|
1.70A
|
2.0A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310 Class 2 unit
|
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net. Weight
|
1.2Kg With junction 1.84Kg
|
|
Size
|
230*70*43mm (L*W*H)380*77*57mm (L*W*H)
|
|
packing
|
324*279*176mm 10PCS/CTN 415*360*190mm 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 5-100%.
|
Compatible Light Type

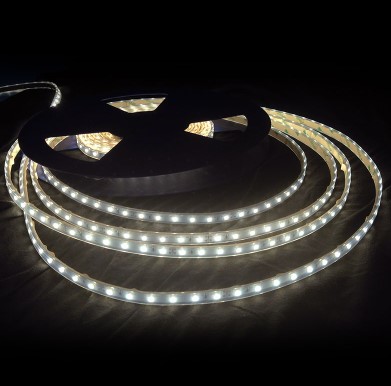

HIDEA waterproof IP67 ETL listed 80w LED drivers backed up a 5-year warranty, Guaranteeing the need for many servies or drivers replacements. It can match good well with SILVERLITE led strip lights.
Related Products
|

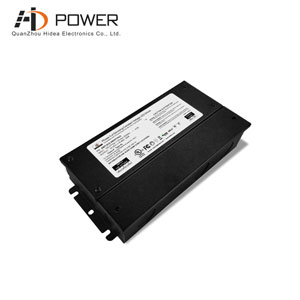

 12Vdc 80W triac dimmable led driver is CE cUL FCC ROHS approved, which is inside a junction box for North American market.
Mode：SMT-012-080VTHV2
Dimming Mode : Triac Dimming
Output Power : 80W
intput voltage：100~277V AC
Size：220*94.5*40MM （L*W*H）
|
