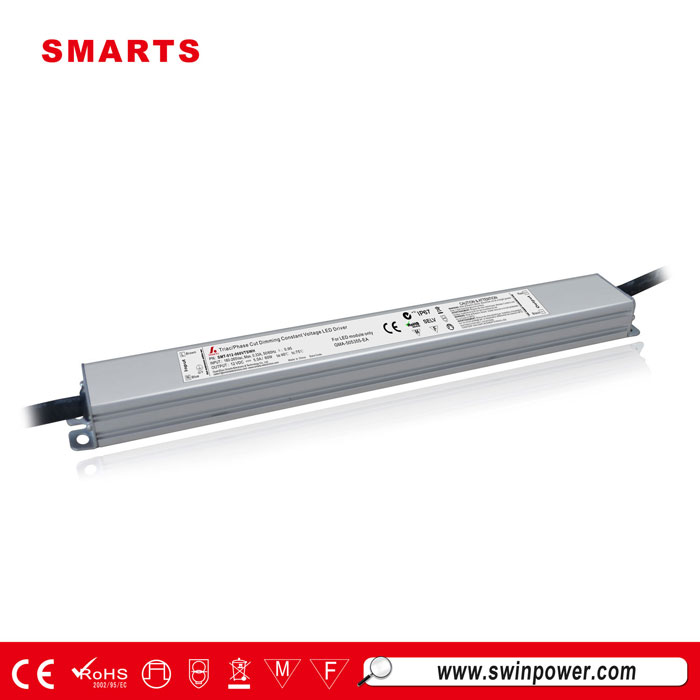

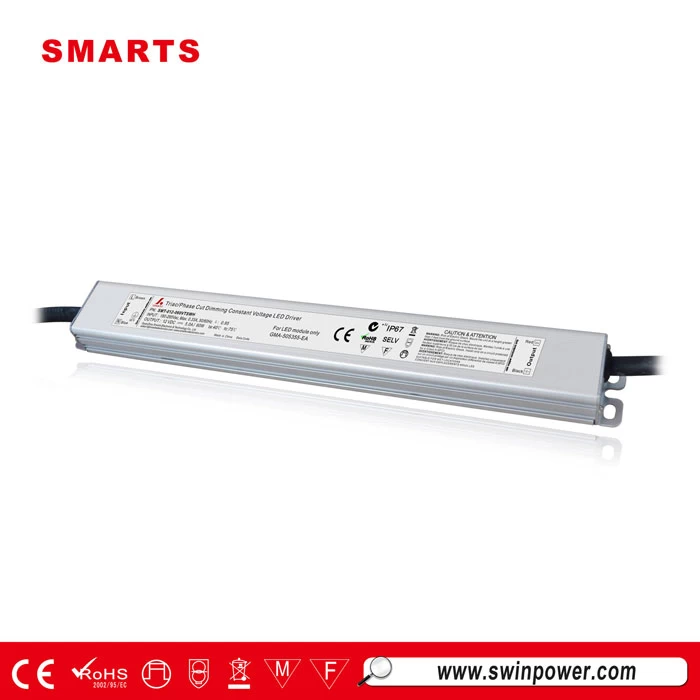

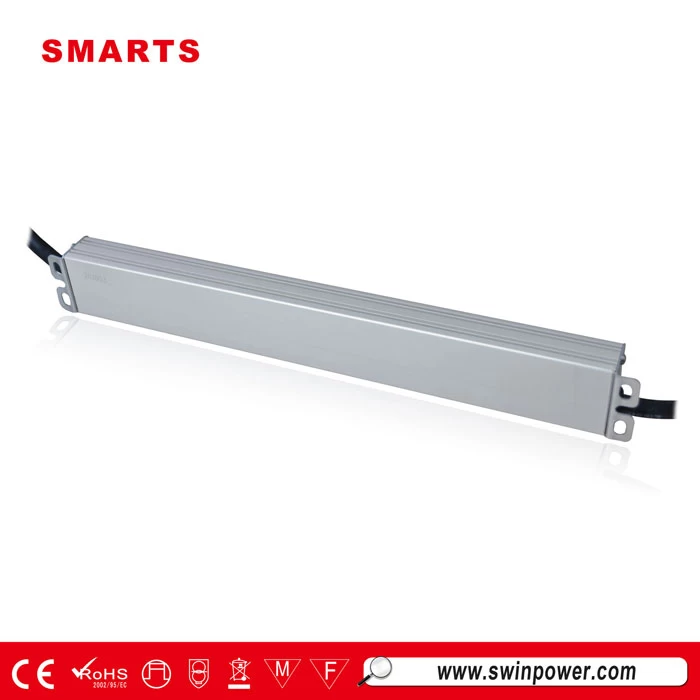

waterproof IP67 power supply 12v 60w dimmable led driver for led strip light
This model 60w slim size triac dimmable LED driver have short circuit/overload/over temperature protection.Through 100% full load burn-in test. A series of slim shape triac dimmable led driver divide 12v triac dimmable constant voltage led driver & 24v triac dimmable constant voltage led driver.
Destriptiom
|
model
|
SMT-012-060VTSWH
|
SMT-024-060VTSWH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
Rated power
|
60W
|
60W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
180-265 VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.95
|
|
Full Load Efficiency（Typ.）
|
>83%
|
>84%
|
|
AC Current（Typ.）
|
0.5A/100VAC / 0.13A/277VAC
|
|
Inrush Current（Typ.）
|
6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC
|
|
Leakage current
|
<0.74mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P: 2KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.45Kg
|
|
Size
|
300*32*20mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
Mechanical Specification
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output: Red is（DIM+）,Black is（DIM-）
Derating Curve
Connecting Diagram
Simple Connection Diagram
