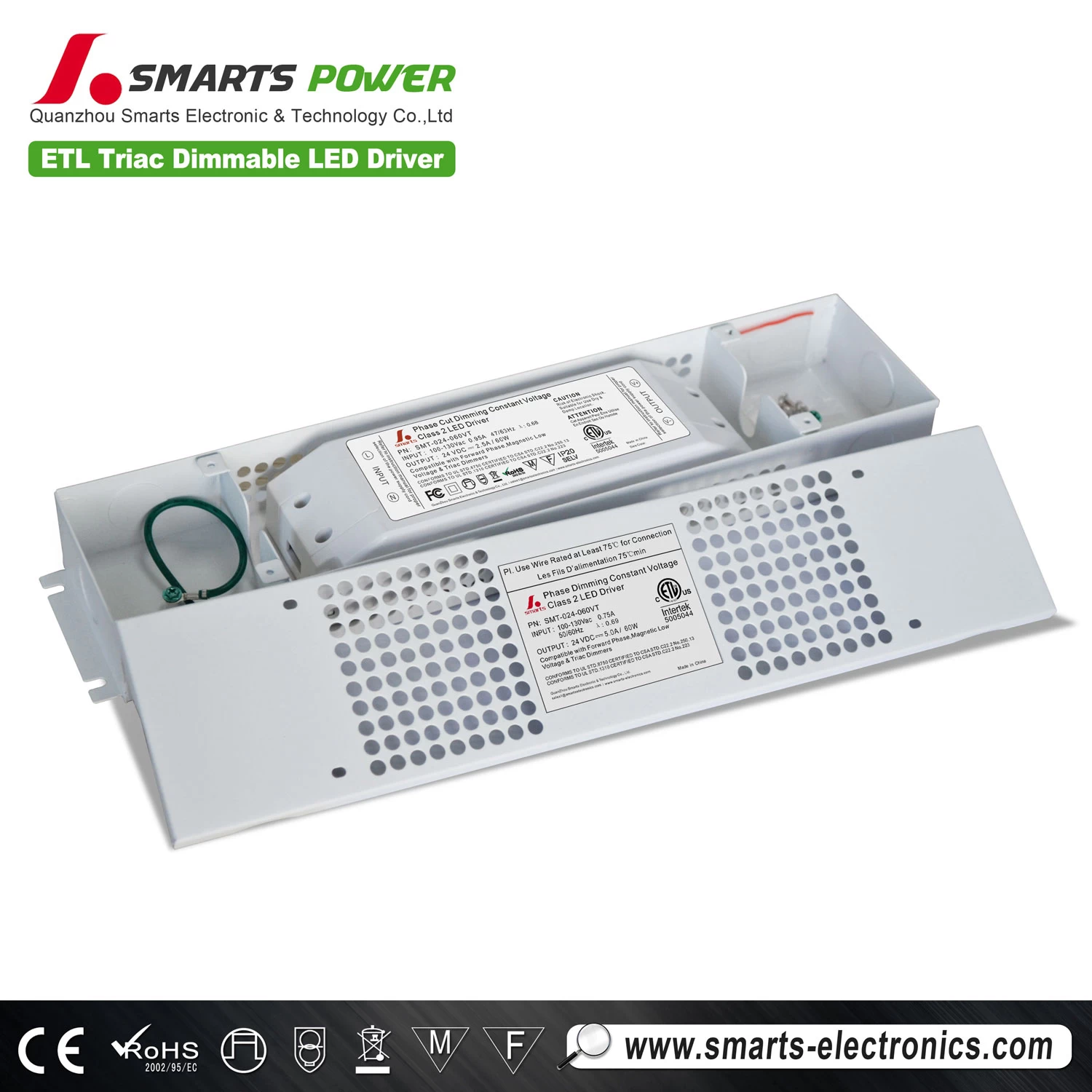

waterproof IP67 triac dimmable 24v 60w LED power supply

24v waterproof LED power supply;  triac dimmable 24v 60w LED power supplyr;  China market led power supply

Facebook Twitter Pinterest LinkedIn 分享

triac dimming 24v 60w LED power supply



Product Description





input Channel leading edage and tailing eadge dimmers
  SMT-012-060VT SMT-024-060VT
Single Output features Constantvoltage 12vDC  24vDC
output current 5.0Amp 2.5Amp
output power 60watt 60watt
Ripple & Noise 250mV
Current Regulation ±3%
Starting time 1000mS/230Vac, 3000mS/110Vac
Input Voltage range 90Vac-135Vac, 170-265Vac
Frequency range 47Hz-63Hz
Power factor PF>0.90/220Vac,PF>0.91/110Vac
Efficiency 87%/110Vac , 88%/230Vac
Inrush Current 20A/110Vac, 40A/220Vac
Leakage Current <1mA/240Vac
Protection short circuit
protection
Protection mode:Single Protection,Hiccup ,recovery after the fault removed.
  Protection mode:Limit highest voltage, recovery after the fault removed.
physical size:

200*68*45mm

Over temperature 105oC±5 oC ( Internal radiator's temperature)
Protection mode:Closed Output voltage,recovery after temperature automatic recovery

Features:

  • Built-in PFC function
  • Efficiency > 85%
  • Protections:Short circuit/over Voltage
  • Fully isolated  aluminum housing
  • Easy installation
  • Cooling by free air convection
  • Work with leading edge and trailing edge TRIAC dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Specifications:

  • AC-DC Triac Dimmable LED Driver
  • I/P:90-135vAC , 170-265VAC,47-63Hz
  • Ambient temp.:-20 degree~40 degree full load
  • Efficiency> 85%
  • PFC > 0.95
  • overload,over heat, over voltage, short circuit protection

Environment :

  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety :

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Applications:

  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
220V Voltage and Triac/ELV Type dimmable triac constant voltage led driver
