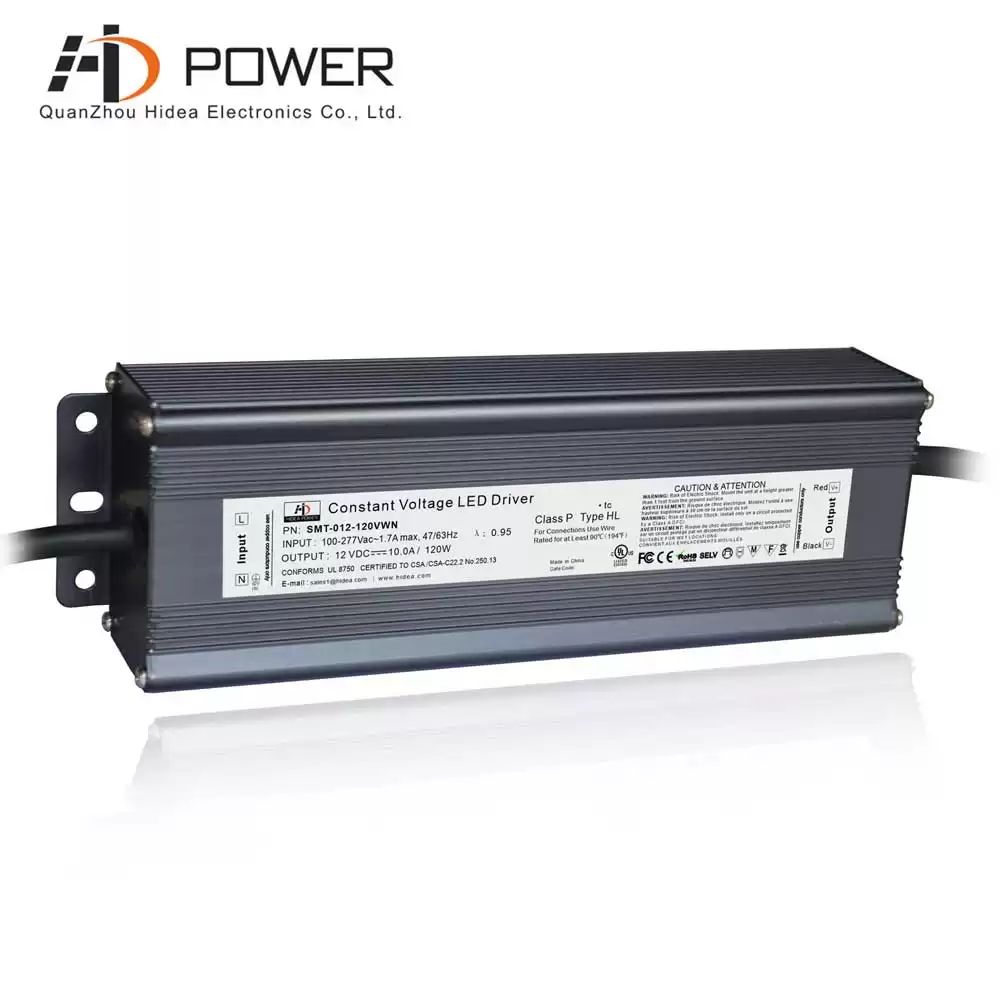

Connect up to 100% of the rated 120-watt maximum load, derating performance is not required, led driver 120w delivers stable and energy-efficient, low-voltage power to Marvel LED display lighting installation.
Specification
|
Model
|
SMT-012-120VWN
|
SMT-024-120VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
10A
|
5A
|
|
Rated Power
|
120W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2% ±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.97@230VAC 0.96@277VAC
|
0.99@120VAC 0.97@230VAC 0.96@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
Efficiency(Typ.)@ full load
|
80%@120VAC 84%@ 230VAC 84%@277VAC
|
85%@120VAC 88%@230VAC 88%@277VAC
|
|
AC Current(Max.)
|
1.7A@100VAC
|
1.7A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms@120VAC; 30A,50% 200us@230VAC; 25A,50%,1.2ms@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90% RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.08Kg
|
|
Size
|
230*70*43mm(L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

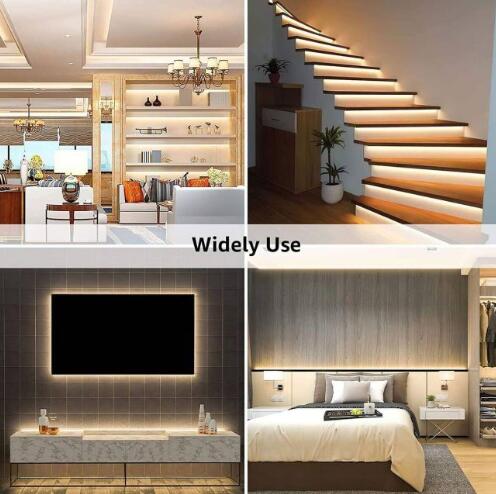

Lepro 32.8ft LED strip is cuttable between every 3 leds, 6000K bright 1800lm LED tape light for kitchen, living room, stairs and more, you should need a led tape light driver to work it.
Related Products
|
 Smooth, full range, flicker-free dimming led driver 120w, designed using high-performance, professional grade electronics.
Mode：SMT-012-120VM
Dimming Mode : Dali Dimming
Output Power : 120W
intput voltage：100~265V AC
Size：230*68*45MM （L*W*H）
|
