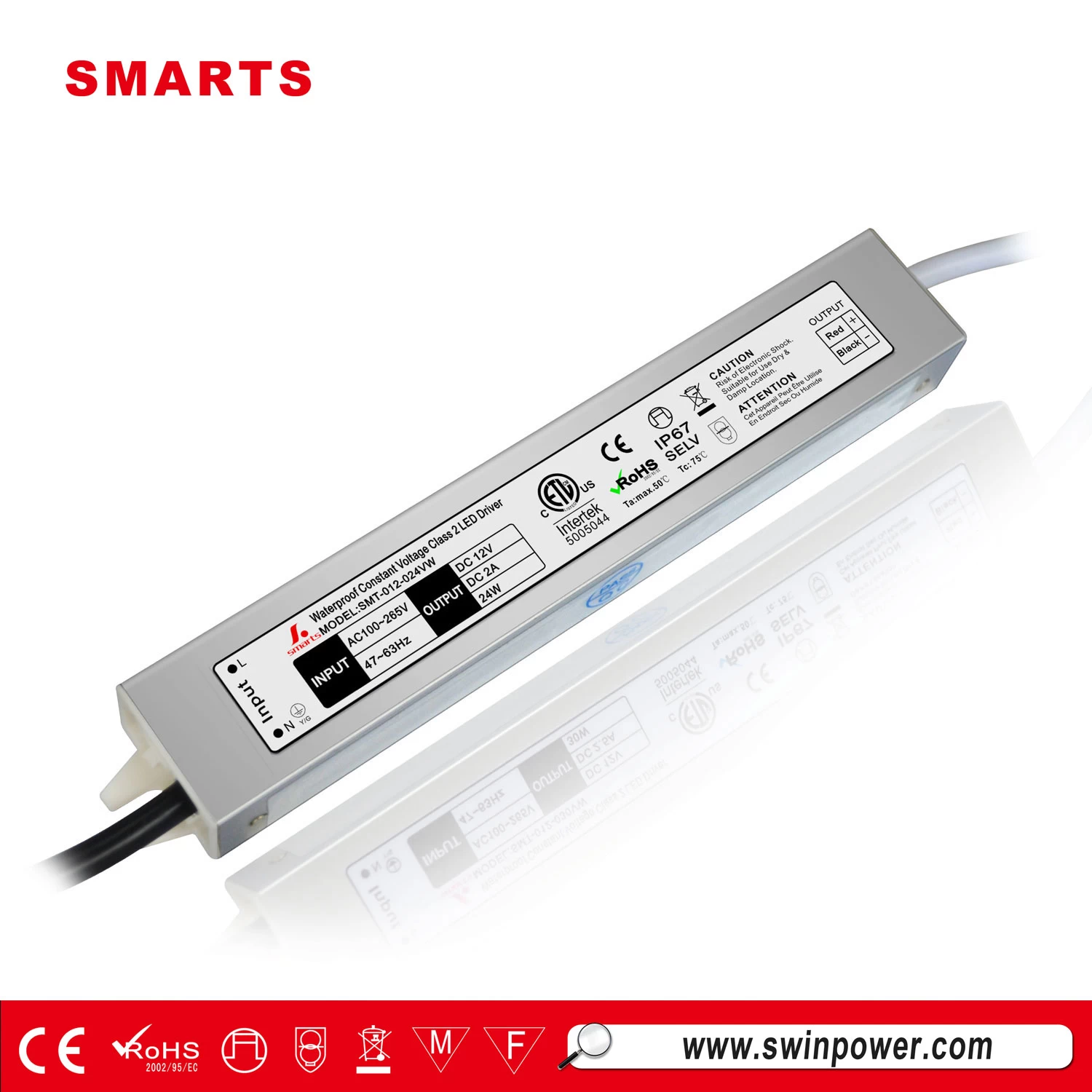

waterproof led power supply 12v dc 2a 24w for led strip light
This waterproof led power supply 24w is Super compact ABS plastic case (less than 1″ high), Class 2, ETL Listed under UL 8750 and 1310 Auto-reset protection for short circuits and over-voltage, IP 67 rated to make power supply is able to work in indoor and outdoor locations.
Datasheet:
|
MODEL
|
SMT-012-024VW
|
SMT-024-024VW
|
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
|
RATED CURRENT
|
2A
|
1A
|
|
|
CURRENT RANGE
|
0~5.0A
|
0~2.5A
|
|
|
RATED POWER
|
24W
|
24W
|
|
|
RIPPLE&NOISE(max)
|
1.2V
|
1.2V
|
|
|
voltage TOLERANCE
|
12V±5%
|
24V±5%
|
|
|
SETUP RISE TIME
|
80ms/110,220VAC
|
80ms/110,220VAC
|
|
|
HOLD UP TIME(Typ.)
|
60ms/110,220VAC
|
60ms/110,220VAC
|
|
|
INPUT
|
VOLTAGE RANGE
|
100~265Vac
|
100~265Vac
|
|
|
FREQUENCY RANGE
|
50~60Hz
|
50~60Hz
|
|
|
POWER FACTOR(Typ.)
|
|
|
|
|
EFFICIENCY(Typ.)
|
>84%
|
>84%
|
|
|
AC CURRENT(Typ.)
|
0.5A/110V,220VAC
|
0.5A/110V,220VAC
|
|
|
INRUSH CURRENT (Typ.)
|
COLD START 30A/110,220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
ETL, CE Mark(LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,
rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth
by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Dimension:
182*29*20mm

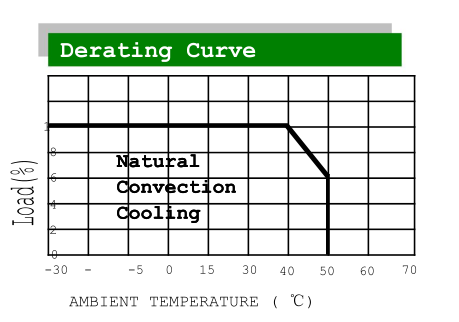

Derating Curve:
What's the advantage of SMARTS 24w power supply?
The Lindrive 24w power supply allows you to hardwire and wall monted, The Lindrive series offers smooth flicker free working condition. The slim size of the Lindrive enables easy and safe installation, making it the perfect choice for under cabinet and above cabinet lights.
