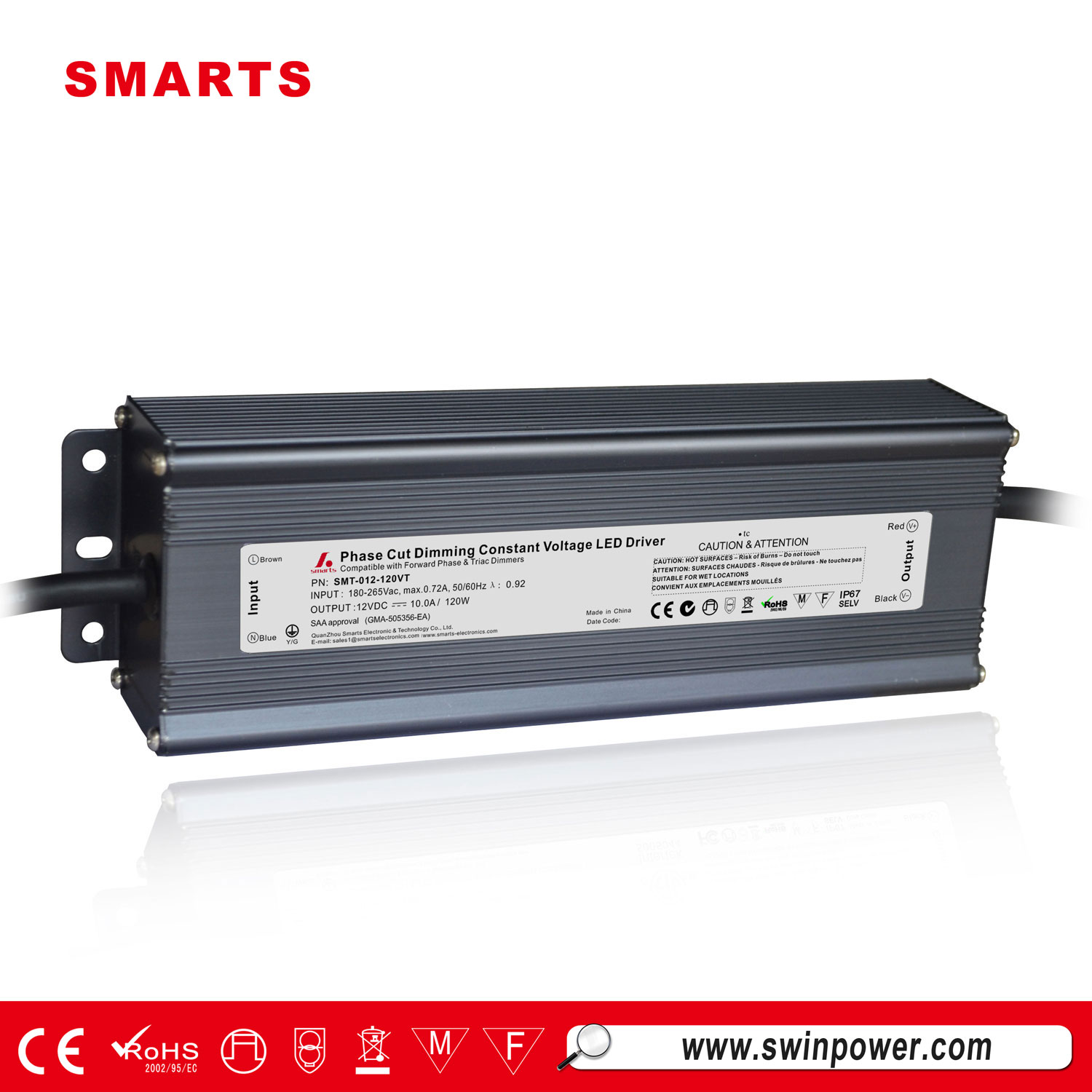

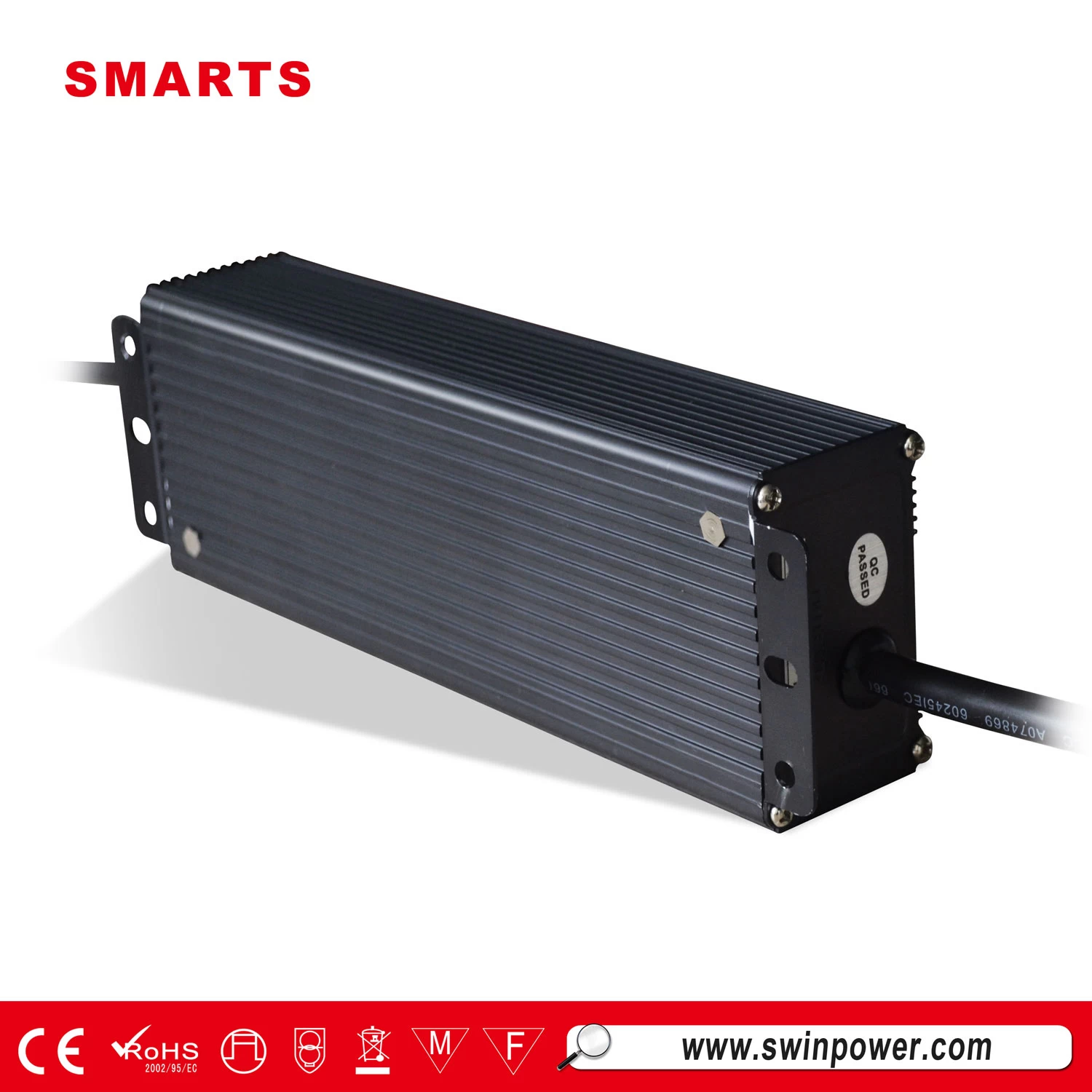

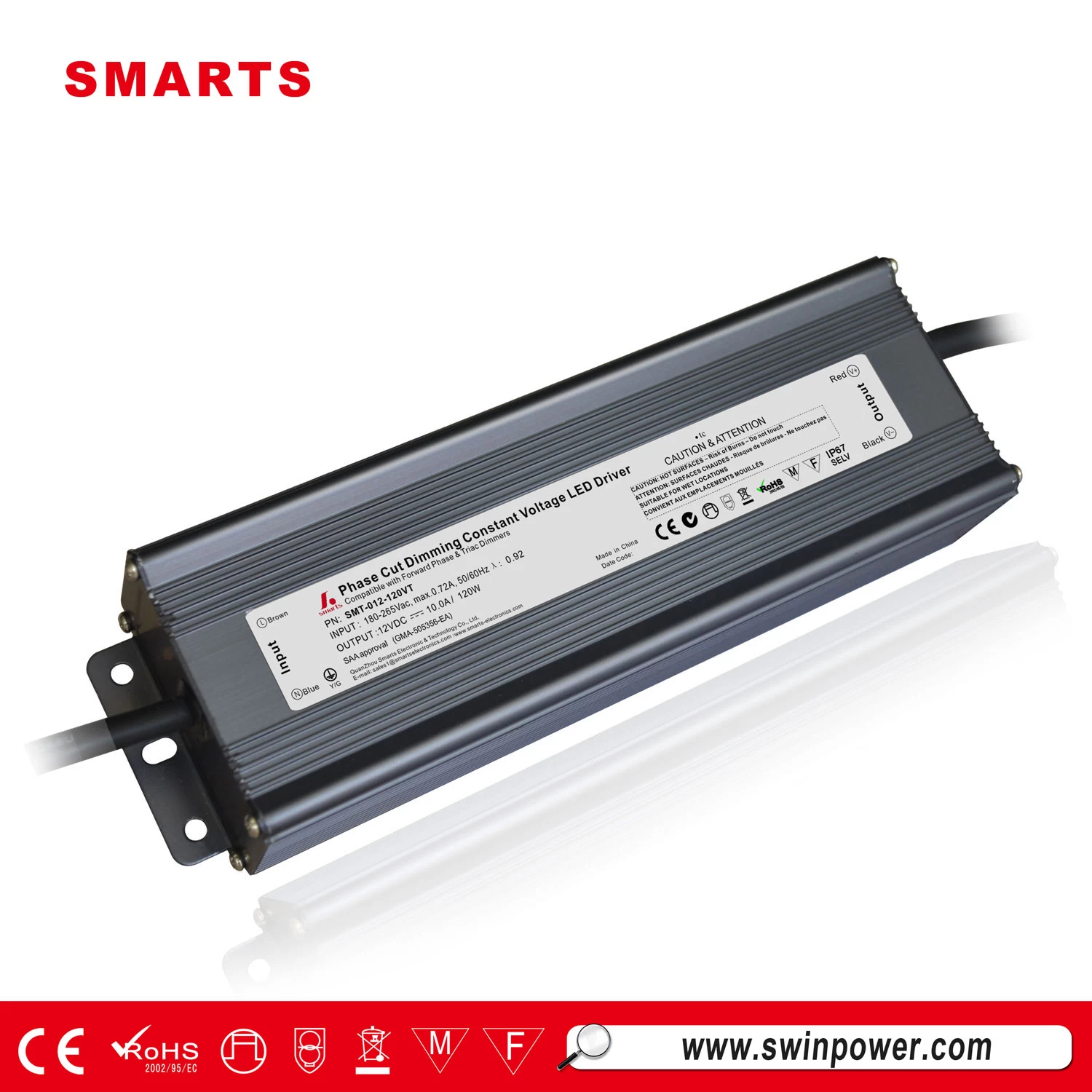

waterproof led power supply ip67 12 volt dc led power supply 120w
The waterproof rate of led power supply is ip67. 120w led power supply includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage.
Specification
|
model
|
SMT-012-120VT
|
SMT-024-120VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
10.00A
|
5.00A
|
|
Rated power
|
120W
|
|
Input
|
Voltage Range
|
180～265V AC
|
|
Frequency Range
|
50～60HZ
|
|
Power Factor ( Typ.）
|
PF≧0.81/180V,PF≧0.82/220V,PF≧0.82/265V
|
|
Full Load Efficiency（Typ.）
|
>83%
|
>83%
|
|
AC Current（Typ.）
|
0.63A/180VAC 0.57A/220VAC 0.52A/265VAC
|
|
Leakage current
|
﹤0.27mA/180V/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over voltage
|
≦270VAC(180~265V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
230*70*46mm（L*W*H）
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
