waterproof level ip67 led power supply 30w 12 volt dc dimmable drivers for led lights

A 12v 30w led dimming power supply with a waterproof rating of ip67. The led driver can protect from short circuit, overvoltage and over heat


  • Dimming modetriac dimmable
  • Working ModeCV
  • Output Current2.5A
  • Output Voltage12V
  • CertificationUL
  • Size260*32*20mm
  • Input Voltage100-277VAC

waterproof level ip67 led power supply 30w 12 volt dc dimmable drivers for led lights


A 12v 30w led dimming power supply with a waterproof rating of ip67. The led driver can protect from short circuit, overvoltage and over heat. It also has ul-certified security and complies with global lighting safety regulations.


  Features

·Output constant voltage

·Input voltage range 100-277VAC

·UL, cUL listed, Class 2, Class P approval

·Built-in PFC function / Efficiency > 80% / PF> 0.99

·Dimming range: 0~100% / load:10~100%

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor dry or damp environment installations

·Cooling by free air convection

·Work with leading edge and trailing edge triac dimmers available

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty


  Specification


model

SMT-012-030VTSW

SMT-024-030VTSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V

Full Load EfficiencyTyp.

>79%

>81%

AC CurrentTyp.

0.5A/100VAC  /  0.13A/277VAC

Inrush CurrentTyp.

7A, 50%, 420us

Leakage current

<0.27mA/110VAC; 0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

    Alight industry level

Others

Weight

0.35Kg

Size

260*32*20mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

          Rated load and 25℃of ambient temperature.

      2. Tolerance:includes set us tolerance,line regulation and load regulation .



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver

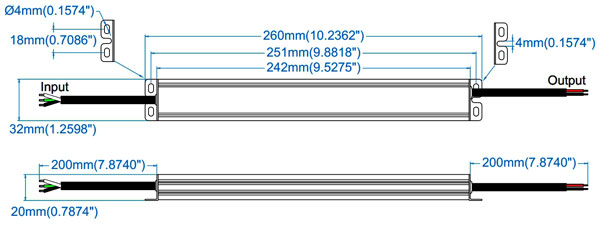

  Mechanical Specification




※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

※Output: Red isDIM+,Black isDIM-



  Dimming Operation


※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..

※Please try to use dimmers with power at least 1.5 times as the output power of the driver.



  Packaging and Shipping


dimmable drivers for led lights


We have 7 kinds of led drivers or led power supply:

  • 1.Constant Voltage LED Driver;
  • 2.Constant Current LED Driver;
  • 3.Triac CC&CV Dimmable LED Driver
  • 4.0-10v CC&CV Dimmable LED Driver
  • 5.DALI CC&CV Dimmable LED Driver
  • 6.Enclosure Power Supplies
  • 7.Power adapters

All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
