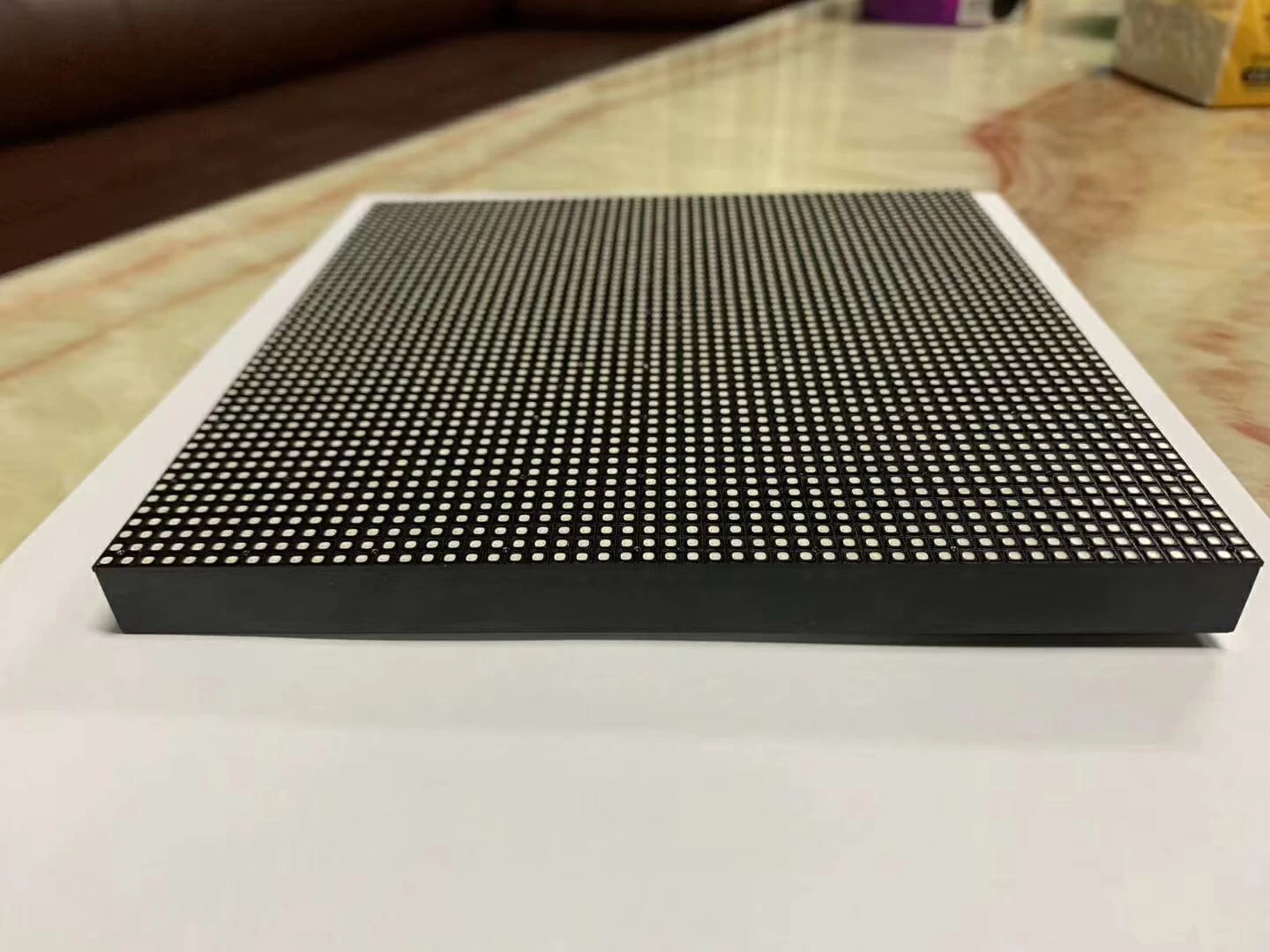

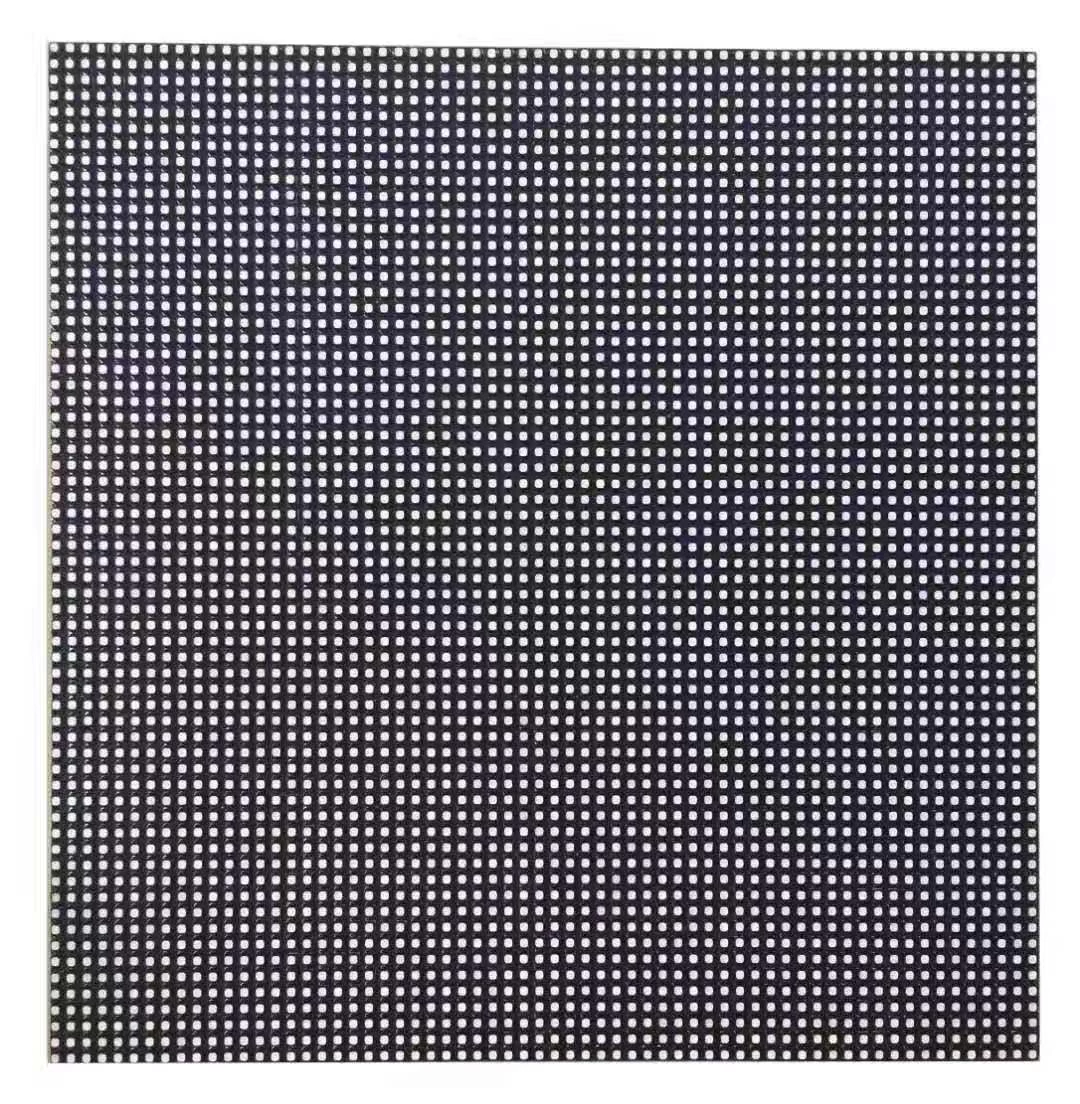

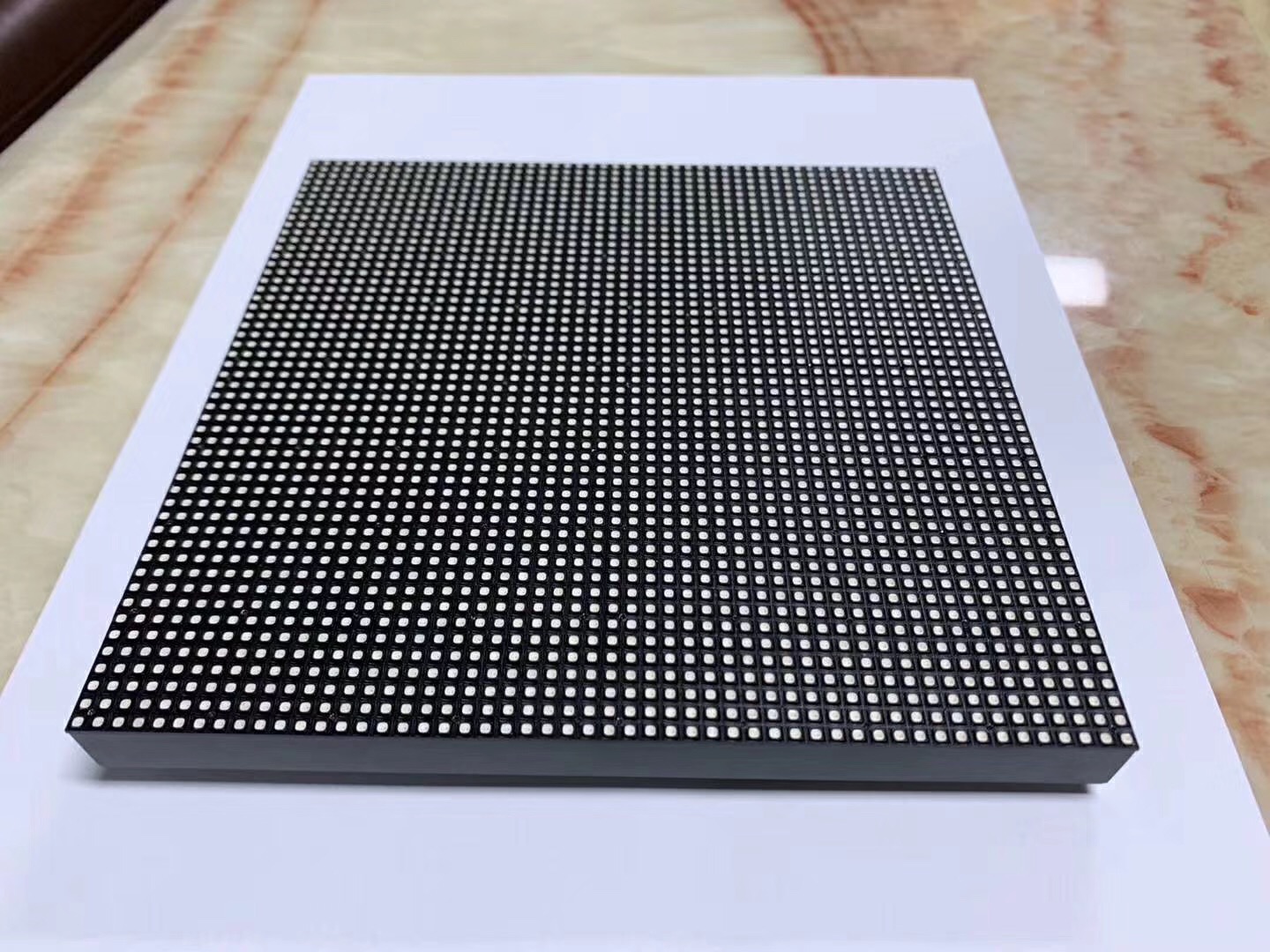

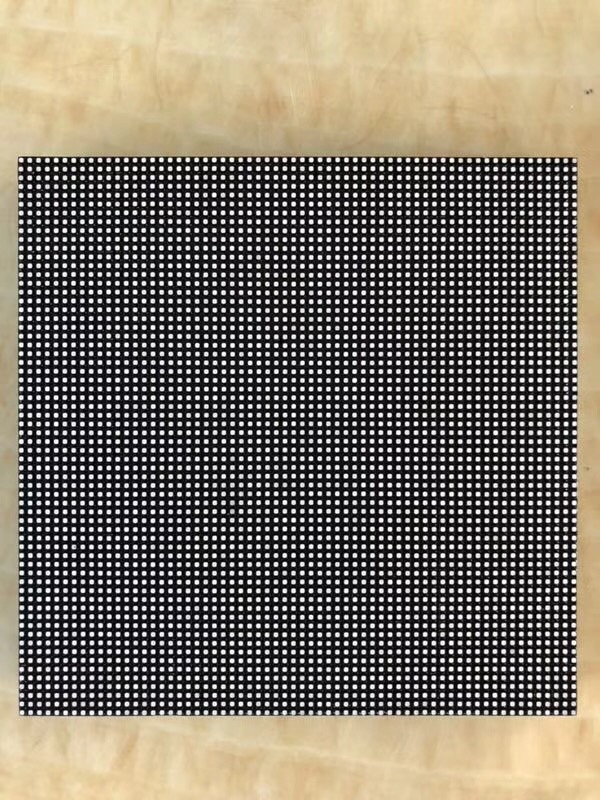

Waterproof P3mm Outdoor LED Display Module 192mm x 192mm
High Brightness and High Resolution.
The Smallest Pixel Pitch P3mm outdoor led display Module
LED Module Size: 192mmx192mmx17.5mm, LED Module With 1.6cm PCB and No LED mask.
LED Module Brightness: 6000-7000 CD/m2(Nits)
LED Module Power Consumption: 35W/PC
Nationstar LED with MBI5124 / ICN2053 Driving IC or SM16237 Energy Saving Driving IC.
P3mm Outdoor led display module solution 64x64 pixels

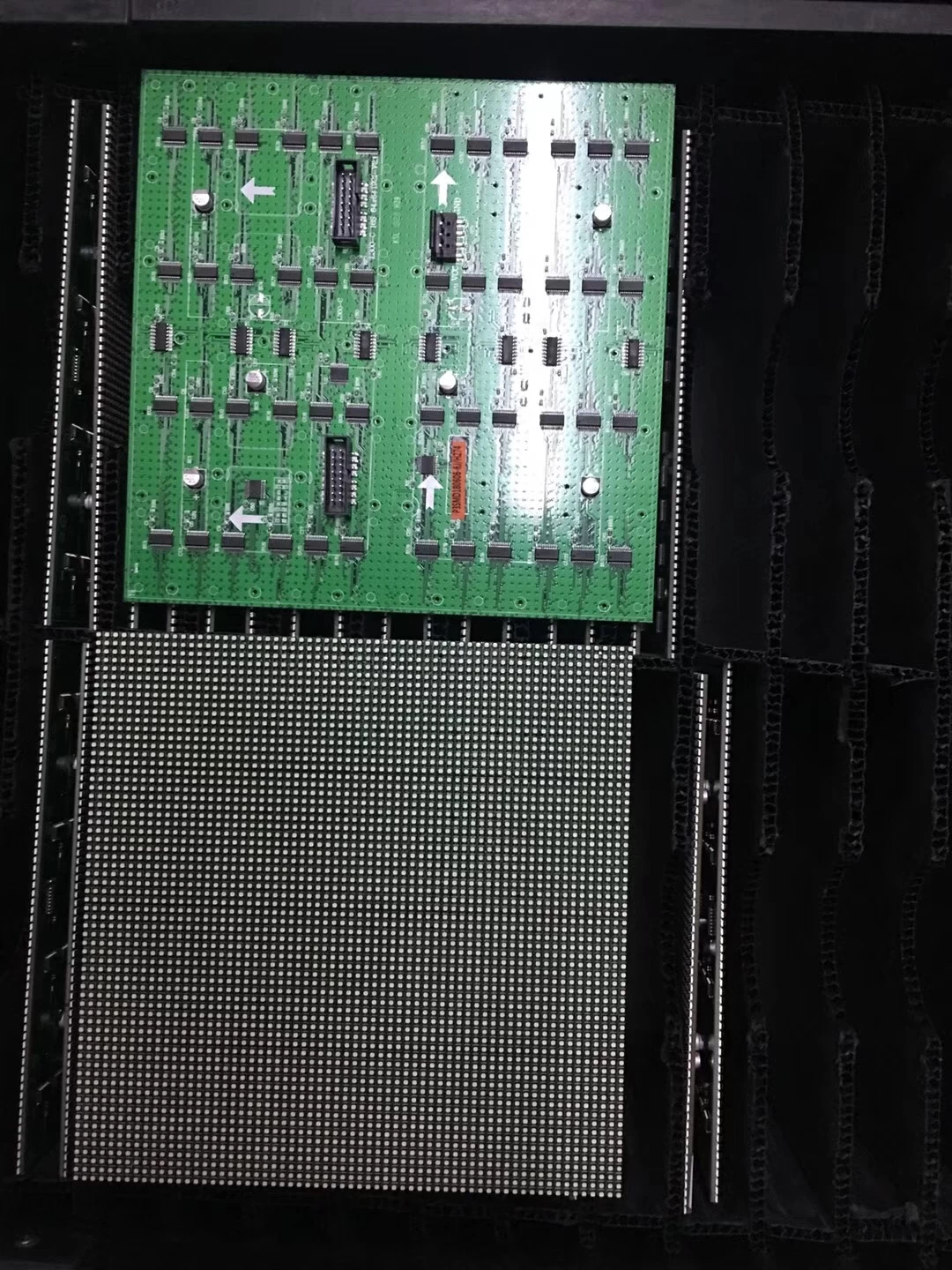

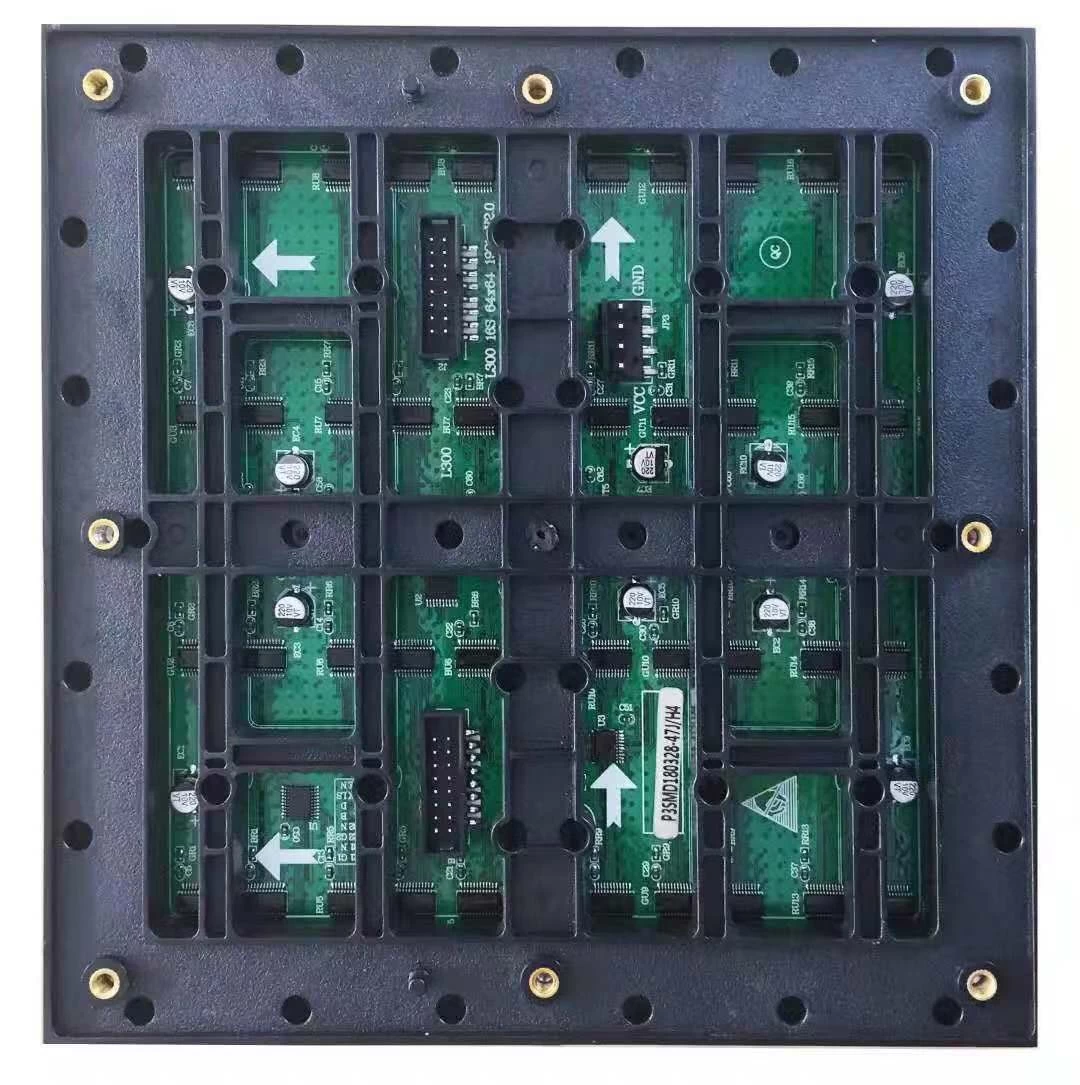

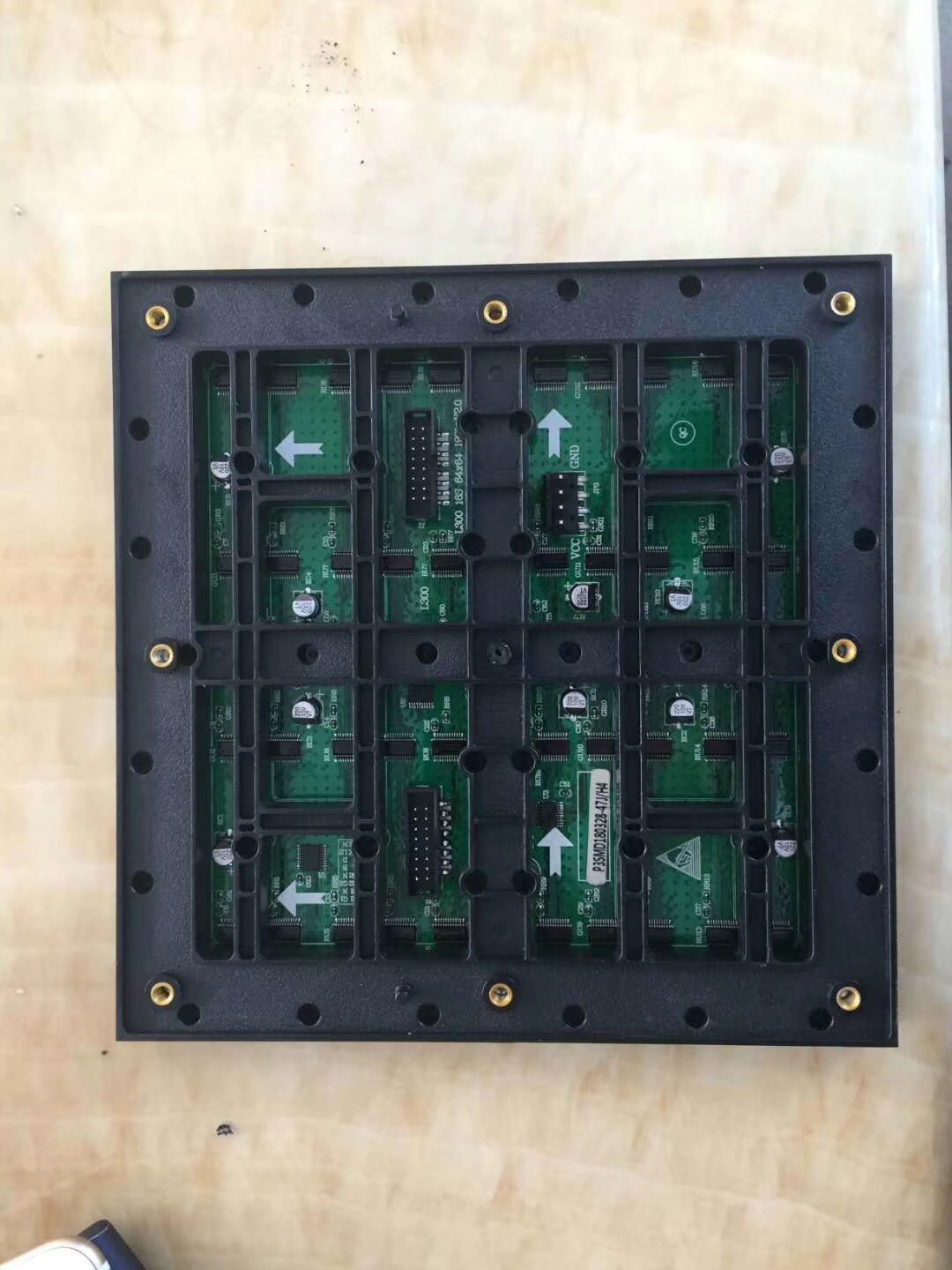

4 Layer PCB Board Outdoor P3mm LED Display Panel
High Quality LEDs
The Outdoor LEDs we choose CREE / Nationstar Gold Wire LED Chips SMD LED 1921 that have the high reliability and contrast, wide view angle and good consistency which meet the need of high brightness, high refresh rate,high gray scale and keep natural color at one time with best color uniformity.
1. SMD Outdoor LED Module Including the Data & Power Cables, Waterproof Rubber Ring.
2. Epistar LEDs, 5 Years Warranty, Ship in 24 hours, Free Online Support.
3. LED Module Can Work With Linsn, Novastar, Colorlight, Xixun, Huidu LED Conrol Card Etc.
PH3 Outdoor LED Display Module Technical Specifications Datasheet
|
P3 Outdoor LED Display Panel Parameter:
|
|
LED ModuleDimension
|
192mm（W）*192mm（H）
|
|
Pixel pitch
|
3mm
|
|
Pixel Density
|
111111/ M2
|
|
Pixel configuration
|
1R1G1B
|
|
LED specification
|
SMD1921 LED
|
|
Pixel resolution
|
64（W）*64（H）
|
|
Average power
|
35W
|
|
Panel weight
|
0.25KG
|
|
Humidity
|
10%-95%RH
|
|
Hub connecting
|
HUB75
|
|
Best viewing angle
|
Horizontal >170 Vertical>140
|
|
Best viewing distance
|
3-30M
|
|
Working temperature
|
-30-+60
|
|
Panel power supply
|
DC5V 40A
|
|
Screen power supply
|
110v-220VAC/50HZ+_10%
|
|
Max power
|
<900W/M²/PANEL
|
|
Average power
|
320W/M²/PANEL
|
|
Driving device
|
MBI5124/ICN2153 Constant current driver
|
|
Drive type
|
1/16Scanning
|
|
Refresh frequency
|
3840HZ
|
|
Display color
|
16.7M
|
|
Brightness
|
6000-7000cd/M2
|
|
Life span
|
100000Hours
|
|
Communication distance
|
<100M
|
|
Warranty
|
5 Years
|
|
Certificates
|
UL EMC CE RoHs FCC
|
