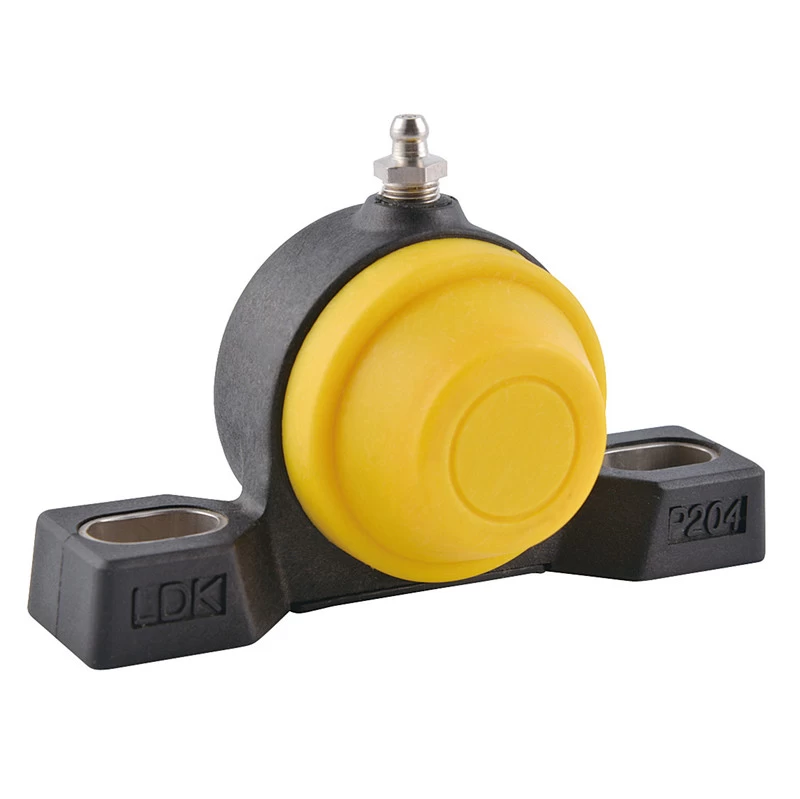

Waterproof Plastic Bearing Units WP-SSBP2


WP-SSBP   Water-Proof thermoplastic housed units,Pillow blocks




Waterproof Plastic Bearing Housings WP-SSBP204

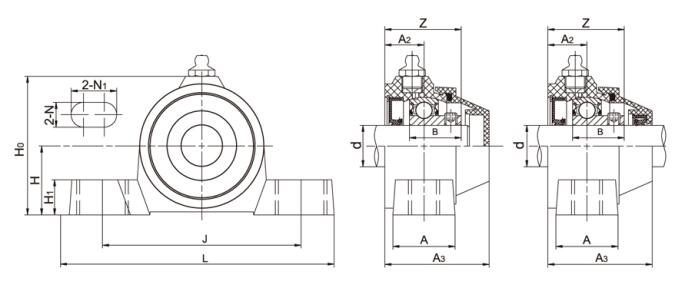

Unit No. Shaft Dia Dimensions(mm) Bolt size (mm) Housing Weight (kg)
d L J H Ho H1 N N1 A A1 B Z A3
(in) (mm)
WP-SSBP204  20 128 96 33.3 67 17 12 22 30 18.9 25 37.2 49.7 M10 0.26
WP-SSBP204-12 3/4 128 96 33.3 67 17 12 22 30 18.9 25 37.2 49.7 M10 0.26
WP-SSBP205  25 140 106 36.5 75 17 12 22 34.5 18.8 27 38.3 51.5 M10 0.33
WP-SSBP205-14  7/8  140 106 36.5 75 17 12 22 34.5 18.8 27 38.3 51.5 M10 0.33
WP-SSBP205-15  15/16  140 106 36.5 75 17 12 22 34.5 18.8 27 38.3 51.5 M10 0.33
WP-SSBP205-16 1 140 106 36.5 75 17 12 22 34.5 18.8 27 38.3 51.5 M10 0.33
WP-SSBP206  30 163 121 42.9 88 22 14 24 36 19.7 30 40.7 55 M12 0.49
WP-SSBP206-17  1-1/16 163 121 42.9 88 22 14 24 36 19.7 30 40.7 55 M12 0.49
WP-SSBP206-18  1-1/8  163 121 42.9 88 22 14 24 36 19.7 30 40.7 55 M12 0.49
WP-SSBP206-19  1-3/16  163 121 42.9 88 22 14 24 36 19.7 30 40.7 55 M12 0.49
WP-SSBP206-20 1-1/4 163 121 42.9 88 22 14 24 36 19.7 30 40.7 55 M12 0.49
WP-SSBP207  35 167 126 47.6 98 20 14 24 38.6 21.3 32 44.6 61 M12 0.64
WP-SSBP207-20  1-1/4  167 126 47.6 98 20 14 24 38.6 21.3 32 44.6 61 M12 0.64
WP-SSBP207-21  1-5/16  167 126 47.6 98 20 14 24 38.6 21.3 32 44.6 61 M12 0.64
WP-SSBP207-22  1-3/8  167 126 47.6 98 20 14 24 38.6 21.3 32 44.6 61 M12 0.64
WP-SSBP207-23 1-7/16 167 126 47.6 98 20 14 24 38.6 21.3 32 44.6 61 M12 0.64
WP-SSBP208  40 185 136 50 102 20 14 24 38.6 25 34 50.3 66.5 M12 0.86
WP-SSBP208-24  1-1/2  185 136 50 102 20 14 24 38.6 25 34 50.3 66.5 M12 0.86
WP-SSBP208-25 1-9/16 185 136 50 102 20 14 24 38.6 25 34 50.3 66.5 M12 0.86

Notes: Anti_Bacteria Protection Series ia available by adding prefix "AB" as designation.Ordering example: ABWP-SSBP204.
