Application:
1) Can be used as dormitory temporary hospital toilet office storage room etc
2) Can be installed in a short time assembled by bolts with a high intensity
3) Can be used repeatedly with a life span of more than 15 years
4) With a well-sealed and reliable structure water-proof fire-resistant moisture-proof and anti- corrosive
5) With supporting facilities such as washbasin shower air-conditioner, socket and so on
|
Name
|

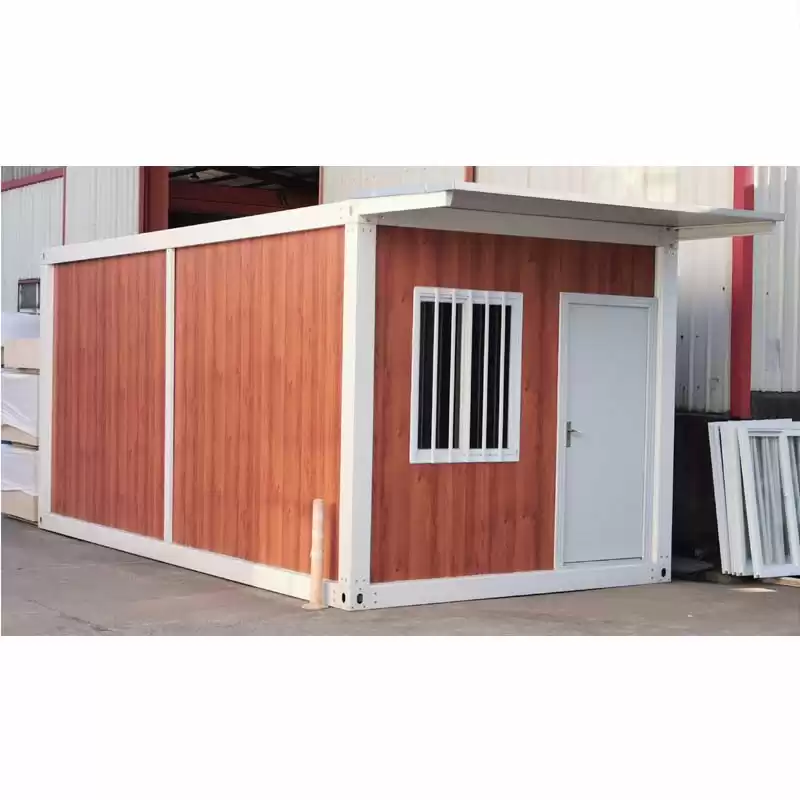

Assembled prefabricated detached Houses
|
Door
|
0.85*2.05m steel security door
|
|
Size
|
3x5.95x2.8m
|
Wind-resistance
|
Grade 11
|
|

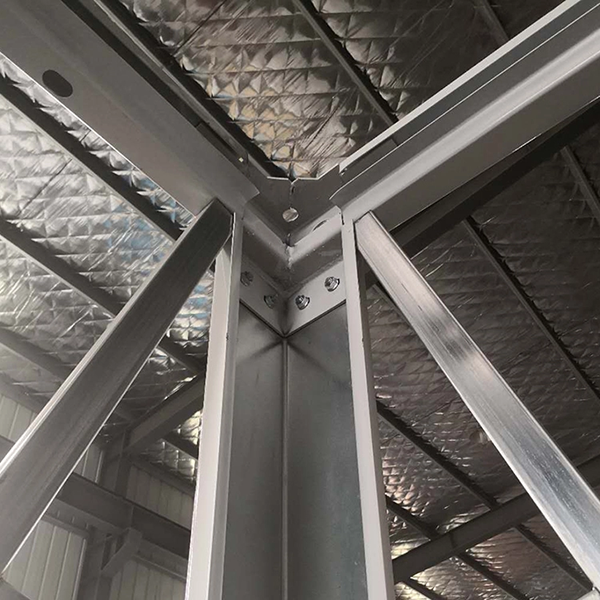

Main Frame
|
2.33mm steel bending with powder painting
|
Earthquake
|
Grade 7
|
|
Wall Panel
|
50/70/100mm sandwich panel
|
Live load capacity
|
0.6kn/m2
|
|
Roof Sheet
|
0.55mm color steel sheet
|
Wall permitted loading
|
0.6kn/m2
|
|
Roof Insulation
|
50mm glass wool with aluminum foil
|
Heat transmission coefficient
|
0.35kcal/m2hc
|
|
Celling
|
0.4mm color steel sheet
|
Density of EPS
|
8~12kg/m2
|
|
Flooring
|
Galvanized steel square tube
|
Delivery time
|
Normally 10~15 days
|
|
Window
|
Aluminum window with security grille
|
Container loading
|
15 sets/40HQ
|
