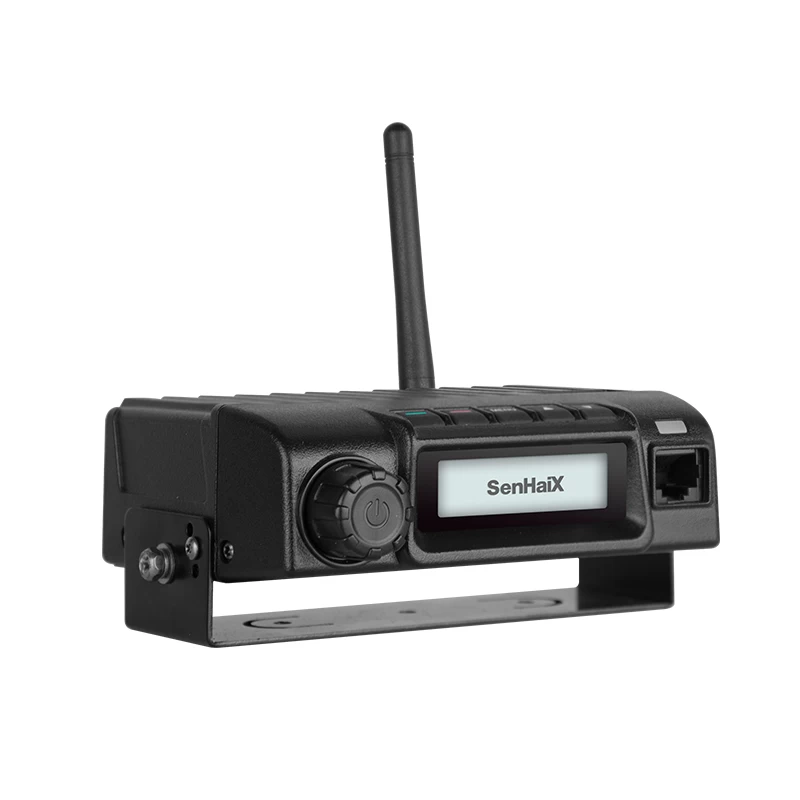

WCDMA 3G Vehicle Radio With GPS Function

SenHaiX SPTT-100 is functional, simple-to use Vehicle Radio with GPS function, REAL PTT platform, WCDMA Network Radio, easy to operate mobile radio, are created to give you the immediate, reliable communication you need to keep mobile teams working efficiently.



Product Name: WCDMA 3G Vehicle Radio With GPS Function

Product Features

1. Unlimited Groups
2. Unlimited Friends
3. Unlimited Users
4. Back light Setting
5. Radio Information
6. Version Information
7. GPS Function ( Logitute & Latitute Location )
8. Support 2G/3G , WCDMA/GSM
9. Support Signal Strength Test
10. Support GPS Position Signal Test
11. Online Upgrade
12. All Call, Group Call & Individual Call

Technical Specifications

General Specification
Model No. SPTT-100
Dimension 120x95x38mm
Weight 500g
Working Voltage DC 3.6-4.2V
Working Current 250mA@UMTS 2100/900
220mA@GSM 900
Peak Current 0.8A
Working Temperature -30℃ to +75℃
RF Parameter
Frequency Range GSM   850/1900MHz   900/1800MHz
WCDMA  850/1900MHz   900/2100MHz
Maximum Output Power WCDMA 2100/1900/900/850MHz:
Power class 3 (+24dBm +2.5/-1.5dBm)
GSM/GPRS 850MHz/900MHz:
Power class 4 (+33dBm +2.5/-0.5dBm)
GSM/GPRS 1800MHz/1900MHz:
Power class 1 (+30dBm +2.5/-0.5dBm)
Receiving Sensitivity WCDMA 2100: ≤-108dBm
WCDMA1900: ≤-109dBm
WCDMA900: ≤-109dBm
WCDMA850: ≤-109dBm
GSM850/900/1800/1900: ≤-107dBm
GPS
GPS GPS Positioning, 1.57542GHz
Sensitivity Catch -144dBm, Track -159dBm
    Technical Sensitivity
Data Speed Rate GSM CS: UL 9.6kpbs/ DL 9.6kpbs
GPRS: Multi-slot Class 10
EDGE: Multi-slot Class 12
WCDMA CS: UL 64kpbs/ DL 64kpbs
WCDMA PS: UL 384kpbs/ DL 394kpbs
Protocol HSDPA/WCDMA/EDGE/GPRS/GSM

Our company has developed a complete variety of 3G Vehicle Radios. Welcome to view more.



Standard Accessories

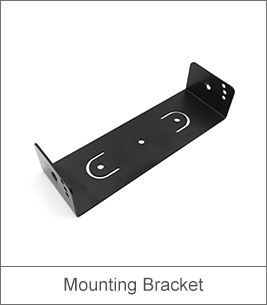

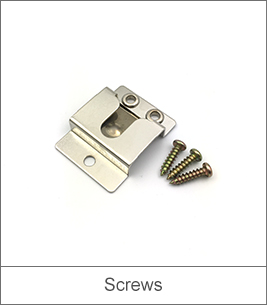

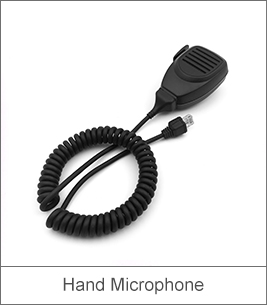

Mobile Radio Mounting Bracket Senhaix  Hand Microphone Senhaix  Mobile Radio Screws Senhaix

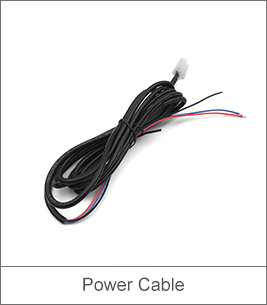

Mobile Radio Antenna Senhaix  Mobile Radio GPS Antenna Senhaix  Mobile Radio Power Cable Senhaix


Optional Accessories

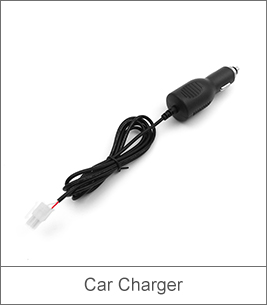

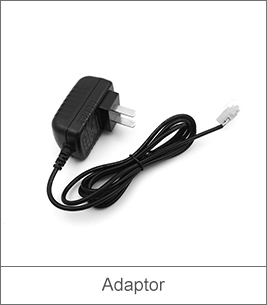

Mobile Radio Adaptor Senhaix  Mobile Radio Car Charger Senhaix
